Product Overview

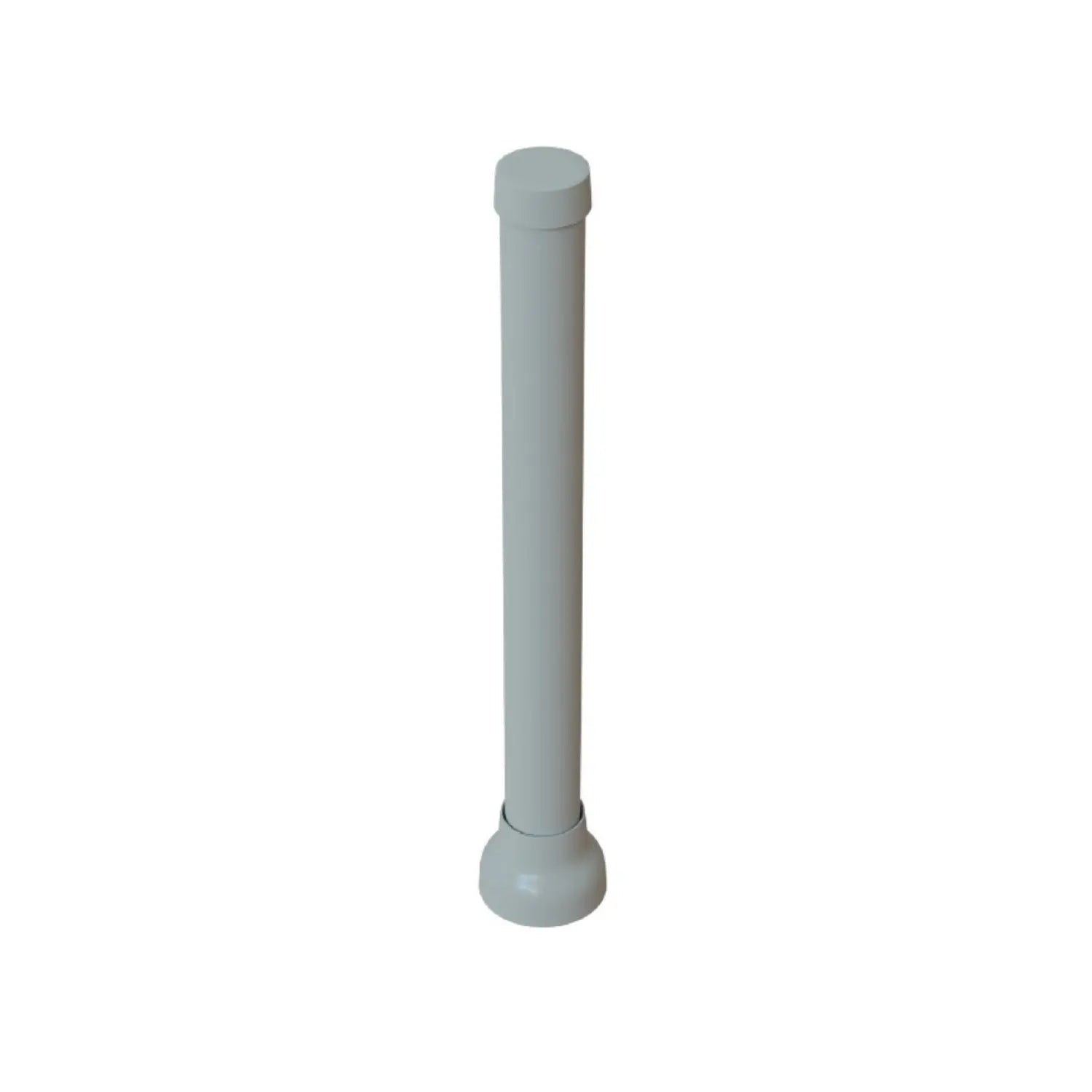

The BSM-6-60 is a 2x2 MIMO omnidirectional antenna for fixed cellular routers and modems. It covers 617-960 MHz and 1427-6000 MHz, including Band 71, and suits industrial and domestic IoT, cellular routers and M2M connections. Panorama notes its weather- and corrosion-resistant design also suits certain marine and coastal locations.

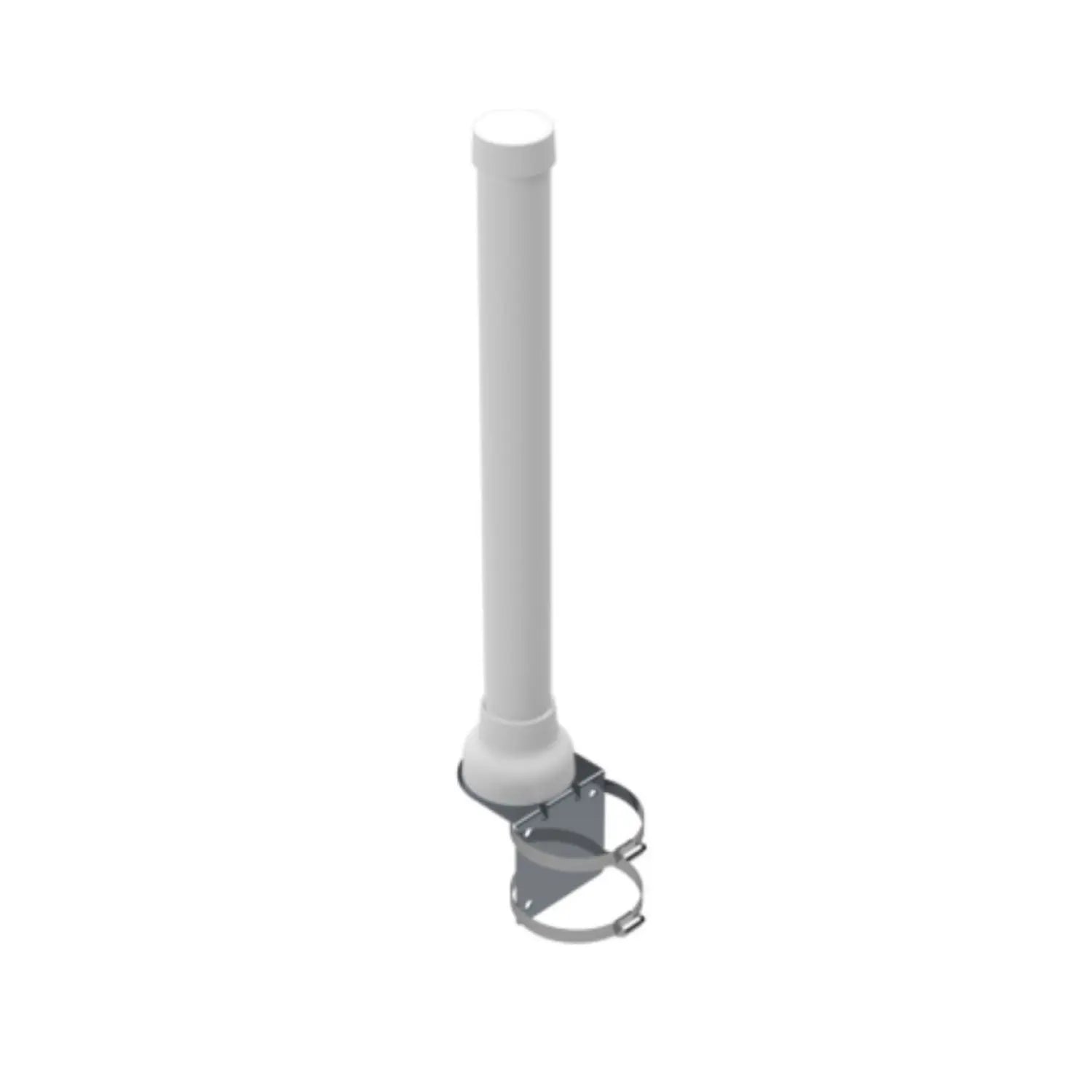

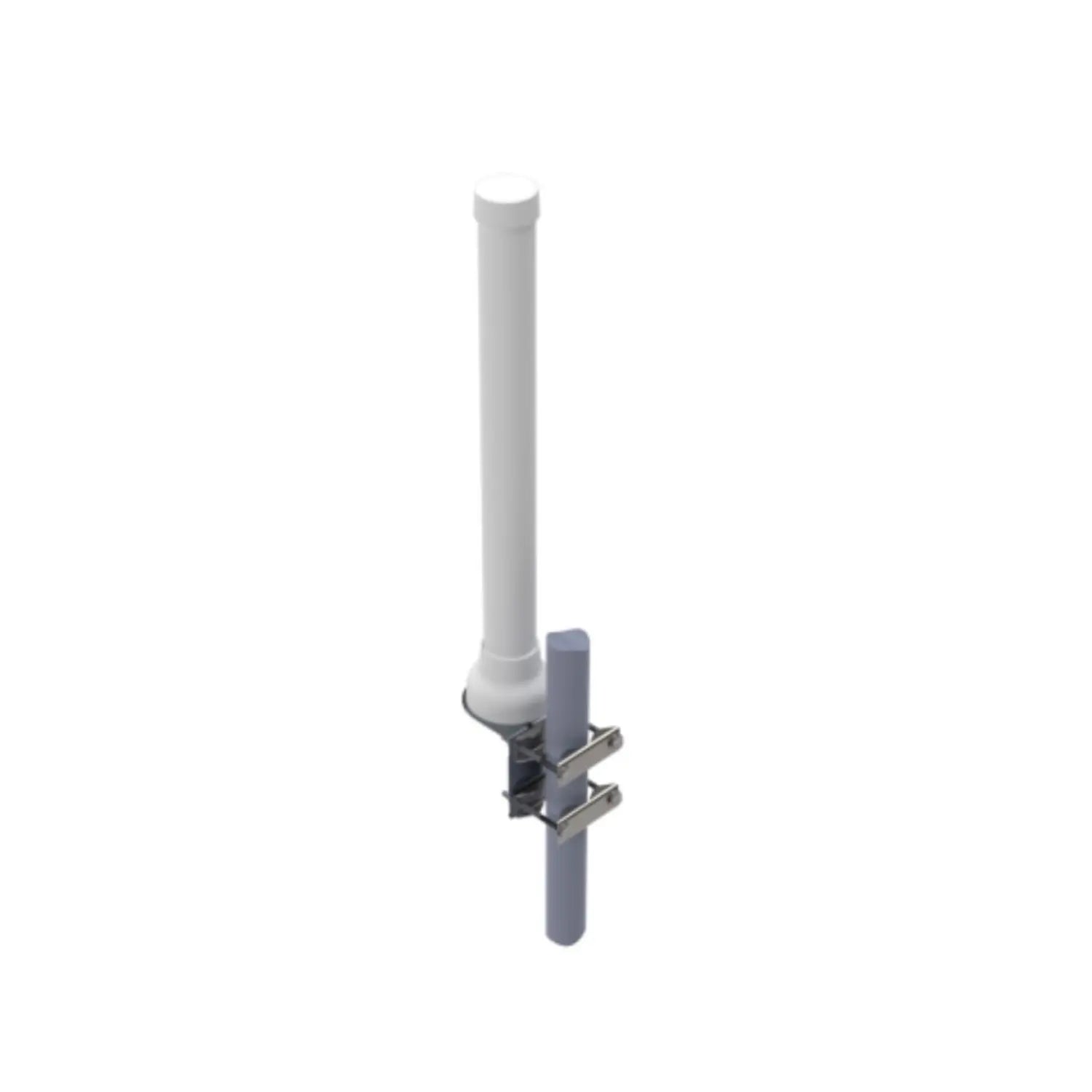

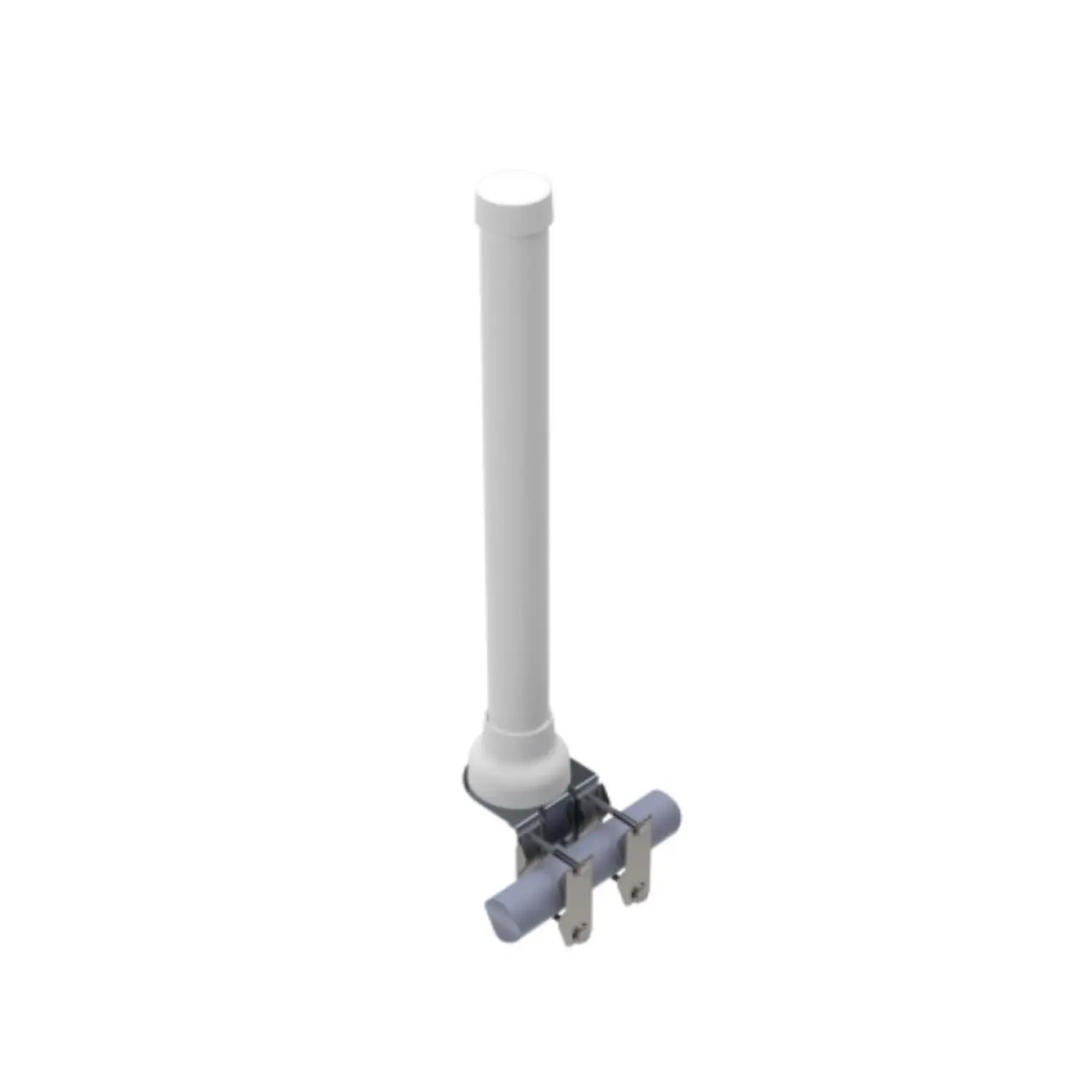

The BSM-6-60-5SP comes with 5 m (16.4 ft) flame-retardant cables ending in SMA male plugs, ready to connect to a router's SMA ports. The bracket supports wall mounting with the supplied screws and wall plugs, or mast and rail mounting with the supplied clamps.
Specifications
| Model | BSM-6-60-5SP |
|---|---|
| Antenna elements | 2x2 MIMO cellular |
| Cellular frequency and peak gain | 617-960 MHz (3 dBi), 1427-2700 MHz (6 dBi), 3400-4200 MHz (5 dBi), 4900-6000 MHz (5 dBi) |
| Radiation pattern | Omnidirectional |
| Max input power | 10 W |
| Connectors | 2 x SMA (m) |
| Cable | Integrated flame-retardant CS32, 5 m (16.4 ft) |
| Dimensions | 540 mm high x 86 mm diameter (21.26 x 3.39 in) |
| Operating temperature | -40 to +85 °C (-40 to +185 °F) |
| Ingress rating | IP67 |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Wall (screws and wall plugs supplied) or mast and rail (clamps supplied) |
| Housing color | White |
| Compatibility | Routers with two SMA female cellular ports |
View the Panorama BS[G]M-6-60 product page and datasheet
Right for you if
- Your fixed router uses 2x2 MIMO cellular and needs an outdoor omni antenna.
- You want Band 71 and coverage up to 6 GHz.
- You need an IP67 antenna for an exposed or coastal site.
- If you need a longer run with your own cable, see the BSM-6-60-05NJ.
FAQ
Do I need to aim this antenna?
No. The BS[G]M-6-60 has an omnidirectional pattern, so Panorama recommends placing it in an elevated position with no directional alignment. That suits sites where towers sit in more than one direction or where the strongest tower may change. If the nearest tower is far away in one known direction, a directional antenna is usually the better tool.
Which connector version should I order?
This listing is the BSM-6-60-5SP. Its 5 m cables end in SMA male plugs, which connect directly to most router SMA ports. Choose the BSM-6-60-05NJ if you need a longer run, since its N-type leads let you use lower-loss cable. Panorama also lists FAKRA and N-male versions.
Can I get it with GPS?
Yes. Panorama offers the BSGM-6-60, which adds an integrated GPS/GNSS module with a 26 dB LNA to the same 2x2 cellular antenna. RCN lists the BSM version without GPS here. Ask an RCN specialist if your router needs a GPS input from the same antenna.
