Product Overview

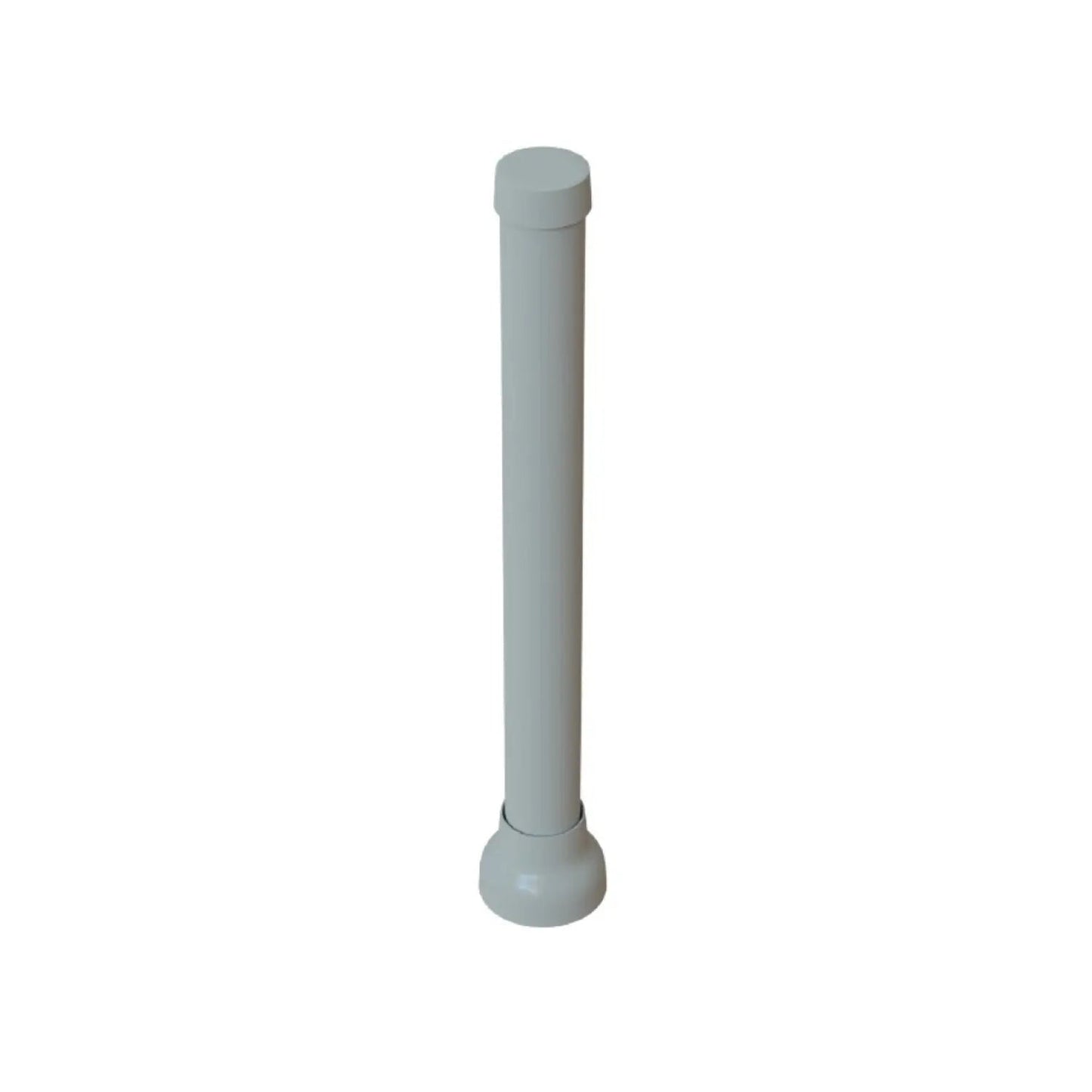

The BSM-6-60 is a 2x2 MIMO omnidirectional antenna for fixed cellular routers and modems. It covers 617-960 MHz and 1427-6000 MHz, including Band 71, and suits industrial and domestic IoT, cellular routers and M2M connections. Panorama notes its weather- and corrosion-resistant design also suits certain marine and coastal locations.
The BSM-6-60-05NJ has 0.5 m (1.64 ft) leads ending in N-type female connectors, so you can run lower-loss cable of the length your site needs. The bracket supports wall mounting with the supplied screws and wall plugs, or mast and rail mounting with the supplied clamps.
Specifications
| Model | BSM-6-60-05NJ |
|---|---|
| Antenna elements | 2x2 MIMO cellular |
| Cellular frequency and peak gain | 617-960 MHz (3 dBi), 1427-2700 MHz (6 dBi), 3400-4200 MHz (5 dBi), 4900-6000 MHz (5 dBi) |
| Radiation pattern | Omnidirectional |
| Max input power | 10 W |
| Connectors | 2 x N (f) |
| Cable | Integrated flame-retardant CS32, 0.5 m (1.64 ft) |
| Dimensions | 540 mm high x 86 mm diameter (21.26 x 3.39 in) |
| Operating temperature | -40 to +85 °C (-40 to +185 °F) |
| Ingress rating | IP67 |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |

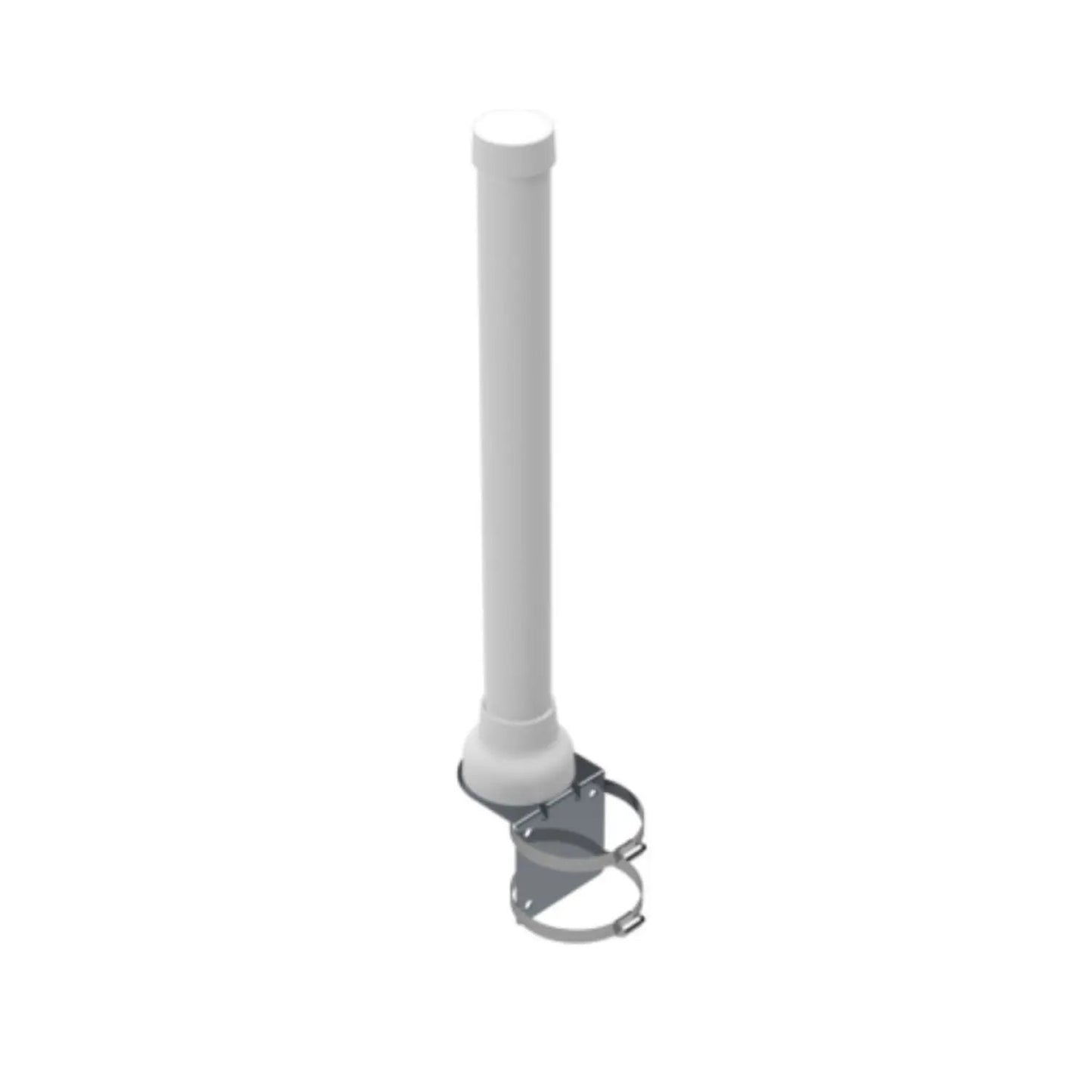

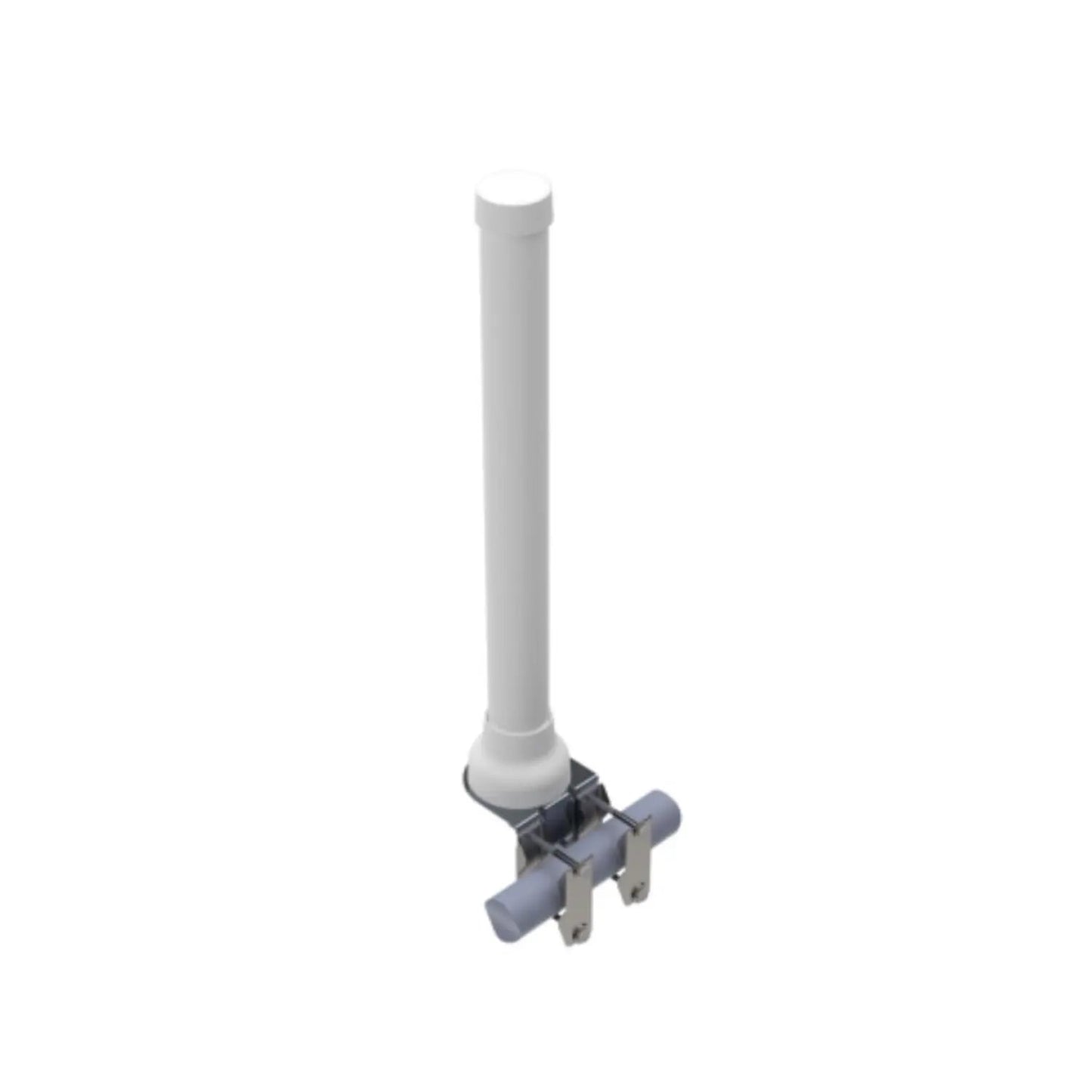

| Mounting | Wall (screws and wall plugs supplied) or mast and rail (clamps supplied) |
| Housing color | White |
| Compatibility | Routers with two cellular ports, using N-male extension cables |
View the Panorama BS[G]M-6-60 product page and datasheet
Right for you if
- Your fixed router uses 2x2 MIMO cellular and needs an outdoor omni antenna.
- You want Band 71 and coverage up to 6 GHz.
- You need an IP67 antenna for an exposed or coastal site.
- If you need cables ready to plug into SMA ports, see the BSM-6-60-5SP.
FAQ
Do I need to aim this antenna?
No. The BS[G]M-6-60 has an omnidirectional pattern, so Panorama recommends placing it in an elevated position with no directional alignment. That suits sites where towers sit in more than one direction or where the strongest tower may change. If the nearest tower is far away in one known direction, a directional antenna is usually the better tool.
Which connector version should I order?
This listing is the BSM-6-60-05NJ. Its 0.5 m leads end in N-type female connectors, which suit long runs of low-loss cable. Choose the BSM-6-60-5SP if your router is within 5 m and you want SMA plugs ready to connect. Panorama also lists FAKRA and N-male versions.
Can I get it with GPS?
Yes. Panorama offers the BSGM-6-60, which adds an integrated GPS/GNSS module with a 26 dB LNA to the same 2x2 cellular antenna. RCN lists the BSM version without GPS here. Ask an RCN specialist if your router needs a GPS input from the same antenna.
