Product Overview

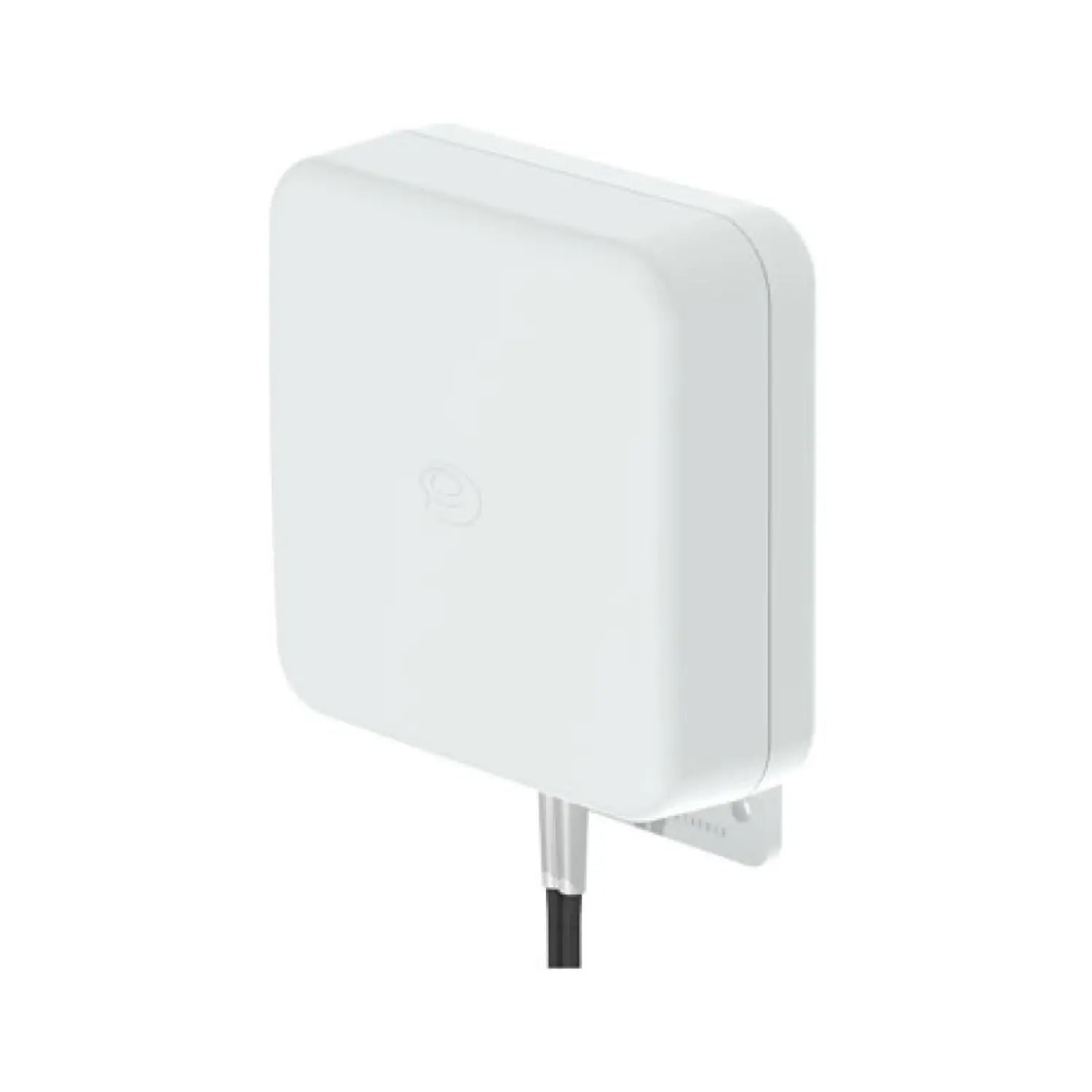

The WMMG-7-38 is a compact 2x2 MIMO panel antenna for branch offices, failover links and small sites, especially in metro and urban areas. Its wide beam gives 2 to 5 dBi across 698-3800 MHz without the precise aiming a high-gain directional antenna needs.
Wall and mast hardware and a desk stand come in the box, so it can go on an exterior wall, a mast or a window sill. Choose 5 m (16 ft) twinned CS29 cable with SMA male plugs, or 0.3 m (12 in) leads with N-type female connectors for a longer low-loss run.
Specifications
| Model | WMMG-7-38-5SP (5 m, SMA male); WMMG-7-38-03NJ (0.3 m, N-type female) |
|---|---|
| Antenna elements | 2x2 MIMO cellular |
| Cellular frequency and peak gain | 698-960 MHz (2 dBi), 1710-2170 MHz (5 dBi), 2200-3800 MHz (4 dBi) |
| Radiation pattern | Directional, wide beam |
| Max input power | 20 W |
| Connectors | 2 x SMA (m) on -5SP; 2 x N (f) on -03NJ |
| Cable | Integral twinned CS29 |
| Mounting | Wall or mast hardware and desk stand included |
| Dimensions | 155 x 155 mm (6.10 x 6.10 in) face |
| Operating temperature | -45 to +80 °C (-49 to +176 °F) |
| Ingress rating | IP65 |
| Housing color | White |
| Compatibility | Routers with two cellular ports: SMA female for the -5SP; N-type extension cables needed for the -03NJ |
View the Panorama WMMG[G]-7-38 product page and datasheet
Right for you if
- Your 2x2 MIMO router sits indoors and needs a modest boost from an exterior wall or window.
- You are in a metro or urban area with towers in a general direction.
- You want mounting hardware and a desk stand included.
- For a distant tower, the higher-gain WMM8G-7-38 reaches farther.
FAQ
How is this different from the WMM8G-7-38?
Both are 2x2 MIMO directional panels. The WMMG-7-38 has a wide beam with 2 to 5 dBi, which Panorama describes as ideal for metro and urban areas and easy to point. The WMM8G-7-38 offers up to 9 dBi with a narrower focus, which suits rural or fringe sites with one distant tower.
Can I put it on a window sill?
Yes. Panorama includes a desk stand so the WMMG-7-38 can sit on a window sill, as well as wall and mast hardware for outdoor mounting. Outdoors it is rated IP65. Indoors, place it on the side of the building facing the nearest tower and away from metal blinds or coated glass where possible.
SMA or N-type: which version should I order?
Order the -5SP if the router is within 5 m (16 ft); its twinned cable ends in SMA male plugs. Order the -03NJ if you need a longer run. Its 0.3 m leads end in N-type female connectors so you can use lower-loss cable. Extension cables for the -03NJ are sold separately.
