| Pattern | Directional |
|---|---|
| Max input power | 20W |
| Frequency range gain | 698 – 960MHz | 6dBi; 1710 – 2170MHz | 9dBi; 2396 – 2700MHz | 9dBi; 3400 – 3800MHz | 9dBi |
| Cellular lte elements | 2 x 2 MIMO |
| Wifi elements | No |
| Uhf elements | No |
Product Overview

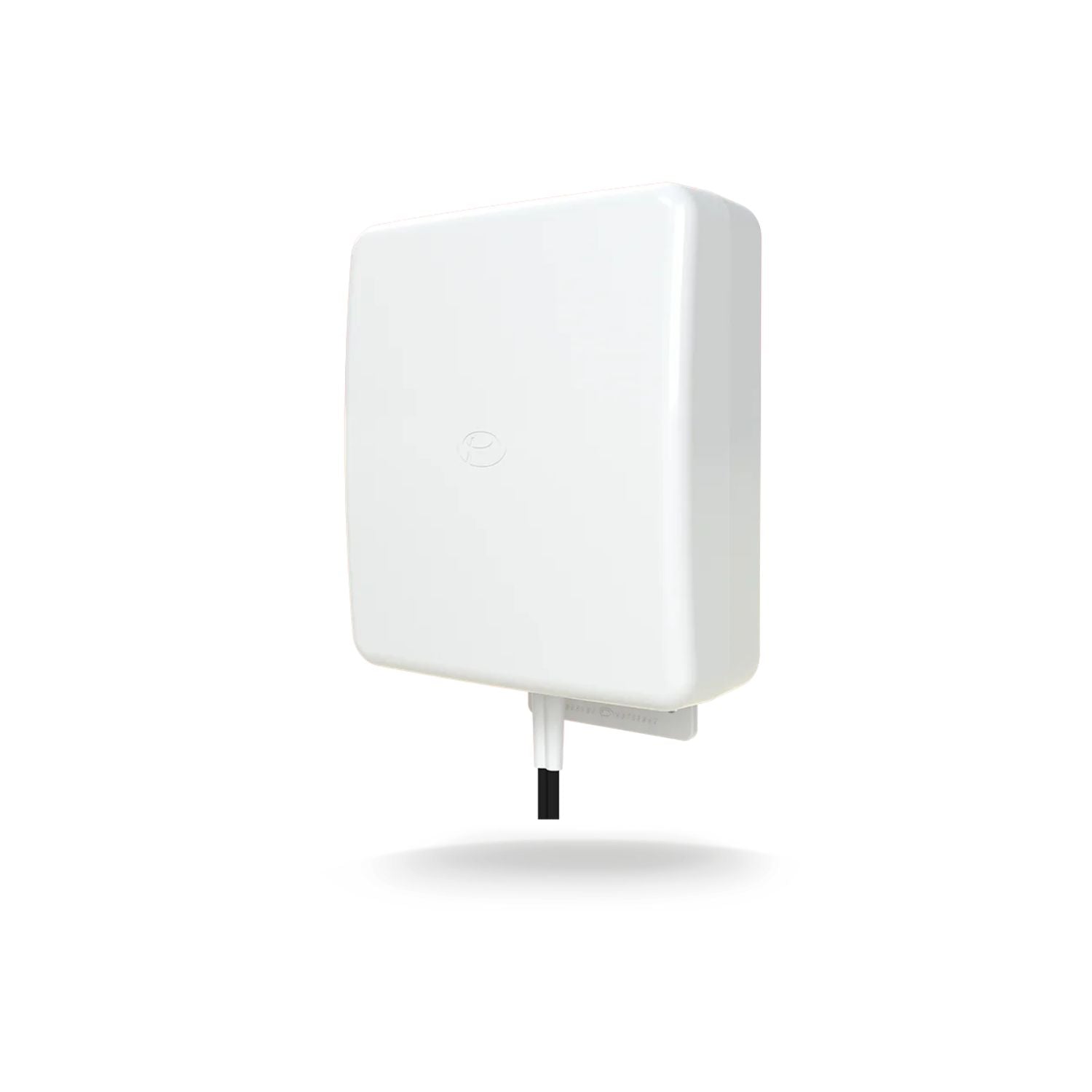

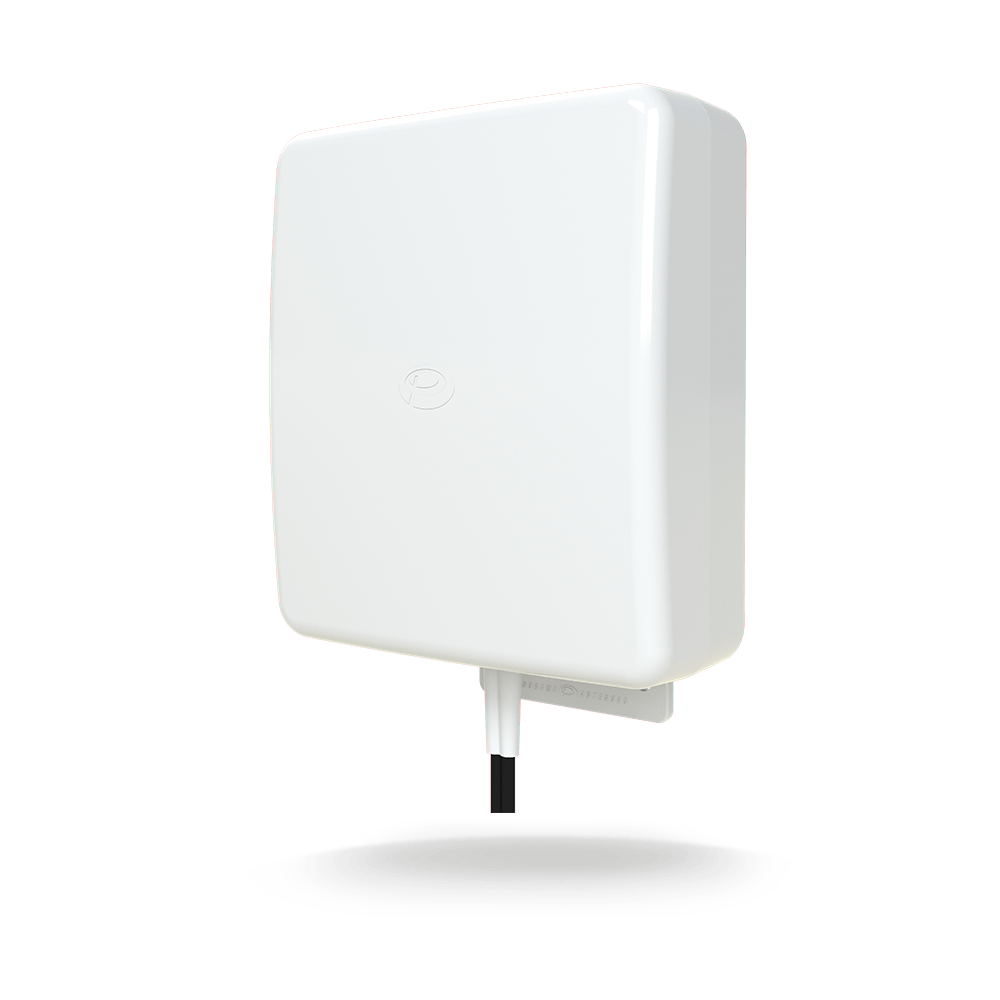

The WMM8G-7-38 is a directional 2x2 MIMO antenna for sites where the nearest tower is far away or the signal is weak. Aimed at the serving tower, it delivers up to 9 dBi from 1710 to 3800 MHz and 6 dBi in the 700/800 MHz bands, which can lift a rural or fringe-area connection.
It comes with wall, mast and desk mounting options and a choice of cable ends: 5 m (16 ft) with SMA male plugs, or 0.3 m (12 in) with N-type female connectors for your own low-loss cable run. The housing is rated IP65.
Specifications
| Model | WMM8G-7-38-5SP (5 m, SMA male); WMM8G-7-38-03NJ (0.3 m, N-type female) |
|---|---|
| Antenna elements | 2x2 MIMO cellular |
| Cellular frequency and peak gain | 698-960 MHz (6 dBi), 1710-2170 MHz (9 dBi), 2396-2700 MHz (9 dBi), 3400-3800 MHz (9 dBi) |
| Radiation pattern | Directional |
| Max input power | 20 W |
| Connectors | 2 x SMA (m) on -5SP; 2 x N (f) on -03NJ |
| Cable | Integrated CS29 |
| Mounting | Wall, mast or desk |
| Dimensions | 180 x 98 x 230 mm (7.09 x 3.86 x 9.06 in) |
| Operating temperature | -45 to +80 °C (-49 to +176 °F) |
| Ingress rating | IP65 |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Housing color | White |
| Compatibility | Routers with two cellular ports: SMA female for the -5SP; N-type extension cables needed for the -03NJ |
View the Panorama WMM8G-7-38 product page and datasheet
Right for you if
- Your site is in a rural or fringe area with one distant tower.
- Your router uses 2x2 MIMO cellular.
- You can aim the antenna and mount it on a wall or mast.
- If towers surround the site, an omnidirectional WMM4-7-49 is easier to install.
FAQ
Do I need to aim this antenna?
Yes. The WMM8G-7-38 is directional, so it performs best pointed at the serving tower. Use your router's signal readings to fine-tune the direction during installation. In return for the aiming work, Panorama lists up to 9 dBi of peak gain, which helps most at sites far from the nearest tower.
SMA or N-type: which version should I order?
Order the -5SP if the router is within 5 m (16 ft); it plugs straight into SMA female ports. Order the -03NJ if you need a longer run. Its 0.3 m leads end in N-type female connectors so you can add lower-loss cable of the right length. Extension cables for the -03NJ are sold separately.
Does it cover 5G?
Panorama lists the WMM8G-7-38 from 698 to 3800 MHz, which covers LTE and mid-band 5G up to 3.8 GHz. It does not cover 600 MHz Band 71 or bands above 3.8 GHz. Check which bands your carrier uses at the site before choosing a directional antenna.
