Product Overview
The Ericsson Cradlepoint E3000-5GB is the top of the enterprise branch line: a 2 Gbps stateful firewall, 1.5 Gbps of IPS, nine gigabit ports, a 2.5 GbE port, a 10 GbE SFP+ uplink, and four 802.3bt PoE ports with a 140 W budget that power cameras, phones, and access points directly. The embedded 5G modem is rated to 4.14 Gbps, and an MC400 slot adds a second modem at up to 1 Gbps.
It is the router for a full branch that would otherwise need a router, a switch, a PoE injector, and a Wi-Fi controller. RCN deploys it in county offices, larger clinics, and campus outbuildings where 5G is the primary or secondary WAN and the site has 100 or more devices.
What the SKU includes: every option on this page bundles the router with its Ericsson NetCloud plan for the term you choose (Essentials, or Essentials + Advanced, for 1, 3, or 5 years). NetCloud is required to configure and manage Cradlepoint hardware, and the hardware warranty runs for as long as the plan is active.
Specifications
| Cellular | 5G FR1 NSA/SA (3GPP Rel. 15) with LTE Cat 20; 4x4 MIMO; peak 4.14 Gbps DL / 660 Mbps UL |
|---|---|
| SIM | Dual 2FF SIM slots; automatic carrier selection |

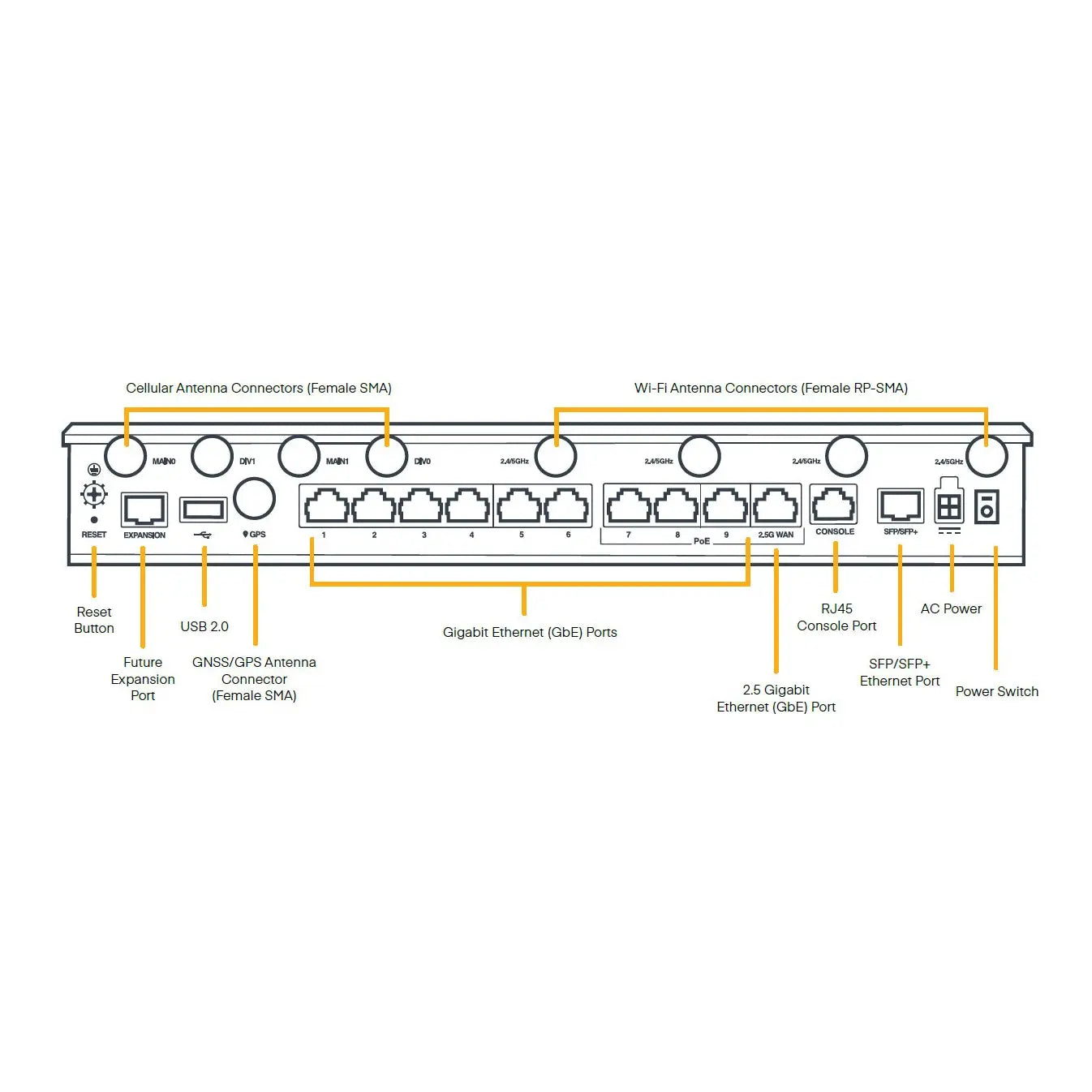

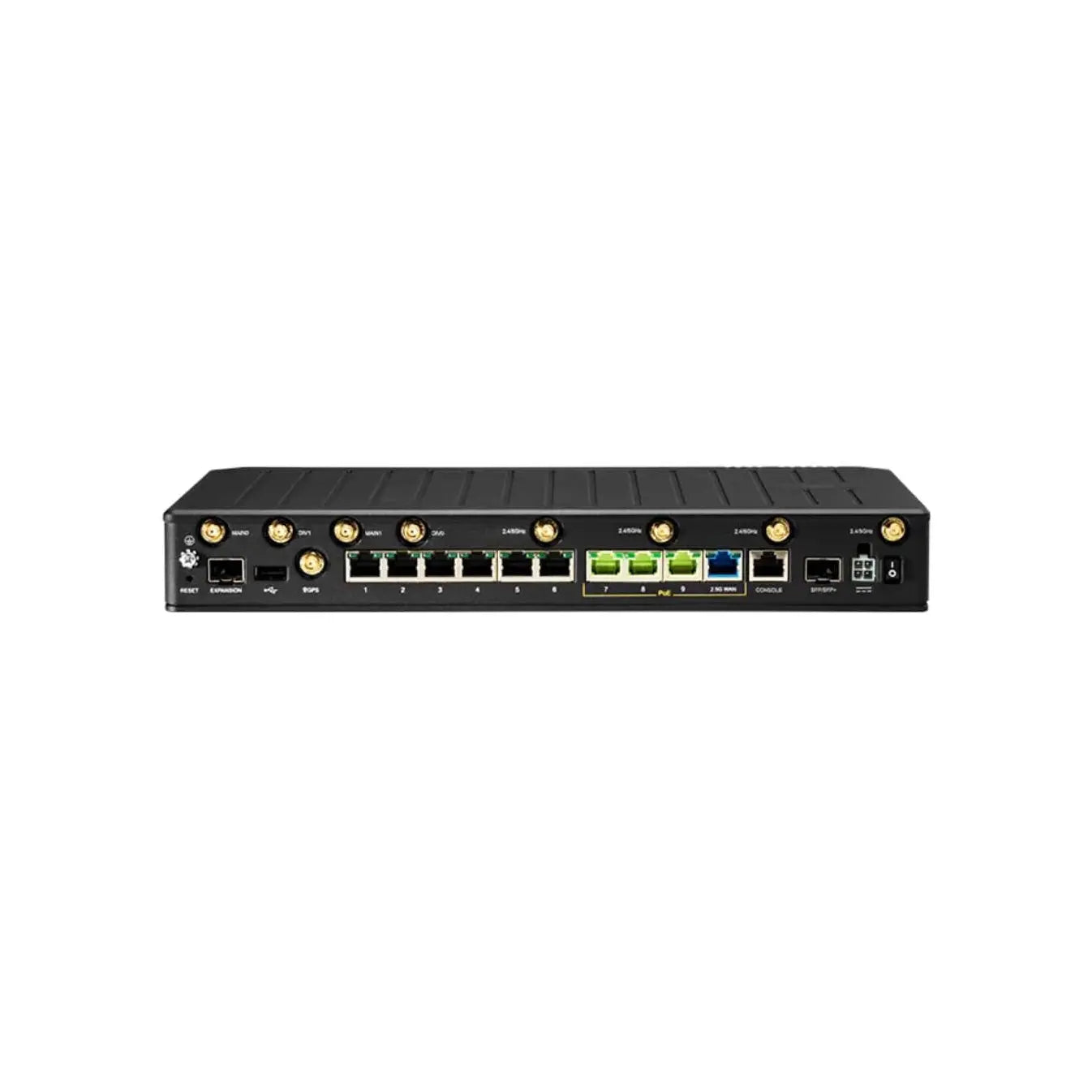

| Ethernet | 9x GbE RJ45 + 1x 2.5 GbE RJ45 + 1x 10 GbE SFP+, all LAN/WAN switchable |
| PoE | 4x 802.3bt Type 3/4 ports, up to 90 W per port, 140 W total budget |
| Wi-Fi | Dual-band concurrent 4x4 MU-MIMO 802.11ax (Wi-Fi 6) with DFS: 1,148 Mbps + 2,400 Mbps; external 4x4 antennas; WPA3 |
| Expansion | 1x MC400 modular modem slot (1 Gbps peak); 1x USB 2.0; MC20BT Bluetooth LE slot; RJ45 console |
| Antennas / GNSS | 4x SMA cellular and 4x RP-SMA Wi-Fi antennas included; passive GNSS (5GB) |
| Performance | Stateful firewall 2 Gbps; IPS/app-aware 1.5 Gbps; IPsec VPN 400 Mbps; 20 VPN tunnels; 130,000 sessions; typical 100 clients; 64 VLANs |
| Power | 54 VDC 3.34 A external supply (included); 17 W idle, 24 W heavy plus PoE load |
| Environmental | 0 to 50 C operating; indoor; rack-mount brackets included |
| Size / weight | 160 x 320 x 44 mm (6.3 x 12.6 x 1.7 in); 1.98 kg (4 lb 6 oz) |
| Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified; AT&T, T-Mobile, Verizon; PTCRB/GCF; FCC/IC/CE/RCM; UL/cUL; CBRS Band 48 |
| Management | Ericsson NetCloud Manager (plan included in each SKU); RCN's U.S.-based 24/7 NOC is available as a managed service (quoted separately) |
Ericsson Cradlepoint E3000 series datasheet
Right for you if
- The site has 50 to 100+ devices and you want one appliance instead of a router, switch, and PoE injector
- You are powering PoE cameras, phones, or access points off the router
- You need a 10 GbE uplink and a 2 Gbps firewall so security is never the bottleneck
- Dual-carrier 5G via the MC400 slot is part of the design
E3000 vs. E300 vs. E400
Choose the E3000 for PoE, port count, and throughput. The E300-5G covers a standard branch at roughly half the firewall throughput and no PoE. The E400 is the newer platform with Wi-Fi 7 and 2.5 GbE on every port but fewer ports and no PoE. For a mobile or vehicle site, see the R1900.
Common deployments
Full county or municipal branch offices, larger clinics and labs, warehouse and yard offices with PoE cameras, campus outbuildings on 5G-first WAN, and disaster-recovery sites that must come up in a day.
What RCN adds
- Pre-provisioning: RCN can stage the unit in your NetCloud account so it ships ready to power on
- Installation nationwide through RCN's in-house install team (quoted separately)
- U.S.-based 24/7 NOC monitoring and support as a managed service (quoted separately)
- Purchase on GSA Schedule, NASPO ValuePoint, Sourcewell, OMNIA Partners, or Equalis Group, or on a PO for approved accounts
FAQ
Does the PoE budget cover cameras and phones?
Four ports at up to 90 W each within a 140 W total budget. That is typically three or four PoE+ cameras or a mix of phones and access points; RCN sizes the load during the site assessment.
Is the NetCloud subscription included?
Yes. Each SKU pairs the E3000-5GB with the NetCloud plan and term shown in the option name. Renewals are quoted before the term ends so the device never drops off management.
Does it come with antennas and a power supply?
Yes. Cradlepoint ships the cellular paddle antennas and the power supply in the box for these part numbers; see the specifications above for what is included with this model.
Can we purchase on a purchase order or government contract?
Yes. RCN sells through GSA Schedule and cooperative contracts including NASPO ValuePoint, Sourcewell, OMNIA Partners, and Equalis Group, and can invoice approved accounts on a PO.
What if it turns out to be the wrong model?
Talk to RCN before you order. We deploy this hardware every week and will tell you if a smaller or larger unit fits better; the comparison section above is a good start.
Antennas that fit the E3000
The E3000 comes with four cellular paddle antennas. When it sits in a metal building, a basement closet, or a rack, moving the antennas to a window or an outside wall usually improves signal. These Panorama 4x4 MIMO antennas connect to its four SMA cellular ports:
- Panorama DMM4-6-60 desk antenna: 4x4 MIMO cellular on a desk, wall, or adhesive mount, for moving signal pickup to a window. Covers 617–960 and 1427–6000 MHz, with 2 m cables.
- Panorama WMM4-7-49 wall/mast antenna: 4x4 MIMO cellular for an outside wall or mast, rated IP55. Covers 698–960 and 1710–4900 MHz. Choose the 5 m SMA Male option.
- Panorama DWMM4-6-60 omnidirectional antenna: 4x4 MIMO omnidirectional antenna for a desk, wall, mast, or pole, rated IP66. Choose the SMA Male, 5 m option.
- Panorama WMM4G-6-60 directional antenna: 4x4 MIMO directional panel with up to 9 dBi gain, for aiming at a distant tower from a wall or mast, rated IP65. Choose the SMA Male, 5 m option.
Compare more options in the antenna finder, or request a quote and we will confirm the right antenna and cable length for your install.
Need a formal quote, want to pay by PO, or not sure which model fits?
Request a quote or pay by PO | Call an RCN specialist: (865) 315-7373
Shipping is calculated by weight at checkout. Return requests are accepted within 30 days of purchase. See the shipping policy and return policy.
