| Pattern | Omnidirectional |
|---|---|
| Max input power w | 2 |
| Typical vsrw | 2.5:1 |
| Frequency range gain | 617 – 960MHz | 2dBi; 1427 – 2700MHz | 4dBi; 2700 – 6000MHz | 5dBi |
| Cellular lte elements | 4 x 4 MIMO |
| Wifi elements | No |
| Uhf elements | No |
Product Overview

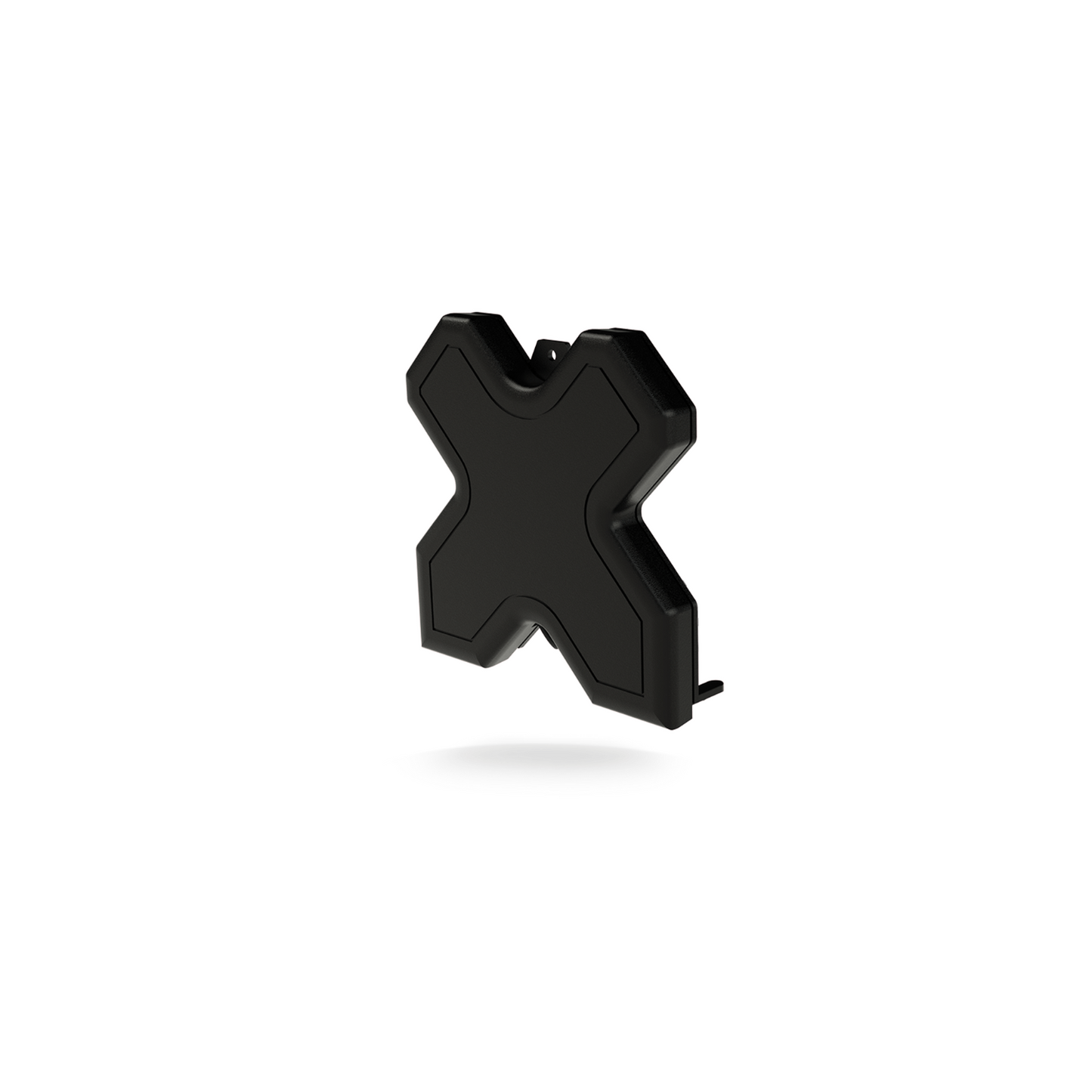

The Panorama DMM4-6-60 is a portable 4x4 MIMO antenna for Cat 18/20 4G and 5G routers that sit indoors. It moves the four cellular antennas off the router to a window, desk or wall, which is often the quickest way to improve throughput at a branch office or temporary site.

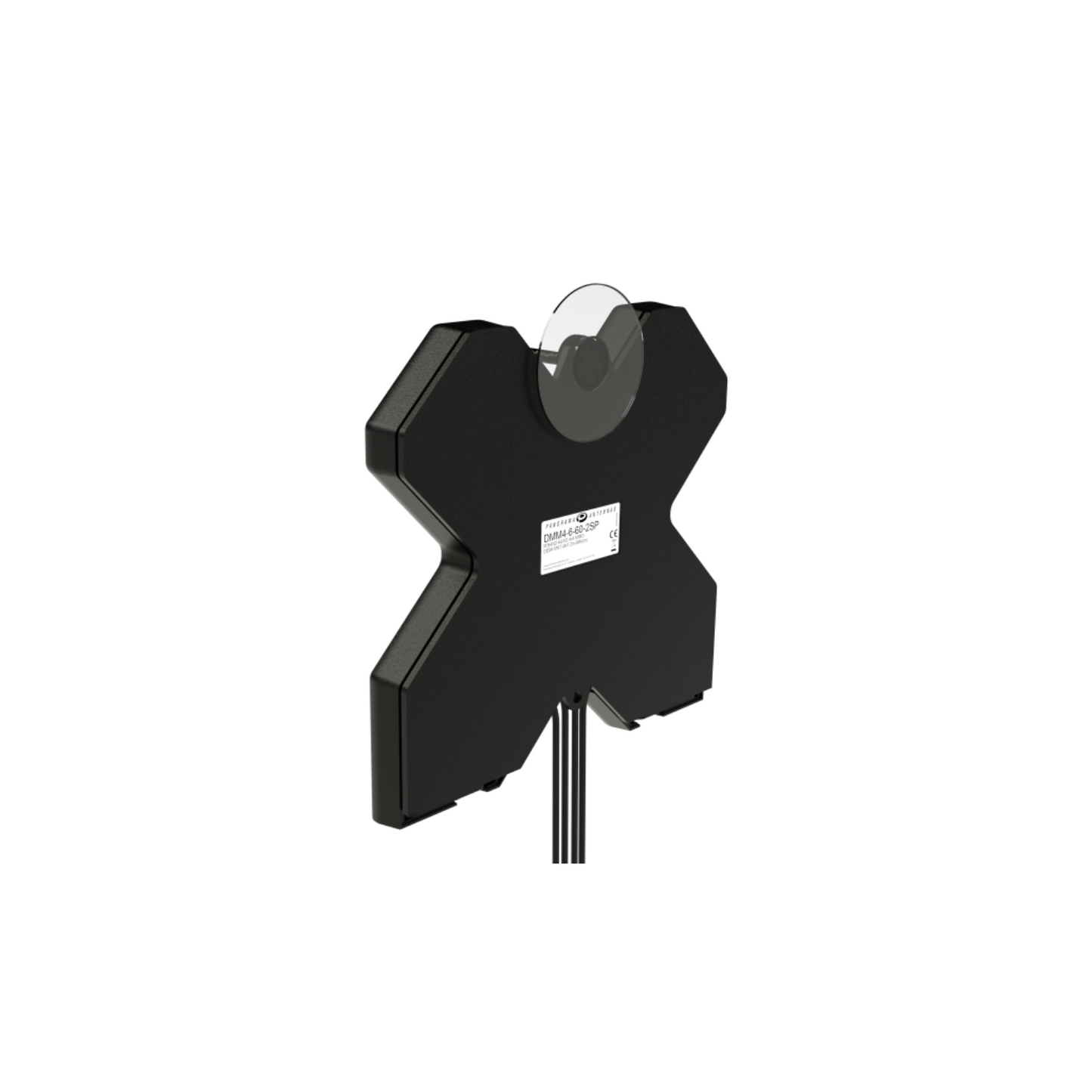

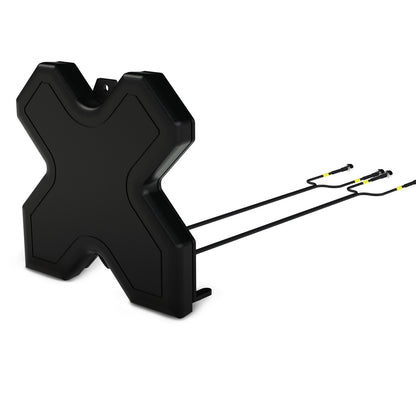

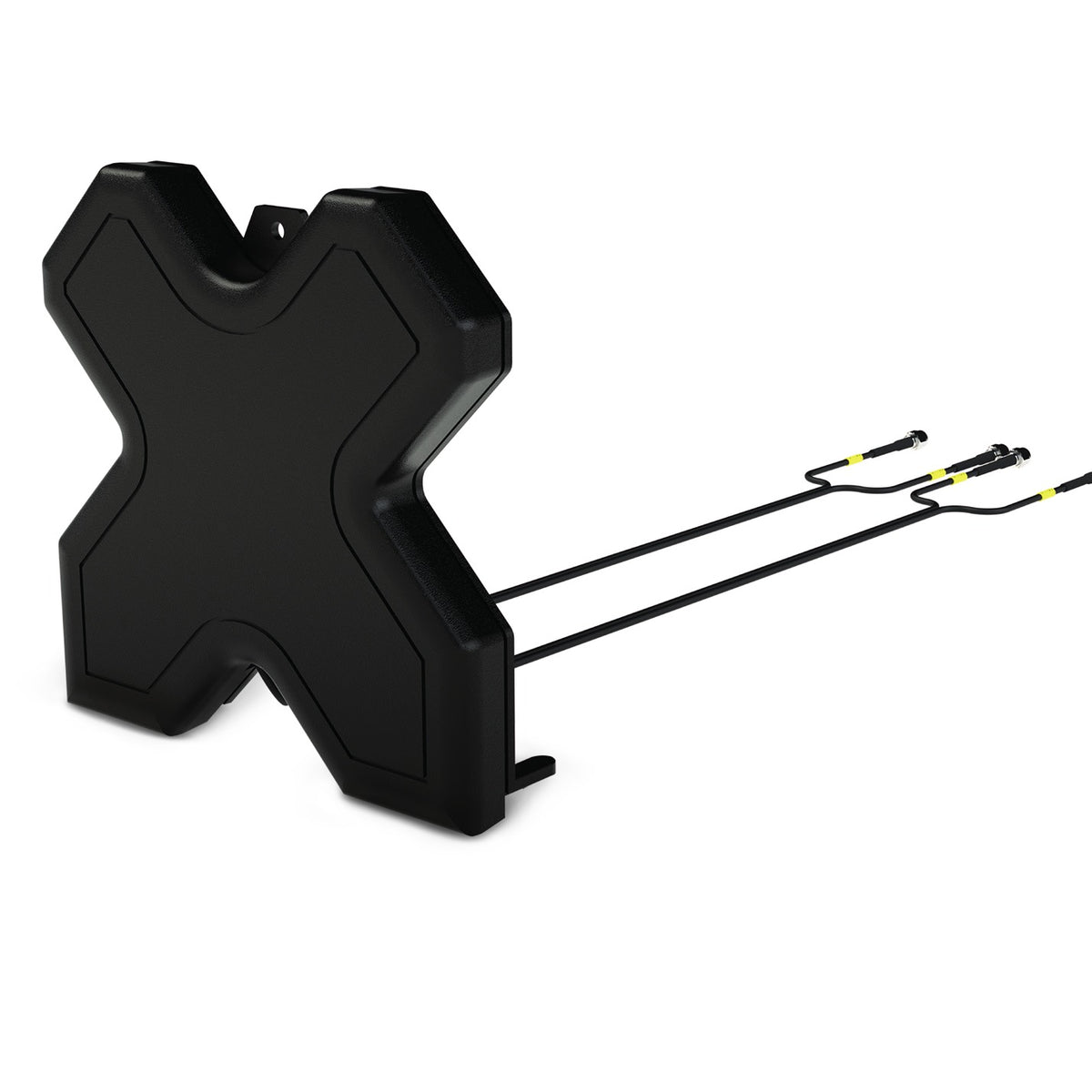

Four separately fed elements cover 617-960 and 1710-6000 MHz. Panorama notes it can also serve a dual-modem router as two 2x2 MIMO systems. Fold-out feet stand it on a desk and fold flat for transport, a suction mount holds it on a window, and screw and adhesive pad options are included. It ships with four 2 m (6.5 ft) RG174 cables with SMA male connectors.
Specifications
| Elements | 4 (4x4 MIMO cellular) |
|---|---|
| Cellular frequency | 617-960 / 1710-6000 MHz; 2G / 3G / 4G / 5G |
| Gain | 2 dBi (617-960 MHz), 4 dBi (1427-2700 MHz), 5 dBi (2700-6000 MHz), excluding cable loss |
| Connectors | 4x SMA male |
| Cable | 4x RG174, 2 m (6.5 ft) |
| Mounting | Desk feet, suction window mount, screw or adhesive pad |
| Radiation pattern | Omnidirectional |
| Dimensions | 185 x 184 x 23 mm (7.3 x 7.2 x 0.9 in) |
| Operating temperature | -40 to +80 °C |
| Compatibility | 4x4 MIMO routers, or two 2x2 MIMO modems in a dual-modem router |
| Part number | DMM4-6-60-2SP |
Download the Panorama DMM4-6-60 datasheet (PDF)
Right for you if
- Your router has four cellular SMA ports, or a dual-modem router with two ports per modem.
- The router sits indoors and you want the antennas at a window.
- You need a portable antenna that packs flat between sites.
- The router is within about 2 m of where the antenna will sit.
How it compares
For routers with two cellular ports, the Panorama DMM-6-60 uses the same X-shaped design with two elements. For a permanent outdoor install, the Panorama DWMM4-6-60 is IP66 rated with 5 m cables, and the Panorama WMM4G-6-60 directional panel adds up to 9 dBi toward a known tower.
Common deployments
- Branch offices and retail stores using a 4x4 MIMO 5G router for failover or primary WAN
- Pop-up and temporary sites where the antenna is redeployed
- Dual-modem routers that need two 2x2 MIMO antenna sets in one unit
FAQ
Can I use the DMM4-6-60 with a dual-modem router?
Yes. Panorama states the DMM4-6-60 can provide two 2x2 MIMO functions for a router with dual modems, each requiring a 2x2 antenna system. Connect two cables to each modem following the router manual. It can also serve a single 4x4 MIMO modem.
Does it work outdoors?
Panorama does not publish an ingress rating for the DMM4-6-60, so treat it as an indoor antenna for desks, windows and interior walls. For a permanent outdoor install, choose a weather-rated model such as the Panorama DWMM4-6-60, which is rated IP66 for wall or mast mounting.
How long are the cables?
The DMM4-6-60-2SP has four 2 meter (6.5 foot) RG174 coaxial cables terminated in SMA male connectors. Plan the antenna position within reach of those cables. If the router is farther away, consider a fixed antenna with longer low-loss cables rather than adding extensions to thin RG174.
Which 5G bands does it cover?
The four elements cover 617-960 MHz and 1710-6000 MHz, which includes LTE Band 71, the mid-band LTE frequencies and the C-band and 3.5 GHz ranges used for 5G below 6 GHz. It supports Cat 18/20 4G and 5G devices and does not cover millimeter-wave 5G.
