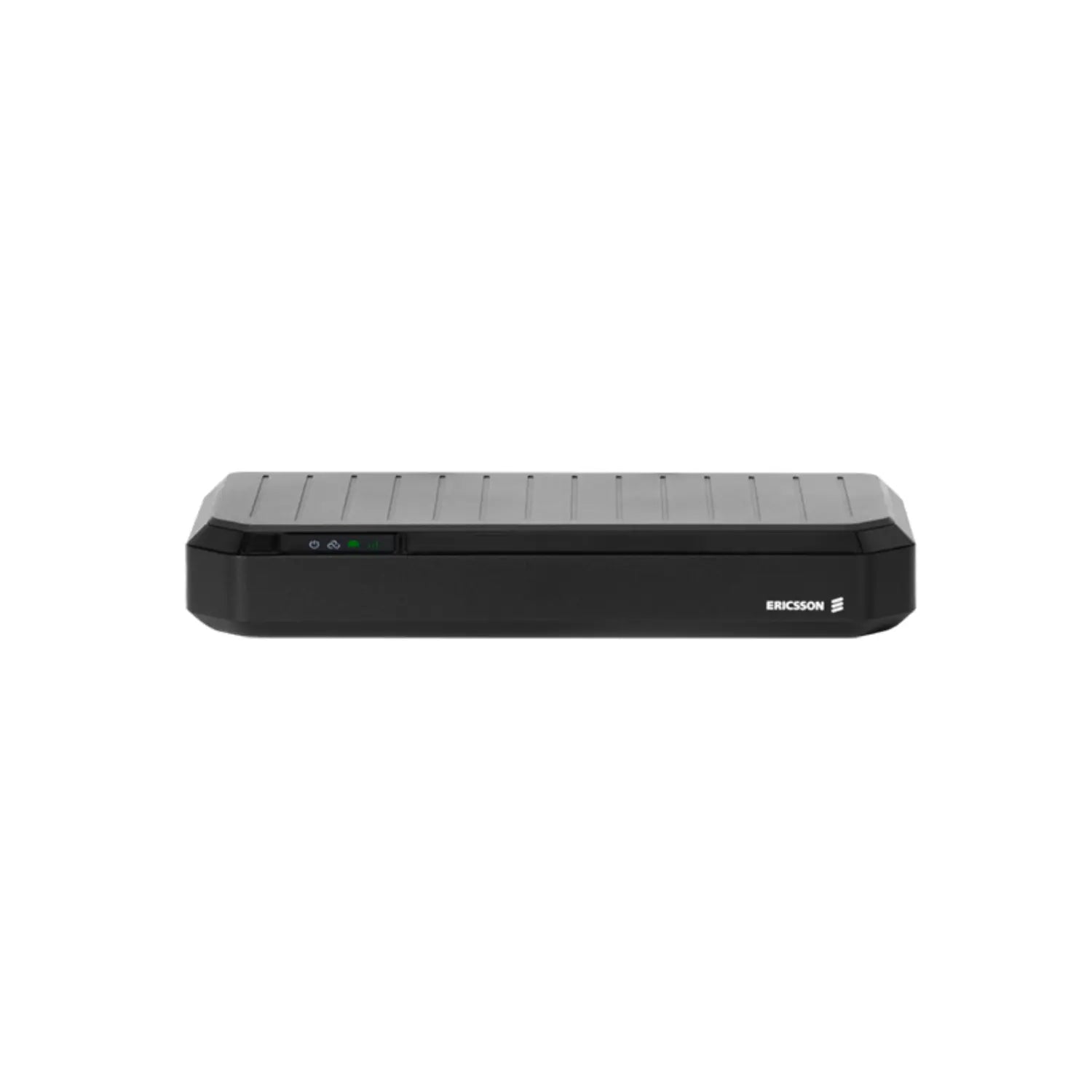

Ericsson Cradlepoint E400

Ericsson Cradlepoint E400

SKU: SKU: BL01-E400-5GE-AM-N

Regular price $2,375.00
Regular price Sale price $2,375.00
Sale Sold out
Shipping calculated at checkout.
Subscription Type
Duration

View full details

Product Overview

The Ericsson Cradlepoint E400-5GE is the current-generation enterprise branch router: a 3GPP Release 17 5G modem rated to 4.67 Gbps with 8-receive and network slicing, tri-band Wi-Fi 7, five 2.5 GbE ports, dual physical SIMs plus an embedded eSIM, and a 2.4 Gbps stateful firewall. It replaces the E100 for new small and mid-size branch builds and is the first Cradlepoint branch router with Wi-Fi 7.

The eSIM matters for procurement as much as for engineering: a carrier profile can be pushed from NetCloud without anyone touching a SIM tray, which is how RCN pre-provisions units for sites that ship straight from our depot to the field. An optional battery keeps the router up for eight hours through a power event.

What the SKU includes: every option on this page bundles the router with its Ericsson NetCloud plan for the term you choose (Essentials, or Essentials + Advanced, for 1, 3, or 5 years). NetCloud is required to configure and manage Cradlepoint hardware, and the hardware warranty runs for as long as the plan is active.

Specifications

Cellular 5G FR1 NSA/SA (3GPP Rel. 17) with LTE Cat 20; 4x4 MIMO, 8Rx; 5G network slicing; peak 4.67 Gbps DL / 1.25 Gbps UL
SIM Dual 4FF SIM slots plus embedded eSIM

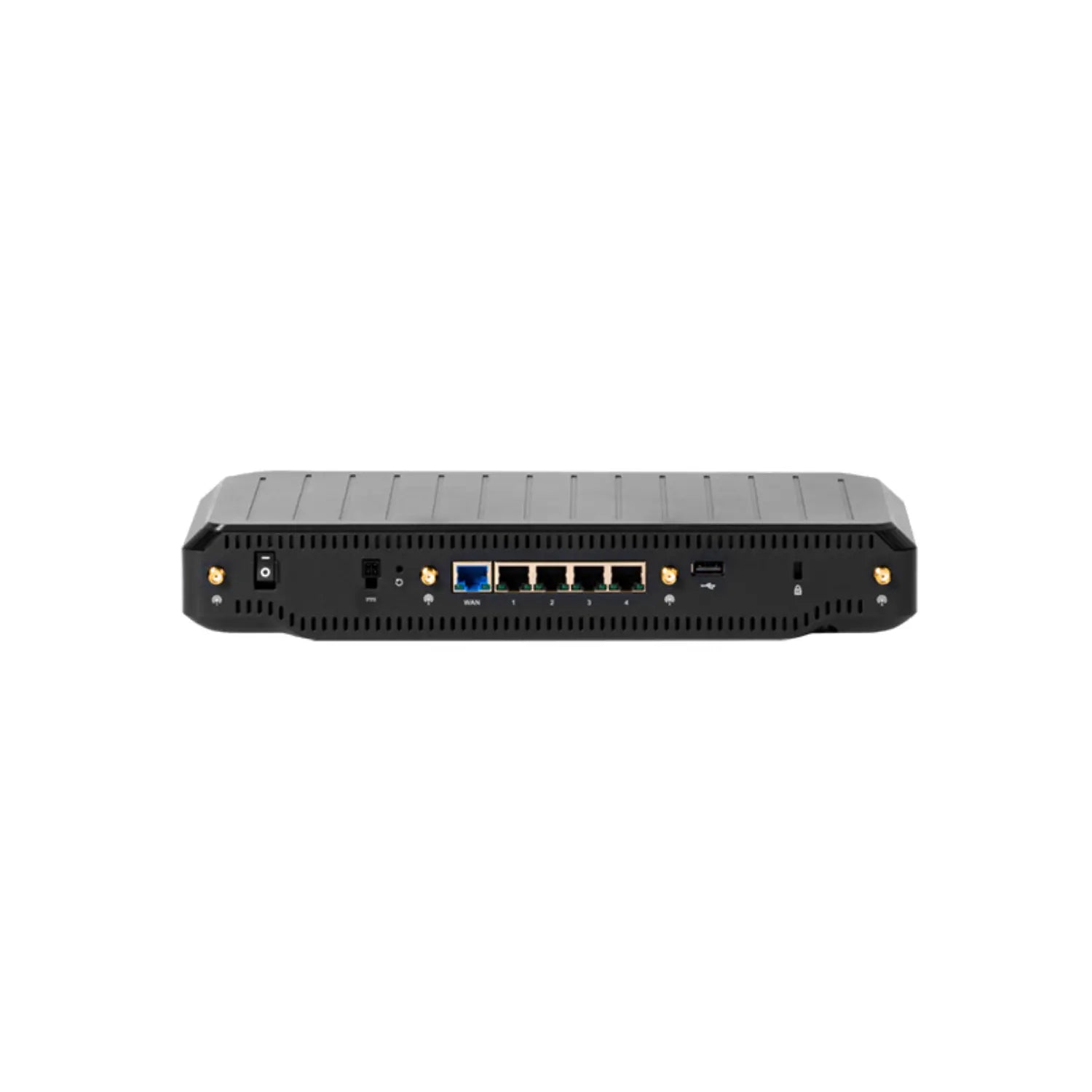

Ethernet 5x 2.5 GbE RJ45, LAN/WAN switchable
Wi-Fi Tri-band concurrent (2.4/5/6 GHz) 2x2 MU-MIMO 802.11be (Wi-Fi 7) with DFS: 688 + 2,882 + 5,764 Mbps; internal antennas; WPA3
Antennas / GNSS 4x SMA cellular connectors plus 4 internal cellular antennas; internal passive GNSS
Expansion 1x USB 2.0; optional lithium-ion battery (56.62 Wh, up to 8 hours)
Performance Stateful firewall 2.4 Gbps; IPS/app-aware 2.4 Gbps; IPsec VPN 300 Mbps; SASE/Secure Connect 270 Mbps; 20 VPN tunnels; 130,000 sessions; typical 50 clients
Power 12 VDC 3 A external supply (included); 17 W idle, 26 W heavy (32 W while charging the battery)
Environmental 0 to 45 C operating (0 to 40 C with battery); indoor
Size / weight 309 x 141 x 53 mm (12.2 x 5.6 x 2.1 in); 0.94 kg (1.28 kg with battery)
Certifications AT&T, T-Mobile, Verizon; PTCRB; FCC/IC; UL/cUL; CBRS Band 48 (Part 96); Secure Boot
Management Ericsson NetCloud Manager (plan included in each SKU); RCN 24/7 NOC available

Ericsson Cradlepoint E400 datasheet

Right for you if

  • You are standardizing a branch fleet for the next five years and want Release 17 5G and Wi-Fi 7 from day one
  • eSIM provisioning from NetCloud fits how you ship hardware to remote sites
  • Every wired port needs 2.5 GbE for Wi-Fi 7 access points or multi-gig workstations
  • A 2.4 Gbps firewall is the floor, not the ceiling

E400 vs. E100 vs. E3000

Choose the E400 for any new small or mid-size branch. The E100-5G is end of sale and only makes sense to extend an existing E100 fleet. The E3000 still wins when you need nine-plus ports, 802.3bt PoE, or an MC400 second modem. For LTE-only IoT sites, see the S400.

Common deployments

New branch and clinic builds, retail and pop-up locations provisioned before they ship, hybrid-WAN offices pairing 5G with fiber, and AI or video workloads that need multi-gig LAN.

What RCN adds

  • Pre-provisioning: RCN can stage the unit in your NetCloud account so it ships ready to power on
  • Installation nationwide through RCN's in-house install team (quoted separately)
  • U.S.-based 24/7 NOC monitoring and support as a managed service (quoted separately)
  • Purchase on GSA Schedule, NASPO ValuePoint, Sourcewell, OMNIA Partners, or Equalis Group, or on a PO for approved accounts

FAQ

Is the E400 FirstNet certified?
Not as of the current Ericsson datasheet, which lists carrier certification for AT&T, T-Mobile, and Verizon with no public-safety certification yet. If FirstNet Trusted is a requirement today, the E300-5G and E3000 carry it; ask RCN for the latest status.

Is it in stock?
The E400 is a configure-to-order item at RCN; lead times vary by NetCloud package. Ask for a current ship date with your quote.

Is the NetCloud subscription included?
Yes. Each SKU pairs the E400-5GE with the NetCloud plan and term shown in the option name. Renewals are quoted before the term ends so the device never drops off management.

Does it come with antennas and a power supply?
Yes. Cradlepoint ships the cellular paddle antennas and the power supply in the box for these part numbers; see the specifications above for what is included with this model.

Can we purchase on a purchase order or government contract?
Yes. RCN sells through GSA Schedule and cooperative contracts including NASPO ValuePoint, Sourcewell, OMNIA Partners, and Equalis Group, and can invoice approved accounts on a PO.

What if it turns out to be the wrong model?
Talk to RCN before you order. We deploy this hardware every week and will tell you if a smaller or larger unit fits better; the comparison section above is a good start.

Need help choosing, or ready to order?

Talk to an RCN specialist | See how our 24/7 NOC supports you

Explore the essential specifications and features of this product to make an informed purchase decision!

Product Details

Description

The Ericsson Cradlepoint E400-5GE is the current-generation enterprise branch router: a 3GPP Release 17 5G modem rated to 4.67 Gbps with 8-receive and network slicing, tri-band Wi-Fi 7, five 2.5 GbE ports, dual physical SIMs plus an embedded eSIM, and a 2.4 Gbps stateful firewall. It replaces the E100 for new small and mid-size branch builds and is the first Cradlepoint branch router with Wi-Fi 7.

The eSIM matters for procurement as much as for engineering: a carrier profile can be pushed from NetCloud without anyone touching a SIM tray, which is how RCN pre-provisions units for sites that ship straight from our depot to the field. An optional battery keeps the router up for eight hours through a power event.

What the SKU includes: every option on this page bundles the router with its Ericsson NetCloud plan for the term you choose (Essentials, or Essentials + Advanced, for 1, 3, or 5 years). NetCloud is required to configure and manage Cradlepoint hardware, and the hardware warranty runs for as long as the plan is active.

Specifications

Cellular 5G FR1 NSA/SA (3GPP Rel. 17) with LTE Cat 20; 4x4 MIMO, 8Rx; 5G network slicing; peak 4.67 Gbps DL / 1.25 Gbps UL
SIM Dual 4FF SIM slots plus embedded eSIM
Ethernet 5x 2.5 GbE RJ45, LAN/WAN switchable
Wi-Fi Tri-band concurrent (2.4/5/6 GHz) 2x2 MU-MIMO 802.11be (Wi-Fi 7) with DFS: 688 + 2,882 + 5,764 Mbps; internal antennas; WPA3
Antennas / GNSS 4x SMA cellular connectors plus 4 internal cellular antennas; internal passive GNSS
Expansion 1x USB 2.0; optional lithium-ion battery (56.62 Wh, up to 8 hours)
Performance Stateful firewall 2.4 Gbps; IPS/app-aware 2.4 Gbps; IPsec VPN 300 Mbps; SASE/Secure Connect 270 Mbps; 20 VPN tunnels; 130,000 sessions; typical 50 clients
Power 12 VDC 3 A external supply (included); 17 W idle, 26 W heavy (32 W while charging the battery)
Environmental 0 to 45 C operating (0 to 40 C with battery); indoor
Size / weight 309 x 141 x 53 mm (12.2 x 5.6 x 2.1 in); 0.94 kg (1.28 kg with battery)
Certifications AT&T, T-Mobile, Verizon; PTCRB; FCC/IC; UL/cUL; CBRS Band 48 (Part 96); Secure Boot
Management Ericsson NetCloud Manager (plan included in each SKU); RCN 24/7 NOC available

Ericsson Cradlepoint E400 datasheet

Right for you if

  • You are standardizing a branch fleet for the next five years and want Release 17 5G and Wi-Fi 7 from day one
  • eSIM provisioning from NetCloud fits how you ship hardware to remote sites
  • Every wired port needs 2.5 GbE for Wi-Fi 7 access points or multi-gig workstations
  • A 2.4 Gbps firewall is the floor, not the ceiling

E400 vs. E100 vs. E3000

Choose the E400 for any new small or mid-size branch. The E100-5G is end of sale and only makes sense to extend an existing E100 fleet. The E3000 still wins when you need nine-plus ports, 802.3bt PoE, or an MC400 second modem. For LTE-only IoT sites, see the S400.

Common deployments

New branch and clinic builds, retail and pop-up locations provisioned before they ship, hybrid-WAN offices pairing 5G with fiber, and AI or video workloads that need multi-gig LAN.

What RCN adds

  • Pre-provisioning: RCN can stage the unit in your NetCloud account so it ships ready to power on
  • Installation nationwide through RCN's in-house install team (quoted separately)
  • U.S.-based 24/7 NOC monitoring and support as a managed service (quoted separately)
  • Purchase on GSA Schedule, NASPO ValuePoint, Sourcewell, OMNIA Partners, or Equalis Group, or on a PO for approved accounts

FAQ

Is the E400 FirstNet certified?
Not as of the current Ericsson datasheet, which lists carrier certification for AT&T, T-Mobile, and Verizon with no public-safety certification yet. If FirstNet Trusted is a requirement today, the E300-5G and E3000 carry it; ask RCN for the latest status.

Is it in stock?
The E400 is a configure-to-order item at RCN; lead times vary by NetCloud package. Ask for a current ship date with your quote.

Is the NetCloud subscription included?
Yes. Each SKU pairs the E400-5GE with the NetCloud plan and term shown in the option name. Renewals are quoted before the term ends so the device never drops off management.

Does it come with antennas and a power supply?
Yes. Cradlepoint ships the cellular paddle antennas and the power supply in the box for these part numbers; see the specifications above for what is included with this model.

Can we purchase on a purchase order or government contract?
Yes. RCN sells through GSA Schedule and cooperative contracts including NASPO ValuePoint, Sourcewell, OMNIA Partners, and Equalis Group, and can invoice approved accounts on a PO.

What if it turns out to be the wrong model?
Talk to RCN before you order. We deploy this hardware every week and will tell you if a smaller or larger unit fits better; the comparison section above is a good start.

Need help choosing, or ready to order?

Talk to an RCN specialist | See how our 24/7 NOC supports you

Hardware Specs

Specifications Details
Category
  • Branch, fixed sites
Cloud management
  • Yes
Wireless connectivity
  • 5G NR Rel-17 & Cat 20 LTE
5g status
  • 5G embedded
Form factor
  • Industrial plastic
Ethernet ports
  • 5 x 2.5 GbE
Usb ports
  • 1 x USB 2.0 (Type-A)
Serial ports
  • 0
Dual modem support
  • Not embedded; combine with 5G adapter using captive modem for dual modem​
Network operator standards
  • PTCRB — U.S. & Canada, GCF — global
Network operator certifications
  • AT&T
  • T-Mobile
  • Verizon
Regions
  • Varies by modem
  • See data sheet for countries served
Throughput
  • 2.4 Gbps
Vpn tunnel count
  • 20
Wi fi
  • Tri-band, tri-concurrent; 802.11be Wi-Fi 7 (2x2x2)
Gnss
  • Passive
Poe
  • No
Operating temperature
  • 0 °C to 40 °C (32 °F to 104 °F) with battery; 0 °C to 45 °C (32 °F to 113 °F) without battery
Rack mountable
  • No
Private cellular network
  • Yes — CBRS, 4G LTE, 5G
Battery option
  • Yes, up to 8-hour battery backup

Software features

Cellular intelligence

  • Cellular health with live stats and diagnostics
  • Carrier selection intelligence
  • Carrier data usage management and alerting
  • Advanced logic on failover and failback connections

5g sase security and sd-wan

  • VPN/private APN replacement with zero trust and centralized firewall
  • Secure remote access with client and clientless ZTNA
  • Resilient WAN connectivity with SD-WAN
  • Secure business internet with advanced web security

Private network compatibility

  • Ericsson Private 5G
  • Ericsson Private 5G Compact

Cloud management

  • Zero-touch deployment
  • Network visualization and monitoring
  • Bulk configuration and software updates
  • Live stats for cellular, wired, and Wi-Fi
  • Application performance and quality of experience analytics
  • Multi-layered dashboards and shareable reports
  • User and license management

Remote troubleshooting

  • Real-time diagnostics and alerting
  • Integrated 5G speed testing with historical results
  • Out-of-Band management for third-party routers
  • In-Band management for third-party LAN devices

Extensibility

  • SDK, API, and prebuilt third-party integrations
  • IoT ecosystem integration (Microsoft, AWS)
  • Edge compute (SDK and Docker containers)

Router based networking and security

  • Dynamic routing and Wi-Fi as WAN
  • Zone-based firewall
  • Application-based firewall
  • IDS/IPS and web filtering

Benefits

  • 5G NR Rel-17 modem and Wi-Fi 7: Harnesses the latest advancements in 5G and Wi-Fi technology to deliver ultra-fast, reliable, and seamless connectivity for demanding business applications.
  • Network slicing: Lock the device to designated network slice for dedicated bandwidth, improved quality of service and optimal performance.
  • Flexibility and resilience: Operate as a primary 5G wireless connection, a failover solution for wired networks, or in hybrid wired, cellular, or satellite environments, delivering maximum adaptability and robust network continuity.
  • LAN extensibility: Expand LAN capacity with LAN switches and Wi-Fi access points for a full stack office solution with simplified, unified management through Ericsson NetCloud Manager.
  • eSIM and dual SIM capabilities: Seamlessly switch between carriers or configure eSIM profiles remotely, ensuring flexible deployment, cost efficiency, and reliable 5G connectivity anywhere.
  • NetCloud SASE support: Integrate cellular-centric SD-WAN and security features into a fully unified solution, enabling easy provisioning for service providers and lean IT organizations.
  • Up to 8-hour battery backup: Ensure uninterrupted connectivity during power outages with an integrated 8-hour battery backup, keeping your business up and running when it matters most.
  • Captive modem: Add a second cellular modem and use captive modem to act as a controller for an Ericsson Cradlepoint 5G Adapter for added resiliency.

Frequently Asked Questions

What is the Ericsson Cradlepoint E400?
The E400 is next-generation 5G router combining Wi-Fi 7, embedded 5G modem (5G FR1 NSA/SA), dual-SIM, eSIM support, and enterprise SD-WAN/security features. Designed for next-gen enterprise branches, retail, and government sites requiring maximum performance and security in a compact form factor.
What frequency bands and 5G capabilities does it support?
5G NR (NSA/SA): Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79. LTE (Cat-19+): Bands B1–B7, B8, B12–B14, B17–B20, B25–B26, B28–B32, B66, B71 and TDD bands. Supports 4 x SMA antenna connectors (600 MHz–6 GHz). Peak rates: 3.4+ Gbps downlink (NSA).
What are the E400's key technical specs?
4x4 MIMO 5G modem. Wi-Fi 7 (802.11be) with advanced features. Dual-SIM + embedded eSIM for carrier flexibility. Multiple Ethernet ports including GbE options. Zero Trust security architecture. Operating temp: 0–45°C. Compact form factor optimized for branches. Power: 12 VDC external supply. Advanced firewall, IPS, and IPSec VPN capabilities with 20+ concurrent tunnels.
How is the E400 installed and used?
Desktop or wall-mount deployment in branch offices, retail locations, and government sites. Supports hybrid WAN (wired + 5G failover) or all-wireless 5G. Dual-SIM with auto-carrier selection; eSIM support enables remote SIM provisioning. Requires 12 VDC power and 4 external cellular antennas (SMA, 600 MHz–6 GHz). Compact footprint suitable for space-constrained environments.
What Panorama antenna options are compatible with the E400?
The E400 supports RCN's full Panorama antenna lineup with SMA connectors (600 MHz–6 GHz): 4x4 MiMo wall/mast antennas, shark fin variants, low-profile multi-element kits, dome antennas, and directional options. External antennas optimize 5G/Wi-Fi 7 performance in challenging RF environments.
What compliance standards and warranties apply?
Safety: UL/cUL, EN 62368-1, CB Scheme. Environmental: WEEE, RoHS, REACH, California Prop 65. Regulatory: FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ), UKCA (UK). Network: PTCRB (U.S./Canada), GCF (worldwide). Carrier certifications: AT&T, T-Mobile, Verizon. Limited lifetime warranty with active NetCloud subscription.
