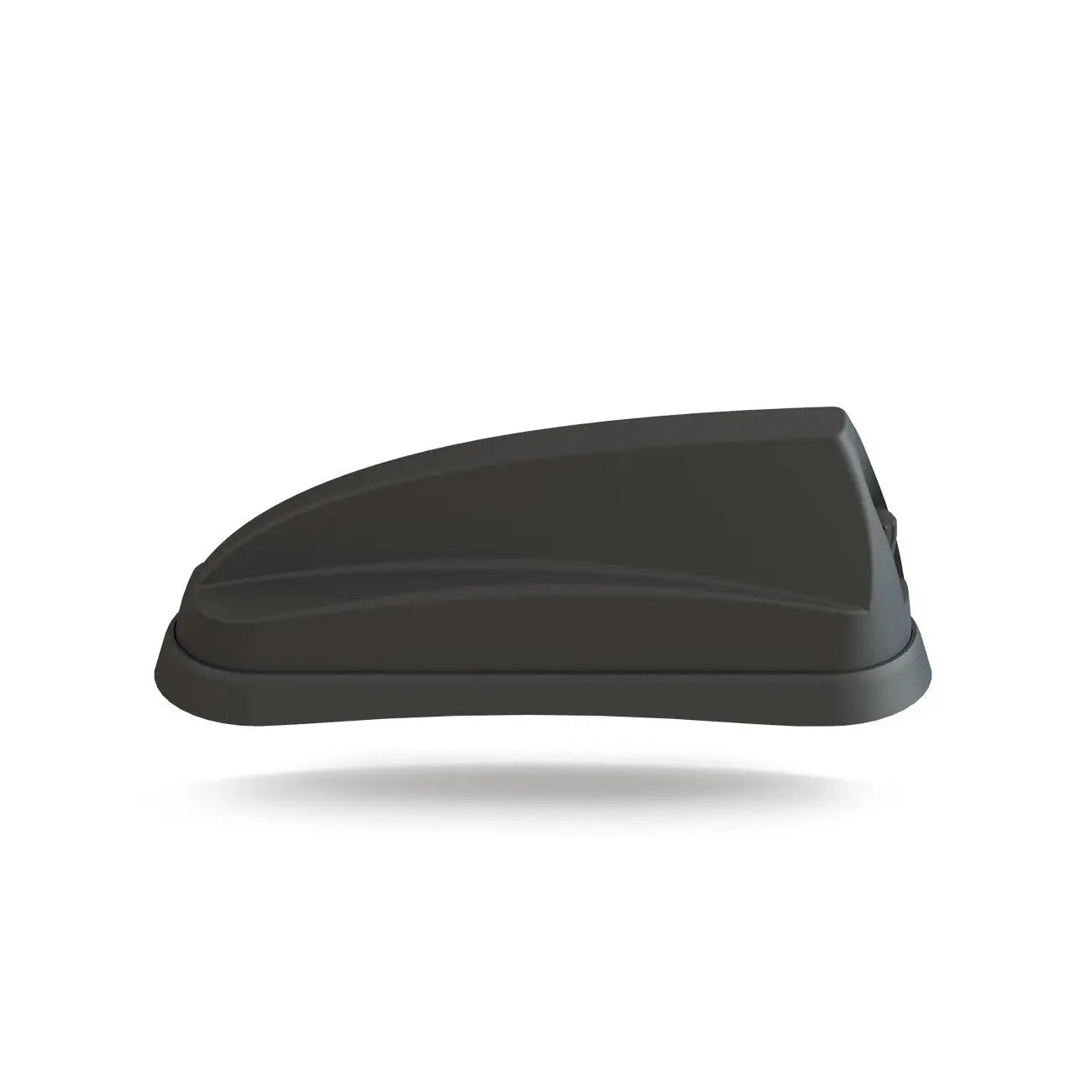

• MiMo 5 in 1 Sharkee 5G Antenna in black – Compact OEM style shark fin housing with 2x2 MiMo for 5G/4G/3G/2G and active GPS functionality.
  • Panorama SHKG-6-60-DW 5:1 Sharkee Antenna w/MIMO 5G LTE, MIMO WiFi 6, GPS Overview
1 2

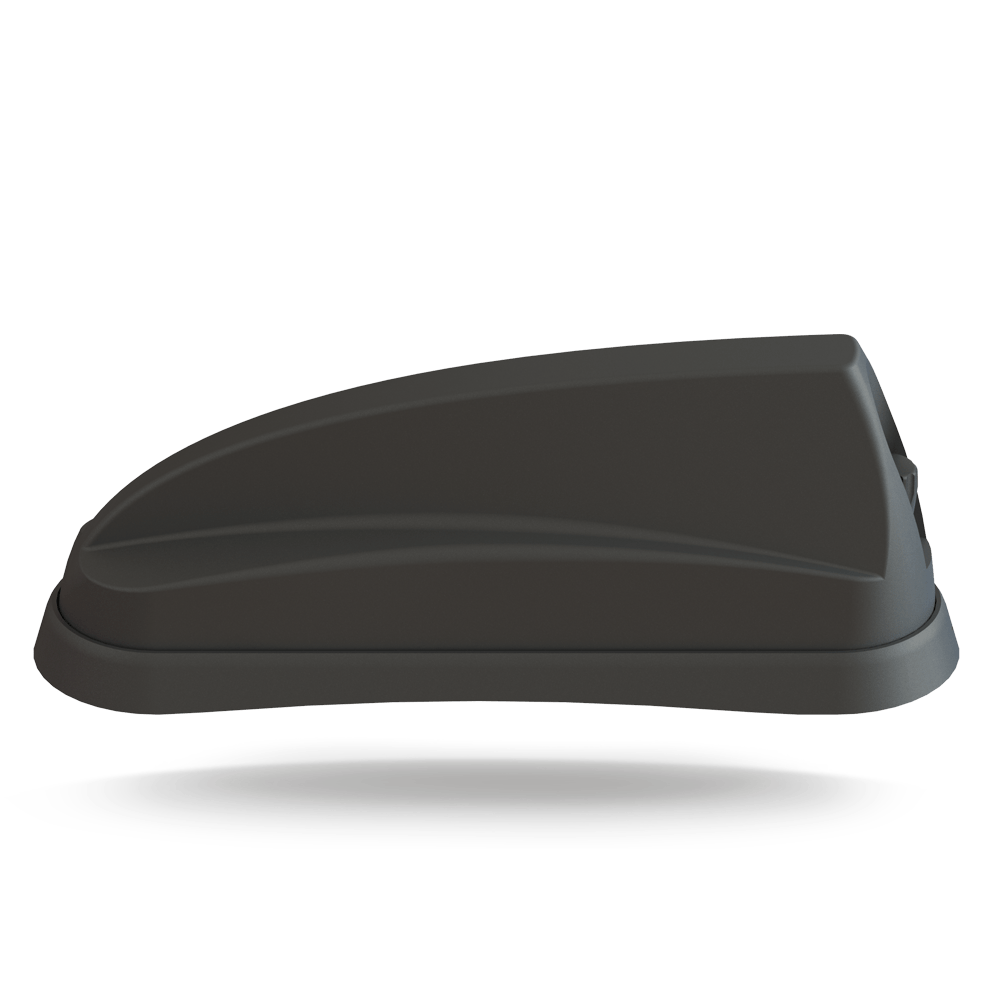

Panorama SHKG-6-60-DW 5:1 Sharkee Antenna w/MIMO 5G LTE, MIMO WiFi 6, GPS

Panorama SHKG-6-60-DW 5:1 Sharkee Antenna w/MIMO 5G LTE, MIMO WiFi 6, GPS

SKU: SHKG-6-60-DW

$275.63
$275.63
Sale Sold out
Shipping calculated at checkout.

Can't Decide? Connect with Our Expert Crew
View full details

Product Overview

Panorama SHKG-6-60-DW Antenna with MIMO 5G LTE (617 to 6000 MHz), MIMO WiFi 6 & GPS

The SHKG-6-60-DW Sharkee combination antenna brings 5G capability to automotive and transportation applications. It’s ideal for police cars, ambulances, trucking fleets, and mass transit buses. The Sharkee is the most advanced 5G LTE antenna for mobile cellular routers and is compatible with the Ericsson Cradlepoint IBR900 and IBR1700 series.

Five antennas are integrated into a single, rugged sharkfin-style housing. The ultra-wideband 2x2 MIMO cellular elements cover all 5G LTE global frequencies (617 to 6000 MHz), including LTE band 71 (617 to 698 MHz). The cellular antennas are highly efficient with greater than 12 dB of isolation, and they offer 5 to 9 dBi peak gain depending on the frequency in use. In addition, the SHKG-6-60-DW adopts up to 2x2 MIMO WiFi 6 supporting 2.4, 5.0, and 7.1 GHz networks. The GPS/GNSS module has advanced noise filtering and works with GPS, Glonass, BeiDou, and Galileo satellite systems.

The rugged dome is manufactured from heavy-duty plastic for extra durability. It includes a boot-mount gasket for better sealing and conductive pads on the underside for superior grounding. It may be placed on a metallic or non-metallic surface, and there is no significant impact on the antenna’s overall RF performance if the antenna cannot be tied to a ground plane. The radome mounts through a single hole drilled in the vehicle roof and is slim enough to fit between the roof rib lines of most major vehicles. The SHKG-6-60-DW carries a stringent IP69K test certificate, assuring it resists water and dust for safe operation outdoors.

The antenna includes 1-foot RF cables; however, this length is often too short for most installations, particularly vehicles. So for longer cables, consider the SH-IN2617 antenna kit which includes this SHKG-6-60-DW antenna and 5-meter long cables (one cable for each antenna element) terminating with SMA connectors.

Need help choosing or ready to order?

Contact RCN for a quote  |  Learn about our NOC support

Frequently Asked Questions

What is the Panorama SHKG-6-60-DW and how does it differ from the SH-IN2618 kit?
The SHKG-6-60-DW is the antenna body itself—the same ultra-wideband 5G Sharkee shark-fin housing—without the long extension cable set. It ships with short 1-foot (approximately 30 cm) pig-tail cables. The SH-IN2618 is the corresponding kit that includes this antenna plus 5-meter (15-foot) cables for vehicle installation. Choose the SHKG-6-60-DW when you have your own cable infrastructure or need only the antenna head, and choose SH-IN2618 when you need a complete ready-to-install kit.
What frequency bands does the SHKG-6-60-DW cover?
The SHKG-6-60-DW covers: Cellular — 617–960 MHz and 1710–6000 MHz (2x2 MIMO 5G NR / 4G LTE, including LTE Band 71 and 5G sub-6 GHz up to 6 GHz); WiFi 6 — 2.396–2.485 GHz (5 dBi gain) and 4.9–7.2 GHz (11 dBi gain, including 6 GHz WiFi 6E spectrum); GPS/GNSS — 1562–1612 MHz with 26 dB LNA gain supporting GPS, GLONASS, BeiDou, and Galileo. Advanced filtering for LTE Bands 13/14 and Band 71 is built in.
How is the SHKG-6-60-DW mounted?
The SHKG-6-60-DW mounts through a single hole in the vehicle roof or panel. It includes a boot-mount gasket for superior sealing and conductive pads on the underside for RF grounding. It performs on both metallic and non-metallic surfaces. A temporary magnetic mount adapter (Panorama SAB-254) is available separately for test-driving and site surveys. Dimensions are 243 × 63 × 90 mm (L × W × H).
What is the antenna configuration and what connectors does it use?
The SHKG-6-60-DW is a 5:1 antenna: 2 LTE/5G elements (2x2 MIMO) + 2 WiFi 6 elements (2x2 MIMO) + 1 GPS/GNSS. Connectors on the 1-foot pig-tail cables: SMA male for LTE ports, RP-SMA for WiFi ports, and FME female for GPS. Maximum input power is 10 watts; impedance is 50 ohms; LTE gain is 5–9 dBi depending on frequency. Housing is ASA plastic, silicone rubber, and aluminum alloy.
Is the SHKG-6-60-DW compatible with Ericsson Cradlepoint routers, and what are its environmental ratings?

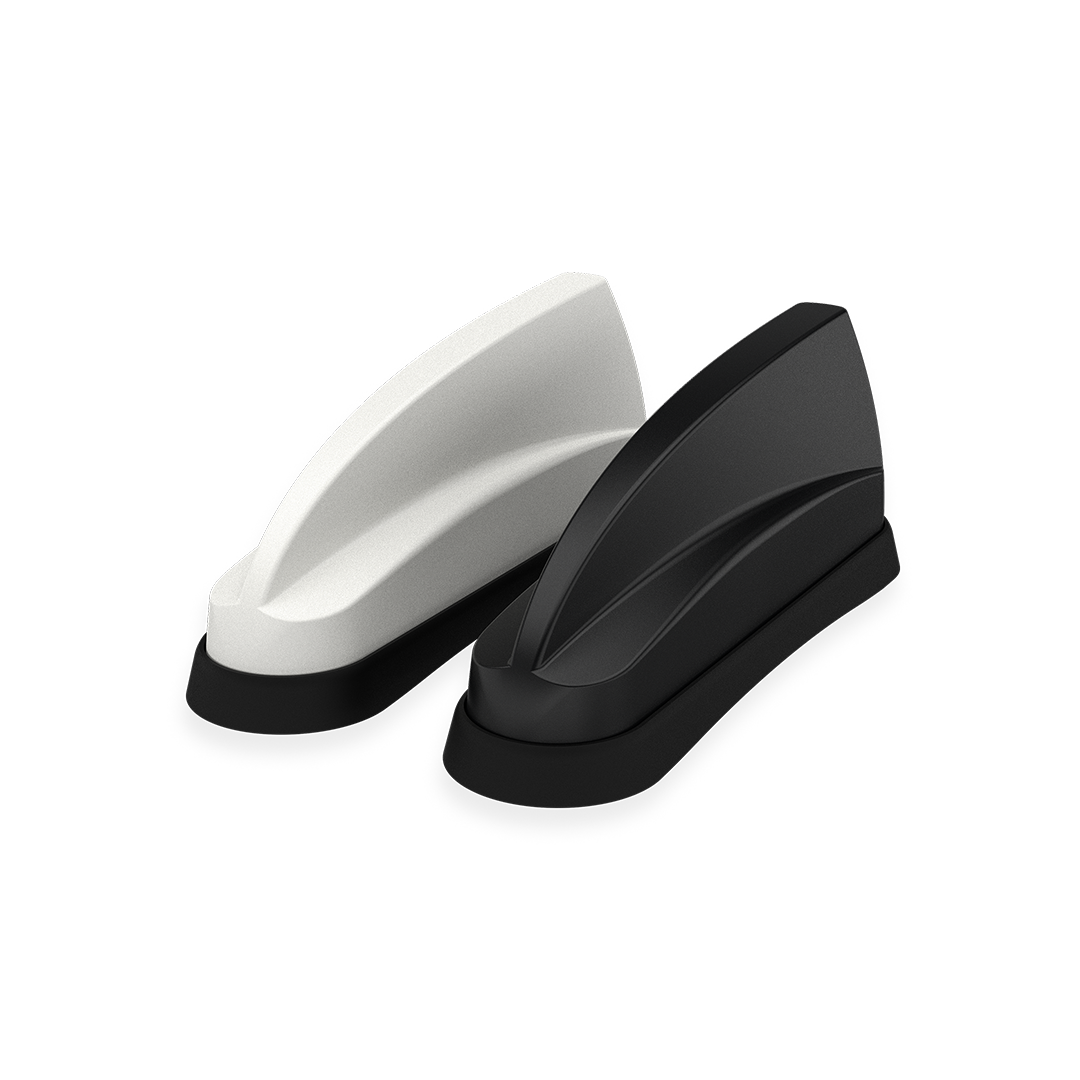

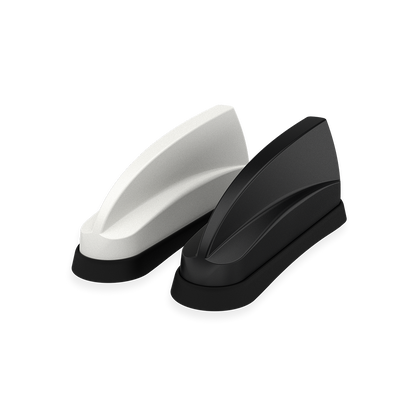

Yes. The SHKG-6-60-DW is compatible with the Ericsson Cradlepoint IBR900 and IBR1700 series—two of RCN's most widely deployed mobile routers. The antenna carries an IP69K ingress rating (the highest tier—resistant to high-pressure, high-temperature water jets) and is rated for -40°C to +80°C operation. Available in black (SHKG-6-60-DW) or white (SHKGW-6-60-DW).
