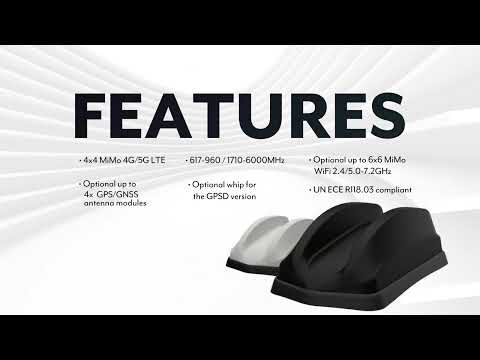

Panorama GPSD4-6-60-D 7:1 Dual Sharkfin Antenna, 4x4 MIMO 4G/5G, 2x2 Wi-Fi 6E and GPS

The Panorama GPSD4-6-60-D is the 7-in-1 dual sharkfin antenna used in the Dual Sharkee GP-IN2680 kit, sold here as the bare antenna with 300 mm (12 in) pigtails. It suits installers who already stock their own extension cables or need custom cable lengths for a vehicle or cabinet build.

Four cellular elements cover 617-960 and 1427-6000 MHz, including LTE Band 71. Two Wi-Fi elements cover 2.4, 5.0 and 7.1 GHz for Wi-Fi 6E, and an active GPS/GNSS antenna has a 26 dB LNA with LTE Band 13/14 filtering. An integral stud accepts an optional communications whip. The IP69K housing mounts through a single 19 mm (3/4 in) hole.

The antenna is offered in two colors. Black is part number GPSD4-6-60-D and White is GPSD4W-6-60-D. Both are electrically identical. If you need 5 m extension cables included, choose the Dual Sharkee GP-IN2680 kit instead.

Specifications

Download the Panorama GPS[X]D4-6-60 datasheet (PDF)

Right for you if

• You want the Dual Sharkee antenna but will supply your own extension cables.
• Your router has four cellular ports, two Wi-Fi ports and a GPS port.
• You may add a land mobile radio whip to the same roof penetration.
• You need a white or black housing to match the vehicle.

How it compares

The Panorama Dual Sharkee GP-IN2680 kit is this same antenna packaged with a full set of 5 m extension cables, and a no-Wi-Fi GP-IN2712 option. The Panorama Reef Sharkee GP-IN2850 kit is lower at 52 mm with cellular to 4900 MHz. The Panorama LG-IN2445 dome kit is a round dome alternative without a whip position.

Common deployments

• Upfitter builds where cable lengths are matched to the vehicle
• Police, fire and EMS vehicles with 4x4 MIMO routers and LMR radios
• Industrial and transport vehicles that need a single-hole, IP69K antenna

FAQ

Are extension cables included?
No. The GPSD4-6-60-D ships with 300 mm (12 inch) pigtails only, which are too short for most vehicle installs on their own. Plan to add extension cables to reach the router. If you prefer a kit with 5 meter cables included, choose the Panorama Dual Sharkee GP-IN2680 instead.

Does it work on a non-metal roof?
Yes, as long as no whip is fitted. Panorama states the antenna may be fitted on a non-metallic panel while still offering similar performance. When a communications whip is installed on the integral stud, the antenna must be mounted on a metal panel. It needs a single 19 mm hole.

What do the pigtail connectors look like?
The four cellular pigtails end in SMA plugs and the two Wi-Fi pigtails end in SMA jacks. The GPS/GNSS pigtail ends in an FME jack, and the whip feed is an FME plug. Choose extension cables that mate with these ends and with your router ports.

What is the difference between black and white?
Only the housing color differs. GPSD4-6-60-D is black and GPSD4W-6-60-D is white. Both have the same four cellular elements, two Wi-Fi 6E elements, active GPS, IP69K rating and whip stud. Pick the color that best matches the vehicle roof or fleet livery.
