| Pattern | Omnidirectional |
|---|---|
| Max input power | 25 |
| Frequency range | 698 – 960MHz | 2dBi; 1710 – 3800MHz | 5dBi |
| Cellular lte elements | 2 x 2 MIMO |
| Wifi elements | 2 x 2 MIMO; No; 3 x 3 MIMO |
| Uhf elements | No |
1
/
of
2
MiMo 5 in 1 Sharkee 5G
MiMo 5 in 1 Sharkee 5G
SKU: SKU: SH-IN2617
Regular price
$426.66
Regular price
Sale price
$426.66
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview

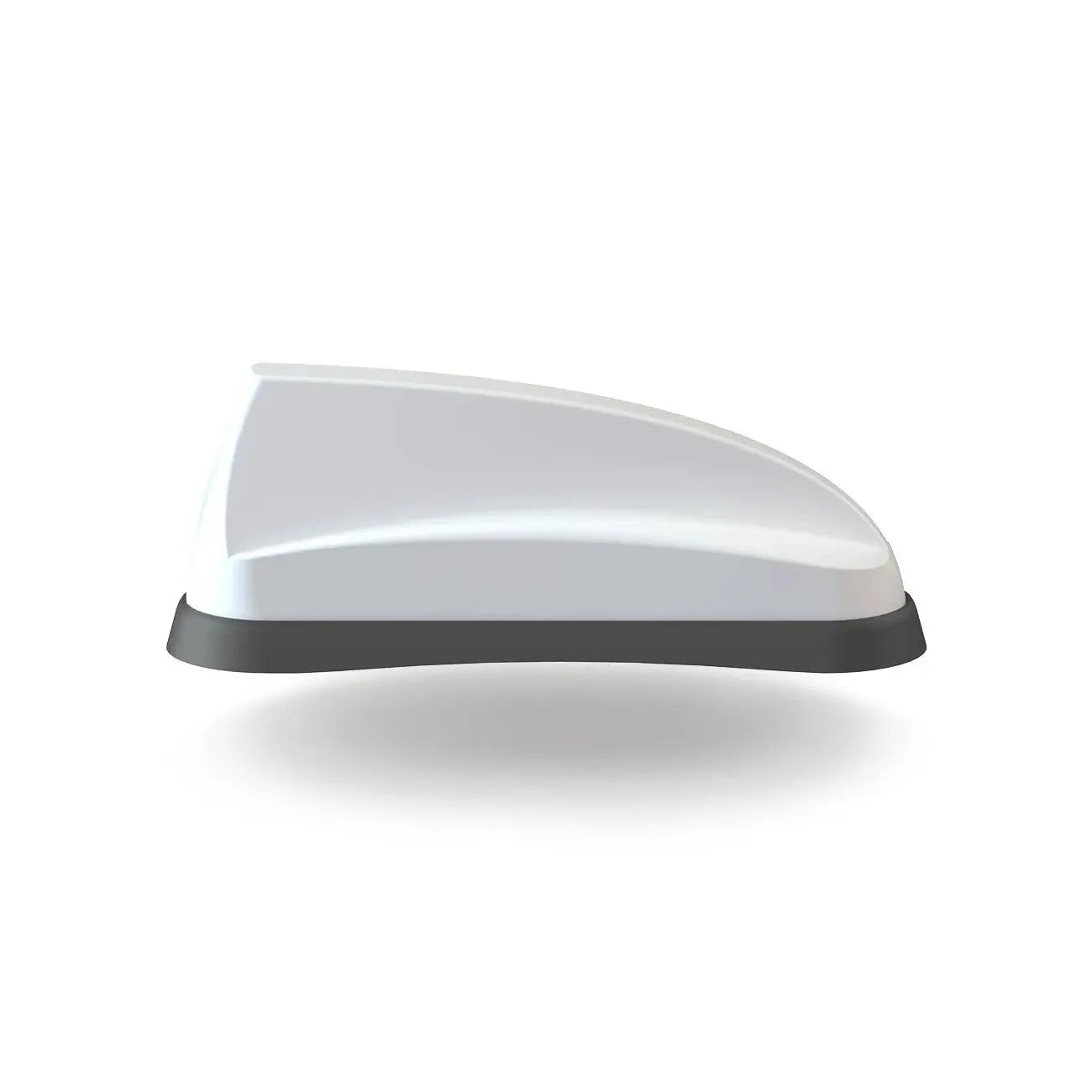

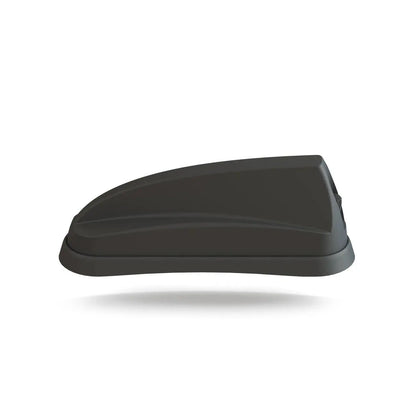

MiMo 5 in 1 Sharkee 5G Antenna
The MiMo 5 in 1 Sharkee 5G Antenna is a compact, high-performance connectivity solution designed for vehicles and mobile systems requiring reliable multi-network support. Housed in an OEM-style shark fin enclosure, this antenna offers 2x2 MiMo functionality for 5G, 4G LTE, 3G, and 2G networks—delivering strong, stable wireless performance across a wide frequency range. It’s an ideal choice for applications in fleet management, public safety, and remote mobile networking.
This versatile MiMo 5 in 1 Sharkee 5G solution also includes optional GPS/GNSS support, compatible with GPS, GLONASS, Galileo, and BeiDou systems. The SHKG variant features a high-gain 30dB LNA for accurate positioning and reliable satellite lock, even in challenging environments. Additionally, models are available with either 2x2 MiMo or 3x3 MiMo WiFi, supporting dual-band 2.4GHz and 5.8GHz operation, including WiFi 6.
Engineered for low visual impact and easy installation, the MiMo 5 in 1 Sharkee 5G offers premium multi-technology integration in a single compact housing.
Need help choosing or ready to order?
Electrical data
Gps data
| Gps frequency | 1562-1612MHz |
|---|---|
| Lna gain | 26 |
| Number of gps elements | 1 Module; No |
Mechanical data
| Colour | Black; White |
|---|---|
| Length | 170 (mm) | 6.69 (in) |
| Width | 60 (mm) | 2.36 (in) |
| Height | 50 (mm) | 1.97 (in) |
| Operating temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
Cable data
| Cable length lte | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
|---|---|
| Cable length gps | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length wifi | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable type lte | FR RG174 |
| Cable type gps | FR RG174 |
| Cable type wifi | FR RG174 |
| Quantity of cell cable | 2 |
| Quantity of gps/gnss extension | 1 |
| Quantity of wifi extension | max: 3 |
Termination data
| Connector wifi | Reverse Polarity SMA, SMA (f) |
|---|---|
| Connector gps | SMA (m), FME (f) |
| Connector lte | SMA (m) |
Mounting data
| Mounting type fixed | Panel |
|---|---|
| Mounting type temp | Magnetic |
| Mounting methods | Magnetic, Panel |
Approvals data
| Ip rating | IP66 |
|---|---|
| Cable flammability | EN45545-2 HL3, UN ECE R118, EN1772 |
Technology data
| Technology | GPS, WiFi MIMO, 4G/5G, WiFi 5G, 2G/3G, 2G/4G/5G, FirstNet, GNSS, WiFi SISO |
|---|
- ✓ The Best Selling Version From our Sharkee® Antenna Series
- ✓ OEM Automotive Style SharkFin Housing
- ✓ Up to 6 Separate Antenna Functions in a Single Housing
- ✓ Available in Black or White
- ✓ Covers 2×2 MiMo 4G/5G LTE
- ✓ Optional Dual Band MiMo WiFi and GPS/GNSS Inside the Distinctive Sharkfin Housing
- ✓ IP66 Rated and ECE118 Compliant Product
- ✓ Allows the User to Combine all Their Antenna Functions Into a Single Housing
- ✓ Reduces Installation Time and Cost by Having a Single Antenna
- ✓ Popular Choice by Many Fleets Where Roof Space is a Premium
- ✓ Public Safety
- ✓ Vehicle Communications
- ✓ In-vehicle Connectivity
No resources available for this product.
Frequently Asked Questions
What is the Panorama MiMo 5-in-1 Sharkee 5G Antenna?
A compact shark fin vehicle antenna delivering 5 integrated antenna systems in a single mount: 2x2 MIMO 5G/4G LTE, 2x2 MIMO Wi-Fi, and GPS/GNSS. Designed for fleet vehicles, emergency response, and commercial deployments requiring multi-function connectivity in a sleek low-profile form.
What frequency bands are covered?
Cellular: 617–6000 MHz (4G/5G LTE bands B1–B32, B66, B71, mid-band 5G n77, n78, n79). Wi-Fi: 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac) dual-band. GPS: L1 (1575 MHz). 2x2 MIMO cellular, 2x2 MIMO Wi-Fi, 1 x GPS element. SMA connectors: 4 x cellular, 2 x Wi-Fi, 1 x GPS/GNSS.
How is the Sharkee 5G antenna deployed?
Single-hole magnetic mount on vehicle roof, hood, or trunk. Shark fin profile minimizes wind drag and aerodynamic impact. Integrated five-element design reduces cable complexity. 10-meter SMA cables routed through vehicle to interior router (Cradlepoint R920, R1900, or aftermarket). Ideal for fleet, police, and emergency vehicle integration.
What are the technical specifications?
5-in-1 integrated system: 2x2 MIMO cellular (7–10 dBi gain), 2x2 MIMO Wi-Fi (5–8 dBi), passive GPS (L1 only). VSWR: <2.5:1 for all elements. Connectors: 4 x SMA female (cellular), 2 x SMA female (Wi-Fi), 1 x SMA female (GPS). Operating temp: -30° to 70°C. IP67 weatherproof. Single mounting hole (reduces vehicle damage). Weight: ~300 grams.
Is the 5-in-1 Sharkee compatible with Cradlepoint mobile routers?
Yes. Connectors match Cradlepoint R920, R1900 in-vehicle router SMA ports. Supports dual-carrier LTE + Wi-Fi failover in vehicles. GPS element integrates with fleet management and emergency response systems. Optimized for FirstNet public safety deployments. Works with NetCloud mobile management.
What vehicle and compliance certifications apply?
Safety: UL/cUL, EN 62368-1. Environmental: IP67 mobile-rated. Automotive-grade: MIL-STD-810H shock/vibration for vehicle mounting. Operating temp: -30° to 70°C. Aerodynamic: designed for highway speeds (optimal <65 mph). Emergency services approved. FirstNet compatible. Limited lifetime warranty with RCN systems.
