Product Overview

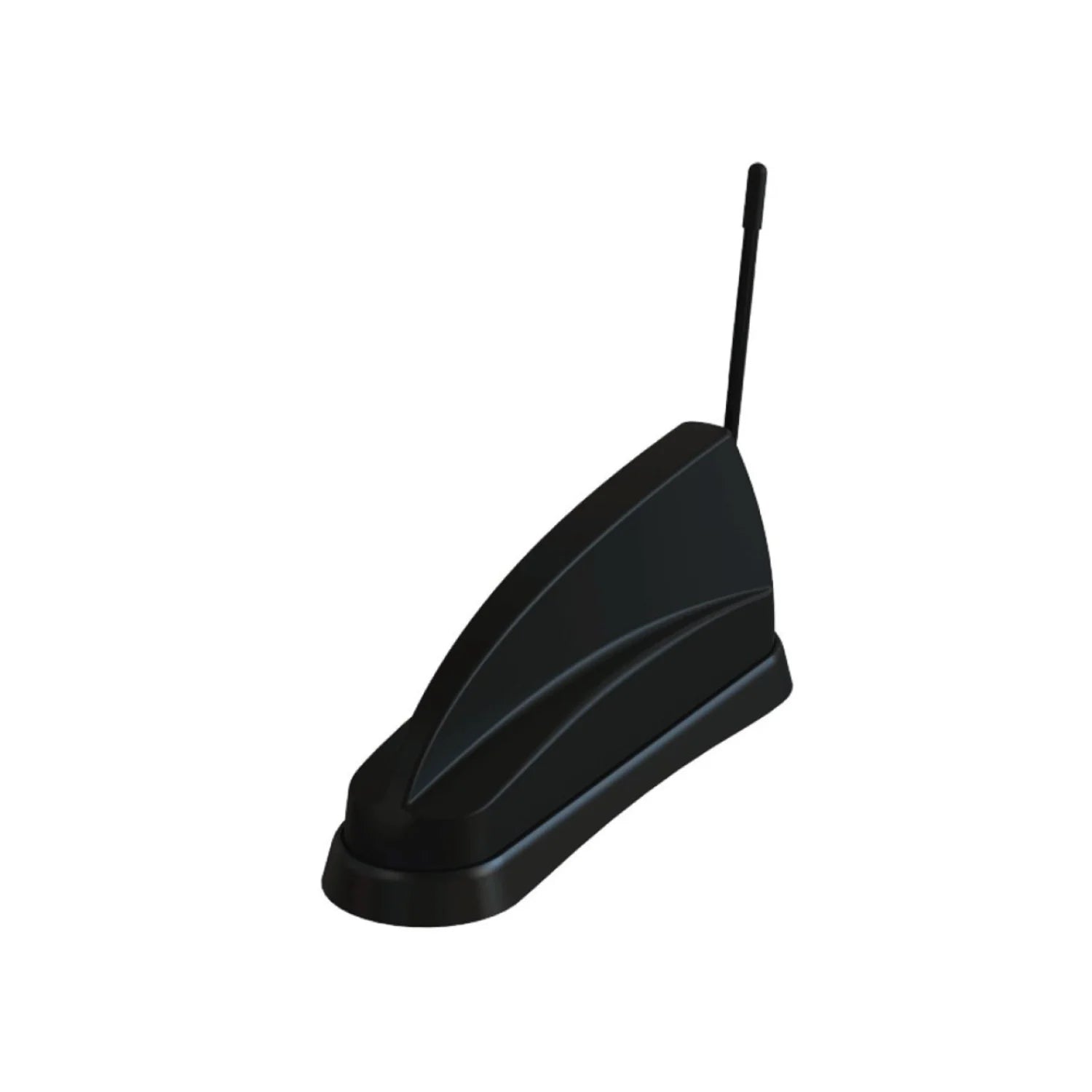

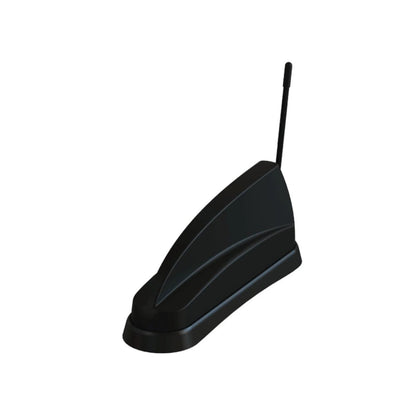

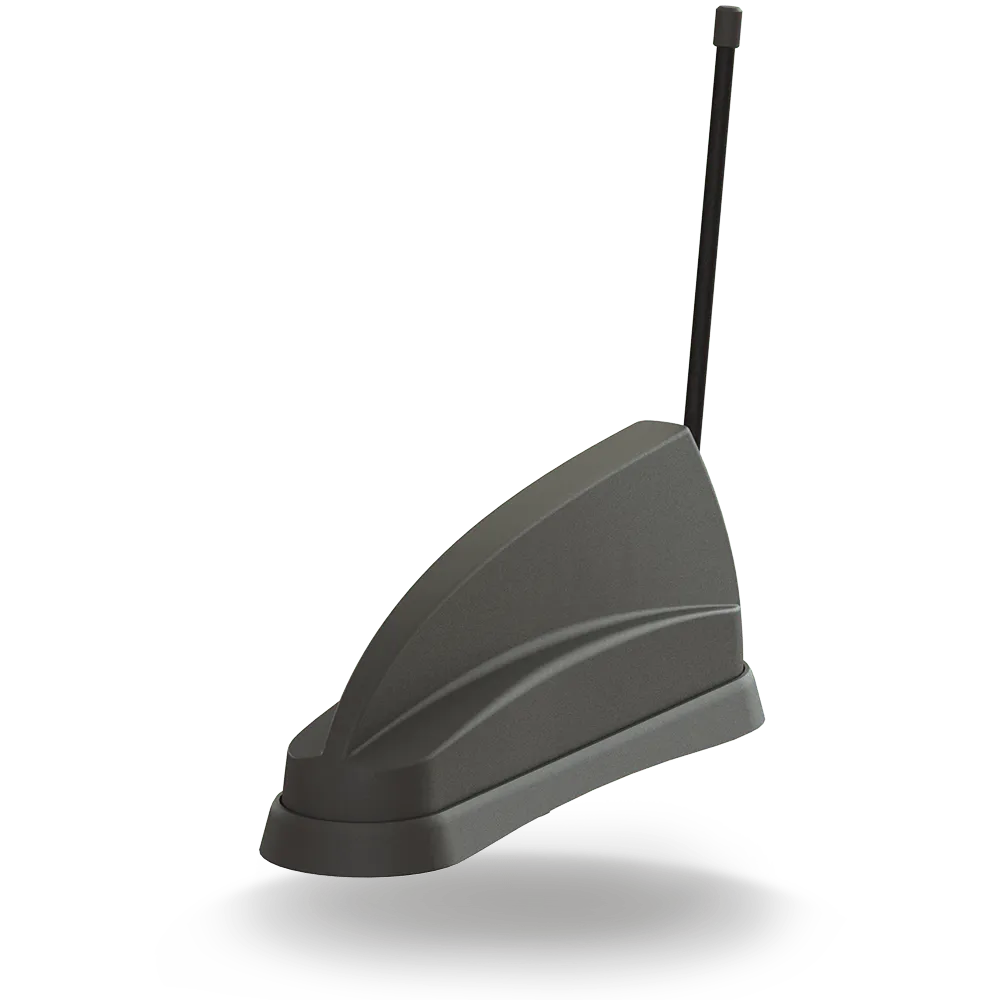

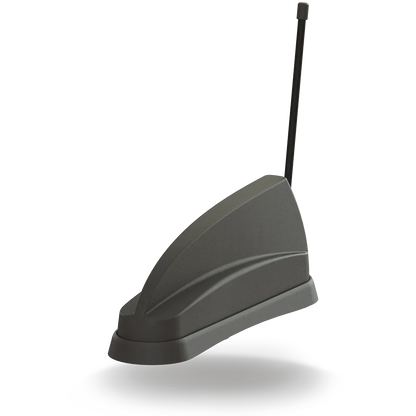

The GPSD-6-60-DW is the Sharkee for vehicles that need 5G data and a two-way radio whip on one antenna. It carries two 4G/5G elements covering 617-6000 MHz, two Wi-Fi 6 elements, an active GPS/GNSS antenna and a stud for a VHF, UHF or 700/800 MHz whip.
This is the bare antenna with 0.3 m (1 ft) pigtails: SMA male for cellular, FME female for GPS and SMA female for Wi-Fi. Most vehicle installs need extension cables. A blanking cap covers the whip stud when no whip is fitted.
Specifications
| Model | GPSD-6-60-DW (black) |
|---|---|
| Antenna elements | 5 total: 2x2 MIMO cellular, 2x2 MIMO Wi-Fi, 1 GPS/GNSS, plus whip stud |
| Wi-Fi | 2x2 MIMO, dual band, supports Wi-Fi 6 |
| Cellular frequency and peak gain | 617-960 MHz (5 dBi), 1710-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi) peak gain |
| GNSS | GPS/GLONASS/Galileo/BeiDou, 1562-1612 MHz, 26 dB LNA, LTE Band 13/14 filtering |
| Radio whip mount | Integral stud for VHF, UHF or 700/800 MHz whip; blanking cap supplied |
| Radiation pattern | Omnidirectional |
| Connectors | Cellular: 2 x SMA (m); GPS: FME (f); Wi-Fi: 2 x SMA (f) |
| Dimensions | 243 x 63 x 90 mm (9.57 x 2.48 x 3.54 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP69K |
| Cable | Flame-retardant RG174 pigtails, 0.3 m (1 ft); extension cables not included |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount; install on a metal panel when a radio whip is fitted |
| Compatibility | Vehicle routers with two cellular ports, two Wi-Fi ports and GPS, using suitable extension cables; radio whip sold separately |
View the Panorama GPSD-6-60 Sharkee product page and datasheet
Right for you if
- You want a two-way radio whip and 5G data on one roof antenna.
- Your router uses 2x2 MIMO cellular, two Wi-Fi ports and GPS.
- You supply your own extension cables.
- If you do not need a whip, the SHKG-6-60-DW is the sharkfin without the whip stud.
FAQ
Can I add a two-way radio whip?
Yes. The GPSD-6-60 has an integral stud for an external VHF, UHF or 700/800 MHz whip, and Panorama supplies a blanking cap for when you do not need it. Panorama states the antenna should be installed on a metal panel when a radio whip is used. The whip itself is sold separately.
Why are the cables so short?
Panorama ships the GPSD-6-60-DW with 0.3 m (1 ft) pigtails so installers can add extensions of the right length for each vehicle. The GPS pigtail ends in an FME female and the Wi-Fi pigtails end in SMA female, so check your router ports before ordering extensions. RCN can help you match extension cables to your router.
Will it mount on a non-metal roof?
Only without a whip. Panorama states that if a radio whip is not required, the GPSD-6-60 may be fitted on a non-metallic panel and still offer similar performance. With a whip fitted, it should go on a metal panel. Panorama also lists a magnetic mounting option for this antenna.
