Product Overview

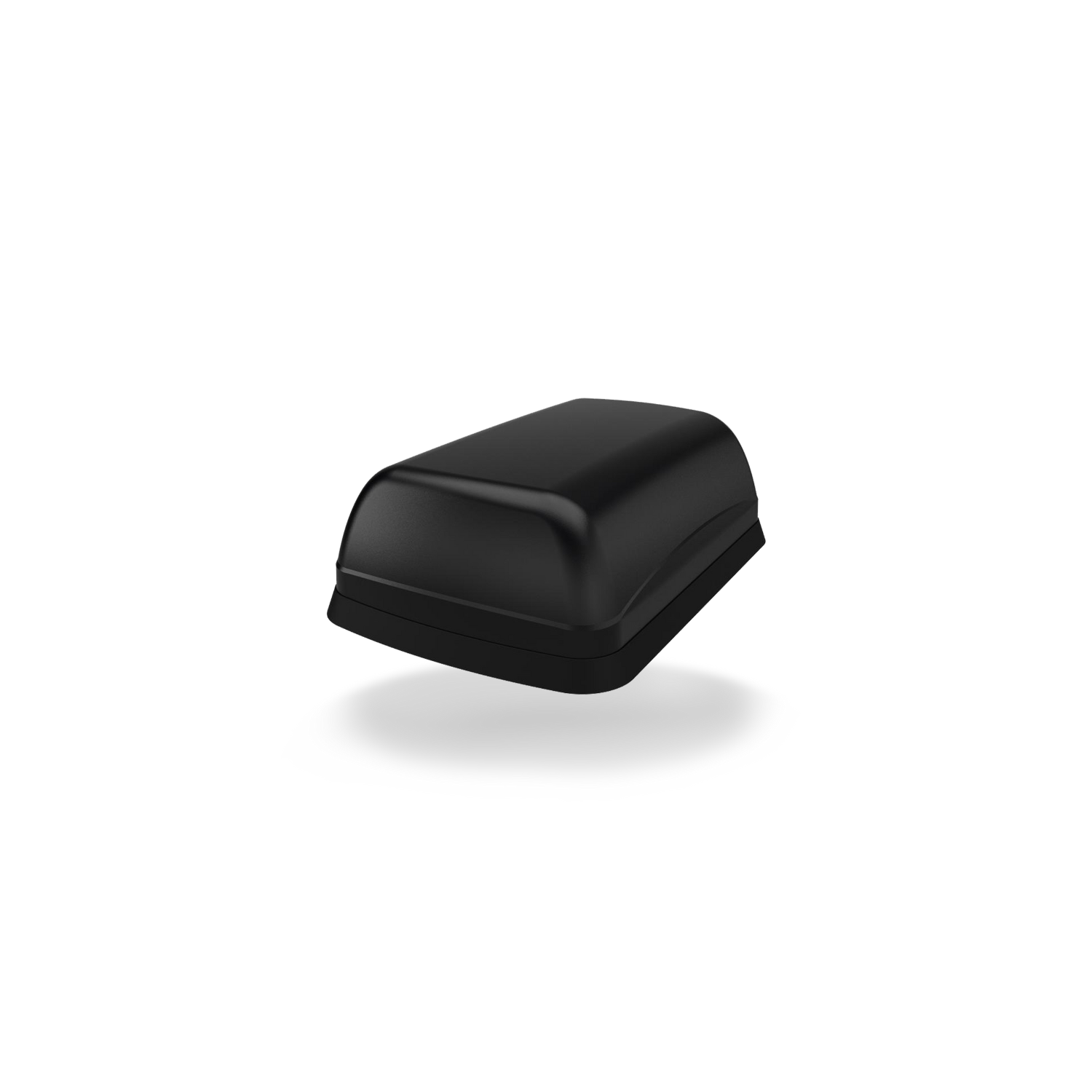

The Panorama LGAM4-7-42, known as the Clam, is a low profile 4x4 MIMO antenna built for IoT gateways, kiosks, cabinets and vehicles in public or harsh locations. Its curved housing is harder to vandalize, carries an IK10 impact rating, and is sealed to IP69K.
Four 4G LTE / 5G NR elements cover 698-960 and 1427-4200 MHz, and one GPS/GNSS element with a 26 dB LNA covers 1559-1612 MHz. The radome is flame retardant, impact resistant and UV stable. It ships with 2 m integrated low-loss cables that meet UN ECE R118 and mounts through a 3/4 in (M18) bush on conductive or non-conductive panels.
Specifications
| Elements | 5 (4x cellular, 1x GPS/GNSS) |
|---|---|
| Cellular frequency | 698-960 / 1427-4200 MHz, 4x4 MIMO |
| GNSS | 1559-1612 MHz, 26 dB LNA |
| Isolation | Cellular: 6 dB or better (698-960 MHz), 12 dB or better (1427-4200 MHz) |
| Connectors | 4x SMA plug (cellular), 1x SMA plug (GPS) |
| Cable | 2 m (6.6 ft) integrated CS30, compliant to UN ECE R118 |
| Mounting | M18 (3/4 in) mounting bush; conductive or non-conductive panels |
| Ingress rating | IP69K; IK10 vandal resistance |
| Dimensions | 175.4 x 118 x 56.9 mm (6.9 x 4.64 x 2.2 in) |
| Operating temperature | -40 to +85 °C (-40 to 185 °F) |
| Part number | LGAM4-7-42 |
Download the Panorama L[X]A[X]M4-7-42 Clam datasheet (PDF)
Right for you if
- Your gateway or router has four cellular ports and one GPS port.
- The antenna will be in a public place where vandalism is a concern.
- You need a sealed, low profile antenna for a cabinet, kiosk or vehicle roof.
- Your carrier bands fall within 698-4200 MHz.
How it compares
If you also need Wi-Fi, the Panorama LG-IN2445 dome kit adds two Wi-Fi elements and extends cellular coverage to 617-6000 MHz with 5 m cables. For vehicles that also run a two-way radio, the Panorama Reef Sharkee GP-IN2850 kit includes a whip position. For a wall or mast at a fixed site, the Panorama DWMM4-6-60 covers 617-6000 MHz in an IP66 housing.
Common deployments
- IoT gateways and kiosks in public spaces
- Roadside, utility and industrial cabinets
- Vehicles that need a compact, rugged 4x4 MIMO and GPS antenna
FAQ
Does the LGAM4-7-42 cover all 5G bands?
The four cellular elements cover 698-960 MHz and 1427-4200 MHz. That includes most LTE bands and the 3.3-4.2 GHz range used for 5G mid-band and C-band. It does not cover the 617-698 MHz Band 71 range or frequencies above 4.2 GHz, so confirm your carrier bands if those matter.
How rugged is the Clam housing?
The housing is built from flame retardant, impact resistant plastic with a UV-stable finish. It carries an IK10 impact rating, the top of the IK scale, and IP69K ingress protection. Panorama designed the curved shape to be harder to vandalize, which suits devices located in public areas.
Does it need a metal mounting surface?
No. Panorama states the LGAM4-7-42 can be installed on conductive or non-conductive panels without significant detriment to performance. It mounts through a 3/4 inch (M18) hole using its mounting bush, so it can go on a vehicle roof, a cabinet top or a non-metal enclosure.
What cables and connectors are included?
The antenna has five integrated 2 meter (6.6 feet) CS30 low-loss cables that comply with UN ECE R118. The four cellular cables and the GPS cable all terminate in SMA plugs, which connect directly to most cellular routers and IoT gateways with SMA female ports.
