Product Overview
The Panorama LG-IN2445 is a complete 7-in-1 dome antenna kit for vehicles and cabinets that run a 4x4 MIMO cellular router with Wi-Fi and GPS. It arrives as a plug-and-play kit with 5 m (16 ft) extension cables, so installers do not have to source cables separately.
Four 4G/5G elements cover 617-960 and 1710-6000 MHz, two Wi-Fi elements cover 2.4 and 4.9-6 GHz, and the GPS/GNSS module supports GPS, GLONASS, Galileo, QZSS and Compass with a 26 dB LNA and filtering for LTE Band 13/14. The halogen-free, flame-retardant radome meets IK10 for vandal resistance and IP69K for ingress, and it panel mounts on conductive or non-conductive surfaces.

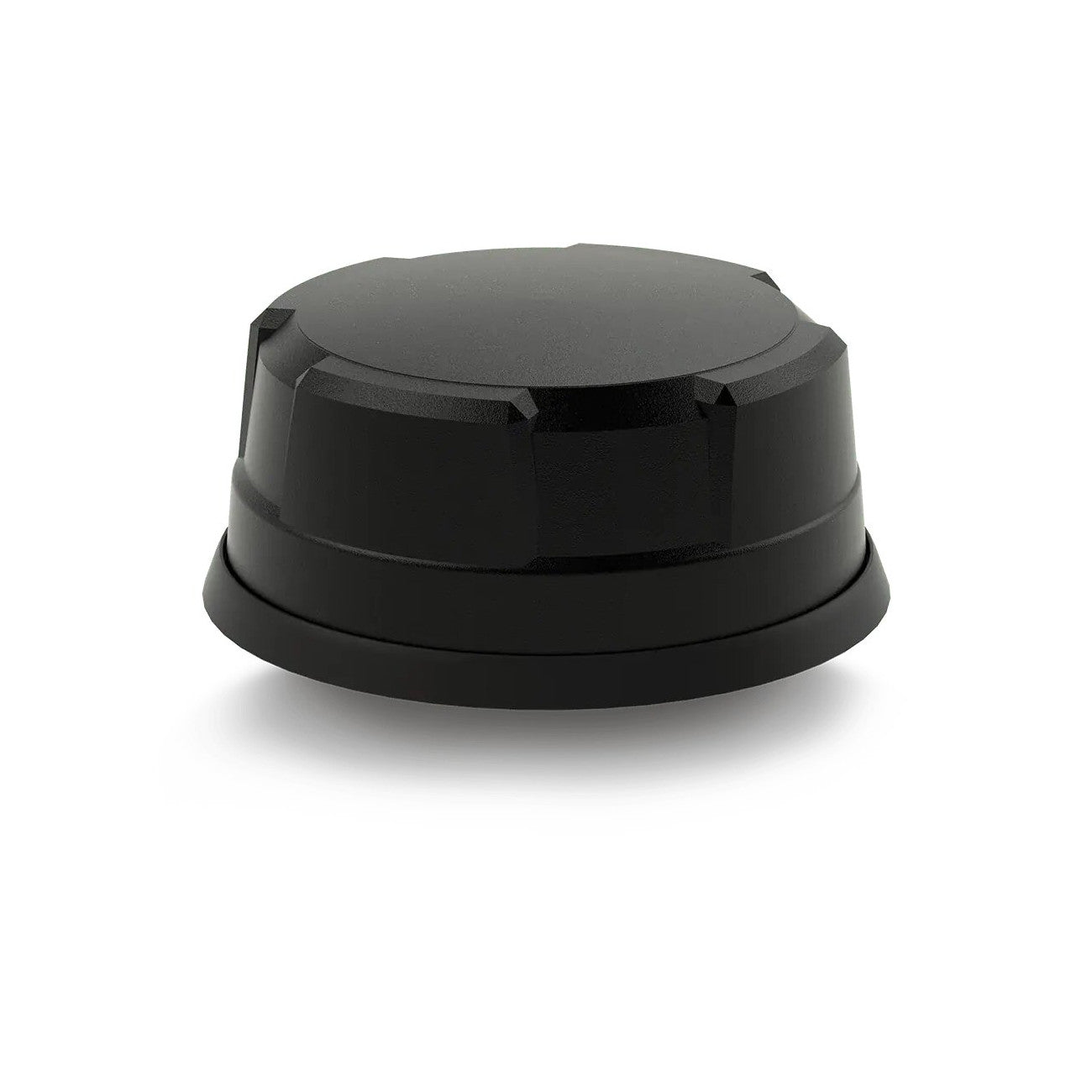

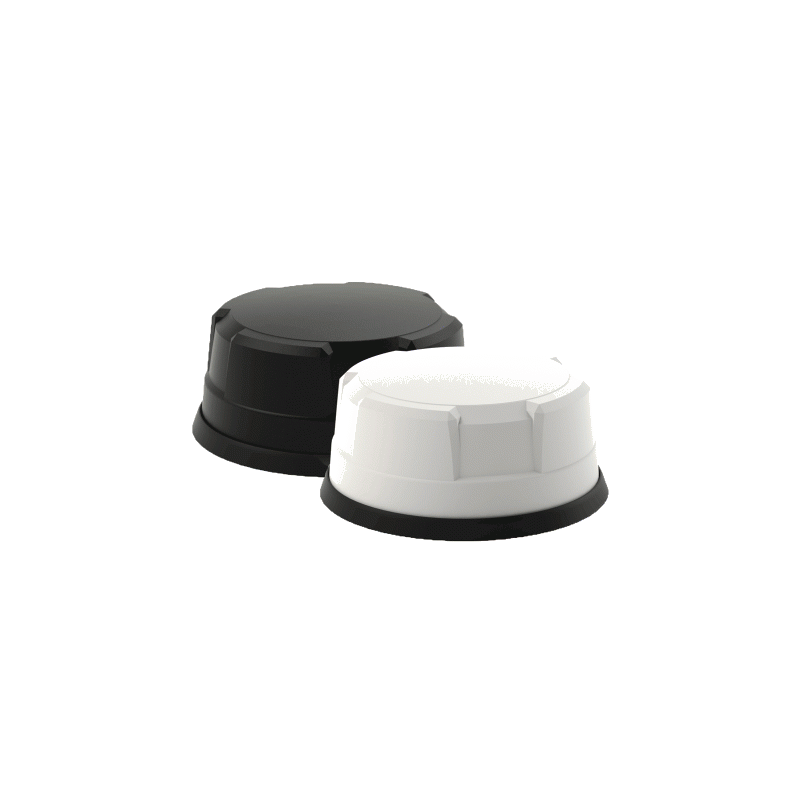

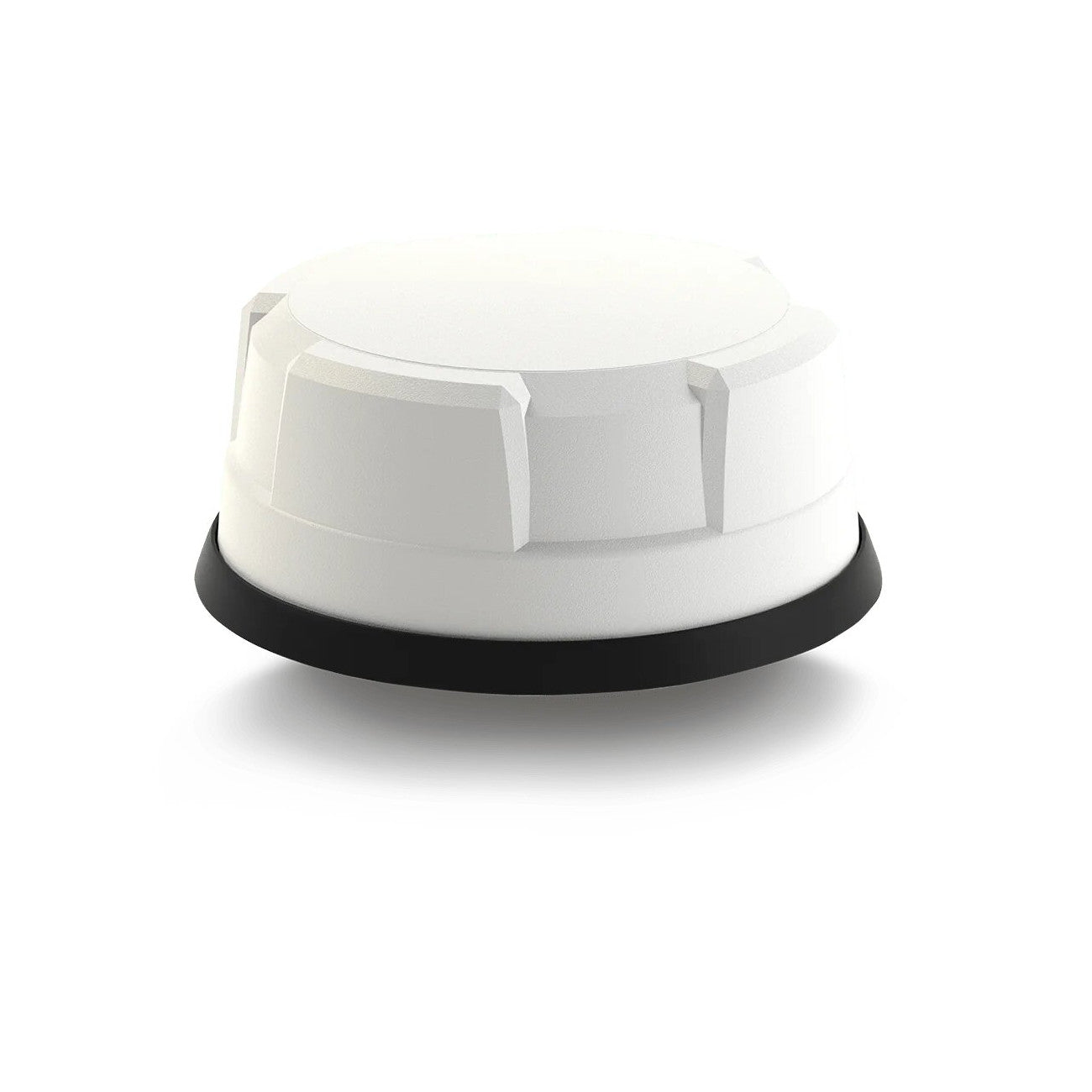

The kit is offered in two radome colors. Black is part number LG-IN2445 and White is LG-IN2445-W. Both have identical electrical specifications and include the same 5 m cable set.
Specifications
| Elements | 7 (4x cellular, 2x Wi-Fi, 1x GPS/GNSS) |
|---|---|
| Cellular frequency | 617-960 / 1710-6000 MHz, 4x4 MIMO |
| Wi-Fi | 2x 2.4 / 4.9-6.0 GHz, 2x2 MIMO |
| GNSS | 1562-1612 MHz; GPS, GLONASS, Galileo, QZSS, Compass; 26 dB LNA; LTE Band 13/14 filtering |
| Gain | Cellular 4 dBi (617-960 MHz), 8 dBi (1710-3800 MHz), 9 dBi (4900-6000 MHz); Wi-Fi 9 dBi |
| Connectors | 4x SMA male (cellular), 2x reverse-polarity SMA (Wi-Fi), 1x SMA male (GPS) |
| Cable | 5 m (16 ft) low-loss extension cables, UN ECE R118 and EN45545-2 compliant |
| Mounting | Panel mount, 19 mm (3/4 in) hole, panels up to 7 mm thick |
| Ingress rating | IP69K; IK10 impact |
| Dimensions | 180 mm diameter x 80 mm high (7.1 x 3.1 in) |
| Operating temperature | -40 to +80 °C (-40 to 176 °F) |
| Part numbers | LG-IN2445 (black), LG-IN2445-W (white) |
Download the Panorama LG-IN2445 datasheet (PDF)
Right for you if
- Your router has four cellular ports, two Wi-Fi ports and a GPS port.
- You want a round, low profile dome rather than a sharkfin.
- You want the extension cables included in the kit.
- The antenna will be exposed to washdown, impact or vandalism.
How it compares
The Panorama Dual Sharkee GP-IN2680 kit offers the same 4x4 cellular, 2x2 Wi-Fi and GPS layout in a sharkfin housing with a radio whip position. The Panorama Mako Dome LG-IN2350 kit is an earlier dome with cellular coverage of 698-3800 MHz. If you do not need Wi-Fi, the Panorama LGAM4-7-42 Clam provides 4x4 MIMO and GPS in a smaller IK10 housing.
Common deployments
- Public safety, emergency and fleet vehicles with 4x4 MIMO routers
- Transit vehicles and rail applications that need flame-retardant cabling
- Outdoor cabinets and kiosks that need cellular, Wi-Fi and GPS from one antenna
FAQ
What is included in the LG-IN2445 kit?
The kit includes the 7-in-1 dome antenna with integrated pigtails and a complete set of 5 meter (16 foot) ultra-low-loss extension cables. The cellular and GPS cables end in SMA male connectors and the Wi-Fi cables end in reverse-polarity SMA. Panorama describes it as a plug-and-play kit.
Does it need a metal roof?
No. Panorama designed the LG-IN2445 to be panel mounted on a conductive or non-conductive surface. It fits through a 19 mm (3/4 inch) hole in panels up to 7 mm thick, and the cables pass through the mounting bolt for a clean installation.
Which 5G bands does it cover?
The four cellular elements cover 617-960 MHz and 1710-6000 MHz. That includes LTE Band 71, the mid-band LTE and 5G frequencies, and the C-band and 3.5 GHz ranges used for 5G below 6 GHz. It does not cover millimeter-wave 5G.
What is the difference between black and white?
Only the radome color differs. LG-IN2445 is black and LG-IN2445-W is white. Both have the same elements, gain, cables and IK10 and IP69K ratings. White is often chosen for white vehicle roofs or to match building exteriors, while black suits dark vehicles.
