| Pattern | Omnidirectional |
|---|---|
| Typical vswr | <2.5:1 |
| Frequency range gain | 698 – 960MHz | ; 1427 – 4900MHz | |
| Max input power w | 20 |
| Cellular lte elements | 4 x 4 MIMO; No |
| Wifi elements | 2 x 2 MIMO; No; 4 x 4 MIMO; 3 x 3 MIMO |
| Uhf elements | No |
1
/
of
1

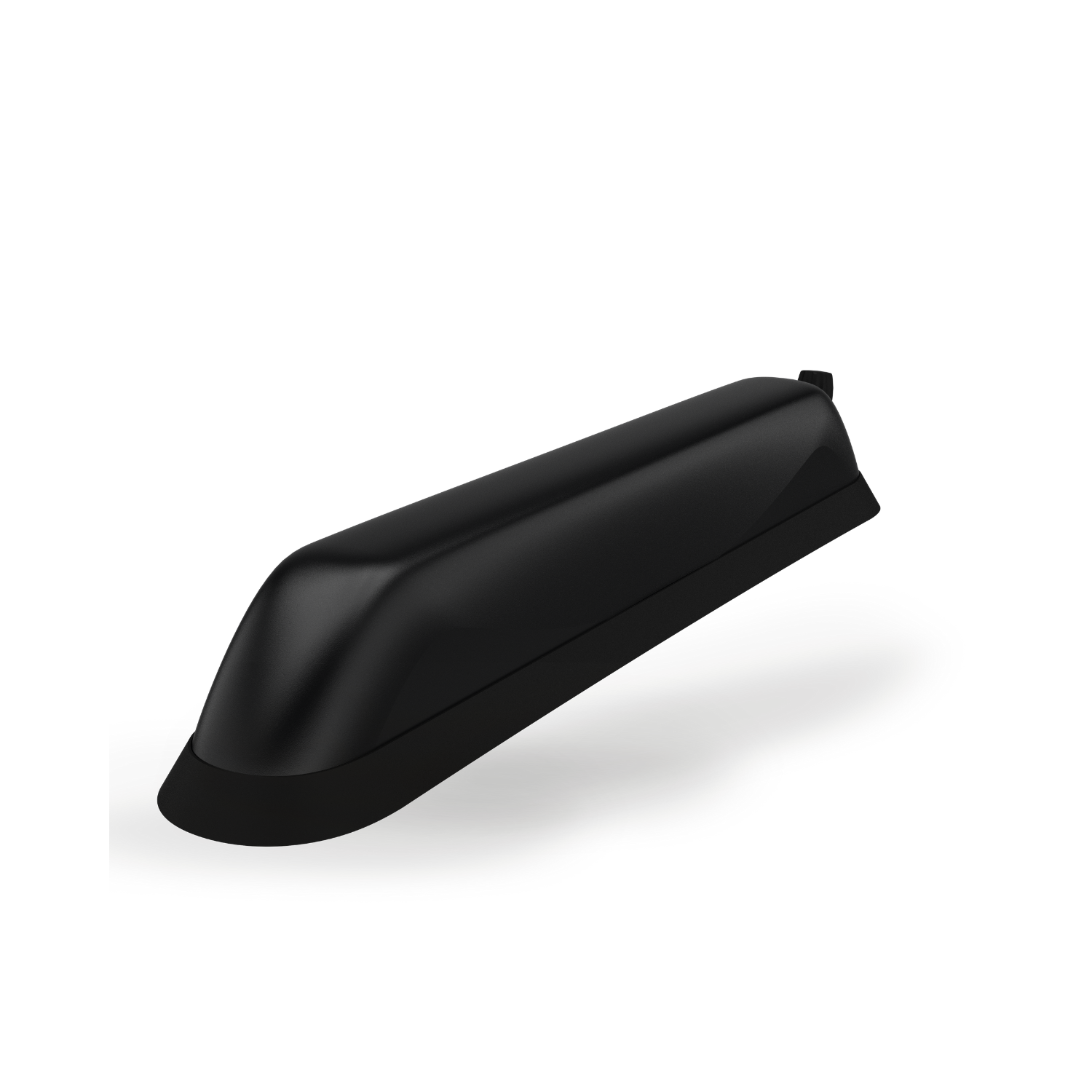

Panorama GP-IN2850 MiMo Reef Sharkee 4G/5G Mobility Antenna
Panorama GP-IN2850 MiMo Reef Sharkee 4G/5G Mobility Antenna
SKU: SKU: GP-IN2850
Regular price
$581.72
Regular price
Sale price
$581.72
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
MiMo Reef Sharkee 4G/5G Mobility Antenna
The MiMo Reef Sharkee 4G/5G Mobility Antenna is a compact, high-performance solution engineered for robust and reliable mobile connectivity. Designed for fleet, public safety, and transportation applications, this low-profile antenna combines multiple wireless functions into a single, rugged housing. It features 4x4 MiMo support for 4G LTE and 5G NR, covering frequency ranges from 698–960 MHz and 1427–4900 MHz, delivering high data throughput and consistent network performance on the move.
In addition to cellular connectivity, the MiMo Reef Sharkee offers optional configurations with up to 4x dual-band WiFi elements, supporting WiFi 6e over 2.4GHz to 7.125GHz. Optional GPS/GNSS modules are available in both L1-only and L1/L5 dual-band variants for accurate positioning. A flexible whip mounting point supports single, dual, or tri-band whips for VHF, UHF, and 700/800MHz operation, making this antenna exceptionally versatile for multi-network deployments.
This all-in-one antenna is ideal for demanding mobility use cases that require space-saving design without compromising performance.
Electrical data
Gps data
| Gps frequency range | 1559-1612MHz; 1164-1189MHz/1559-1612MHZ |
|---|---|
| Lna gain db | 26dB; 30dB / 26dB |
| Number of gps elements | No; 1 Module |
Mechanical data
| Length | 365 (mm) | 14.37 (in) |
|---|---|
| Width | 60 (mm) | 2.36 (in) |
| Height | 52 (mm) | 2.05 (in) |
| Operating temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
Cable data
| Cable length whip | 0.3 (m) | 0.98 (ft) |
|---|---|
| Cable length lte | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length gps | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length wifi | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable type wifi | FR CS32; CS30 |
| Quantity of cell cable | 4 |
| Quantity of gps gnss | 1 |
| Quantity of wifi extension | max: 4 |
Termination data
| Connector wifi | SMA Rev Pol; SMA (m); SMA (f); Articulated SMA (f) |
|---|---|
| Connector gps | SMA (m) |
| Connector vhf uhf | FME (m) |
| Connector lte | SMA (m) |
Mounting data
| Mounting type fixed | Panel |
|---|---|
| Mounting methods | Panel |
Approvals data
| Ip rating | IP69K |
|---|---|
| Cable flammability | UN ECE R118 |
Technology data
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; CBRS; GPS; WIFI MIMO; WIFI; GNSS; WIFI 6E; ESN; FirstNet |
|---|
- ✓ Sleek sharkfin design
- ✓ 4×4 MiMo 698-960/1427-4900MHz
- ✓ Up to 4×4 MiMo WiFi 6e (optional)
- ✓ GPS/GNSS L1/L5 or L1 only 30dB / 26dB LNA (optional)
- ✓ Whip position for single, dual or tri-band whips for secure comms
- ✓ IP69K Rated
- ✓ Single hole installation
- ✓ Sleek sharkfin design
- ✓ Low profile
- ✓ Preserve vehicle resale value
- ✓ Whip position
- ✓ Public Safety
- ✓ Mobility
- ✓ First Responders
