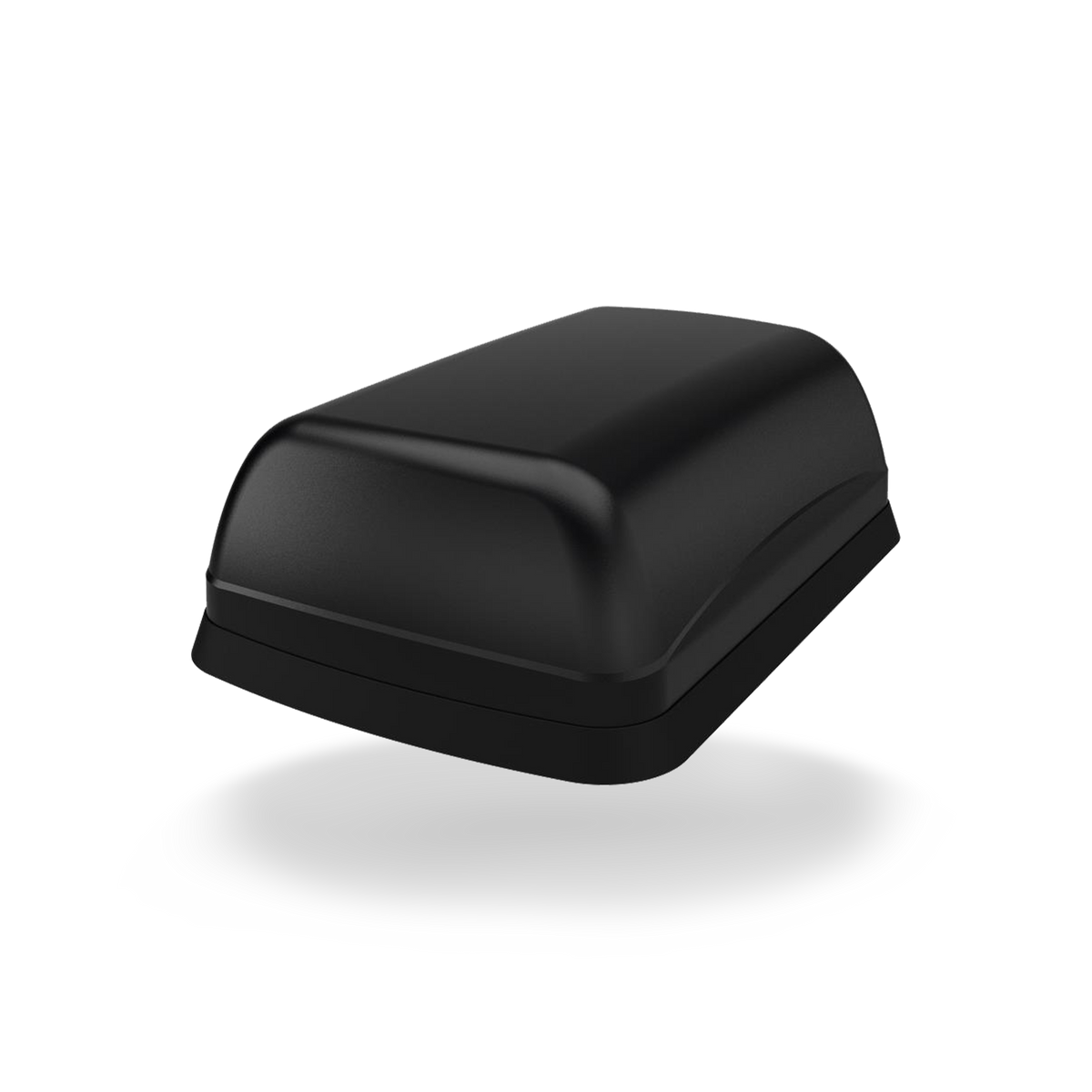

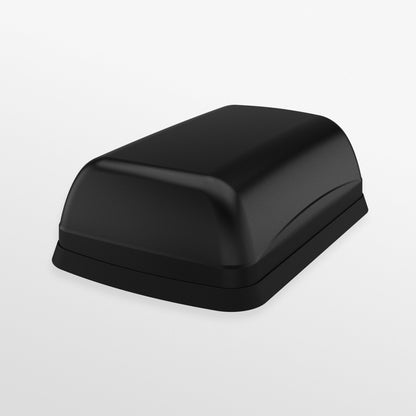

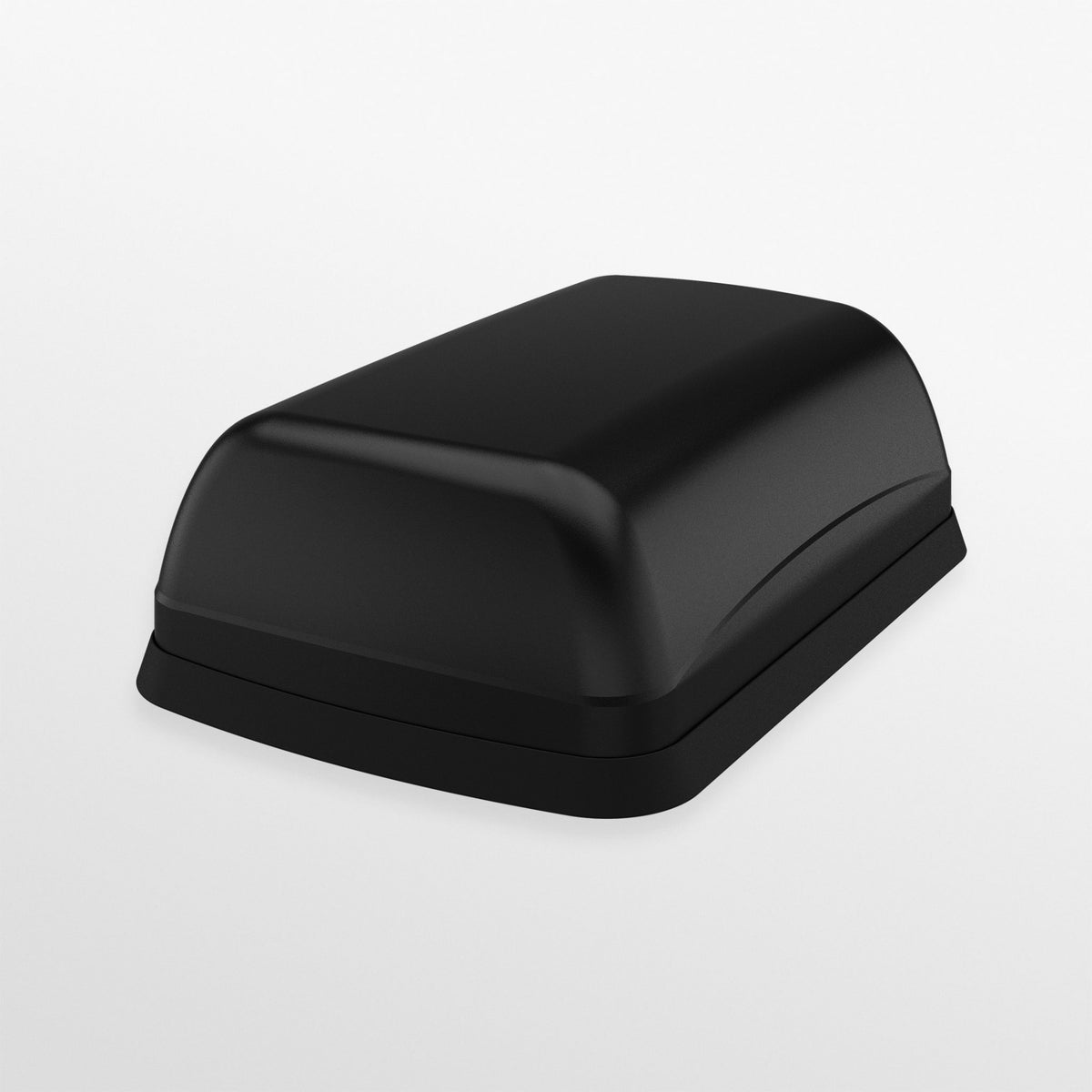

Panorama LGADM4-7-42 Clam 7-in-1 IoT Antenna, 4x4 MIMO 4G/5G, 2x2 Wi-Fi 6E, GPS

The LGADM4-7-42 Clam combines 4x4 MIMO 4G/5G, 2x2 Wi-Fi 6E and GPS/GNSS in one low, vandal-resistant housing. It suits IoT routers on kiosks, street furniture, digital signage and private networks that need cellular, local Wi-Fi and location from a single antenna.

The cellular elements cover 698-960 MHz and 1427-4200 MHz, the Wi-Fi elements cover 2.4 to 7.125 GHz, and the GPS element covers 1559-1612 MHz with a 26 dB LNA. Integrated 2 m (6.56 ft) cables end in SMA male for cellular and GPS and reverse-polarity SMA for Wi-Fi.

Specifications

View the Panorama L[X]A[X]M4-7-42 Clam product page and datasheet

Right for you if

• Your router runs 4x4 MIMO cellular with two Wi-Fi ports and GPS.
• The antenna will sit within public reach and needs IK10 impact resistance.
• You want Wi-Fi 6E support up to 7.125 GHz.

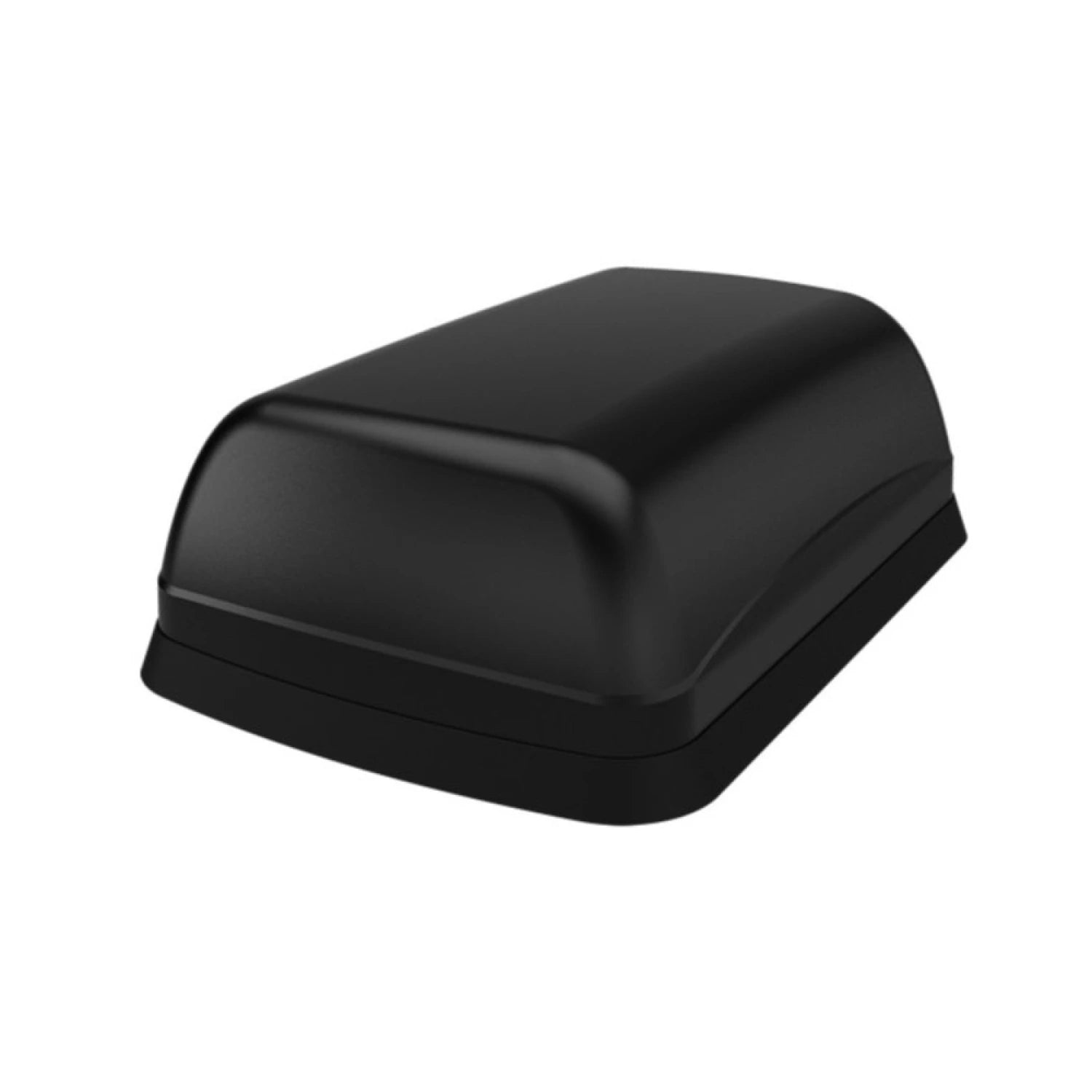

• If you only need cellular, the LPAM4-7-42 is the four-element version.

FAQ

Is the Clam housing suitable for public locations?
Panorama built the Clam housing from flame-retardant, impact-resistant plastic with a curved shape that is harder to vandalize. It carries an IK10 impact rating and IP69K ingress rating, and Panorama lists vending machines, kiosks and street furniture among its applications. That makes it a fit for devices installed where the public can reach them.

Which Wi-Fi bands does it cover?
Panorama lists the two Wi-Fi elements at 2400-7125 MHz, which covers 2.4 GHz, 5 GHz and the 6 GHz band used by Wi-Fi 6E. Both Wi-Fi cables end in reverse-polarity SMA plugs, the connector most routers and gateways use for external Wi-Fi antennas.

Does it cover 5G?
Panorama lists the four cellular elements at 698-960 MHz and 1427-4200 MHz and describes them as 4G LTE and 5G NR elements. That covers LTE, mid-band 5G and CBRS up to 4.2 GHz, but not 600 MHz Band 71 or bands above 4.2 GHz. Check your carrier band plan before ordering.
