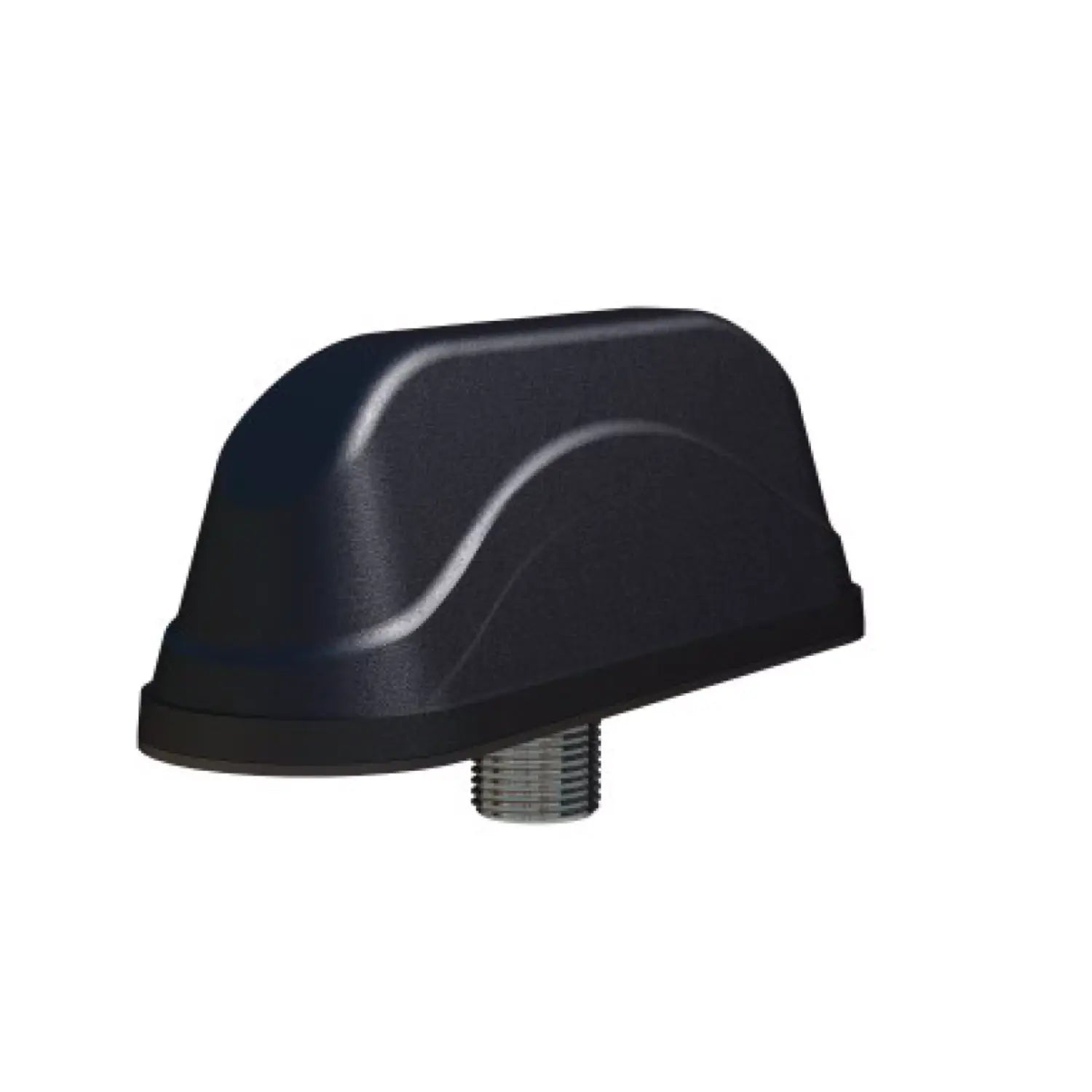

Panorama LGAM-7-27-24-58 5-in-1 IoT Antenna, 2x2 MIMO LTE, 2x2 Wi-Fi, GPS

The LGAM-7-27-24-58 gives a kiosk, payment terminal or vending machine its cellular and Wi-Fi antennas plus GPS in one compact dome. Panorama designed it for M2M applications where a cost-effective, robust antenna is essential and roof or panel space is tight.

It mounts through a single hole and keeps a high level of performance on metallic or non-metallic surfaces. The integrated 3 m (9.84 ft) RG174 cables end in SMA male plugs for cellular and GPS and reverse-polarity SMA plugs for Wi-Fi.

Specifications

View the Panorama L[G]AM-7-27-[X]24-58 product page and datasheet

Right for you if

• Your gateway or router has two cellular ports and two Wi-Fi ports plus GPS.
• You want one small antenna on a kiosk, terminal or cabinet instead of several.
• Your carrier bands fall within 698-3800 MHz.
• If you do not need GPS, the LPAM-7-27-24-58 is the four-element version.

FAQ

Will it work on a plastic or composite enclosure?
Yes. Panorama states the L[G]AM-7-27-24-58 maintains a high level of performance even when mounted on a non-metallic surface. It installs through a single hole with a small footprint, which suits kiosk tops, terminal housings and cabinets made of plastic, composite or metal.

Which Wi-Fi bands does it support?
Panorama lists the Wi-Fi function as 2x2 MIMO dual band, 2.4 GHz and 5 GHz. Both Wi-Fi cables end in reverse-polarity SMA plugs, the connector most routers and gateways use for Wi-Fi antenna ports. Check that your device has two external Wi-Fi ports before ordering this version.

Does it cover 5G?
Panorama lists the cellular elements at 698-960 MHz (2 dBi) and 1710-3800 MHz (5 dBi) and describes them for 2G through 5G within that range. That covers LTE and mid-band 5G up to 3.8 GHz, but not 600 MHz Band 71 or bands above 3.8 GHz.
