| Pattern | Omnidirectional |
|---|---|
| Cellular lte elements | 4 x 4 MIMO |
| Wifi elements | 4 x 4 MIMO; 3 x 3 MIMO; 2 x 2 MIMO; No |
| Uhf elements | No |
1
/
of
2
MiMo Dual Sharkee 5G
MiMo Dual Sharkee 5G
SKU: SKU: GP-IN2680
Regular price
$581.71
Regular price
Sale price
$581.71
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview

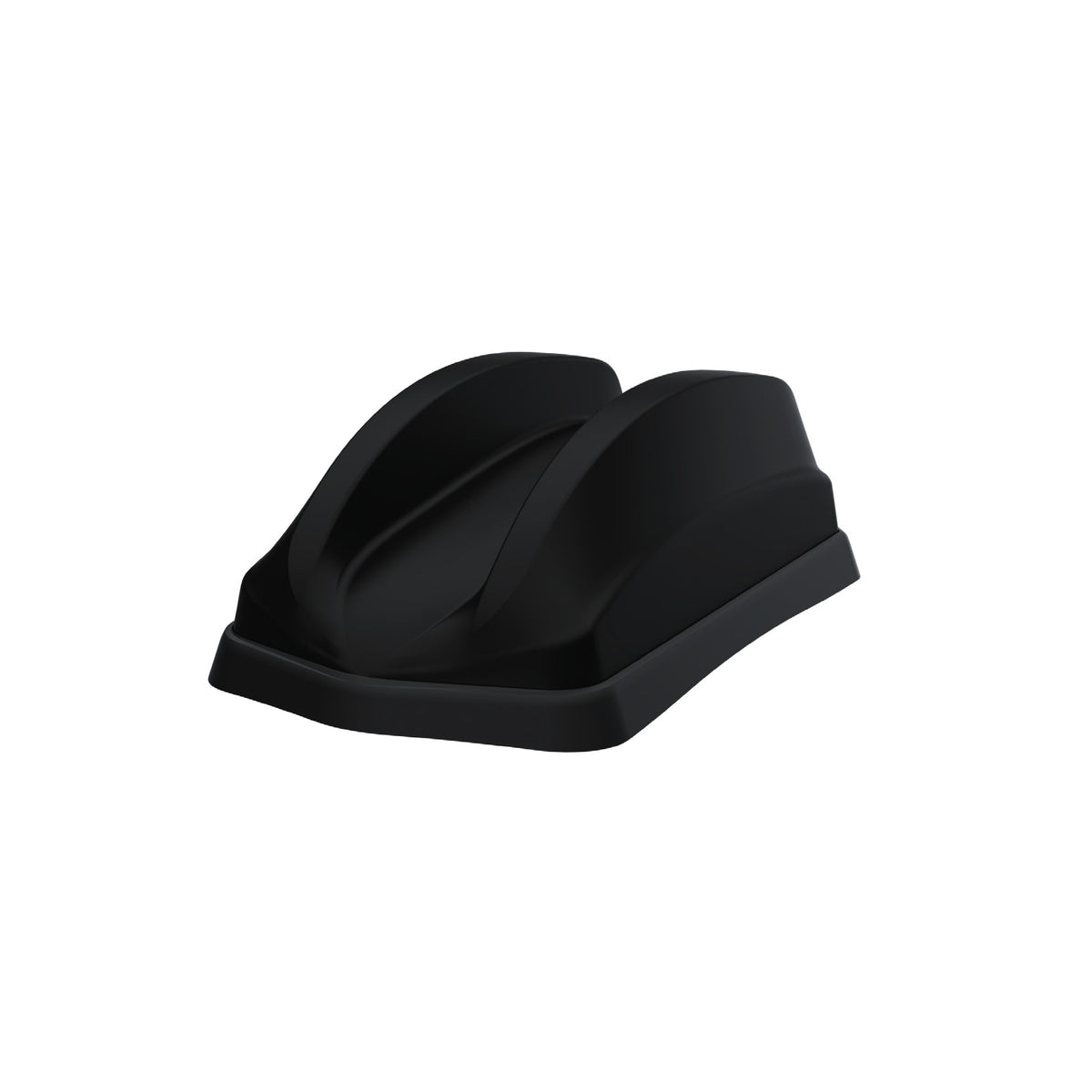

MiMo Dual Sharkee 5G Antenna
The MiMo Dual Sharkee 5G antenna is a cutting-edge, low-profile connectivity solution designed to meet the performance demands of modern 5G, WiFi, and GPS/GNSS applications. Housed in a sleek sharkfin-style enclosure, it integrates 4x4 MiMo 4G/5G antennas covering 617–960 MHz and 1427–6000 MHz, delivering reliable, high-speed mobile broadband for vehicular and IoT environments.
This versatile antenna supports up to 6x6 MiMo dual-band WiFi, fully compatible with WiFi 6e, operating across 2.4GHz to 7.125GHz. Its design makes it ideal for fleet, first responder, and enterprise mobility use cases where consistent, multi-band wireless connectivity is critical. In addition, the antenna can be configured with up to 4x active GPS/GNSS elements—each offering 26dB gain low-noise amplifiers (LNAs) with advanced filtering optimized for LTE Band 13/14 environments.
With its advanced multi-technology support and rugged, stylish design, the MiMo Dual Sharkee 5G delivers powerful connectivity in a compact, vehicle-ready form factor.
Need help choosing or ready to order?
Electrical data
Gps data
| Gps frequency range | 1559-1612MHz |
|---|---|
| Lna gain | 26 |
| Number of gps elements | No; 1 Module; 2 Modules |
Mechanical data
| Colour | Black; White |
|---|---|
| Length | 253 (mm) | 9.96 (in) |
| Width | 142 (mm) | 5.59 (in) |
| Height | 82 (mm) | 3.23 (in) |
| Operating temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
Cable data
| Cable length lte | 0.3 (m) | 0.98 (ft) to 5 (m) | 16.4 (ft) |
|---|---|
| Cable length gps | 0.3 (m) | 0.98 (ft) to 5 (m) | 16.4 (ft) |
| Cable length wifi | 0.3 (m) | 0.98 (ft) to 5 (m) | 16.4 (ft) |
| Cable type lte | FR RG174 |
| Cable type gps | FR RG174 |
| Cable type wifi | FR RG174 |
| Quantity of cell cable | 2 |
| Quantity of gps/gnss extension | 1 |
| Quantity of wifi extension | max: 4 |
Termination data
| Connector wifi | Reverse Polarity SMA, SMA (f) |
|---|---|
| Connector gps | SMA (m), FME (f) |
| Connector vhf uhf whip | FME (f) |
| Connector lte | SMA (m) |
Mounting data
| Mounting type fixed | Panel |
|---|---|
| Mounting type temp | Magnetic |
| Mounting methods | Magnetic, Panel |
Approvals data
| Ip rating | IP69K |
|---|---|
| Cable flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
Technology data
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GPS; WIFI MIMO; WIFI; GNSS |
|---|
- ✓ Distinctive Automotive SharkFin design
- ✓ Up to a 15-in-1 Combination Antenna Solution
- ✓ Covers all 4G/5G LTE bands, WiFi 6e and GPS/GNSS bands
- ✓ 4×4 MiMo 600-6000MHz LTE antenna elements
- ✓ Offers up to 6×6 MiMo WiFi 6e, and up to 4× GPS/GNSS
- ✓ Allows for external VHF, UHF or combination whip for voice radio connectivity
- ✓ Can come as a complete antenna kit with extension cables for a plug-and-play solution for any 5G veh
- ✓ IP69K certified and UN ECE 118 certified
- ✓ Provides the user with an overt/covert all-in-one antenna solution
- ✓ Public safety
- ✓ Mass transit
- ✓ Utilities & Industrial
Frequently Asked Questions
What is the Panorama MiMo Dual Sharkee 5G antenna?
A dual shark fin vehicle antenna system delivering high-capacity 5G/4G and Wi-Fi connectivity. Two independent shark fin modules enable load balancing and redundancy across dual carriers or simultaneous cellular + Wi-Fi use. Designed for demanding fleet, emergency response, and high-bandwidth mobile applications.
What frequencies are supported?
Dual 2x2 MIMO 5G/4G LTE: 617–6000 MHz (bands B1–B32, B66, B71, mid-band 5G n77, n78, n79). Dual 2x2 MIMO Wi-Fi: 2.4 GHz and 5 GHz (802.11b/g/n/ac/ax). Optional GPS on each module. 8 x SMA connectors for dual shark fin independence.
How is dual deployment configured?
Two separate shark fin mounts on vehicle roof (front and rear, or port/starboard). Each module operates independently for load balancing or carrier diversity. 10-meter SMA cables route through vehicle to dual-modem router. Enables simultaneous dual-carrier connectivity, Wi-Fi offload, and geographic coverage optimization.
What are the specifications?
Dual 2x2 MIMO cellular + 2x2 MIMO Wi-Fi per module. Gain: 7–10 dBi (cellular), 5–8 dBi (Wi-Fi). VSWR: <2.5:1. Operating temp: -30° to 70°C. IP67 weatherproof each module. Total connectors: 8 x SMA (4 cellular + 2 Wi-Fi per shark fin + dual GPS). Weight: ~600 grams (two modules).
Is dual Sharkee compatible with Cradlepoint routers?
Yes. Dual SMA antenna sets connect to Cradlepoint R1900 (dual modems) and other routers supporting multiple antenna inputs. Enables true dual-carrier (AT&T + Verizon) redundancy and load-balanced failover. Supports RCN's multi-carrier and fleet management deployments.
What certifications and standards apply?
Safety: UL/cUL, EN 62368-1. Environmental: IP67 per module. Automotive: MIL-STD-810H shock/vibration. Operating temp: -30° to 70°C. FirstNet capable for public safety dual-carrier. Limited lifetime warranty with RCN NetCloud managed systems.
