| Category | Antenna |
|---|
Product Overview

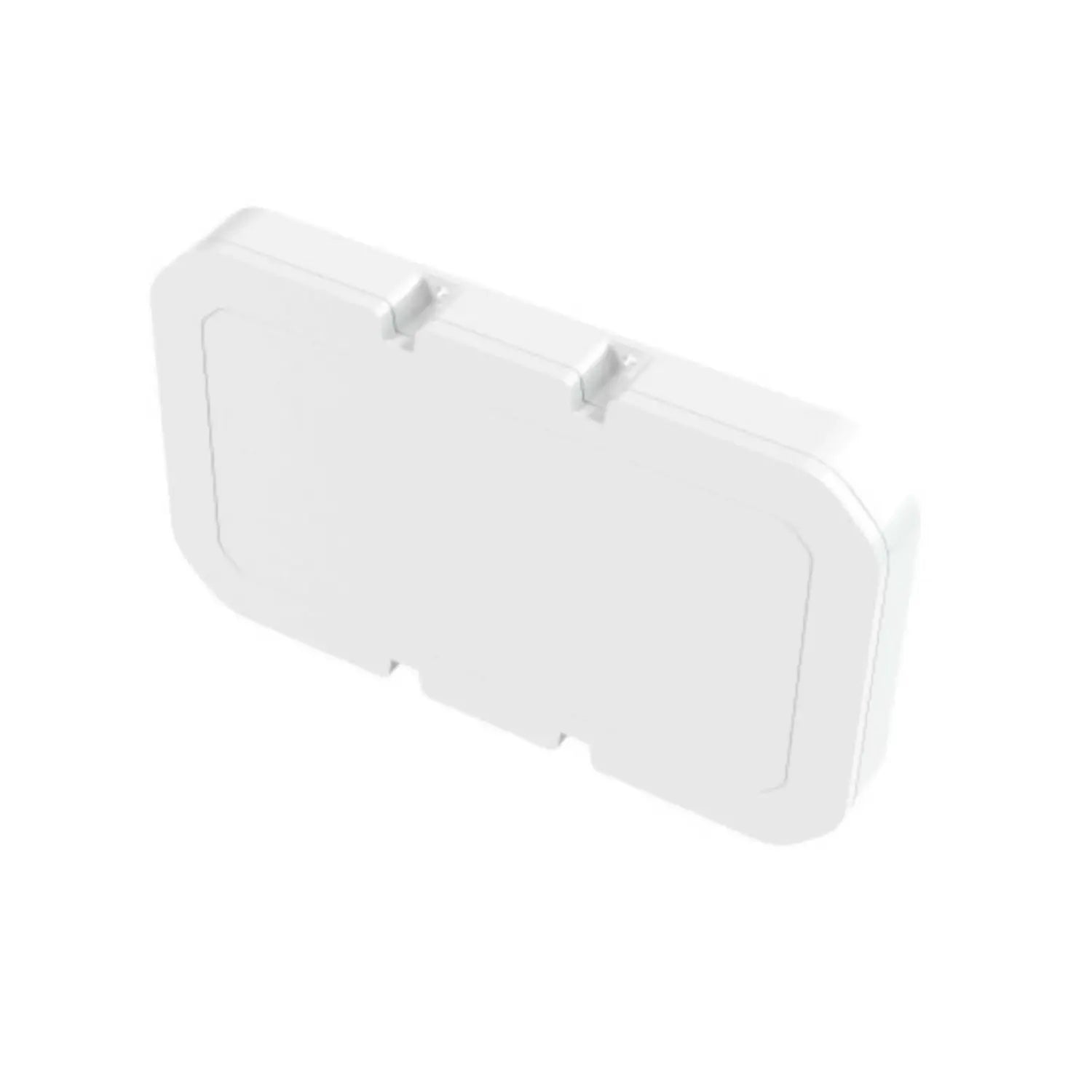

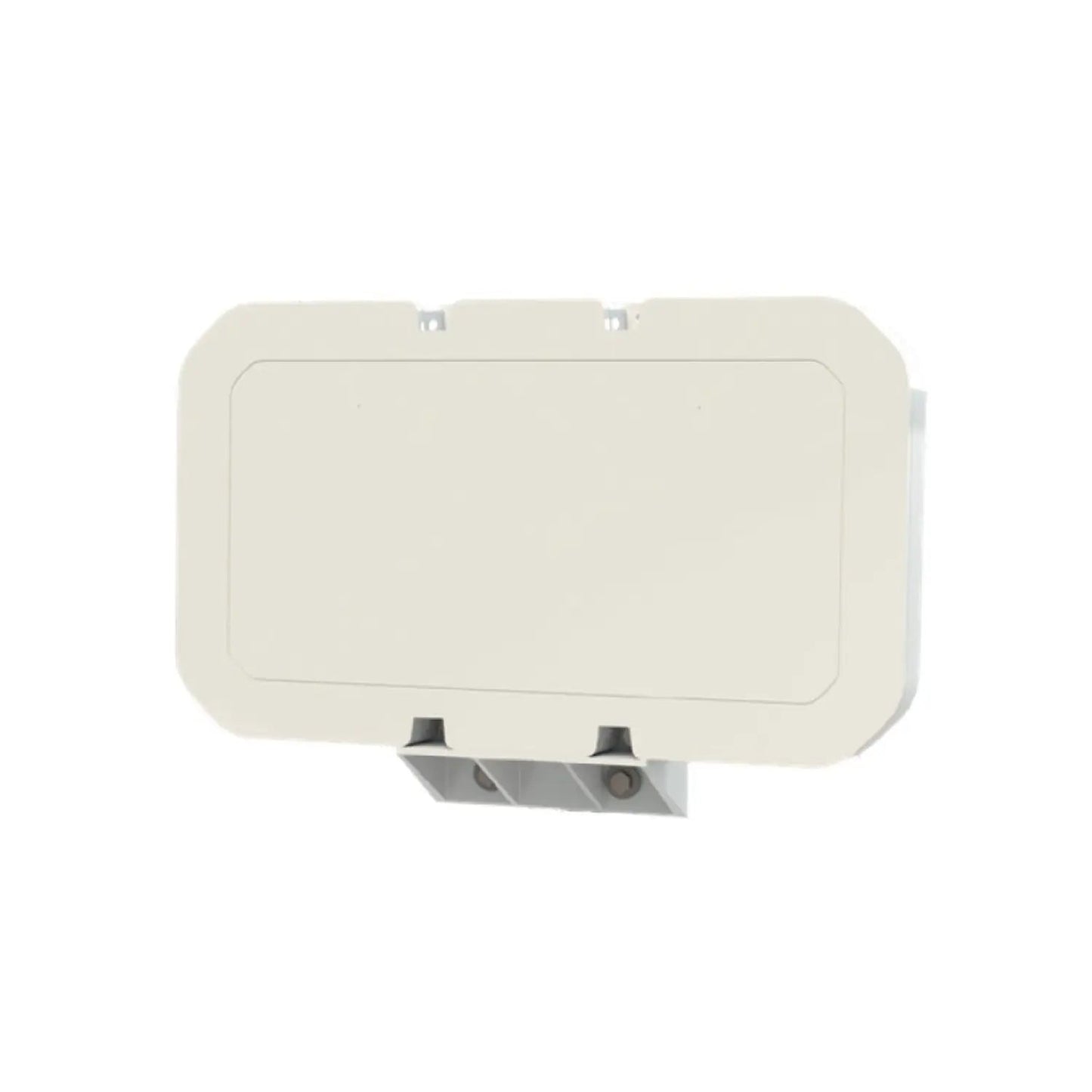

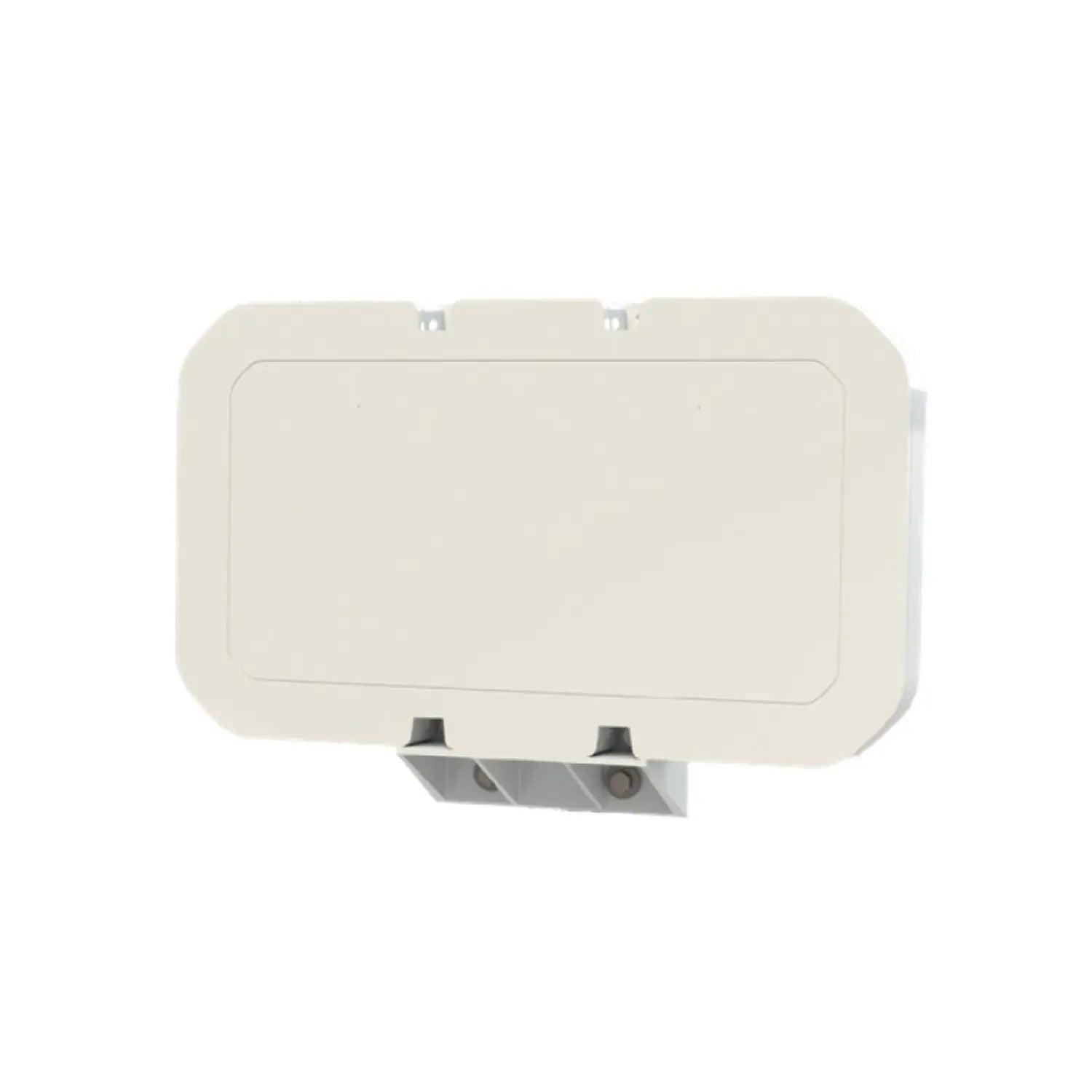

Panorama DW-IN2713 Omnidirectional Antenna, 4x4 MIMO 4G/5G LTE, Loose Cables

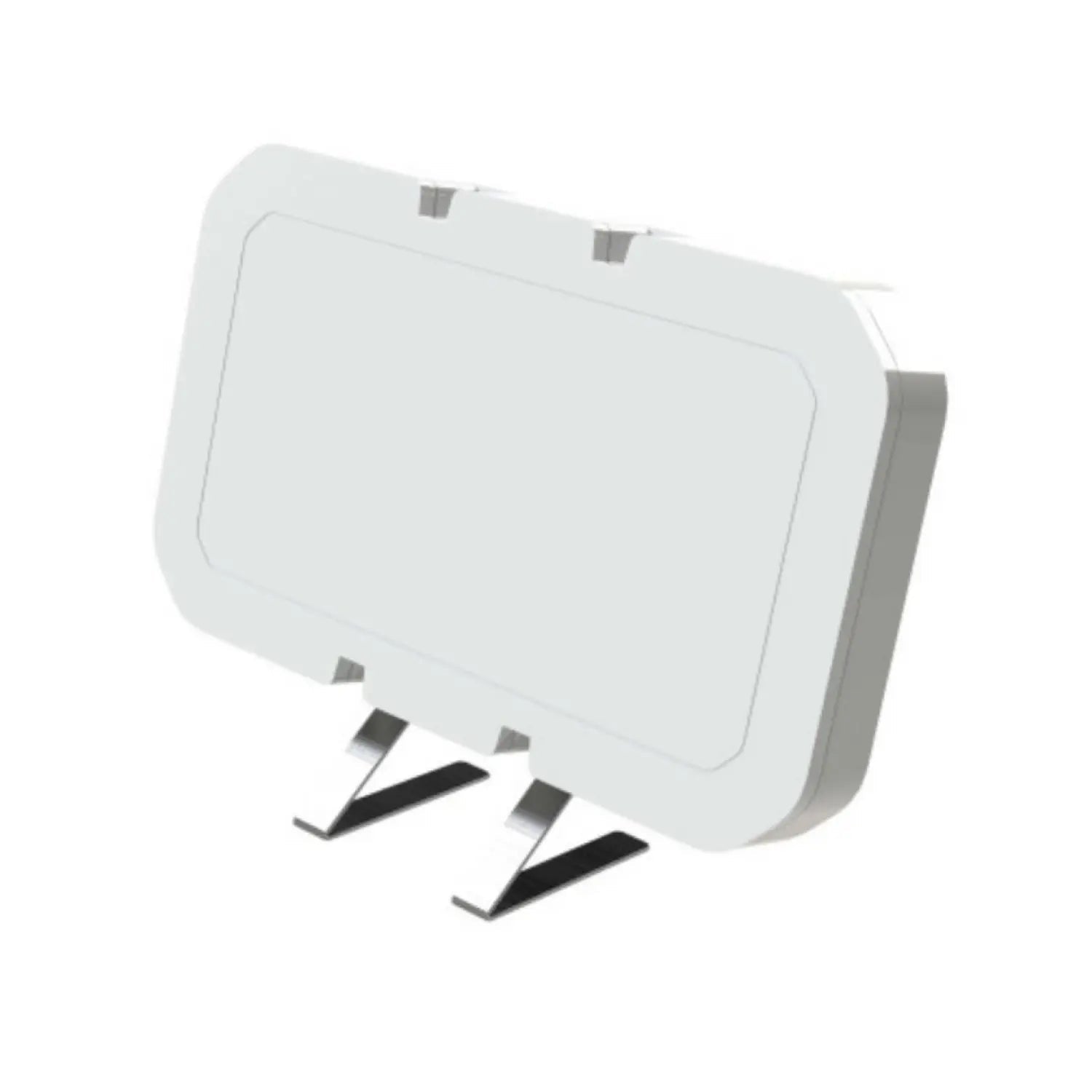

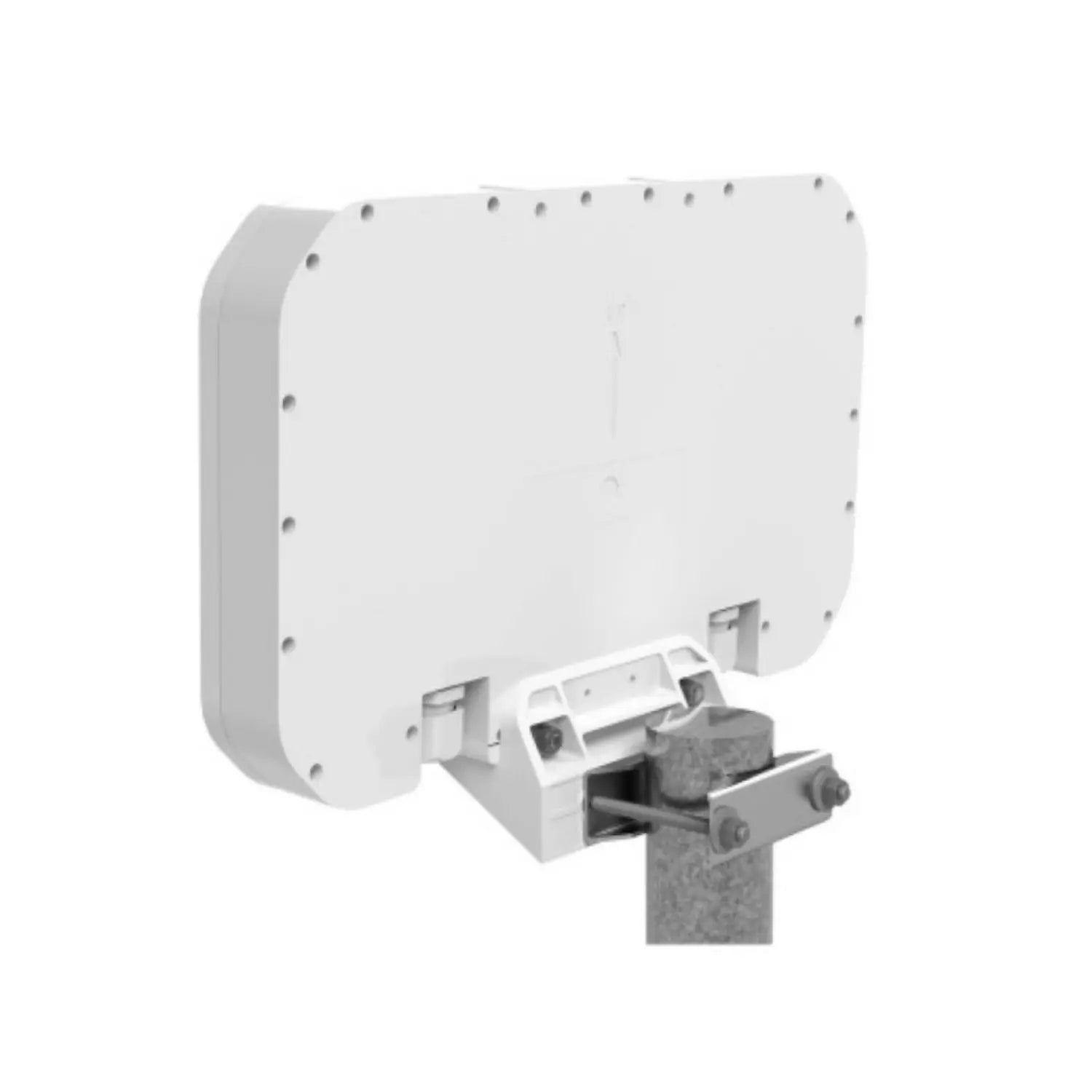

The DW-IN2713 antenna kit provides 4x4 MIMO solution for global 4G/5G networks from 617-6000 MHz. Incorporating four separately fed ultra wideband elements in a single housing, the DW-IN2713 is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps. The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment.
The DW-IN2713 is a kit containing the DWMM4-6-60 antenna with N-type female connectors. The antenna itself is fitted with .5 meter integrated flame retardant CS32 cables which minimizes exposed connector joints and simplifies cable management for easy installation. Four C240N-10SP 10 meter loose cables are included in the kit.
