Panorama DMM-6-60 Desk Mount Antenna, 2x2 MIMO 4G/5G, 617-6000 MHz, 2 m Cables, SMA or TS9

The Panorama DMM-6-60 is a portable 2x2 MIMO antenna for routers, hotspots and modems that sit indoors where signal is weak. It lets you move the antennas away from the device to a window or a higher shelf, which is often the simplest way to improve a failover or small-office cellular link.

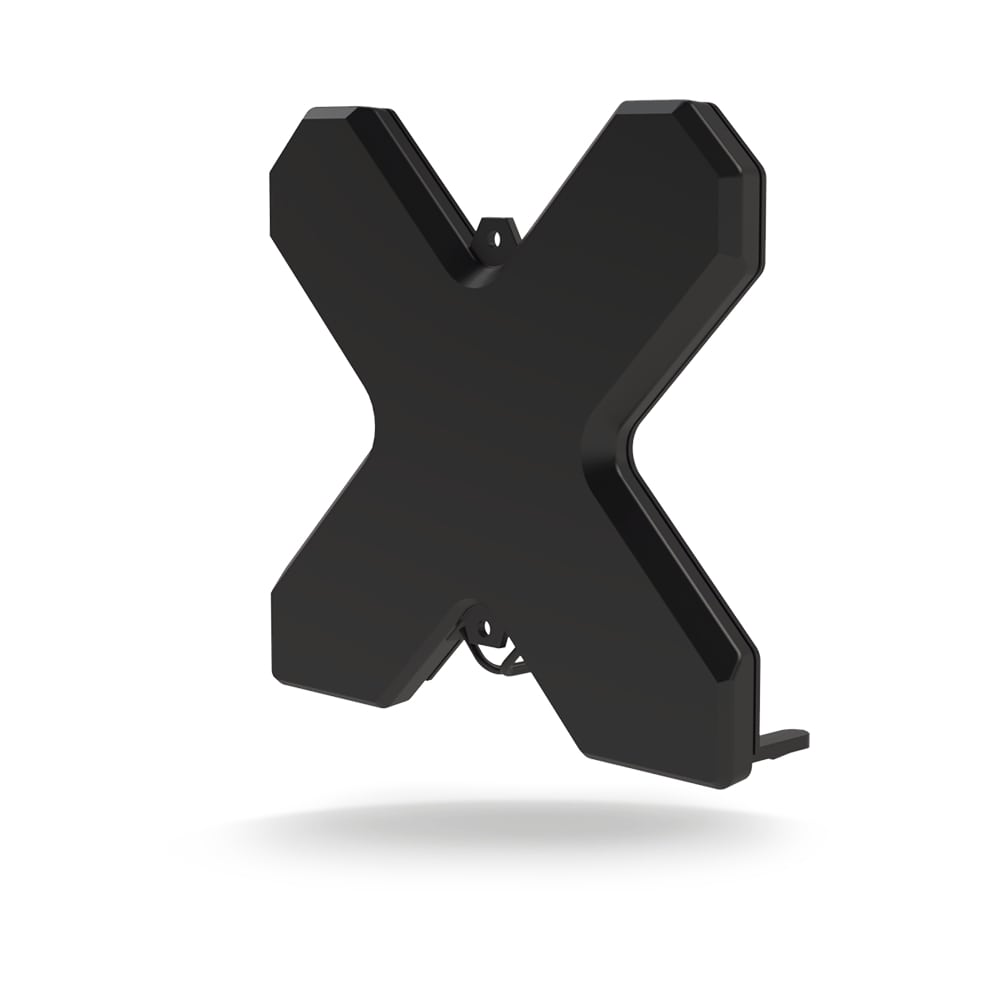

Two separately fed elements in one X-shaped housing cover 617-960 and 1710-6000 MHz for 5G and 4G with fallback to 3G and 2G. Fold-out feet stand it on a desk and fold flat for transport, a suction mount holds it on a window, and screw and adhesive pad options are included for a more permanent spot. It ships with 2 m (6 ft) of twin coaxial cable.

Choose the connector that matches your device. The DMM-6-60-2SP has two SMA male connectors, which fit most routers and modems. The DMM-6-60-2TS9 has two TS9 male connectors, which are common on mobile hotspots. Both use 2 m cables.

Specifications

Download the Panorama DMM-6-60 datasheet (PDF)

Right for you if

• Your router or hotspot has two cellular antenna ports.
• The device sits indoors and you want to move the antennas to a window.
• You need an antenna you can pack and reposition at different sites.
• You want a low-cost upgrade over the device's built-in or stub antennas.

How it compares

For routers with four cellular ports, the Panorama DMM4-6-60 uses the same X-shaped desk and window design with four elements for 4x4 MIMO. If you need only one element on a metal surface, the Panorama LPBEM-6-60 magnetic mount is a single-element option. For a permanent outdoor fixed-site install, the Panorama DWMM4-6-60 is an IP66 wall or mast antenna with 4x4 MIMO.

Common deployments

• Small offices and retail sites using a cellular router for primary or failover internet
• Travel and pop-up sites where the antenna is packed and redeployed
• Mobile hotspots that need a better signal near a window

FAQ

Should I choose SMA or TS9?
Choose SMA male if your router or modem has SMA female antenna ports, which is typical for business cellular routers. Choose TS9 male if your device is a mobile hotspot with small TS9 antenna sockets. Check your device manual or its antenna ports before ordering, because adapters add loss and can work loose.

Does the DMM-6-60 support 5G?
Yes. The two elements cover 617-960 MHz and 1710-6000 MHz, which includes LTE Band 71 and the mid-band frequencies used for 5G below 6 GHz, with fallback to 4G, 3G and 2G. It is a 2x2 MIMO antenna and does not cover millimeter-wave 5G.

How is it mounted?
The DMM-6-60 has fold-out feet for a desk or shelf and folds flat for transport. A suction mount holds it on a window, which is often the strongest indoor spot. For a more permanent location, screws and an adhesive pad are included. The cables are 2 meters long.

Can it be used outdoors?
Panorama does not publish an ingress rating for the DMM-6-60, so treat it as an indoor antenna. It is designed for desk, window and wall use inside a building. For a permanent outdoor install, a weather-rated wall or mast antenna such as the Panorama DWMM4-6-60 is the better choice.
