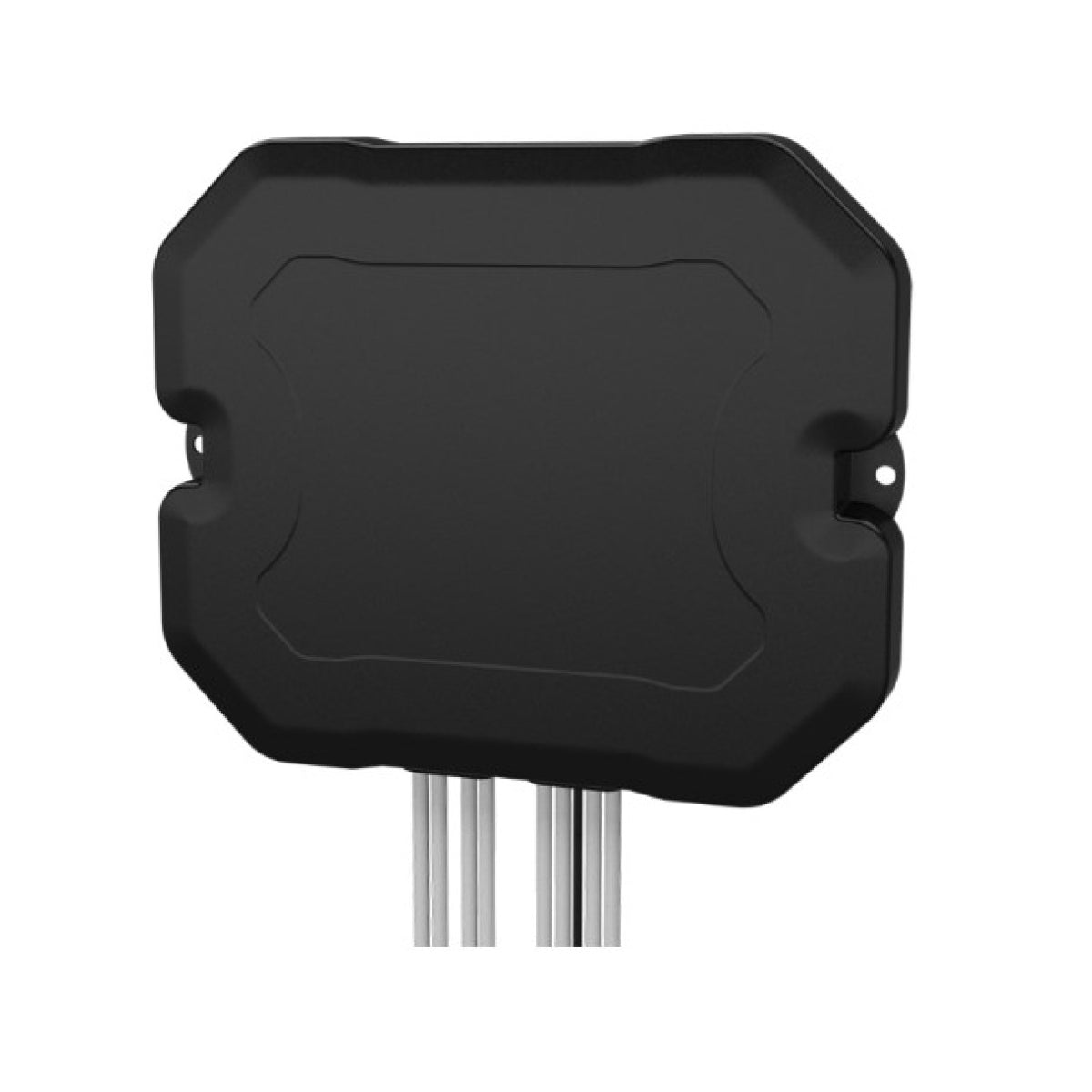

Panorama BATGM4-6-60-D 7-in-1 Adhesive Mount Antenna, 4x4 MIMO 4G/5G, 2x2 Wi-Fi 6E, GPS

The Panorama BATGM4 is a discreet 4x4 MIMO antenna for vehicles and enclosures where an exterior roof antenna is not practical. It mounts with an adhesive pad or two screws on or under a dashboard, on a parcel shelf, or on any non-conductive surface, and Panorama lists it for both mobility and enterprise branch use.

Four cellular elements cover 617-960 and 1427-6000 MHz. The GPS/GNSS module covers L1 with a 26 dB LNA, and the BATGM4-6-60-D adds two Wi-Fi 6E elements covering 2396-7125 MHz. The housing is rated IP55 and the integrated 3 m cables are flame retardant and meet UN ECE R118 and EN45545-2.

Two configurations are offered. The BATGM4-6-60-D has seven elements: four cellular, two Wi-Fi and one GPS/GNSS. The BATGM4-6-60 has five elements: four cellular and one GPS/GNSS, with no Wi-Fi. Both use 3 m integrated cables.

Specifications

Download the Panorama BAT[X]M4-6-60 datasheet (PDF)

Right for you if

• Your router supports four cellular antennas and you want 4x4 MIMO throughput.
• The antenna must stay inside the vehicle or enclosure, out of sight.
• You need GPS and, optionally, Wi-Fi 6E from the same unit.
• You want a single antenna that also works on a wall or panel at a branch site.

How it compares

The Panorama BATGM-7-60-24-58 is the 2x2 MIMO version of the same dash mount idea, with a smaller footprint and coverage from 698 MHz. For an exterior roof install with 4x4 MIMO, the Panorama Dual Sharkee GP-IN2680 kit is IP69K rated and adds a whip position. For an indoor desk or window install, the Panorama DMM4-6-60 desk mount provides four cellular elements without GPS or Wi-Fi.

Common deployments

• Covert or low-profile public safety and government vehicles
• Vehicles where the roof cannot be drilled, such as leased or specialty vehicles
• Enterprise branch and kiosk installs where the antenna mounts inside a cabinet or on a wall

FAQ

Where can the BATGM4 be mounted?
Panorama designed the BATGM4 to mount on or under a vehicle dashboard or parcel shelf, and it can be mounted on any non-conductive surface. It fixes with an adhesive pad or two screws. Because it sits inside the vehicle, place it where the glass gives the clearest path to the outside.

What is the ingress rating?
The BATGM4 is rated IP55, which protects against dust and water jets. It is intended for interior mounting in a vehicle, cabinet or building rather than permanent exposed exterior use. For a roof-mounted exterior antenna, consider an IP69K-rated model such as the Panorama Dual Sharkee.

How long are the cables and what connectors do they use?
All integrated cables are 3 meters (9.8 feet) long and meet UN ECE R118 and EN45545-2. The four cellular cables and the GPS cable terminate in SMA plugs. On the BATGM4-6-60-D, the two Wi-Fi cables terminate in reverse-polarity SMA connectors.

Can I use it with a dual-modem router?
The BATGM4 provides four separate cellular elements across 617-6000 MHz with published isolation between them. It is designed as a 4x4 MIMO antenna for a single modem. If you plan to split it across two modems, confirm the configuration with an RCN specialist or Panorama before ordering.
