Product Overview
The Ericsson Cradlepoint S750 is the S700 without a Wi-Fi radio: the same aluminum housing, LTE Cat 4 modem, two gigabit ports, dual SIMs, active GNSS, ignition-sensing DC power, and MIL-STD-810H, SAE J1455, and EN 61373 ratings. It is built for vehicles and industrial equipment where every client is wired and a radio is either unnecessary or not permitted.
Rail equipment, utility cabinets on poles, tanker and trailer telematics, and secure-facility equipment are typical. If the deployment might ever need a crew Wi-Fi network, buy the S700; the S750 cannot be upgraded.
What the SKU includes: every option on this page bundles the router with its Ericsson NetCloud plan for the term you choose (IoT Essentials, or IoT Essentials + Advanced, for 1, 3, or 5 years). NetCloud is required to configure and manage Cradlepoint hardware, and the hardware warranty runs for as long as the plan is active.
Specifications
| Cellular | LTE Cat 4 (3GPP Rel. 11) with DC-HSPA+; 2x2 MIMO; peak 150 Mbps DL / 50 Mbps UL; 2x SMA antenna connectors |
|---|---|
| SIM | Dual 4FF SIM slots; SIM-based automatic carrier selection |
| Ethernet | 2x GbE RJ45, LAN/WAN switchable |
| Wi-Fi | None (wired-only model) |
| Expansion / GNSS | 1x USB 2.0; 1x SMA GNSS connector; active GNSS (GPS, GLONASS, BeiDou, Galileo) |
| Performance | Stateful firewall 480 Mbps; IPS/app-aware 480 Mbps; IPsec VPN 50 Mbps; 10 VPN tunnels; 100,000 sessions; typical 20 clients |
| Power | 9 to 33 VDC with ignition sensing (auto on, delayed off); ISO 7637-2 protection; 9 W idle, 14.5 W heavy |
| Environmental | -20 to 60 C operating; IP30; MIL-STD-810H shock and vibration; SAE J1455 vehicle; EN 61373 rail; aluminum housing |

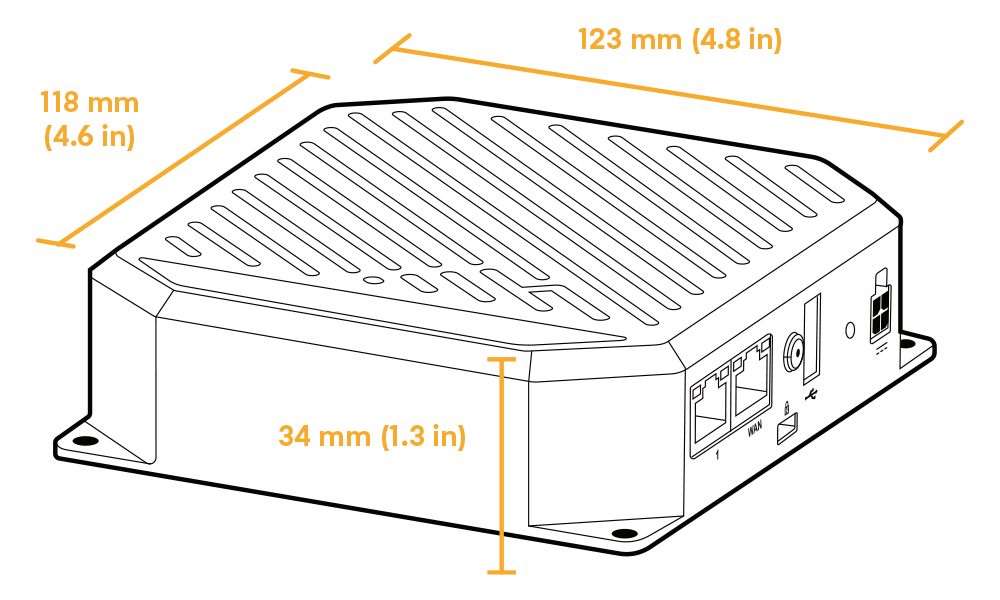

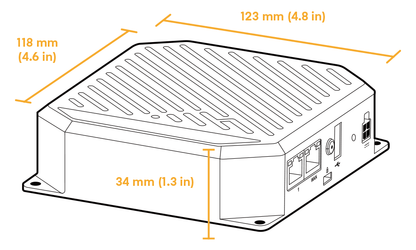

| Size / weight | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in); 516 g (18.2 oz) |
| Certifications | AT&T, T-Mobile, Verizon; PTCRB; FCC/IC; UL/cUL |

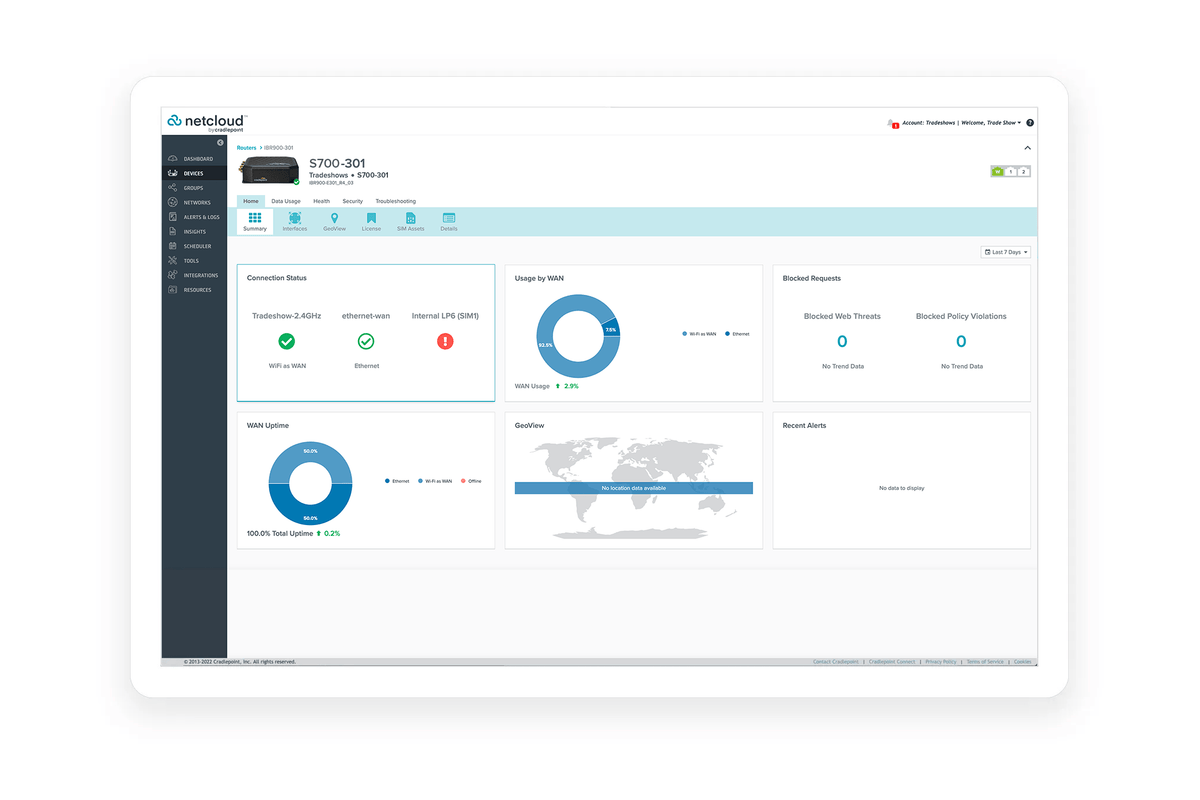

| Management | Ericsson NetCloud Manager, IoT plan (included in each SKU); RCN's U.S.-based 24/7 NOC is available as a managed service (quoted separately) |
Ericsson Cradlepoint S700 series datasheet (covers the S750)
Right for you if
- Every client on the router is wired and policy or environment rules out a Wi-Fi radio
- The unit mounts in a vehicle, rail car, or outdoor cabinet and needs the aluminum housing and ratings
- You need ignition sensing and two gigabit ports in a small footprint
S750 vs. S700 vs. S450
Choose the S750 for rugged, wired-only LTE. The S700 adds Wi-Fi 6. The S450 is the plastic-housed, single-port, no-Wi-Fi option for cabinets that do not move. An open-box S750-C4D is also available.
Common deployments
Rail and transit equipment, utility pole cabinets, tanker and trailer telematics, industrial controllers, and secure-facility equipment links.
What RCN adds
- Pre-provisioning: RCN can stage the unit in your NetCloud account so it ships ready to power on
- Installation nationwide through RCN's in-house install team (quoted separately)
- U.S.-based 24/7 NOC monitoring and support as a managed service (quoted separately)
- Purchase on GSA Schedule, NASPO ValuePoint, Sourcewell, OMNIA Partners, or Equalis Group, or on a PO for approved accounts
FAQ
What is the difference between the S750 and the S700?
Only the Wi-Fi radio. Housing, modem, ports, GNSS, power, and ratings are identical. The S750 also lacks the S700's FirstNet Trusted listing on the current datasheet, so public-safety fleets should choose the S700.
Is the NetCloud subscription included?
Yes. Each SKU pairs the S750 with the NetCloud plan and term shown in the option name. Renewals are quoted before the term ends so the device never drops off management.
Does it come with antennas and a power supply?
Yes. Cradlepoint's ordering guide lists the S750 part numbers sold here (TB03, TB05, TBA3, and TBA5-0750C4D-NN) as including an AC power supply and antennas. The antennas are two external cellular paddle antennas that attach to the router's SMA connectors.
Can we purchase on a purchase order or government contract?
Yes. RCN sells through GSA Schedule and cooperative contracts including NASPO ValuePoint, Sourcewell, OMNIA Partners, and Equalis Group, and can invoice approved accounts on a PO.
What if it turns out to be the wrong model?
Talk to RCN before you order. We deploy this hardware every week and will tell you if a smaller or larger unit fits better; the comparison section above is a good start.
Antennas that fit the S750
The S750 has two SMA cellular connectors and one SMA GNSS connector, with no Wi-Fi. These Panorama antennas cover cellular and GPS without unused Wi-Fi leads:
- Panorama LGAM-BC3G-26 antenna: 2x2 MIMO cellular and GPS in a single-hole panel-mount housing rated IP66. Covers 698–960 and 1710–3800 MHz, with 1 m cables.
- Panorama LGAMM-BC3G-26 magnetic antenna: 2x2 MIMO cellular and GPS on a magnetic base for temporary or no-drill installs. Covers 698–960 and 1710–3800 MHz, with 3 m cables.
- Panorama SH-IN2616 Sharkee kit (3-in-1 option): 2x2 MIMO cellular and GPS in a roof-mounted shark fin with no Wi-Fi elements, with 5 m cables. Choose the SH-IN2616 option on the Sharkee listing.
Compare more options in the antenna finder, or request a quote and we will confirm the right antenna and cable length for your install.
