| Pattern | Omnidirectional |
|---|---|
| Max input power w | 30 |
| Frequency range | 617 – 960MHz | 2dBi; 1710 – 2700MHz | 3.5dBi; 3400 – 3800MHz | 5dBi |
| Cellular lte elements | SiSo |
| Wifi elements | No |
| Uhf elements | No |
Product Overview

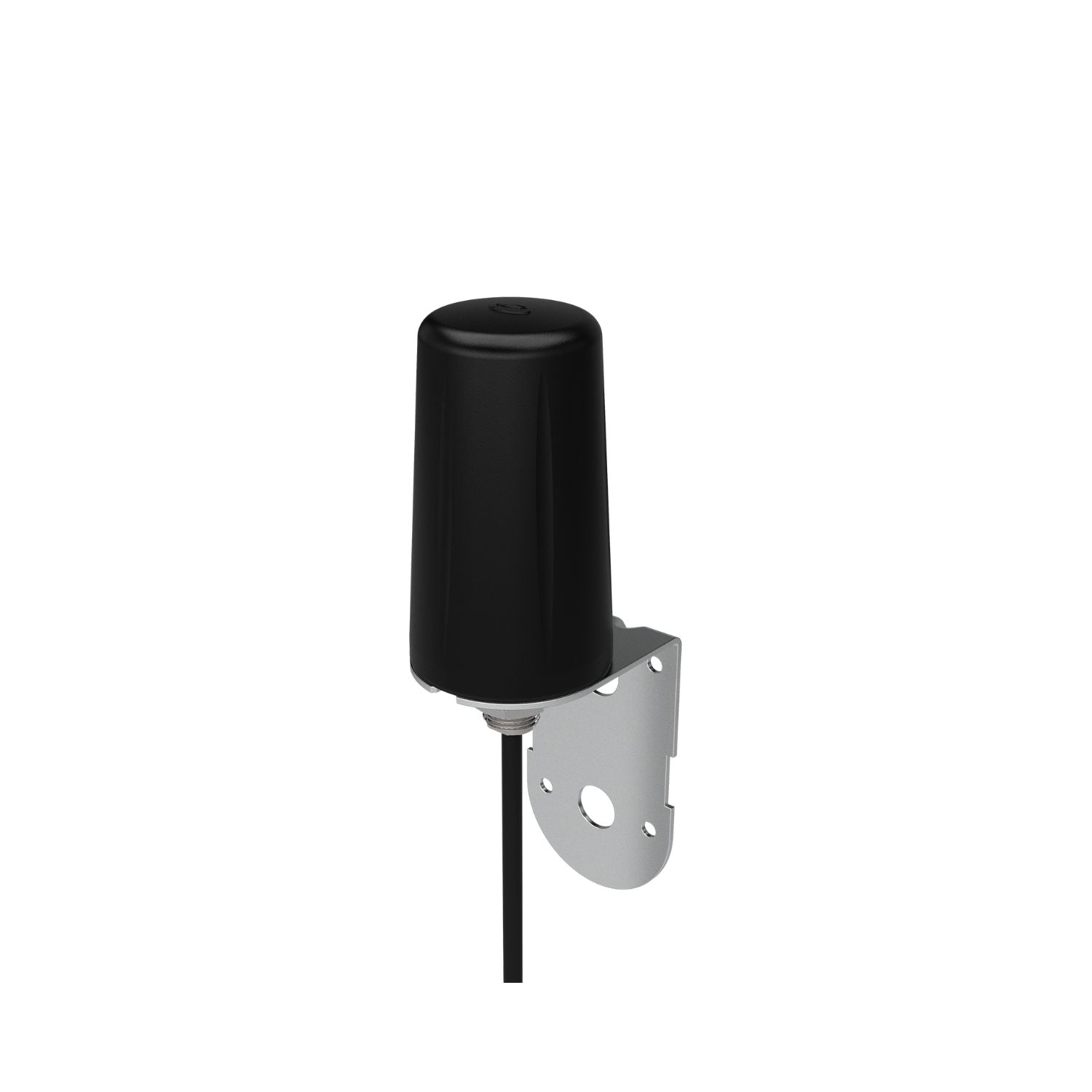

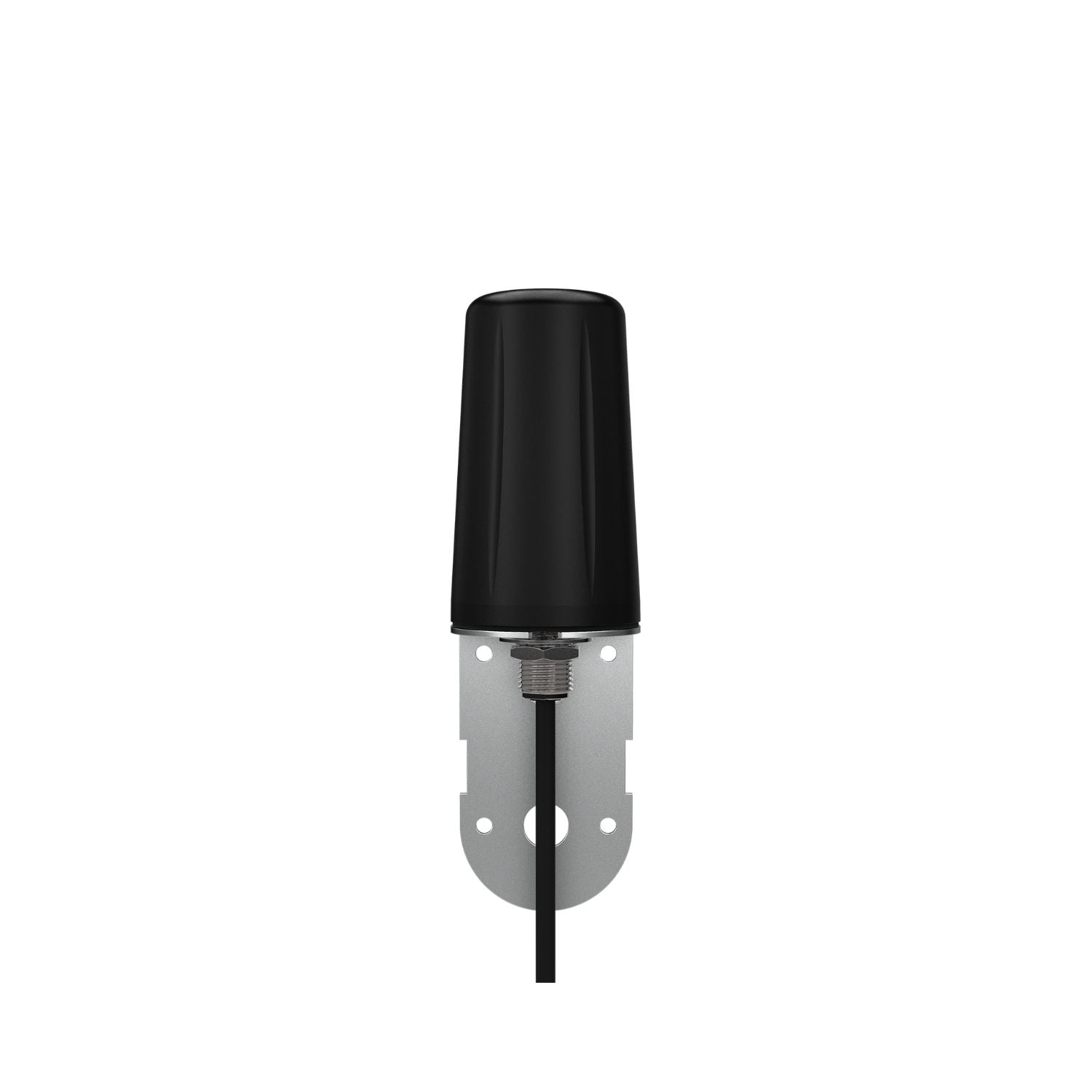

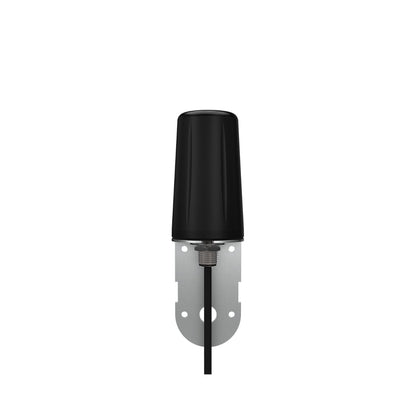

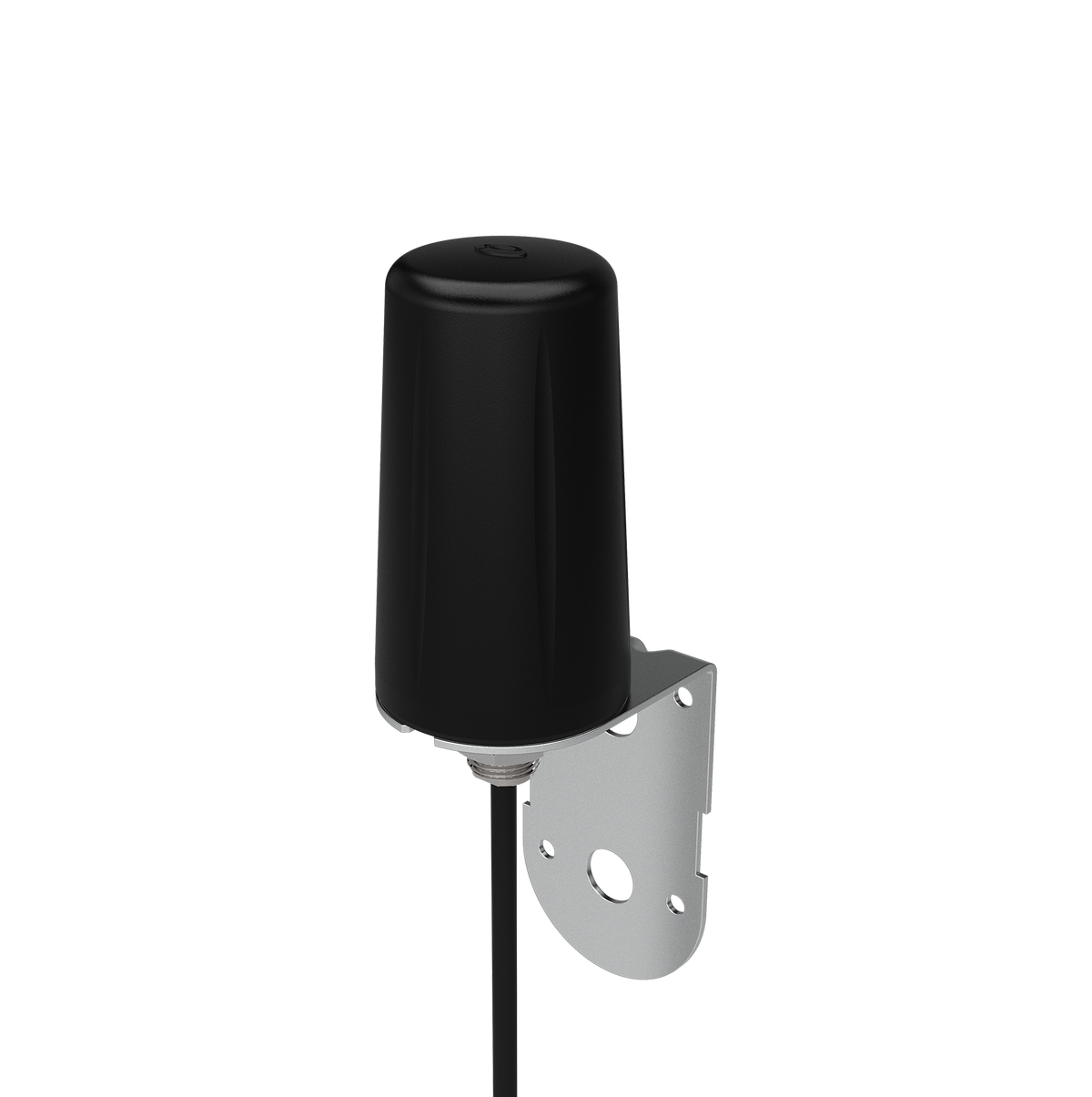

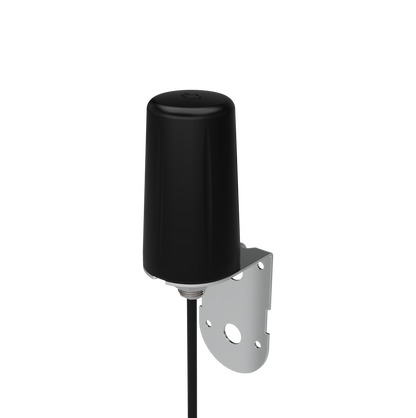

The B4BE-6-60 is a low-cost, wideband single-element antenna for meters, remote monitoring units and M2M devices. It covers 4G/5G from 600 to 6000 MHz, including Band 71, with up to 5 dBi peak gain, and its bracket mounts it on a wall or mast.
It comes with integrated low-loss CS29 cable in 0.5, 2 or 5 m lengths, ending in an SMA male plug. The housing is UV stable and rated IP66. Two units can serve a 2x2 MIMO device when mounted with suitable separation.
Specifications
| Model | B4BE-6-60-05SP (0.5 m), B4BE-6-60-2SP (2 m), B4BE-6-60-5SP (5 m) |
|---|---|
| Antenna elements | SISO, 1 cellular element |
| Cellular frequency and peak gain | 617-960 MHz (2 dBi), 1710-2700 MHz (3.5 dBi), 3400-3800 MHz (5 dBi); Panorama lists 600-6000 MHz coverage |
| Radiation pattern | Omnidirectional |
| Max input power | 30 W |
| Connectors | SMA (m) |
| Cable | Integrated CS29, 0.5, 2 or 5 m by variant |
| Mounting | Wall or mast bracket |
| Dimensions | 164 mm high x 48 mm diameter (6.46 x 1.89 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP66 |
| Material flammability | UL746C F2, UL 94-HB |
| Housing color | Black |
| Compatibility | Devices with one SMA female cellular port; two units for 2x2 MIMO |
View the Panorama B4BE-6-60 product page and datasheet
Right for you if
- Your meter, sensor or router needs one external cellular antenna.
- You want a wall or mast bracket mount at a fixed site.
- You need Band 71 and coverage up to 6 GHz.
- For a compact low-profile panel antenna with the same range, see the LPB-6-60.
FAQ
Can I use two for a MIMO router?
Yes. Each B4BE-6-60 is a single element, so a 2x2 MIMO router needs two. Mount them with physical separation so the elements do not couple, and use matching cable lengths. For a single housing with two elements, look at the BSM-6-60 or WMMG-7-38 instead.
Is it built for outdoor sites?
Yes. Panorama rates the B4BE-6-60 housing IP66 and UV stable, with material flammability ratings of UL746C F2 and UL 94-HB, and an operating range of -40 to +80 °C. Panorama lists smart metering, remote monitoring and utilities among its applications, which are typically exposed outdoor installs on walls and masts.
Which cable length should I choose?
Choose the shortest length that reaches your device. The integrated CS29 cable comes in 0.5, 2 and 5 m lengths, all ending in an SMA male plug. Panorama also lists 10 m and white versions that RCN can quote on request.
