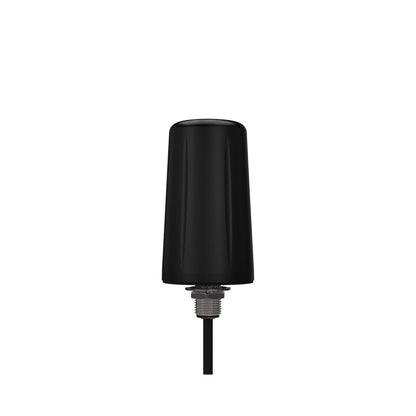

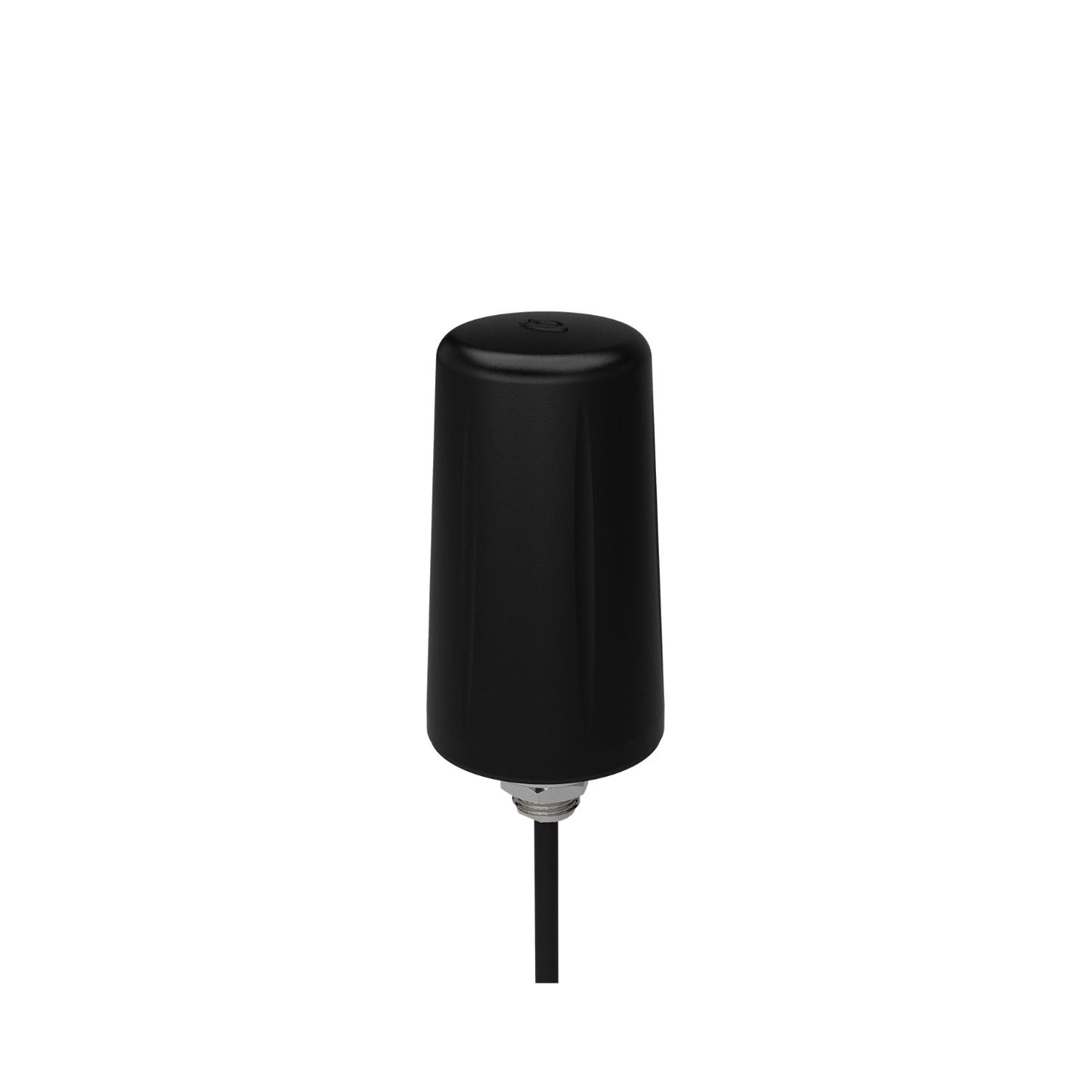

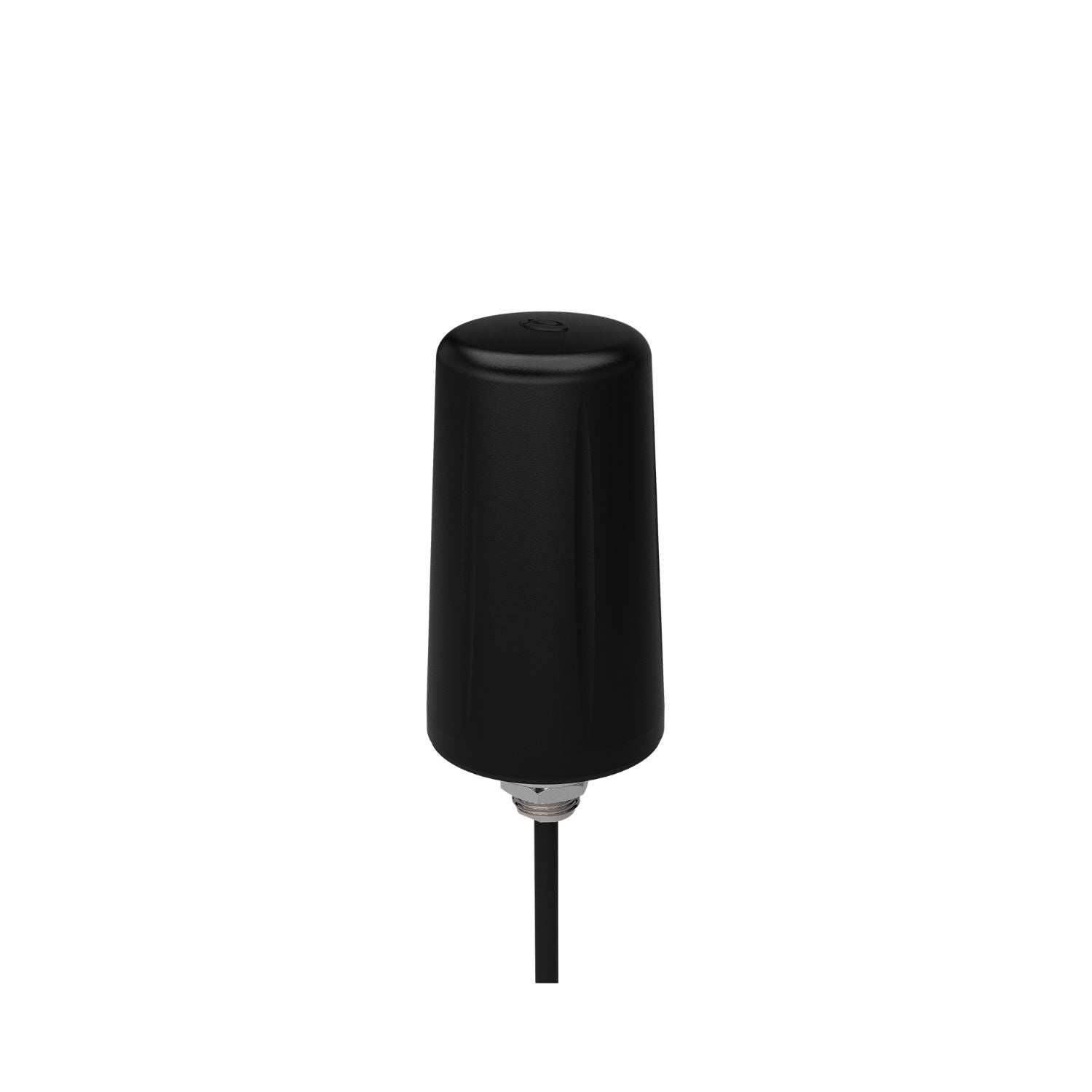

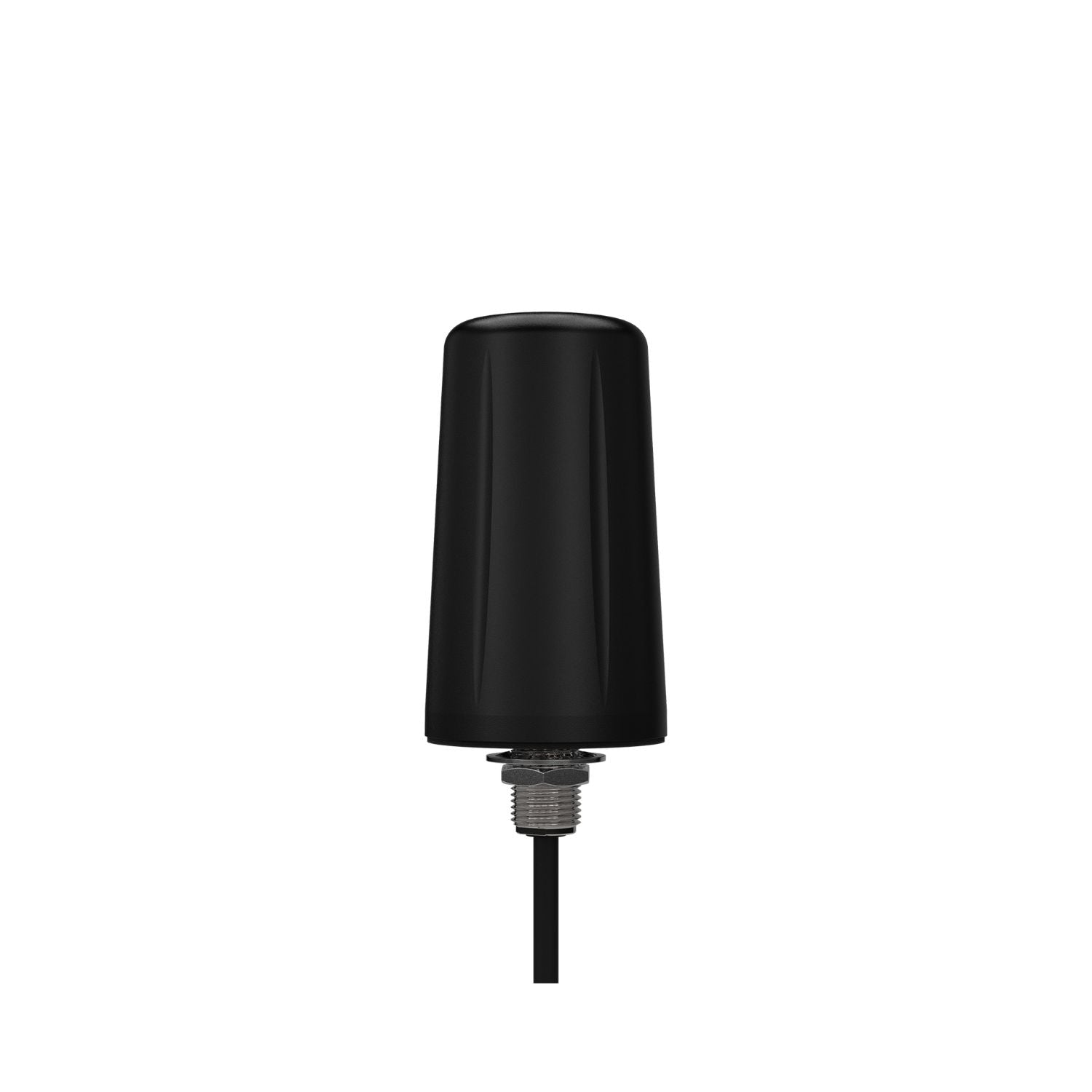

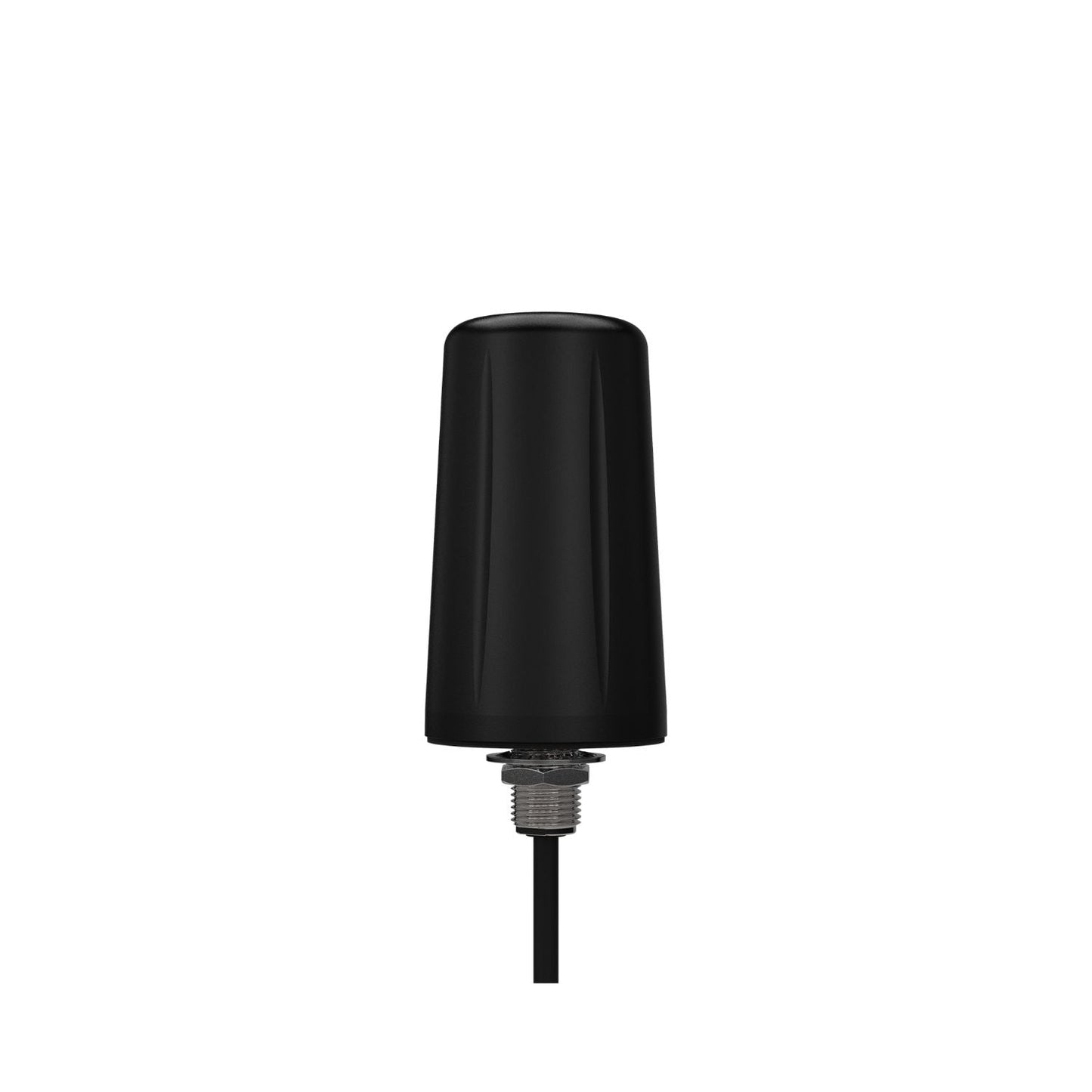

Panorama LPB-6-60 Low Profile 5G/4G LTE Cellular Antenna

Panorama LPB-6-60 SISO 5G/4G LTE Antenna, Surface Mount, Ericsson Cradlepoint Approved

The Panorama LPB-6-60 is a cost-effective, high-performance surface mount antenna for industrial environments, cellular modems and routers, and machine-to-machine (M2M) wireless applications. Protected by a rugged, high-impact radome, it will withstand weather and harsh conditions. The wideband LPB offers excellent performance across the global cellular frequencies from 617 to 960 MHz and 1710 to 6000 MHz.

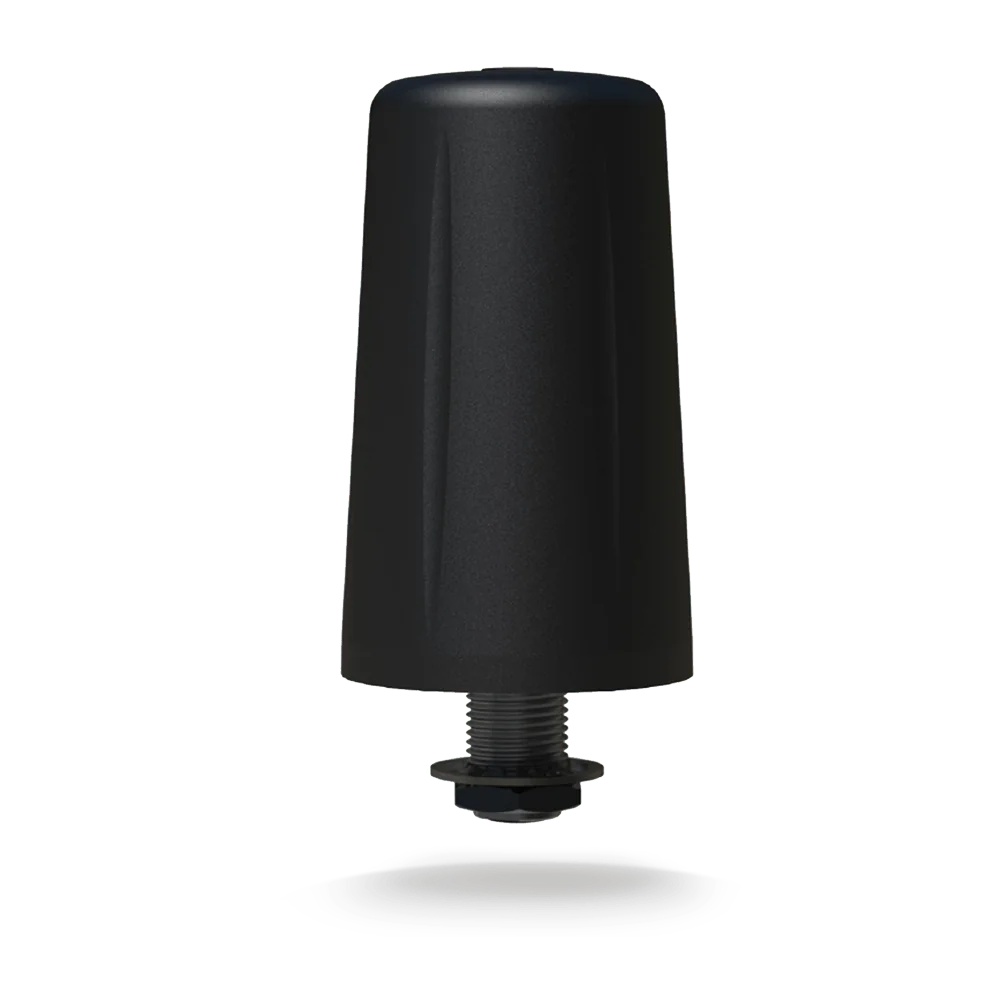

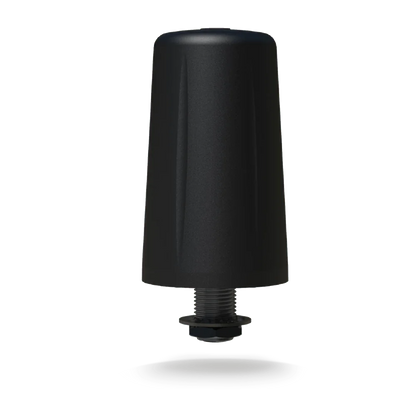

The LPB-6-60 includes a hollow, threaded bolt that mounts through a hole in a vehicle or cabinet top. It requires a conductive ground plane for optimal performance. A 2 or 5-meter flexible double-shielded CS29 cable with an SMA male connector is included. The LPB-6-60 is easy to install and compatible with a broad range of cellular modems and routers. Two units may be deployed (with suitable separation) for MIMO applications.

A bracket mount version of this antenna is available. See the B4BE-6-60.

Key Features

• Omnidirectional 5G/4G cellular antenna
• Operates over the 617 to 960 MHz and 1710 to 6000 MHz frequency ranges
• Supports LTE Bands 46, 47, and 71
• Cost-effective failover to 2G, 3G, and 4G networks
• 30 W maximum input power
• Black radome with through-hole mounting
• Choice of 2 or 5-meter CS29 cable
• SMA male connector
• Operating temperature from -40 to 80°C
• Compatible with Ericsson Cradlepoint and Semtech routers

Configurations

LPB-6-60-05SP, SISO 5G LTE antenna with 0.5-meter CS29 cable and SMA plug
LPB-6-60-1SP, Same as above, with a 1-meter cable
LPB-6-60-2SP, Same as above, with a 2-meter cable
LPB-6-60-3SP, Same as above, with a 3-meter cable
LPB-6-60-5SP, Same as above, with a 5-meter cable
LPB-6-60-NJ, N-type female connect (no cable)

Other cable lengths and connector types available upon request
