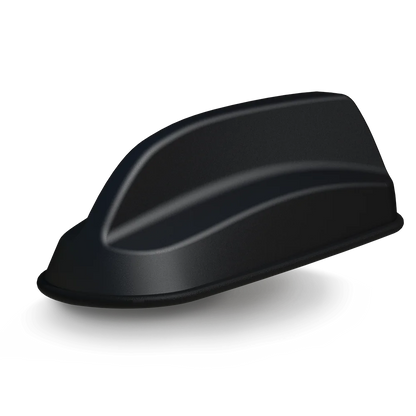

![Panorama SHK[G]-7-27 Sharkee sharkfin antenna housing, used in the SH-IN2440 kit](http://shop.rcntechnologies.com/cdn/shop/files/PIC_SHKG-7-27-T24-58-3.webp?v=1790951027&width=1946)

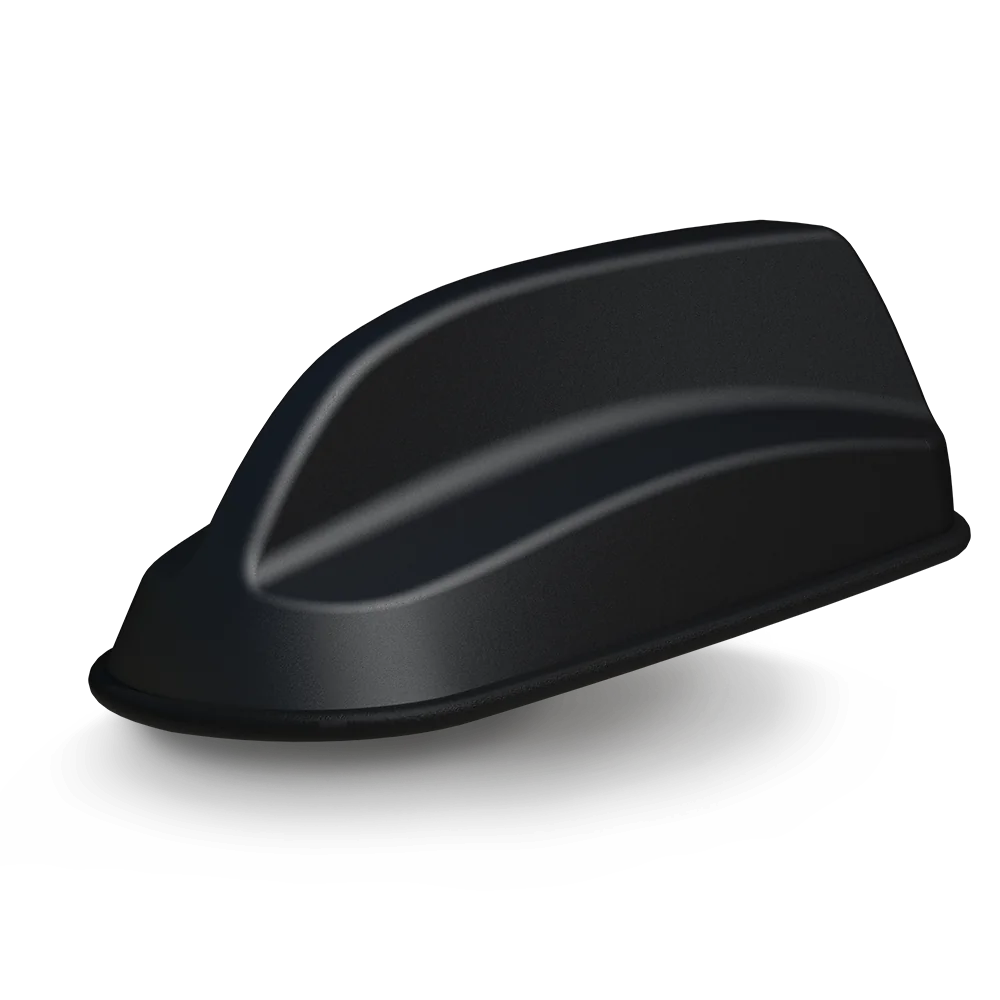

![Panorama SHK[G]-7-27 Sharkee sharkfin antenna housing, used in the SH-IN2440 kit](http://shop.rcntechnologies.com/cdn/shop/files/PIC_SHKG-7-27-T24-58-3.webp?v=1790951027&width=1445)
| Pattern | Omnidirectional |
|---|---|
| Max input power | 25 |
| Frequency range gain | 698 – 960MHz | 2dBi; 1710 – 3800MHz | 5dBi |
| Cellular lte elements | 2 x 2 MIMO |
| Wifi elements | 2 x 2 MIMO; No; 3 x 3 MIMO |
| Uhf elements | No |
Product Overview
The SH-IN2440 puts a vehicle router's cellular, Wi-Fi and GPS antennas inside an OEM-style sharkfin that looks like a factory part. Fleets and public safety agencies use it when they want five antenna functions on the roof without an obvious antenna dome.
The kit pairs the Panorama SHKG-7-27-24-58 antenna with factory-fitted 5 m (16 ft) flame-retardant cables. Cellular and GPS cables end in SMA male plugs and the two Wi-Fi cables end in reverse-polarity SMA plugs. The sharkfin is rated IP66.
Specifications

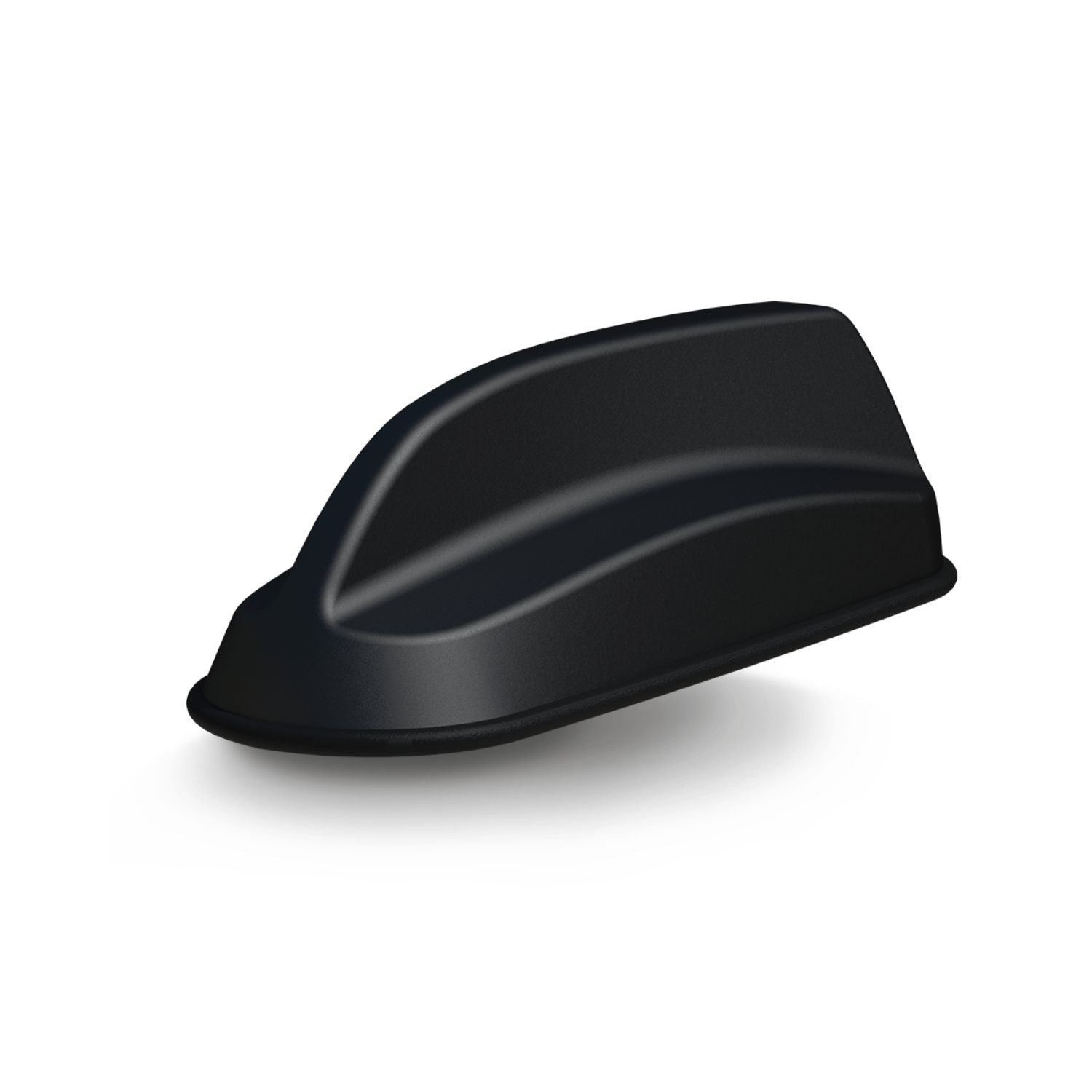

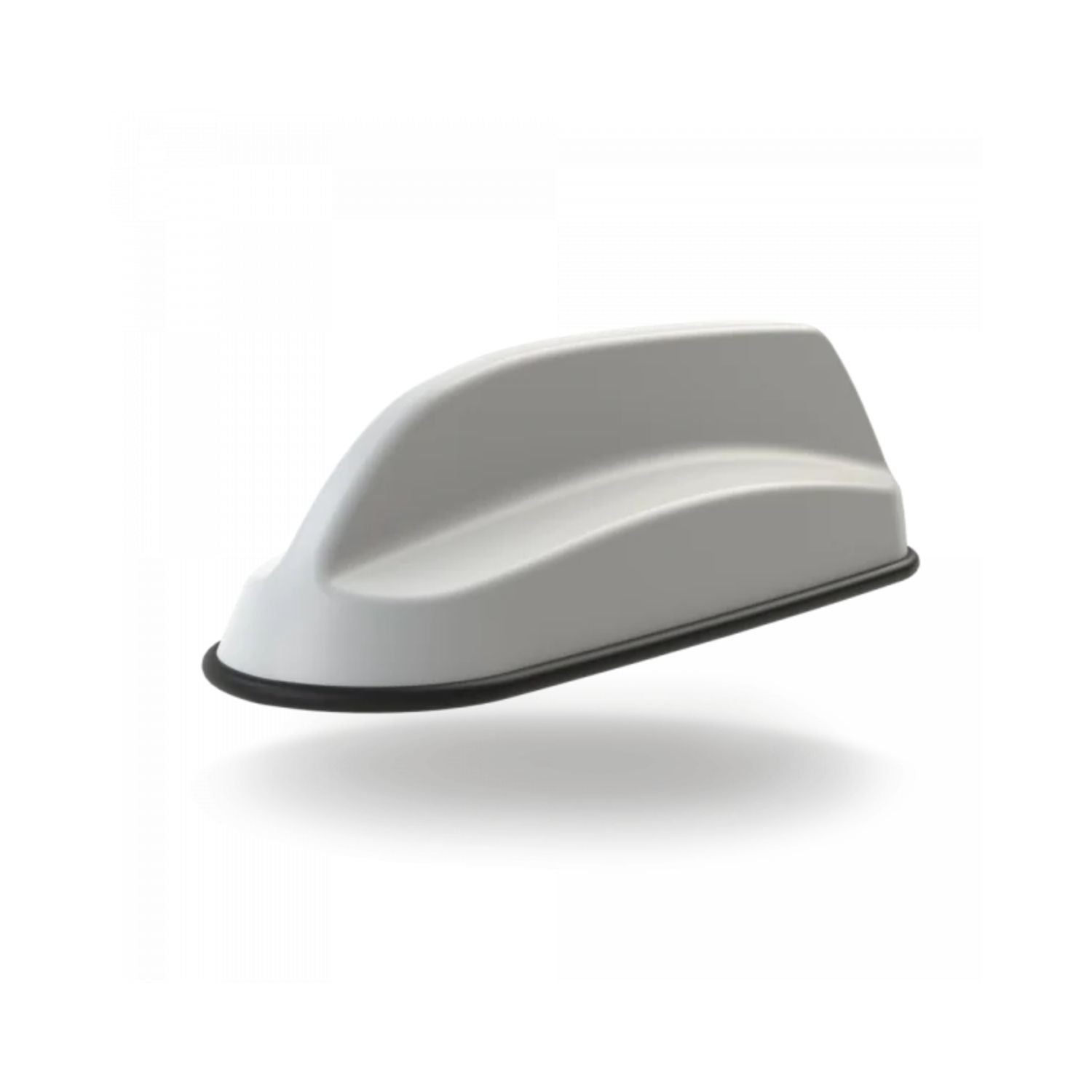

| Model (kit) | SH-IN2440 (black), SH-IN2440-W (white) |
|---|---|
| Antenna in kit | SHKG-7-27-24-58 |
| Antenna elements | 5 total: 2x2 MIMO cellular, 2x2 MIMO Wi-Fi, 1 GPS/GNSS |
| Wi-Fi | 2x2 MIMO, dual band |
| Cellular frequency and peak gain | 698-960 MHz (2 dBi), 1710-3800 MHz (5 dBi) peak gain |
| GNSS | GPS/GNSS, 1562-1612 MHz, 26 dB LNA |
| Radiation pattern | Omnidirectional |
| Max input power | 25 W |
| Connectors | Cellular: 2 x SMA (m); GPS: SMA (m); Wi-Fi: 2 x reverse-polarity SMA |
| Dimensions | 170 x 60 x 50 mm (6.69 x 2.36 x 1.97 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP66 |
| Cable | Flame-retardant RG174, 5 m (16 ft), fitted |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount (vehicle roof) |
| Housing color | Black or white |
| Compatibility | Vehicle routers with two cellular SMA ports, two RP-SMA Wi-Fi ports and a GPS SMA port |
View the Panorama SHK[G]-7-27 Sharkee product page and datasheet
Right for you if
- You want an OEM-style sharkfin rather than a dome on marked or unmarked vehicles.
- Your router uses 2x2 MIMO cellular, two Wi-Fi ports and GPS.
- Your carrier bands fall within 698-3800 MHz.
- For three Wi-Fi elements, see the SH-IN2463; for 5G bands up to 6 GHz, see the SH-IN2618.
FAQ
Can the Sharkee be used on unmarked vehicles?
Yes. Panorama describes the Sharkee series as an OEM automotive-style sharkfin and lists public safety as a primary application, and the housing is available in black or white to match the vehicle. The low visual profile is the main reason agencies choose it over a dome on unmarked or covert vehicles.
Does it cover 5G?
The SHKG-7-27 cellular elements cover 698-960 MHz and 1710-3800 MHz, with up to 5 dBi peak gain. That includes most LTE bands and mid-band 5G up to 3.8 GHz, but not 600 MHz Band 71 or bands above 3.8 GHz. For wider coverage, the SHKG-6-60 based SH-IN2618 covers 617-6000 MHz.
What connectors are on the cables?
The SH-IN2440 ships with 5 m (16 ft) cables fitted at the factory, one per element. The two cellular cables and the GPS cable end in SMA male plugs, and the two Wi-Fi cables end in reverse-polarity SMA plugs. Panorama also lists a loose-cable (-LC) version for installs that pull cables first.
