Panorama SH-IN2463 6:1 Antenna Kit with MIMO LTE, 3x3 MIMO WiFi, GPS, 16' Cables

Panorama SH-IN2463 6:1 Antenna Kit with MIMO LTE, 3x3 MIMO WiFi, GPS, 16' Cables

SKU: SH-IN2463

$403.55
$403.55
Sale Sold out
Shipping calculated at checkout.

Can't Decide? Connect with Our Expert Crew
View full details

Product Overview

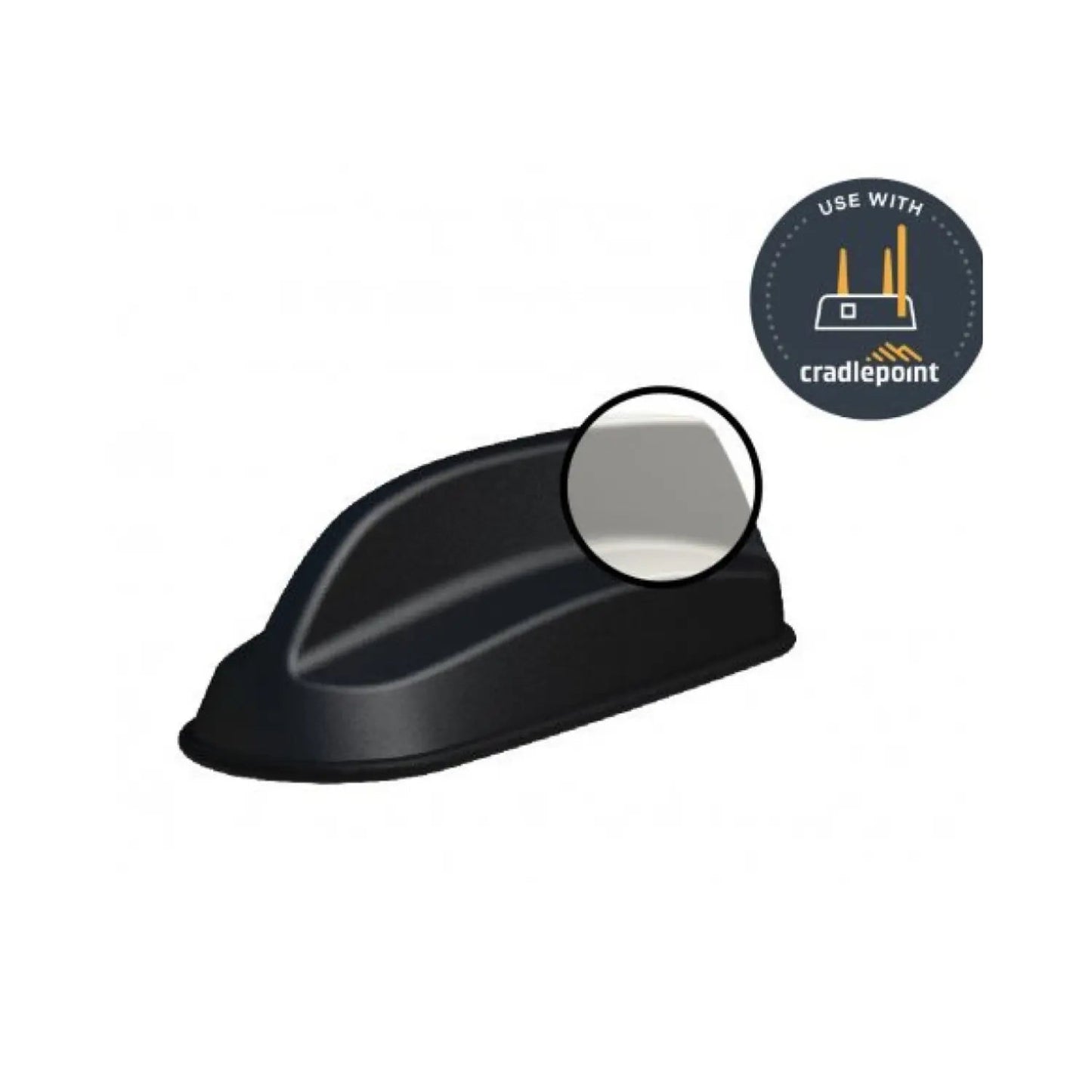

Panorama SH-IN2463 6:1 Sharkee Antenna Kit - Cellular, WiFi, GPS - Ericsson Cradlepoint Approved

To design a reliable mobile network, engineers must consider coverage, terrain, and the brutality of outdoor conditions. Thankfully, Panorama Antennas offers the SH-IN2463 antenna, which meets these demands cost-effectively without sacrificing performance. This omnidirectional antenna provides multiple connections across long ranges and in the worst conditions. It integrates five antennas into a rugged dome and includes two cellular, two WiFi, and one active GPS/GNSS element. The 2x2 MIMO 4G LTE elements cover the 698 to 3800 MHz frequency range at a 50-watt maximum input power.

In addition to performance, this antenna can handle abuse. It operates nominally from temperatures ranging from -40 to 80℃. It offers stable mounting, and its IP66 rating means it is impervious to the incursions of dust and powerful water streams. The SH-IN2463 is a kit consisting of the SHKG-7-27-T24-58 antenna and a complete set of low loss double shielded extension cables in 16-foot lengths for each antenna, all terminating in SMA connectors. A ground plane is not required, and the antenna will operate when mounted on a non-metallic surface.

The SH-IN2463 offers many antenna functions, making it suitable for vehicle and transportation applications where a cost-effective full-function antenna is critical. In addition, the discrete design makes it great for covert placements, and it is intended for use with large-scale mobile networks. Call and speak with one of our sales engineers today to see how this antenna can improve your wireless network.

Need help choosing or ready to order?

Contact RCN for a quote  |  Learn about our NOC support

Frequently Asked Questions

What is the Panorama SH-IN2463 and what is it designed for?

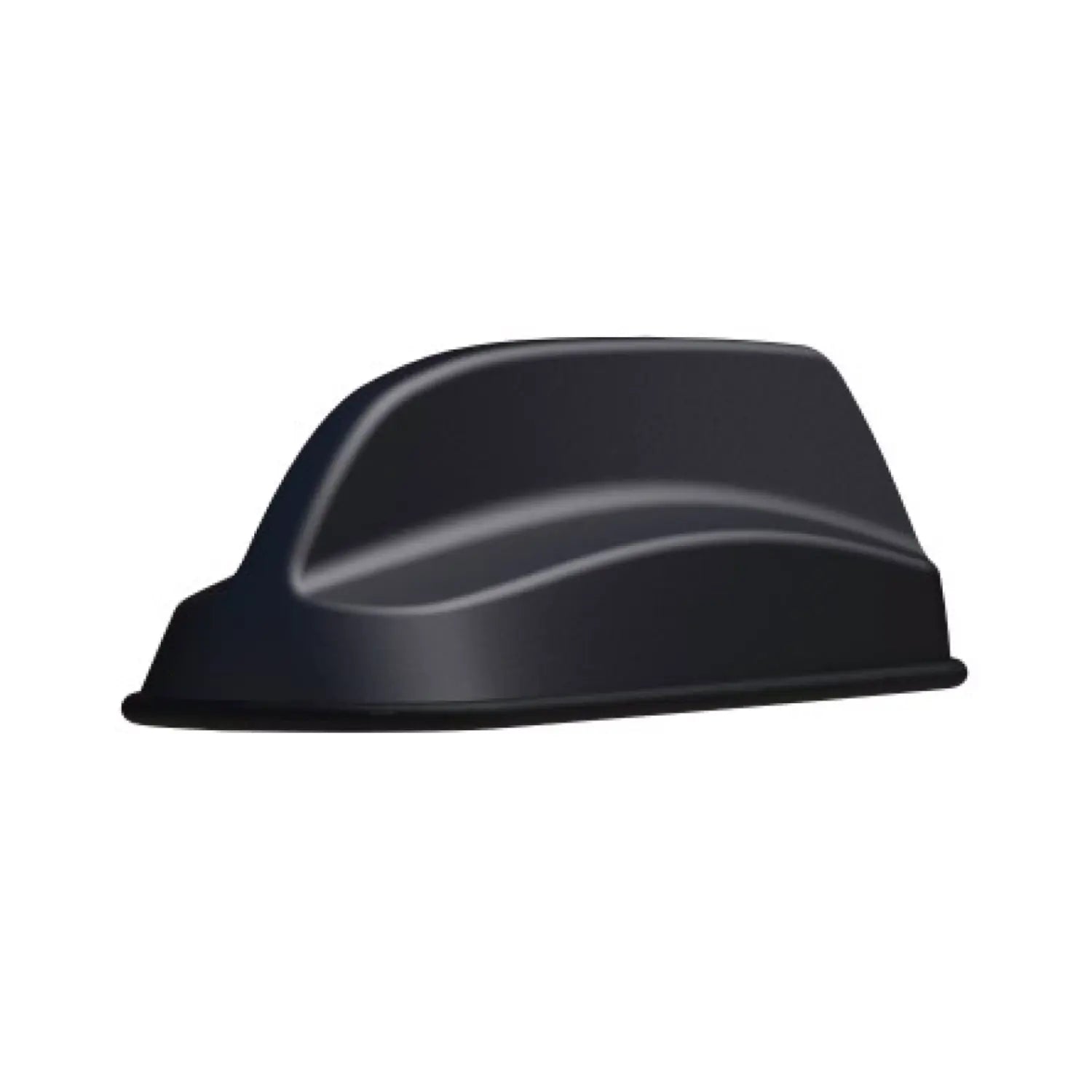

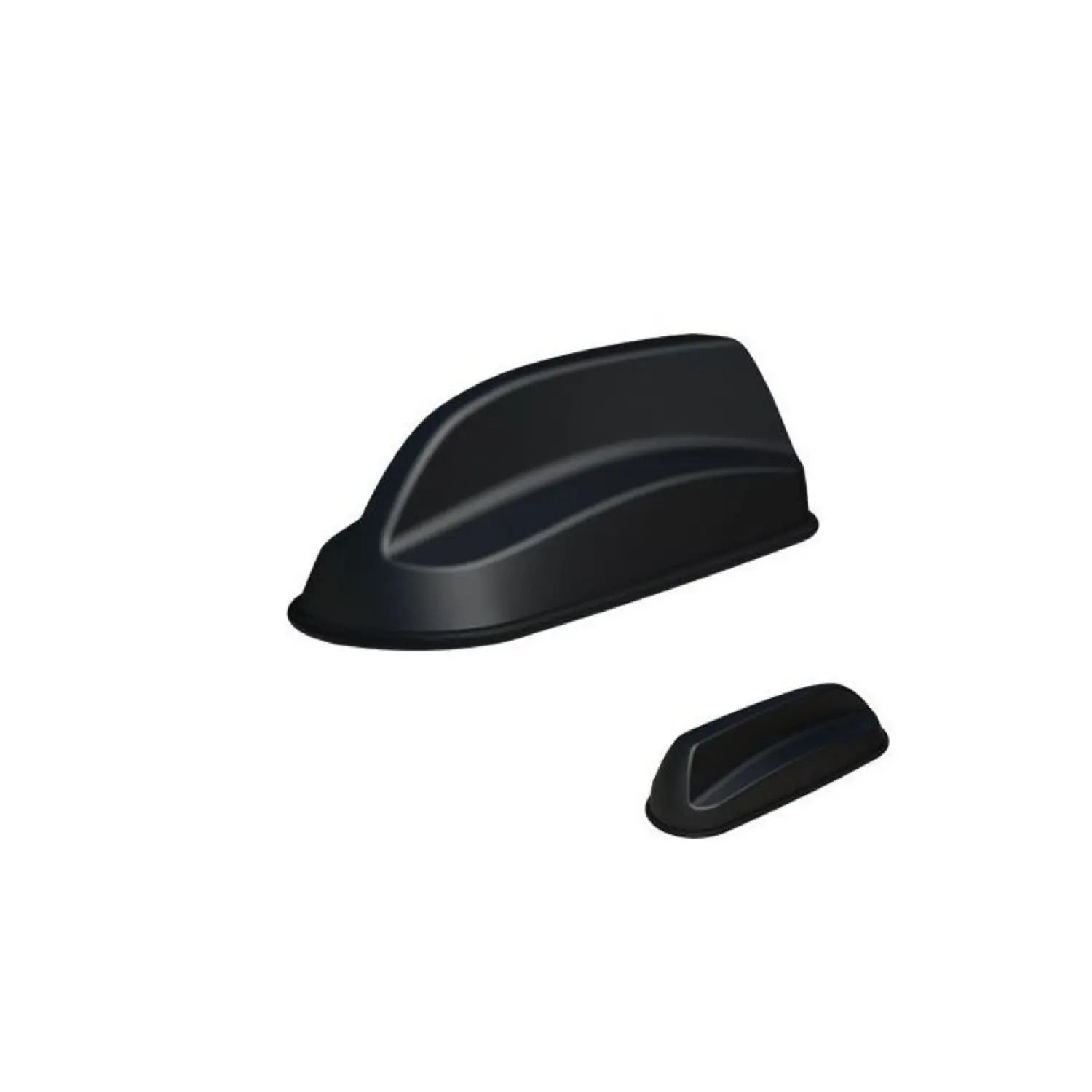

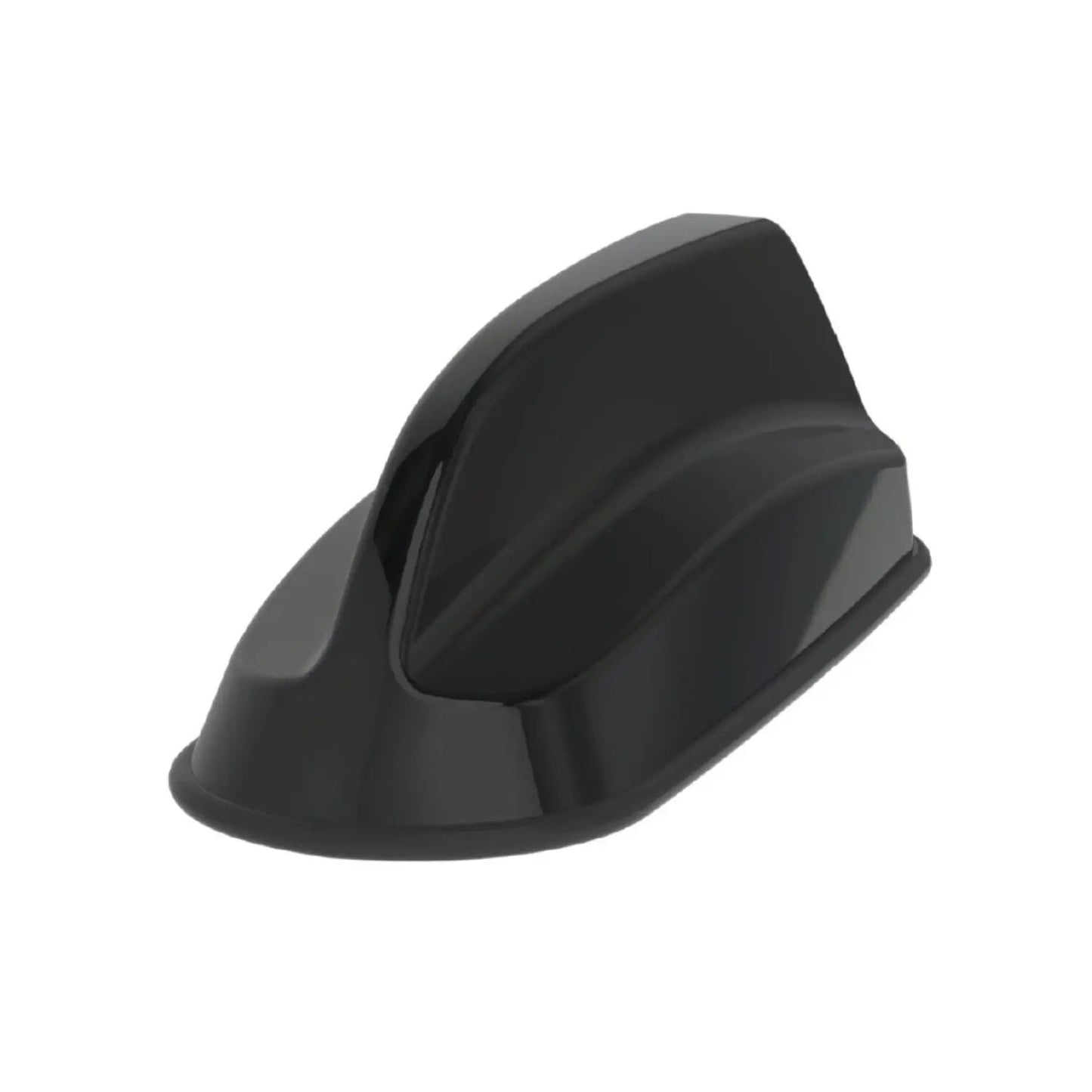

The SH-IN2463 is a 6-in-1 Sharkee antenna kit for mobile and vehicle deployments requiring both MIMO cellular and 3x3 MIMO WiFi connectivity. The kit includes the SHKG-7-27-T24-58 shark-fin antenna and six 16-foot (5-meter) extension cables—one per antenna element. It combines two MIMO LTE cellular elements, three MIMO WiFi elements, and one active GPS/GNSS element in a single shark-fin housing. It is designed for vehicles and transportation applications where a full-function antenna is needed with minimal rooftop penetration.
What frequency bands does the SH-IN2463 cover?
The SH-IN2463 covers: Cellular LTE — 698–960 MHz and 1710–3800 MHz (2x2 MIMO 4G LTE); WiFi — 2.4 GHz and 5.0 GHz (3x3 MIMO dual-band); and GPS/GNSS — 1562–1612 MHz with 26 dB LNA gain (GPS, GLONASS, Galileo, BeiDou). Maximum input power is 50 watts. This antenna does not extend into the 5G NR sub-6 GHz bands above 3.8 GHz—see the SH-IN2618 for full 5G NR coverage.
How is the SH-IN2463 installed?
The SH-IN2463 Sharkee antenna mounts through a single 18 mm (¾-inch) hole in the vehicle roof or panel surface. No ground plane is required—the antenna performs on both metallic and non-metallic mounting surfaces. The included 16-foot (5-meter) cables (CS23 for GPS; CS29 UN118.03 and EN45545-2 compliant for LTE and WiFi) route internally to the router. The discrete shark-fin design is well-suited for overt and covert vehicle placements.
What is the antenna element configuration and what connectors does it include?
The SH-IN2463 is a 6:1 antenna: 2 LTE (2x2 MIMO) + 3 WiFi (3x3 MIMO) + 1 GPS. Six cables are included in the kit. LTE and GPS elements use SMA male connectors; WiFi elements use RP-SMA connectors. Antenna dimensions are 172 mm L × 61 mm W × 50 mm H. Impedance is 50 ohms.
Is the SH-IN2463 compatible with Ericsson Cradlepoint routers, and what are its environmental ratings?
Yes. The SH-IN2463 is confirmed compatible with Ericsson Cradlepoint IBR900 and IBR1700 routers. The two LTE SMA cables connect to the cellular ports, the three RP-SMA WiFi cables connect to the WiFi ports, and the SMA GPS cable connects to the GNSS input. The antenna is IP66 rated (dustproof and jet-water resistant) and compliant with UN118.01 flame-retardant cable standards. Operating temperature range is -40°C to +80°C. Available in black or white.
