Product Overview

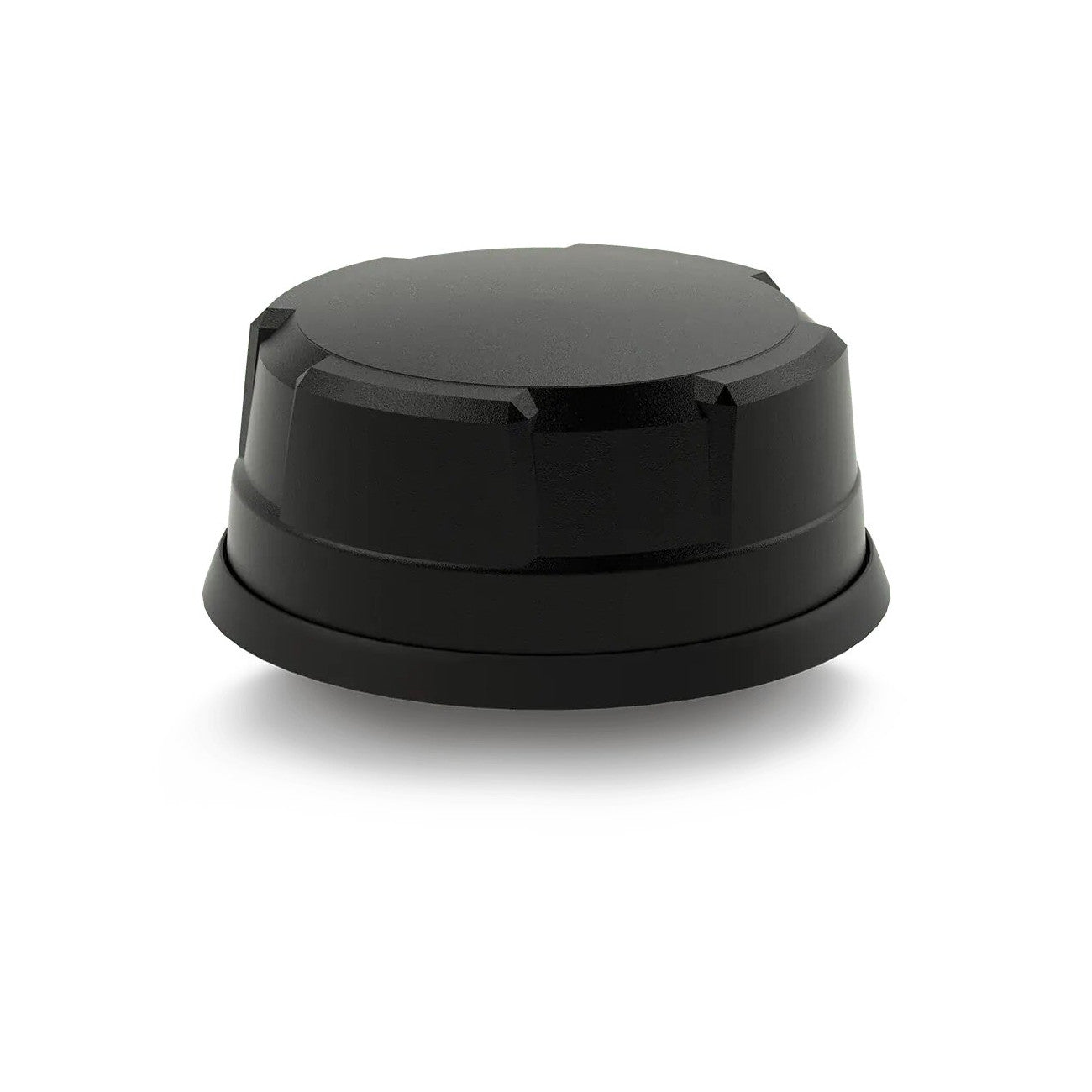

The LP-IN2443 is the cellular-only member of the Mako family. It gives a 4x4 MIMO router four external 4G/5G elements in one low-profile dome, with no GPS or Wi-Fi cables to manage. It suits fixed sites, cabinets and vehicles where only the WAN link needs an external antenna.
The kit pairs the Panorama LPMM4-6-60 antenna with factory-fitted 5 m (16 ft) flame-retardant cables that end in SMA male plugs. The dome is rated IP69K and IK10, mounts through a single hole and does not need a metallic ground plane.
Specifications
| Model (kit) | LP-IN2443 (black), LP-IN2443-W (white) |
|---|---|
| Antenna in kit | LPMM4-6-60 |
| Antenna elements | 4 total: 4x4 MIMO cellular |
| Wi-Fi | None |
| GNSS | None |
| Cellular frequency and peak gain | 617-960 MHz (4 dBi), 1710-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi) peak gain |
| Radiation pattern | Omnidirectional |
| Max input power | 10 W |
| Connectors | Cellular: 4 x SMA (m) |
| Dimensions | 80 mm high x 180 mm diameter (3.15 x 7.09 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress and impact rating | IP69K, IK10 |
| Cable | Flame-retardant RG174, 5 m (16 ft), fitted |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount; ground plane not required |

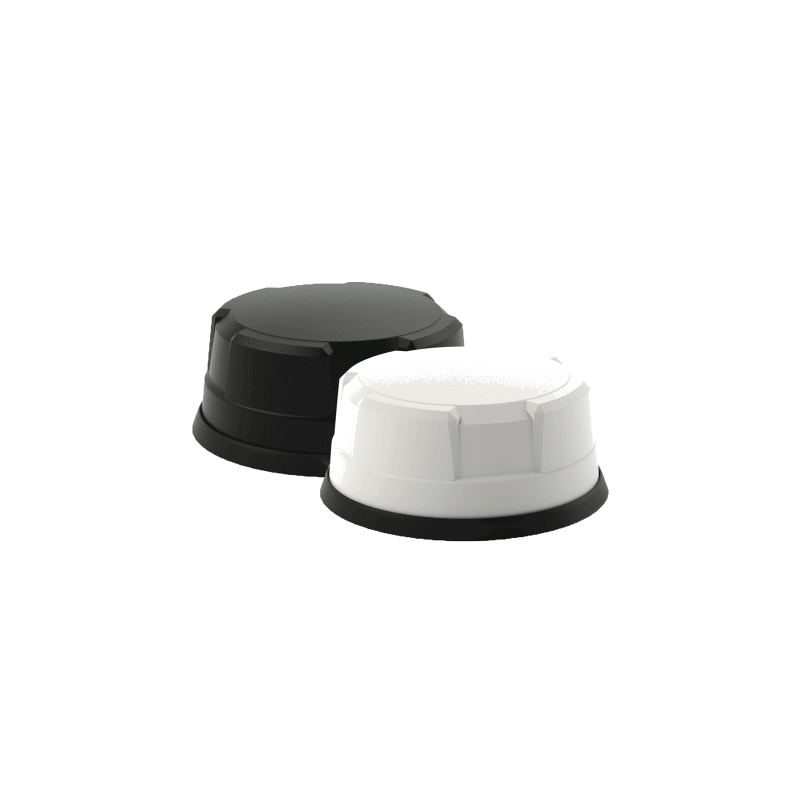

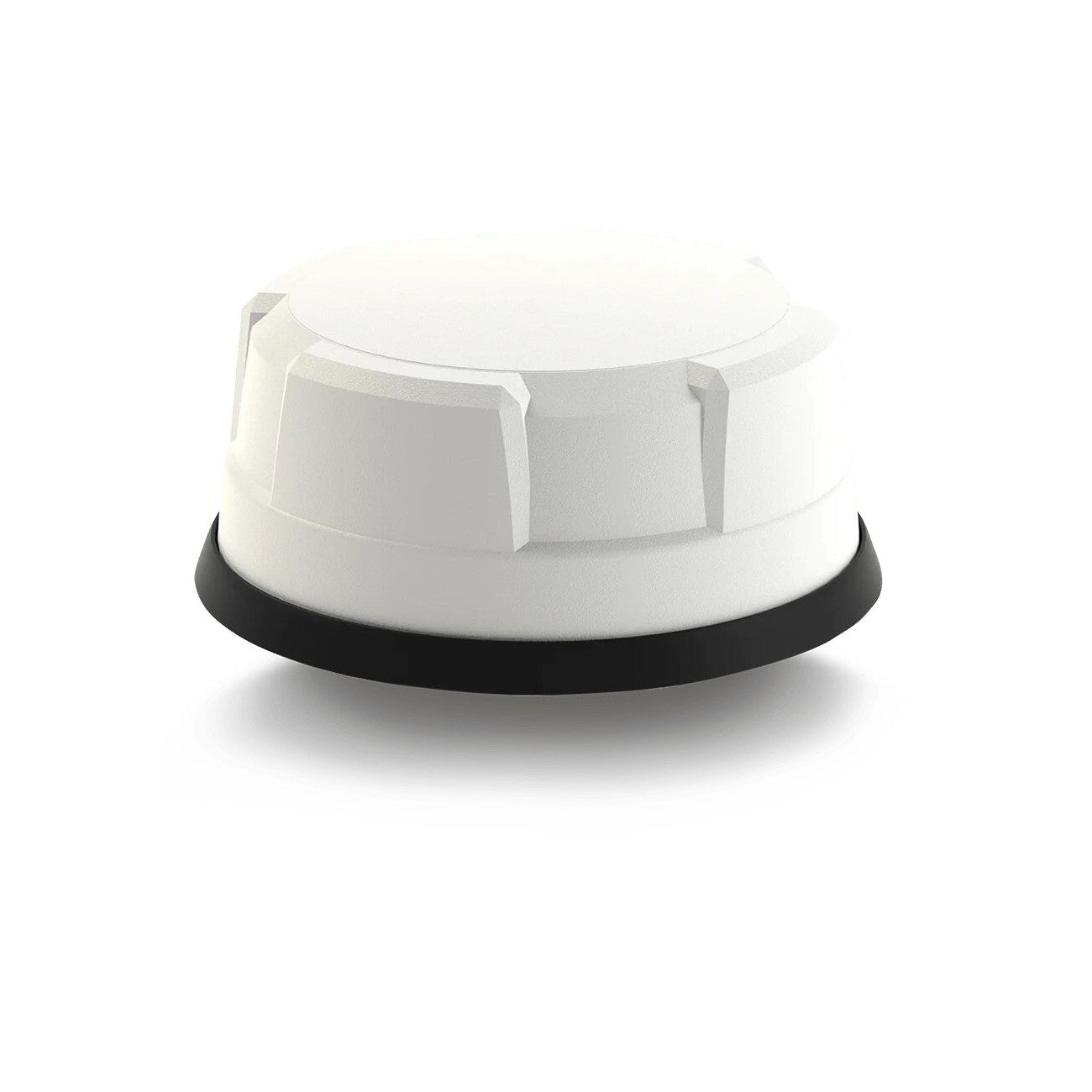

| Housing color | Black or white |
| Compatibility | Routers and modems with four SMA female cellular ports |
View the Panorama Mako L[G]M[H]M4[B]-6-60 product page and datasheet
Right for you if
- Your router has four cellular SMA ports and you do not need GPS or Wi-Fi antennas.
- You want a rugged IP69K, IK10 dome for a cabinet, rooftop or vehicle.
- You need 4G/5G coverage from 617 MHz through 6 GHz.
- For a 2x2 MIMO router, the LP-IN2455 is the matching two-element kit.
FAQ
Can I split the four cellular elements between two modems?
Panorama designs the four LTE elements for 4x4 MIMO. They can be wired as two 2x2 pairs on a dual-SIM router that runs in failover, with only one SIM or radio active at a time. Panorama states the antenna is not intended for concurrent or aggregated dual-modem use, because isolation between the pairs is not sufficient for it.
Does the dome need a metal roof or ground plane?
No. Panorama states that none of the antennas in the Mako range require a metallic ground plane, and that they keep a high level of performance on non-metallic surfaces. That covers non-metallic roofs and panels as well as steel vehicle roofs and equipment cabinet tops, so one part number can serve a mixed fleet.
What connectors are on the cables?
The LP-IN2443 ships with four 5 m (16 ft) flame-retardant cables fitted at the factory, one per cellular element, and each ends in an SMA male plug. Panorama also lists a loose-cable (-LC) version of this kit. If your router uses a different connector, ask RCN about adapters or another kit.
