Product Overview

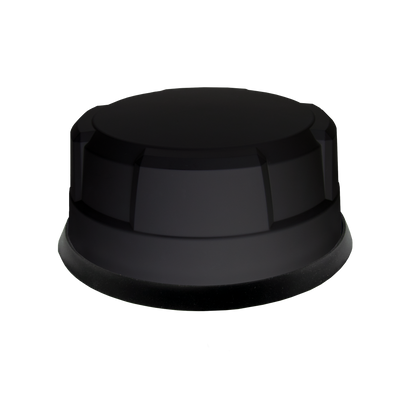

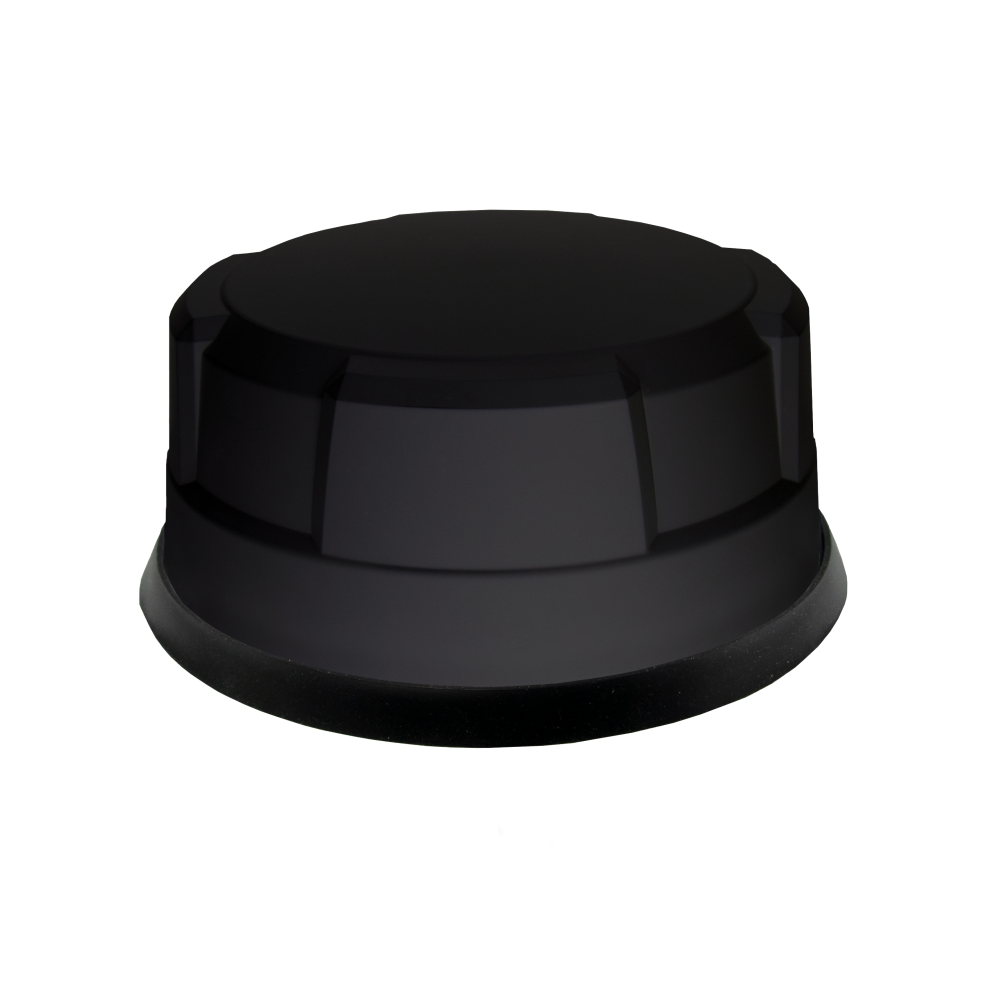

The LG-IN2607 matches routers that pair 4x4 MIMO cellular with three external Wi-Fi ports. Its eight elements, four 4G/5G cellular, three Wi-Fi and one GPS/GNSS, sit in a single Mako dome, so a fleet vehicle gets its WAN, hotspot and location antennas through one roof hole.
The kit pairs the Panorama LGMTM4-6-60-24-58 antenna with factory-fitted 5 m (16 ft) flame-retardant cables. The Mako dome is rated IP69K and IK10, mounts through a single hole, and does not need a metallic ground plane, so it works on steel roofs, non-metallic panels and equipment cabinets.
Specifications
| Model (kit) | LG-IN2607 (black), LG-IN2607-W (white) |
|---|---|
| Antenna in kit | LGMTM4-6-60-24-58 |
| Antenna elements | 8 total: 4x4 MIMO cellular, 1 GPS/GNSS, 3x3 MIMO Wi-Fi |
| Wi-Fi | 3x3 MIMO |
| Cellular frequency and peak gain | 617-960 MHz (4 dBi), 1710-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi) peak gain |
| GNSS | GPS/GNSS, 1562-1612 MHz, 26 dB LNA |
| Radiation pattern | Omnidirectional |
| Max input power | 10 W |
| Connectors | Cellular: 4 x SMA (m); GPS: SMA (m); Wi-Fi: 3 x reverse-polarity SMA |
| Dimensions | 80 mm high x 180 mm diameter (3.15 x 7.09 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress and impact rating | IP69K, IK10 |
| Cable | Flame-retardant RG174, 5 m (16 ft), fitted |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount; ground plane not required |

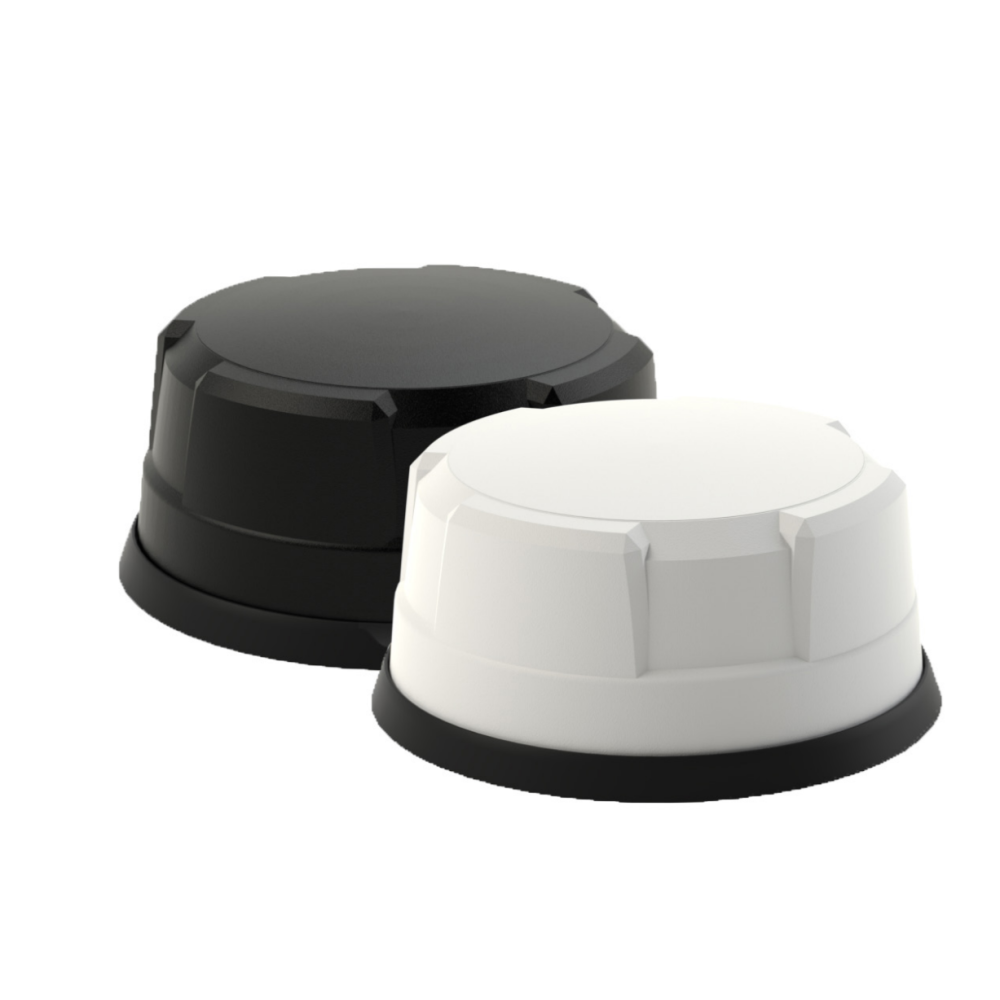

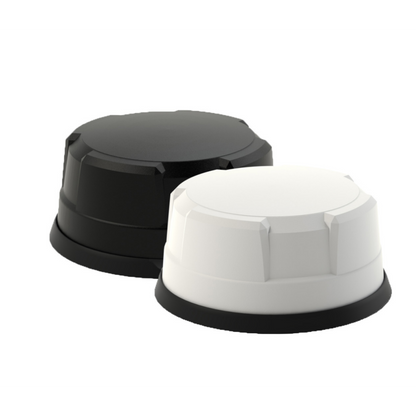

| Housing color | Black or white |
| Compatibility | Routers or modems with ports that mate with these cable ends: Cellular: 4 x SMA (m); GPS: SMA (m); Wi-Fi: 3 x reverse-polarity SMA |
View the Panorama Mako L[G]M[H]M4[B]-6-60 product page and datasheet
Earlier versions of this listing mentioned Bluetooth. Panorama lists the LG-IN2607 as 4x4 MIMO cellular, 3x3 MIMO Wi-Fi and one GPS/GNSS element, and that is what this page describes.
Right for you if
- Your router has four cellular ports, three external Wi-Fi ports and a GPS port.
- You want a single IP69K, IK10 roof dome for a fleet or public safety vehicle.
- You need 4G/5G coverage from 617 MHz through 6 GHz.
- For two Wi-Fi ports see the LG-IN2445; for four see the LG-IN2446.
FAQ
Can I split the four cellular elements between two modems?
Panorama designs the four LTE elements for 4x4 MIMO. They can be wired as two 2x2 pairs on a dual-SIM router that runs in failover, with only one SIM or radio active at a time. Panorama states the antenna is not intended for concurrent or aggregated dual-modem use, because isolation between the pairs is not sufficient for it.
Does the dome need a metal roof or ground plane?
No. Panorama states that none of the antennas in the Mako range require a metallic ground plane, and that they keep a high level of performance on non-metallic surfaces. That covers non-metallic roofs and panels as well as steel vehicle roofs and equipment cabinet tops, so one part number can serve a mixed fleet.
What connectors are on the cables?
The LG-IN2607 ships with 5 m (16 ft) cables fitted at the factory, one per element. The cellular and GPS cables end in SMA male plugs and the Wi-Fi cables end in reverse-polarity SMA plugs. Panorama also lists a loose-cable (-LC) version of this kit, so ask RCN if your install needs cables pulled before the antenna is mounted.
