| Pattern | Omnidirectional |
|---|---|
| Max input power | 10 |
| Frequency range gain | 617 – 960MHz | 4dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi |
| Cellular lte elements | 4 x 4 MIMO |
| Wifi elements | No; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 5 x 5 MIMO; 3 x 3 MIMO |
| Uhf elements | No |
Product Overview
The LG-IN2446 puts nine antenna elements on one vehicle roof: four 4G/5G cellular, four Wi-Fi and one GPS/GNSS. It is built for routers that run 4x4 MIMO cellular and 4x4 Wi-Fi at the same time, so the vehicle hotspot and the WAN link both get external antennas.

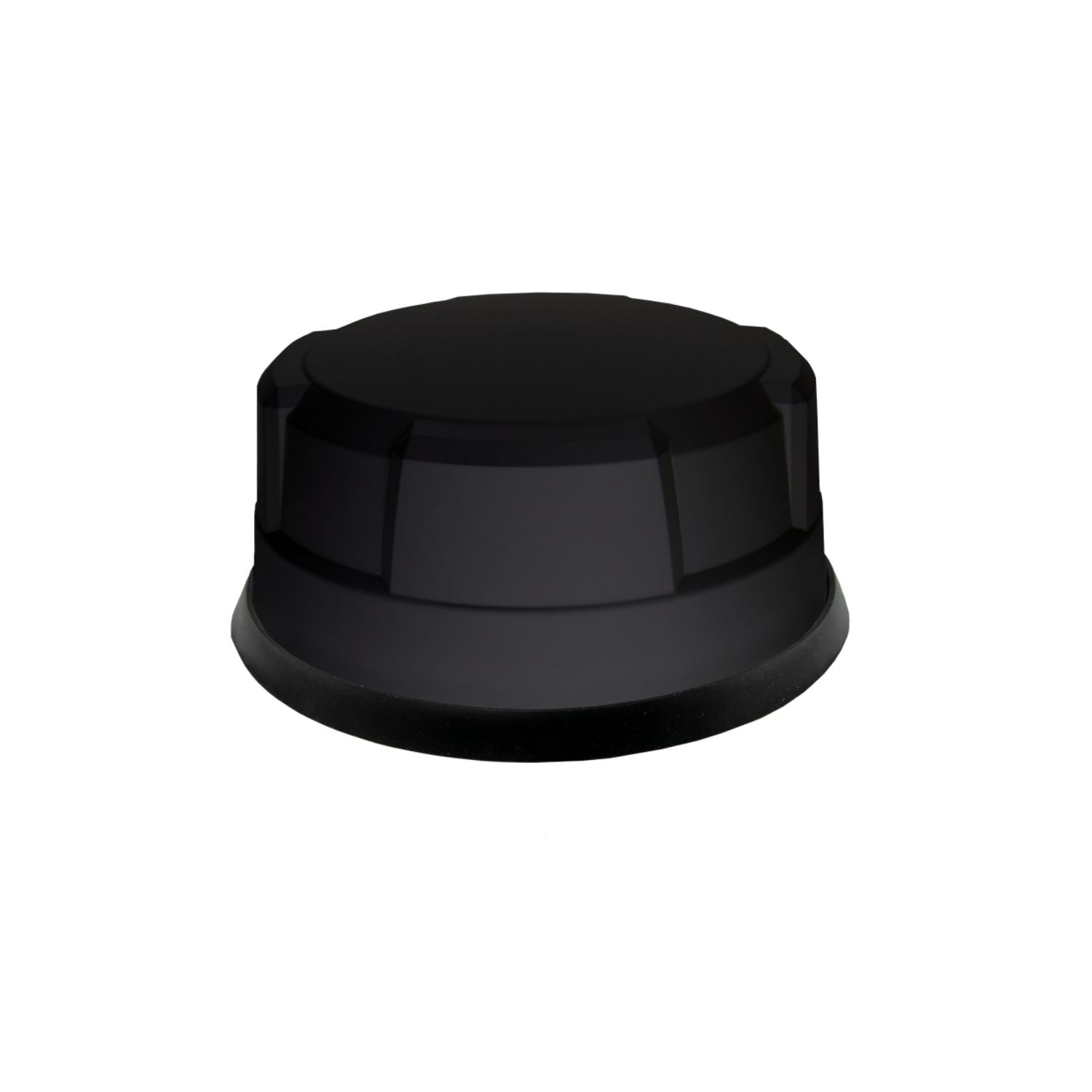

The kit pairs the Panorama LGMQM4-6-60-24-58 antenna with factory-fitted 5 m (16 ft) flame-retardant cables. The Mako dome is rated IP69K and IK10, mounts through a single hole, and does not need a metallic ground plane, so it works on steel roofs, non-metallic panels and equipment cabinets.
Specifications

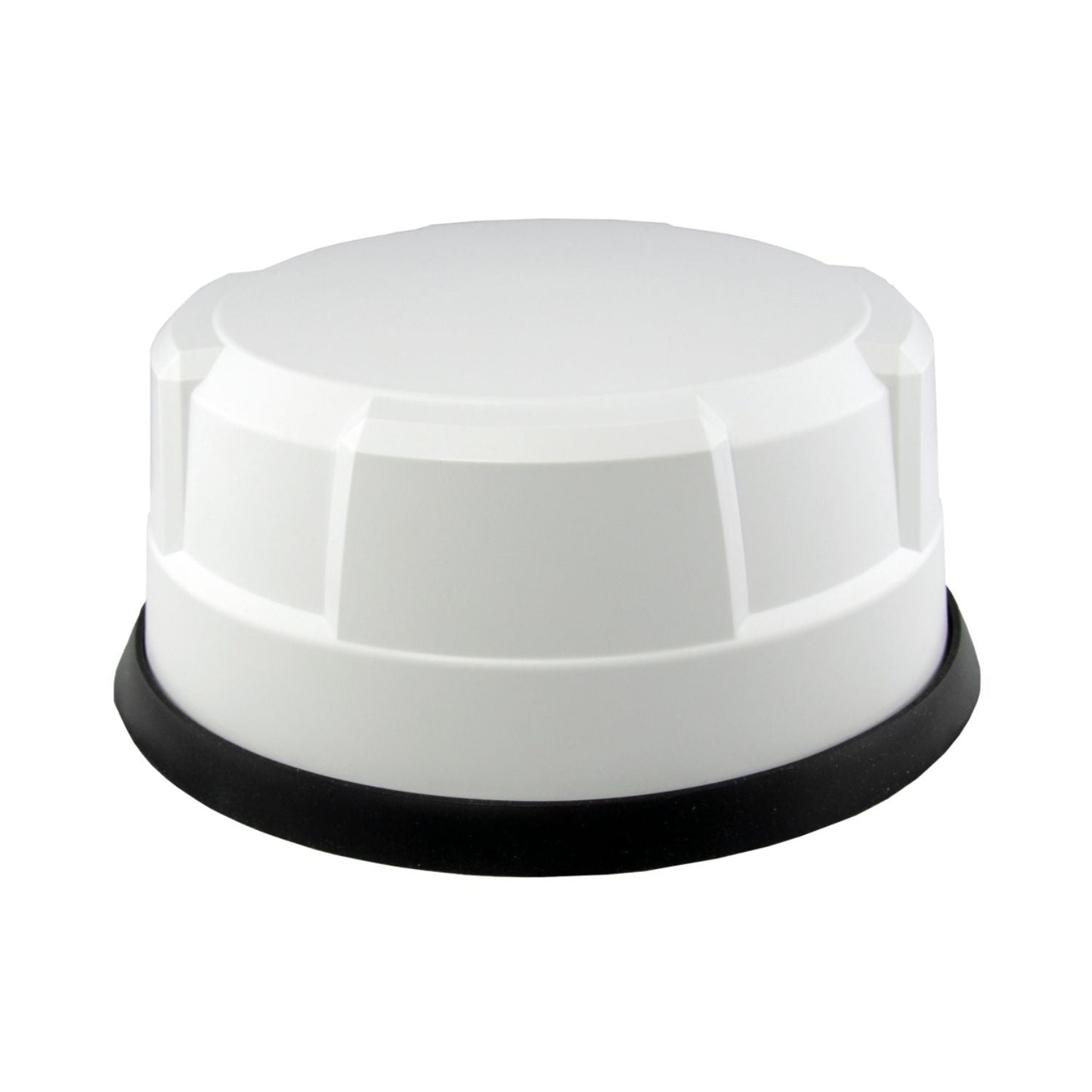

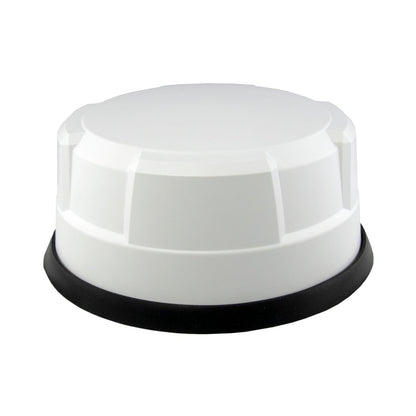

| Model (kit) | LG-IN2446 (black), LG-IN2446-W (white) |
|---|---|
| Antenna in kit | LGMQM4-6-60-24-58 |
| Antenna elements | 9 total: 4x4 MIMO cellular, 1 GPS/GNSS, 4x4 MIMO Wi-Fi |
| Wi-Fi | 4x4 MIMO |
| Cellular frequency and peak gain | 617-960 MHz (4 dBi), 1710-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi) peak gain |
| GNSS | GPS/GNSS, 1562-1612 MHz, 26 dB LNA |
| Radiation pattern | Omnidirectional |
| Max input power | 10 W |
| Connectors | Cellular: 4 x SMA (m); GPS: SMA (m); Wi-Fi: 4 x reverse-polarity SMA |
| Dimensions | 80 mm high x 180 mm diameter (3.15 x 7.09 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress and impact rating | IP69K, IK10 |
| Cable | Flame-retardant RG174, 5 m (16 ft), fitted |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |

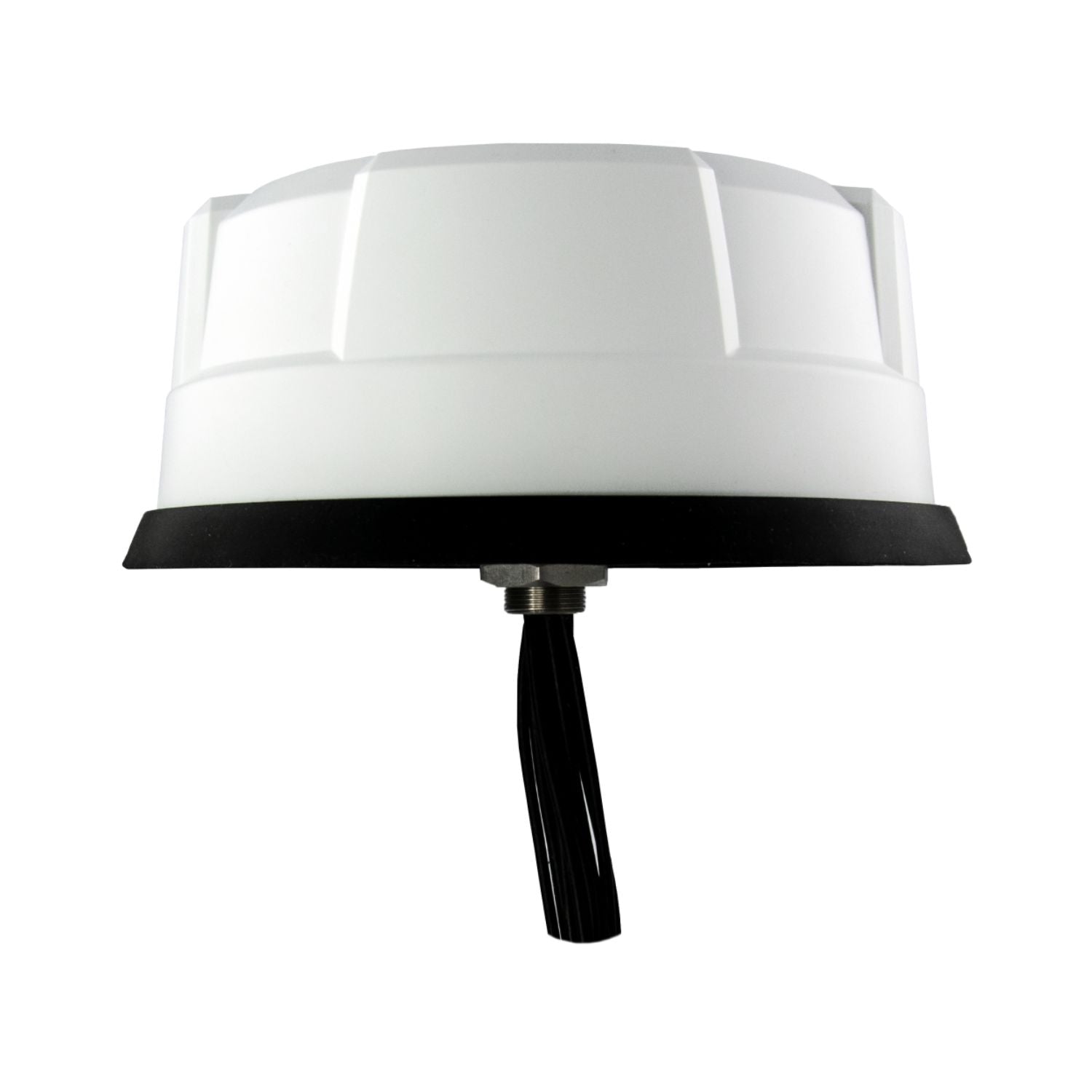

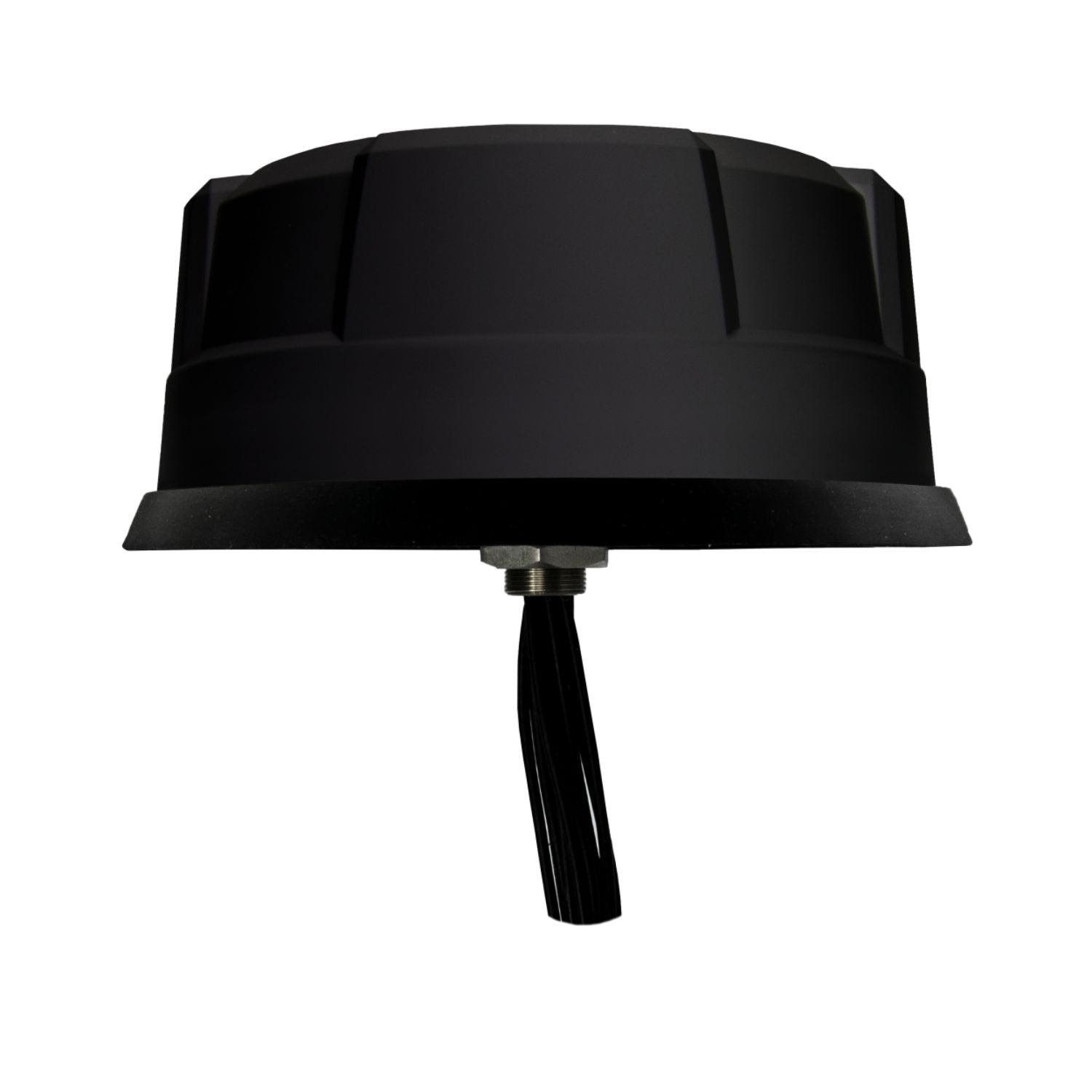

| Mounting | Single-hole panel mount; ground plane not required |

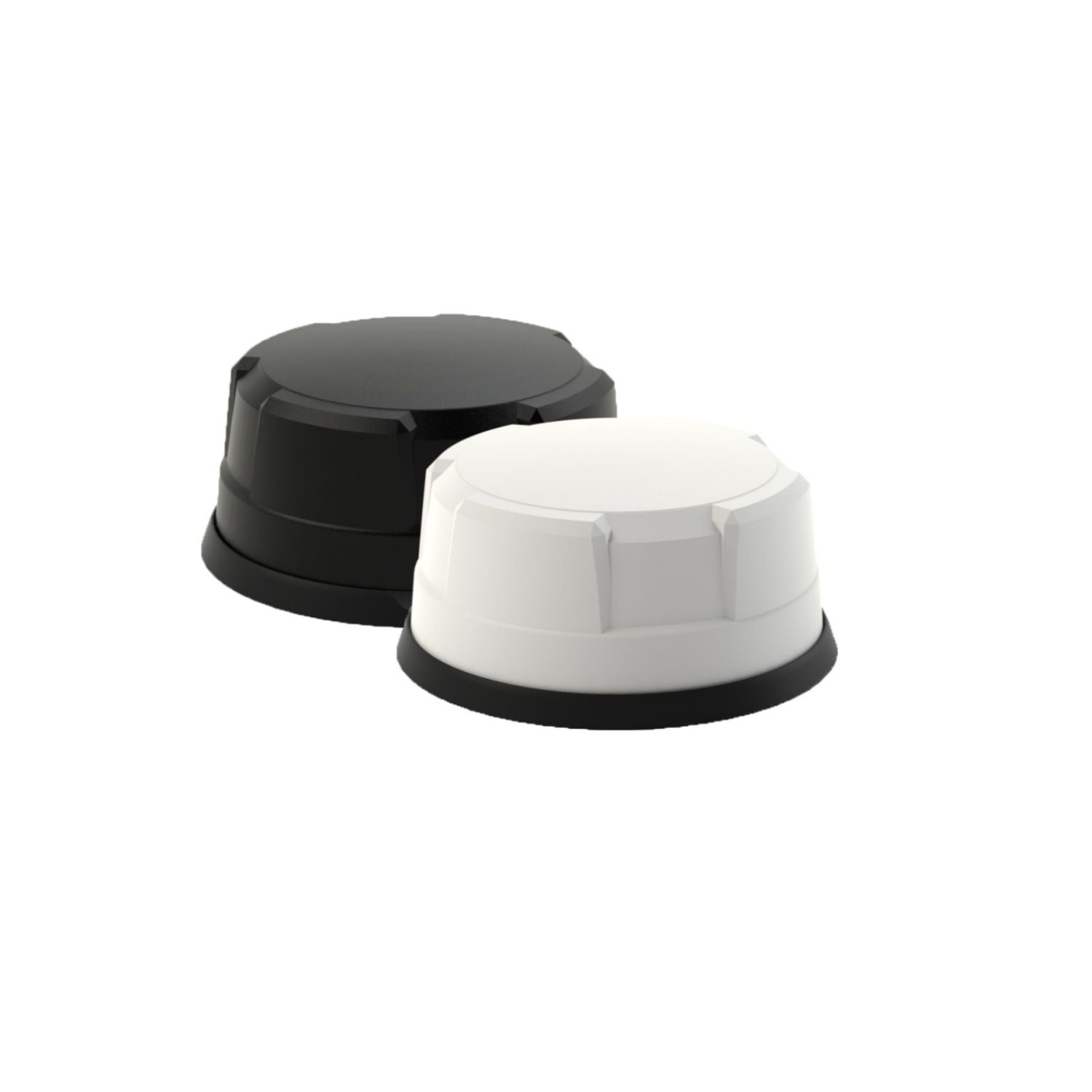

| Housing color | Black or white |
| Compatibility | Routers or modems with ports that mate with these cable ends: Cellular: 4 x SMA (m); GPS: SMA (m); Wi-Fi: 4 x reverse-polarity SMA |
View the Panorama Mako L[G]M[H]M4[B]-6-60 product page and datasheet
Right for you if
- Your router runs 4x4 MIMO cellular and has four external Wi-Fi ports.
- You want cellular, Wi-Fi and GPS on a single roof penetration.
- You need an IP69K, IK10 dome for police, fire, EMS or transit vehicles.
- For fewer Wi-Fi elements see the LG-IN2445 (2x2) or LG-IN2607 (3x3); for six see the LG-IN2447.
FAQ
Can I split the four cellular elements between two modems?
Panorama designs the four LTE elements for 4x4 MIMO. They can be wired as two 2x2 pairs on a dual-SIM router that runs in failover, with only one SIM or radio active at a time. Panorama states the antenna is not intended for concurrent or aggregated dual-modem use, because isolation between the pairs is not sufficient for it.
Does the dome need a metal roof or ground plane?
No. Panorama states that none of the antennas in the Mako range require a metallic ground plane, and that they keep a high level of performance on non-metallic surfaces. That covers non-metallic roofs and panels as well as steel vehicle roofs and equipment cabinet tops, so one part number can serve a mixed fleet.
What connectors are on the cables?
The LG-IN2446 ships with 5 m (16 ft) cables fitted at the factory, one per element. The cellular and GPS cables end in SMA male plugs and the Wi-Fi cables end in reverse-polarity SMA plugs. Panorama also lists a loose-cable (-LC) version of this kit, so ask RCN if your install needs cables pulled before the antenna is mounted.
