Product Overview

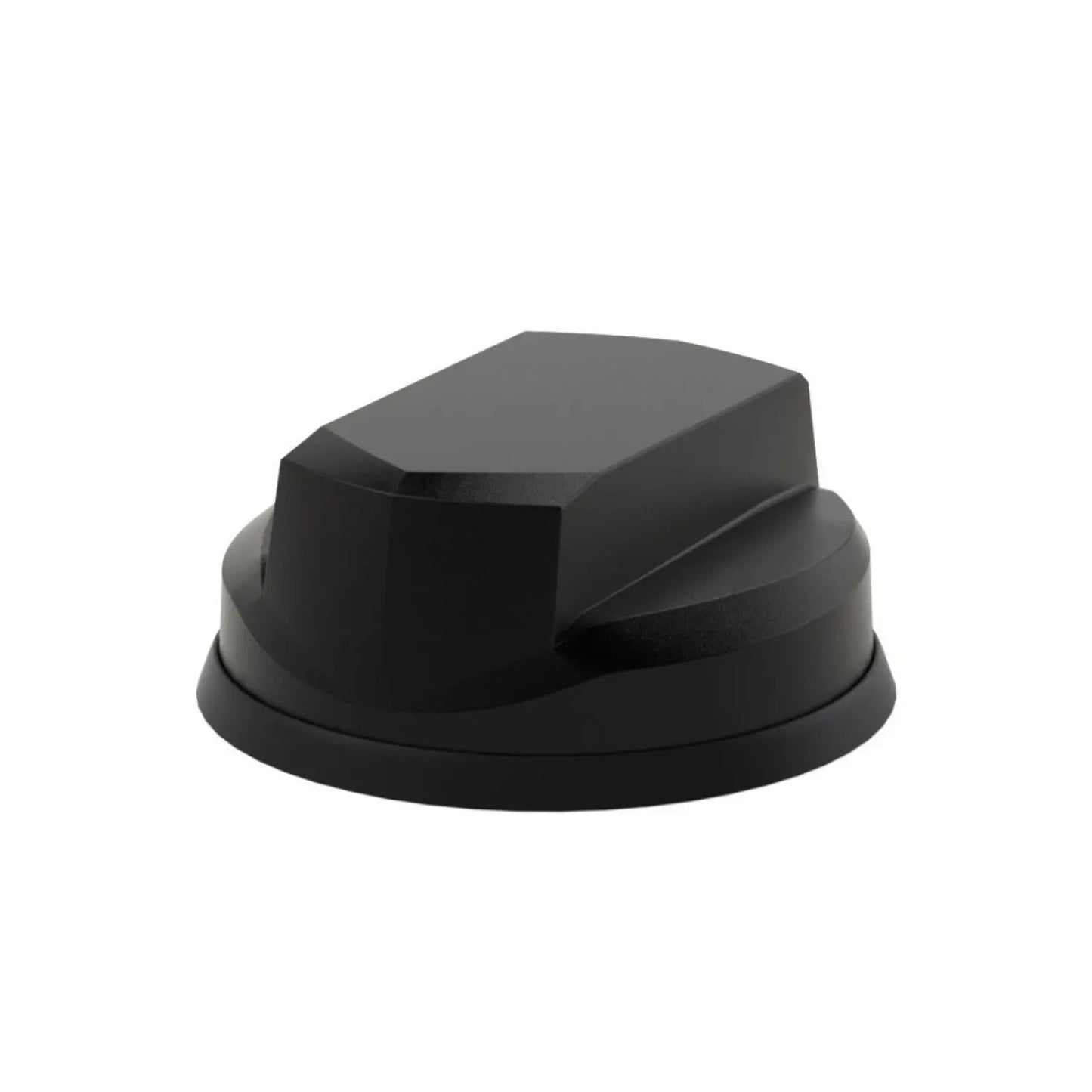

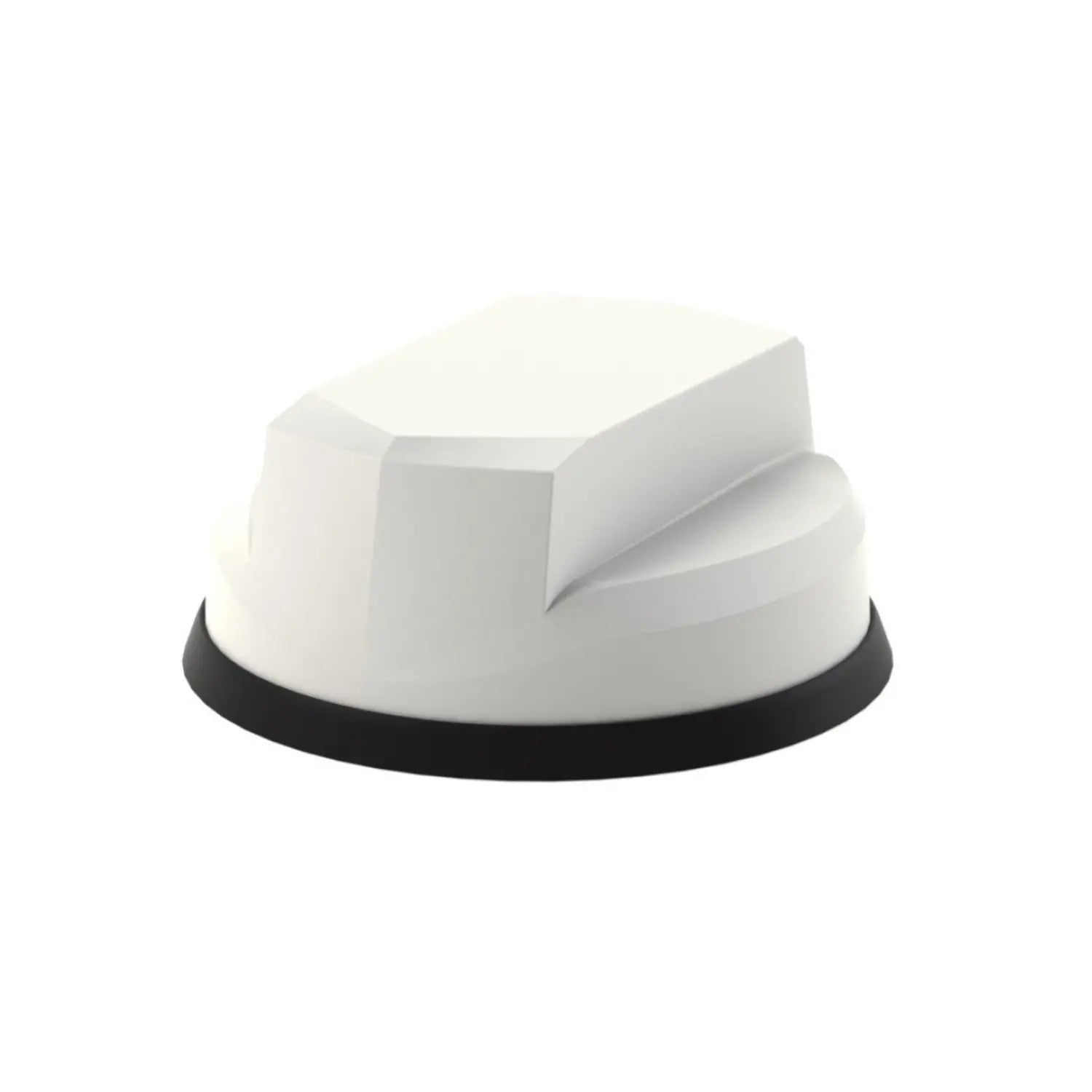

The LG-IN2457 fits routers built around 2x2 MIMO cellular, two Wi-Fi ports and GPS. Its five elements share one Great White dome, so a fleet vehicle or field cabinet gets WAN, hotspot and location antennas through a single mounting hole.
The kit pairs the Panorama LGMDM-6-60-24-58 antenna with factory-fitted 5 m (16 ft) flame-retardant cables. Cellular and GPS cables end in SMA male plugs and the Wi-Fi cables end in reverse-polarity SMA plugs. The dome is rated IP69K.
Specifications
| Model (kit) | LG-IN2457 (black), LG-IN2457-W (white) |
|---|---|
| Antenna in kit | LGMDM-6-60-24-58 |
| Antenna elements | 5 total: 2x2 MIMO cellular, 2x2 MIMO Wi-Fi, 1 GPS/GNSS |
| Wi-Fi | 2x2 MIMO |
| Cellular frequency and peak gain | 617-960 MHz (5 dBi), 1710-3800 MHz (9 dBi), 4900-6000 MHz (10 dBi) peak gain |
| GNSS | GPS/GNSS, 1562-1612 MHz, 26 dB LNA |
| Radiation pattern | Omnidirectional |
| Max input power | 20 W |
| Connectors | Cellular: 2 x SMA (m); GPS: SMA (m); Wi-Fi: 2 x reverse-polarity SMA |
| Dimensions | 75 mm high x 180 mm diameter (2.95 x 7.09 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP69K |
| Cable | Flame-retardant RG174, 5 m (16 ft), fitted |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount |

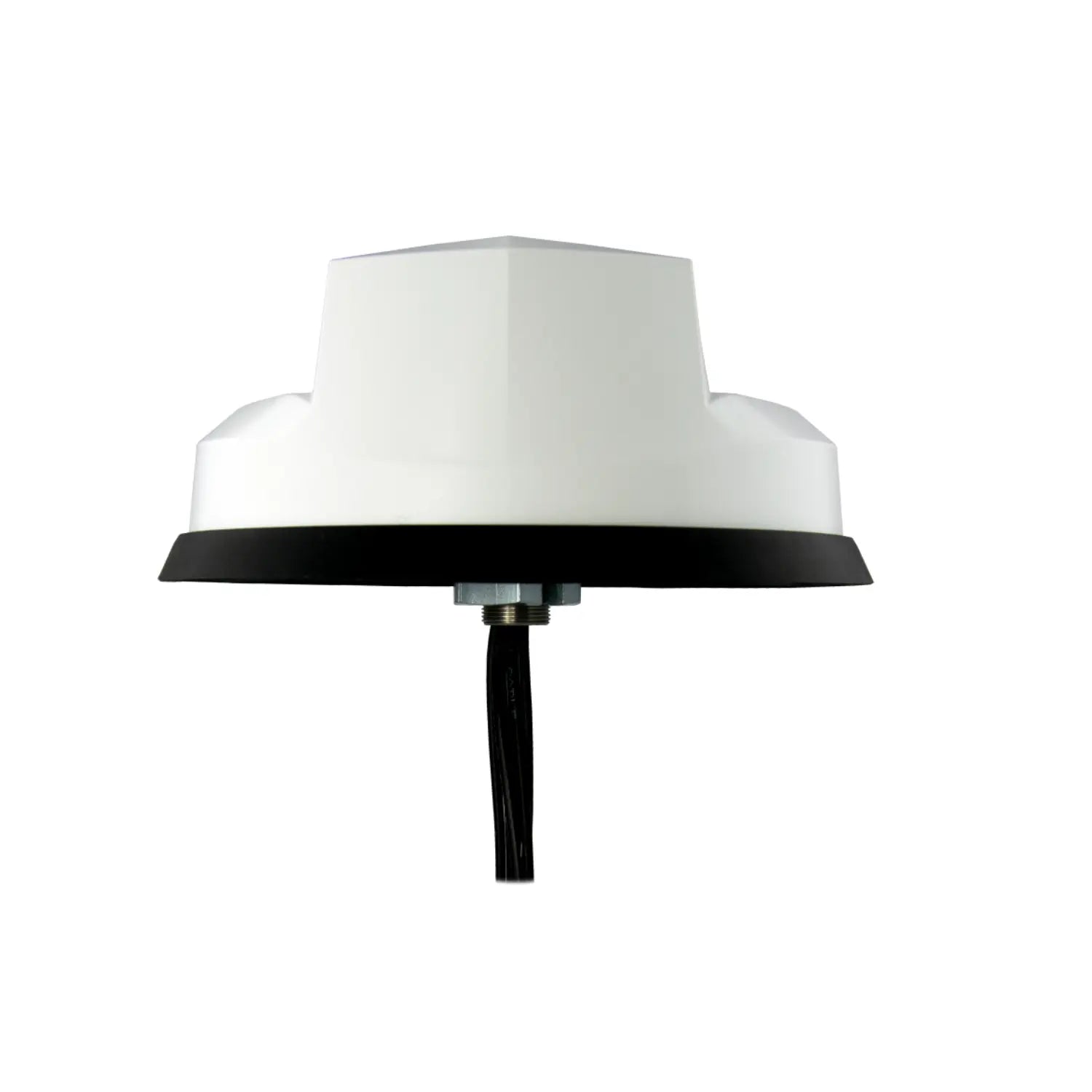

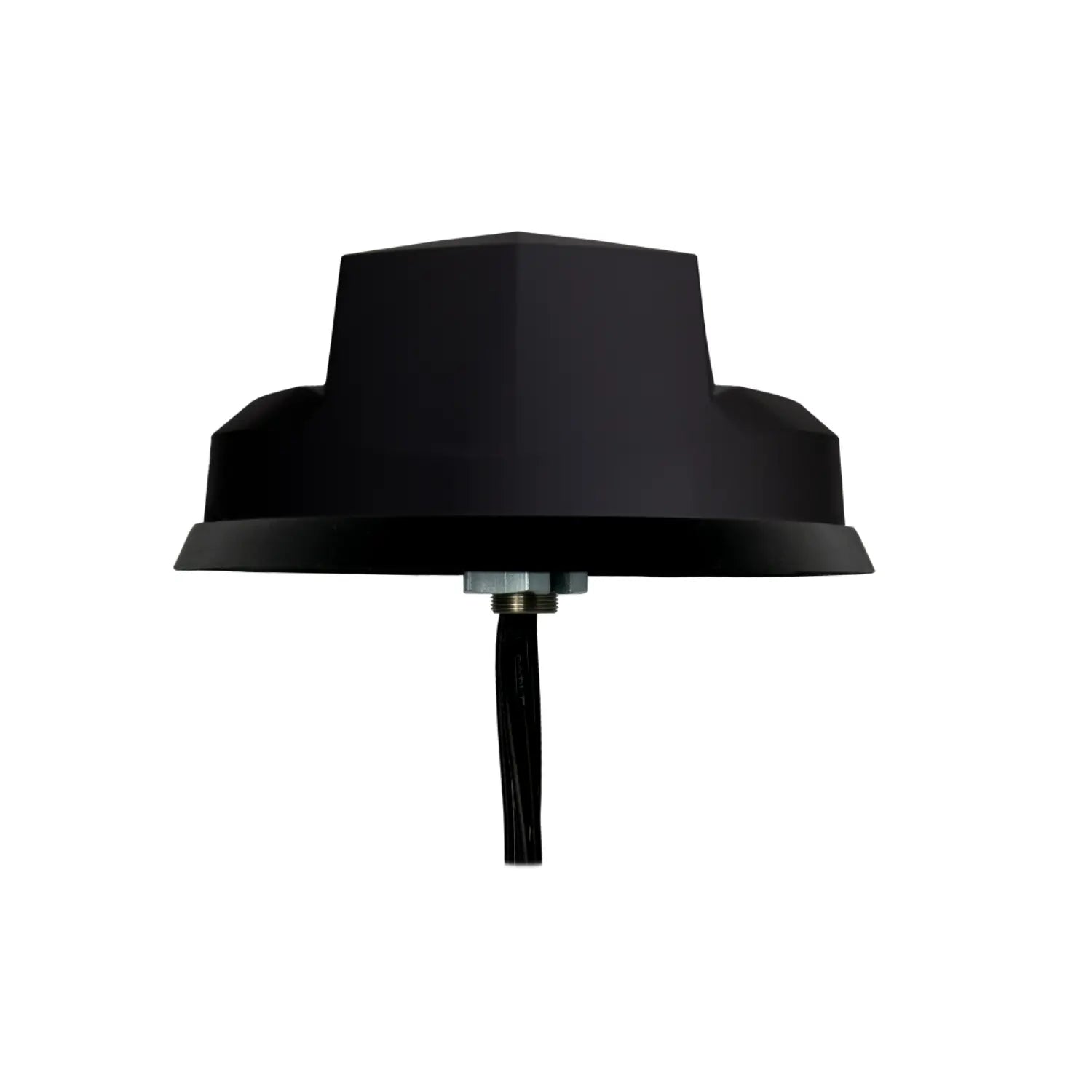

| Housing color | Black or white |
| Compatibility | Routers with two cellular SMA ports, two RP-SMA Wi-Fi ports and a GPS SMA port |
View the Panorama Great White L[G]M[H]M-6-60 product page and datasheet
Right for you if
- Your router uses 2x2 MIMO cellular with two external Wi-Fi ports and GPS.
- You want one IP69K dome for a vehicle roof or cabinet top.
- You need coverage from 617 MHz through 6 GHz.
- If your router runs 4x4 MIMO cellular, the Mako LG-IN2445 is the 4x4 version of this layout.
FAQ
How is the Great White different from the Mako dome?
Both are Panorama low-profile domes with the same 180 mm diameter. The Great White carries two cellular elements and Panorama lists higher peak gain per element, up to 10 dBi, with a 20 W input rating. The Mako carries four cellular elements for 4x4 MIMO routers. Pick the dome that matches the number of cellular ports on your router.
What connectors are on the cables?
The LG-IN2457 ships with 5 m (16 ft) cables fitted at the factory, one per element. The two cellular cables and the GPS cable end in SMA male plugs, and the two Wi-Fi cables end in reverse-polarity SMA plugs. Panorama also lists a loose-cable (-LC) version of this kit for installs that pull cables first.
Is the antenna rated for harsh weather and washdown?
Yes. Panorama rates the Great White dome IP69K, the highest ingress rating in common use, which covers dust and high-pressure, high-temperature water spray. It operates from -40 to +80 °C, and the kit cables are flame-retardant and meet EN45545-2 HL3 and UN ECE R118, which are common requirements for rail and bus fleets.
