Product Overview

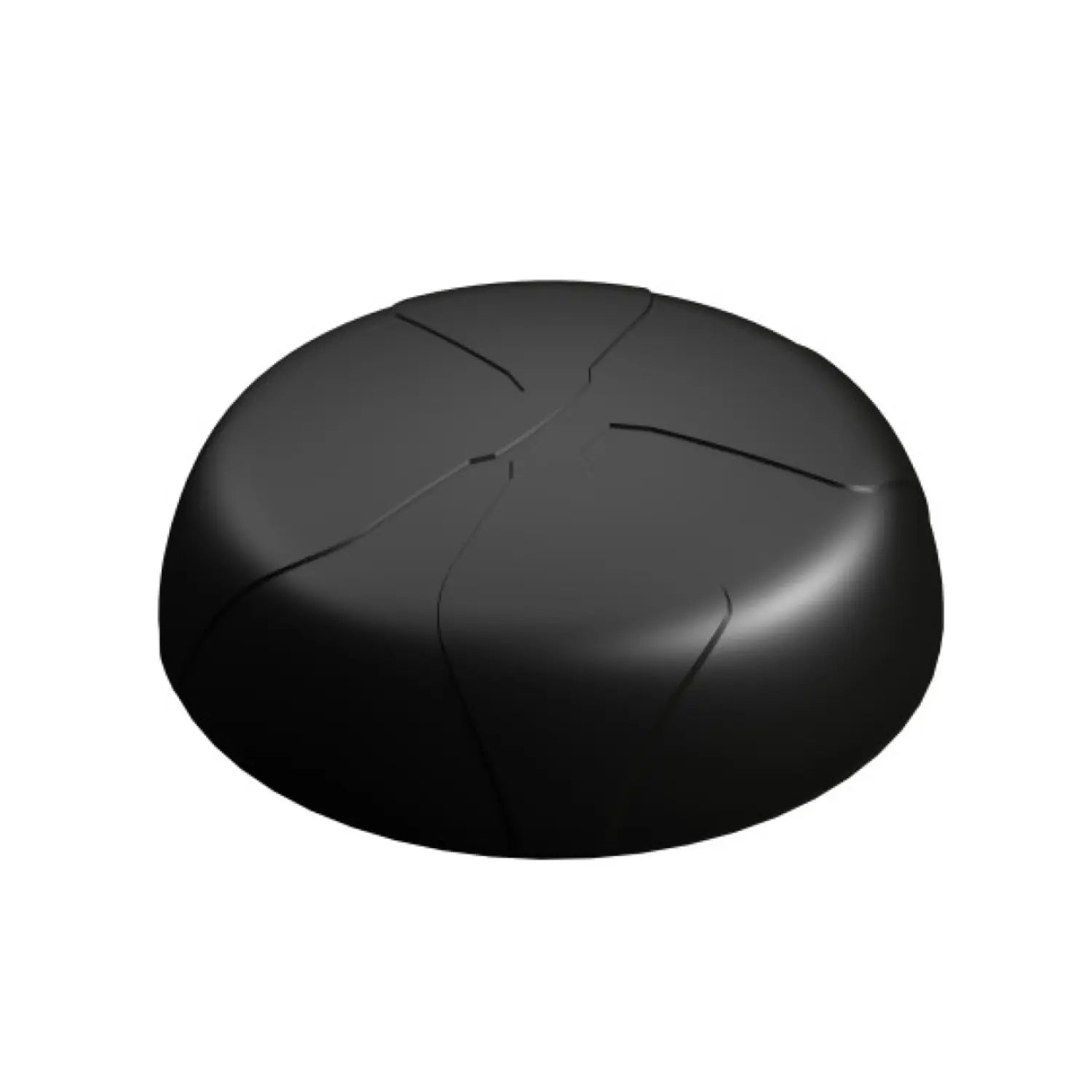

The LG-IN2293 gives a vehicle router nine external antennas in one low dome: four LTE, four dual-band Wi-Fi and one GPS/GNSS. At 48 mm tall it is lower than the Mako (80 mm) and Great White (75 mm) domes, which helps on vehicles with roof equipment or height limits.

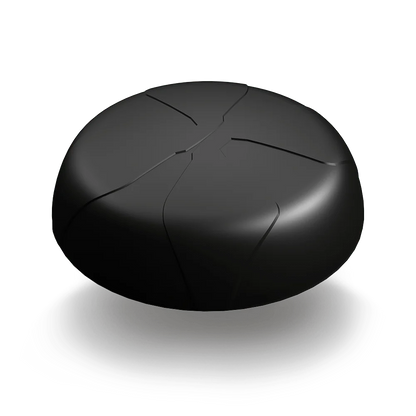

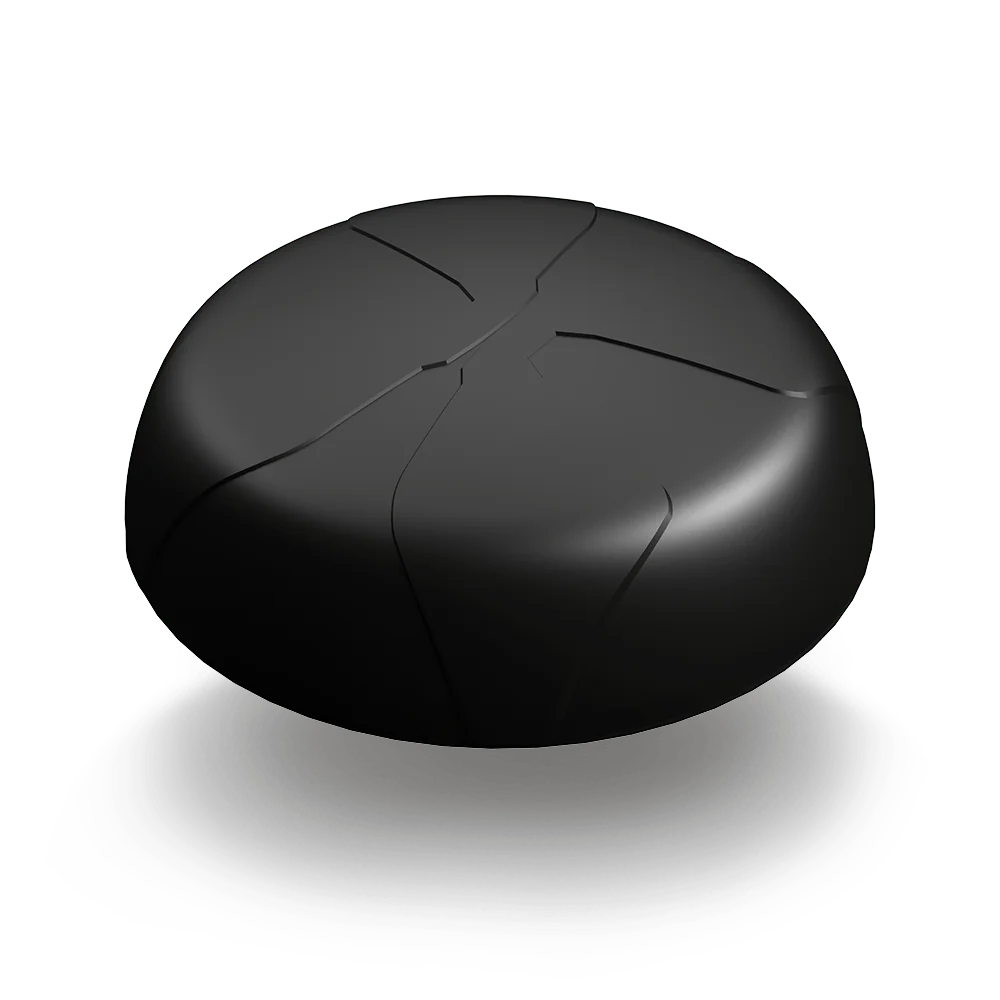

The kit pairs the Panorama LGMQM4-7-38-24-58 antenna with factory-fitted 5 m (16 ft) flame-retardant cables. Cellular and GPS cables end in SMA male plugs and the Wi-Fi cables end in reverse-polarity SMA plugs. The antenna does not need a metallic ground plane.
Specifications

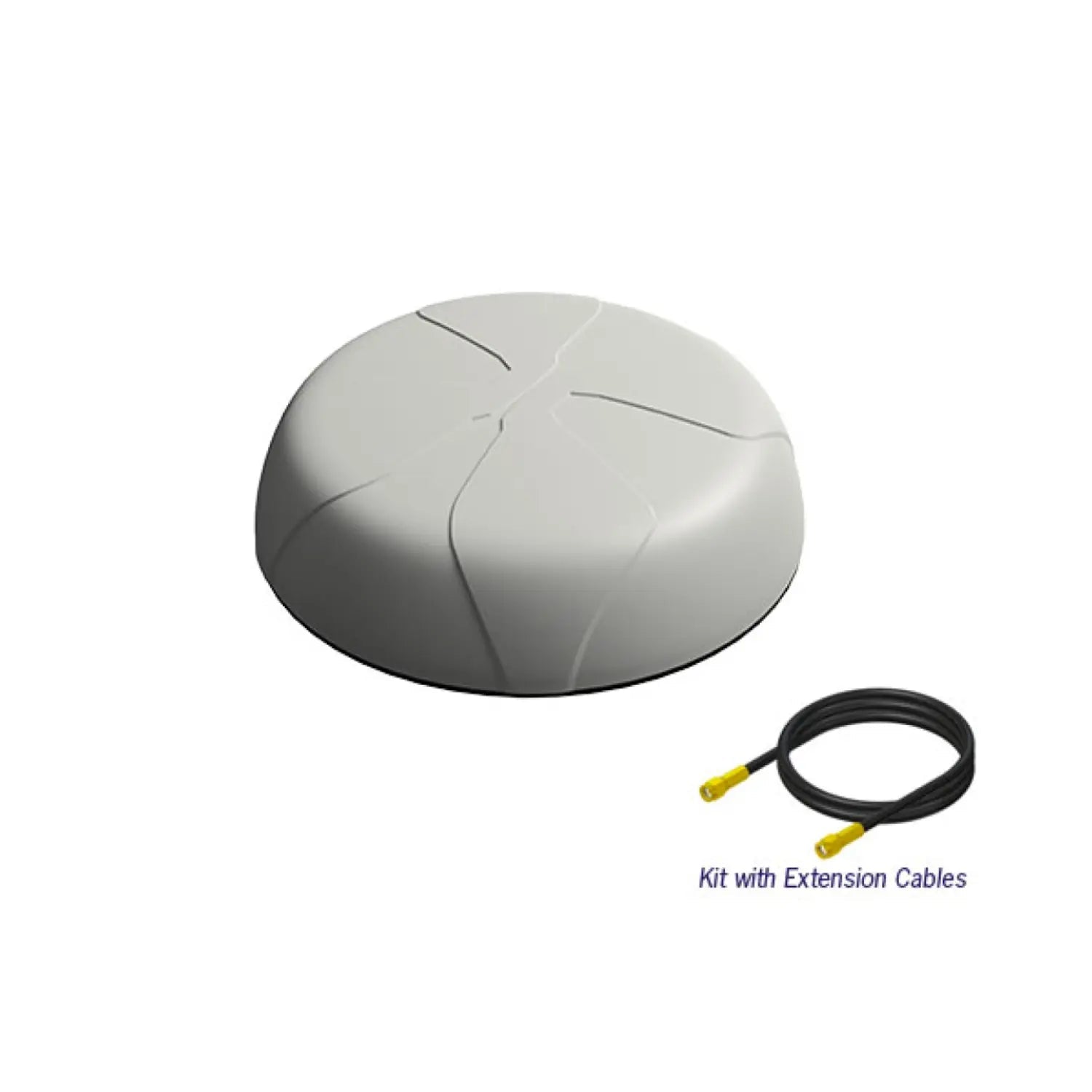

| Model (kit) | LG-IN2293 (black; Panorama LG-IN2293-B), LG-IN2293-W (white) |
|---|---|
| Antenna in kit | LGMQM4-7-38-24-58 |
| Antenna elements | 9 total: 4x4 MIMO cellular, 4x4 MIMO Wi-Fi, 1 GPS/GNSS |
| Wi-Fi | 4x4 MIMO, dual band 2.4 and 4.9-6 GHz |
| Cellular frequency | 698-3800 MHz |
| GNSS | GPS/GNSS, 1562-1612 MHz, 30 dB LNA; module E11 marked under ECE R10 |
| Radiation pattern | Omnidirectional |
| Max input power | 20 W |
| Connectors | Cellular: 4 x SMA (m); GPS: SMA (m); Wi-Fi: 4 x reverse-polarity SMA |
| Dimensions | 48 mm high x 170 mm diameter (1.89 x 6.69 in) |
| Operating temperature | -30 to +80 °C (-22 to +176 °F) |
| Cable | Flame-retardant RG174, 5 m (16 ft), fitted |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount; no metallic ground plane required |
| Housing color | Black or white |
| Compatibility | Vehicle routers with four cellular SMA ports, four RP-SMA Wi-Fi ports and a GPS SMA port |
View the Panorama L[G]M[Q]M4 (7-38) product page and datasheet
Right for you if
- Your vehicle router has four LTE ports, four Wi-Fi ports and GPS.
- You want the lowest dome profile in this family at 48 mm.
- Your carrier bands fall within 698-3800 MHz.
- If you need 600 MHz or bands above 3.8 GHz, the Mako LG-IN2446 covers 617-6000 MHz with the same 4x4/4x4 layout.
FAQ
Can I run two modems on the four cellular elements?
Only in failover. Panorama states the four LTE elements can be used as two 2x2 pairs for a dual-radio router when only one radio is active at a time, and that you should confirm coverage first because each radio then uses two antennas. The antenna is not intended for concurrent dual-radio 2x2 operation.
Does it cover 5G bands?
Panorama lists the four cellular elements at 698-3800 MHz and names the range for 4G/5G cellular bands. That covers most LTE bands and mid-band 5G up to 3.8 GHz. It does not cover 600 MHz Band 71 or bands above 3.8 GHz. For those, the Mako LG-IN2446 is the 617-6000 MHz version of the same nine-element layout.
Does the antenna need a metal roof?
No. Panorama states the L[G]M[Q]M4 range does not require a metallic ground plane and keeps a high level of performance on non-metallic surfaces. The GNSS module carries E11 type approval under ECE R10 and the pigtail cables are certified to ECE R118, which matters for fleets with vehicle homologation requirements.
