| Pattern | Omnidirectional |
|---|---|
| Cellular lte elements | SiSo |
Product Overview

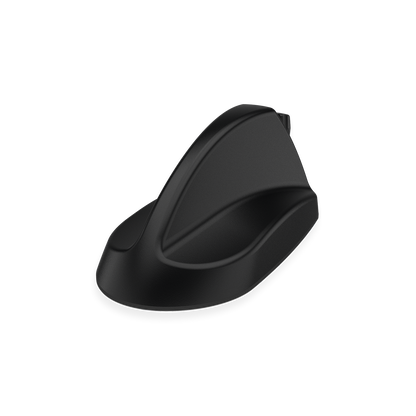

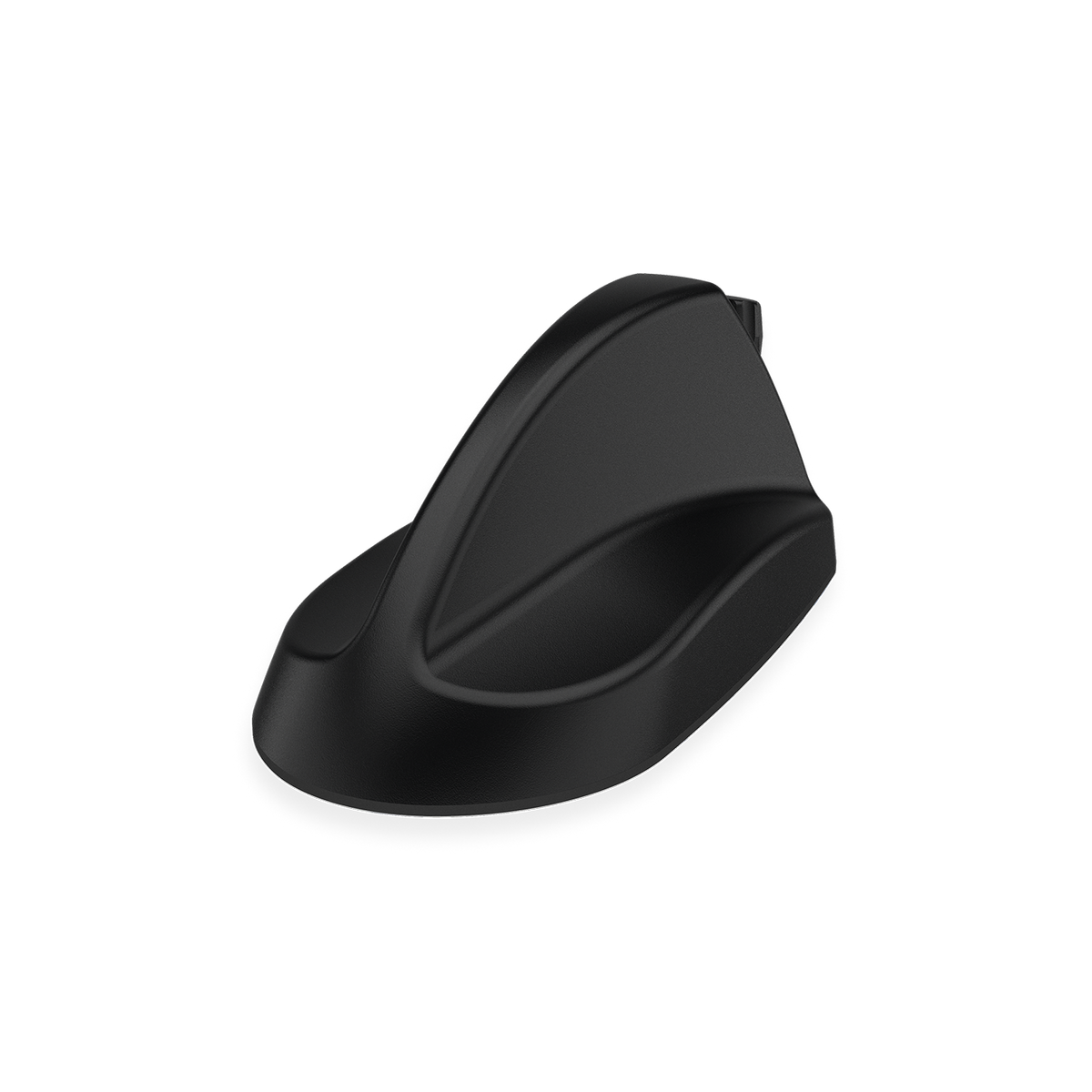

The GPSB5G is the compact Sharkee for vehicles that need one cellular antenna, dual-band Wi-Fi and GPS, plus a mount for a two-way radio whip. Panorama designed it as the latest version of its original Sharkee, in an OEM automotive-style housing that suits fleets short on roof space.
The antenna has separate connectors for each function: SMA male for cellular, SMA female for Wi-Fi, FME female for GPS and FME male for the whip. It is rated IP66 and operates from -40 to +80 °C.
Specifications
| Model | GPSB5G |
|---|---|
| Antenna elements | Cellular (SISO), dual-band Wi-Fi, GPS/GNSS, plus whip stud |
| Cellular | Single element covering 2G/3G/4G/5G LTE |
| Wi-Fi | Dual band |
| GNSS | GPS/GNSS with 26 dB LNA |
| Radio whip mount | Mounting for a range of mobile radio whips (FME male whip connector) |
| Connectors | Cellular: SMA (m); Wi-Fi: SMA (f); GPS: FME (f); whip: FME (m) |
| Radiation pattern | Omnidirectional |
| Dimensions | 120 x 58 x 50 mm (4.72 x 2.28 x 1.97 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP66 |
| Mounting | Single-hole panel mount (vehicle roof) |
| Housing color | Black |
| Compatibility | Routers or modems that use one external cellular antenna, with Wi-Fi and GPS ports; radio whip sold separately |
View the Panorama GPSB5G Sharkee product page and datasheet
Right for you if
- Your device needs one external cellular antenna plus Wi-Fi and GPS.
- You want a two-way radio whip on the same roof antenna.
- You want a compact OEM-style sharkfin for a fleet vehicle.
- If you want 5 m extension cables in the box, ask RCN about the GP-IN2768 kit.
FAQ
Is the GPSB5G a MIMO antenna?
No. Panorama lists the GPSB5G cellular function as SISO, a single cellular element. It suits routers or modems that need one external cellular antenna along with Wi-Fi and GPS. If your router uses 2x2 MIMO cellular, a SHKG or GPSD Sharkee with two cellular elements will make better use of the router.
Can I add a two-way radio whip?
Yes. Panorama designed the GPSB5G to allow a range of mobile radio whips, so a single sharkfin can carry data, Wi-Fi, GPS and voice radio. The whip connection uses an FME male connector. The whip itself is sold separately, so match it to your radio band and confirm the roof panel is suitable.
What connectors does it use?
Each function has its own connector on the GPSB5G: SMA male for cellular, SMA female for Wi-Fi, FME female for GPS and FME male for the whip. Most routers use SMA or RP-SMA ports, so plan extension cables or adapters to suit your device. RCN can help you match cables before you order.
