Product Overview

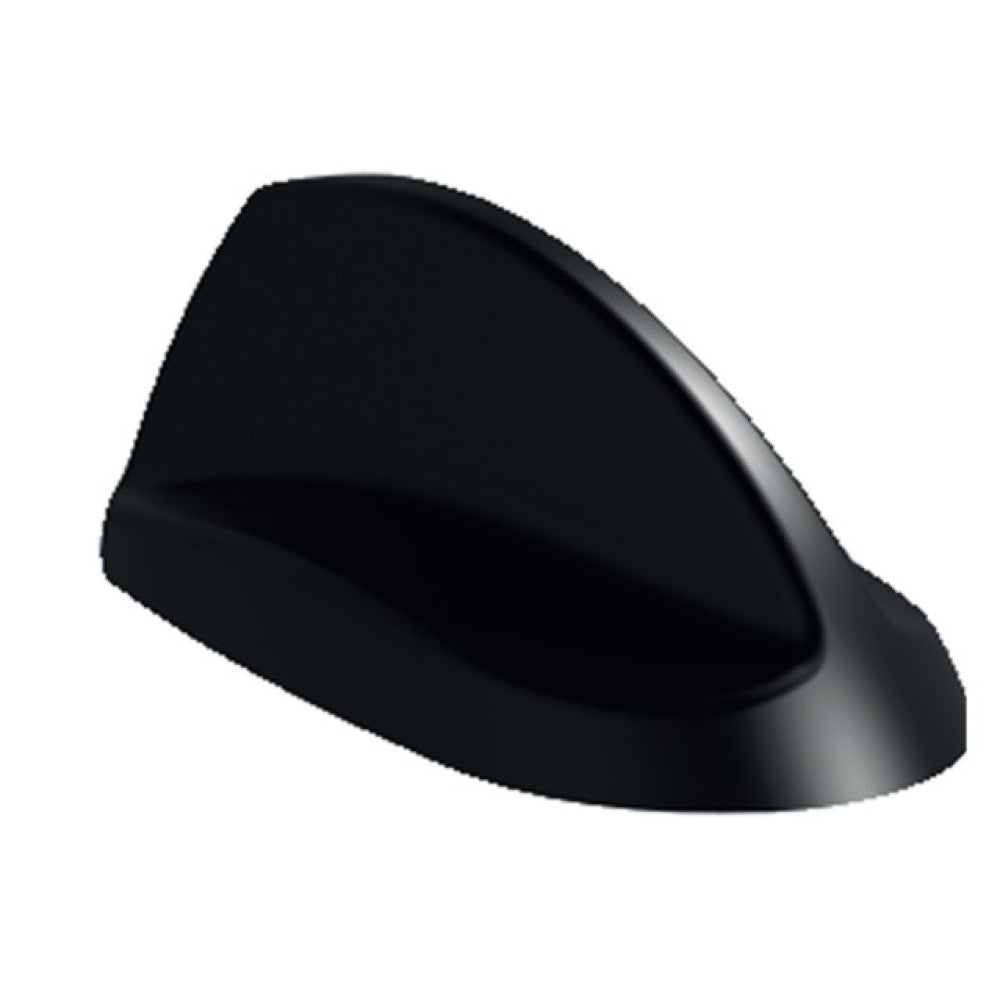

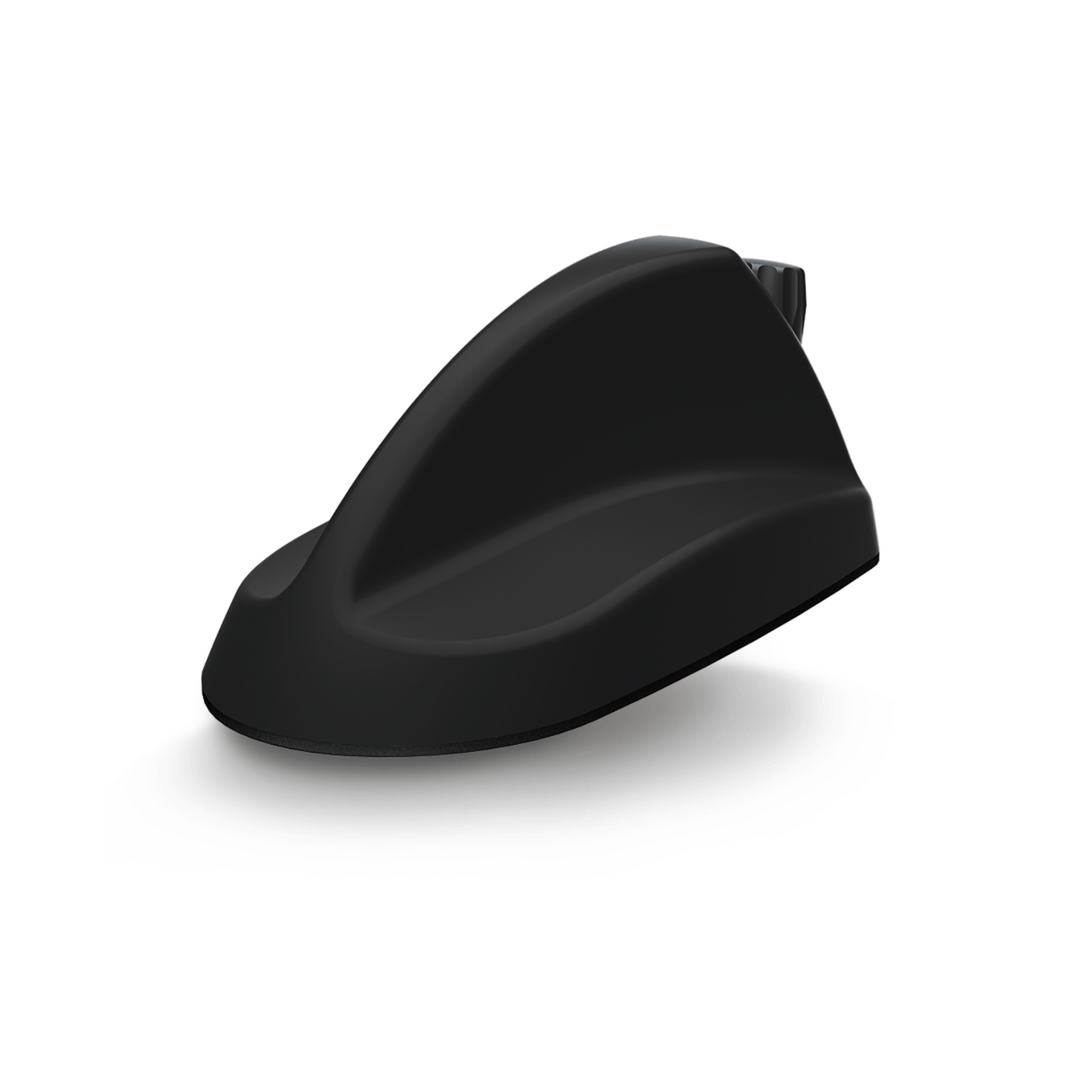

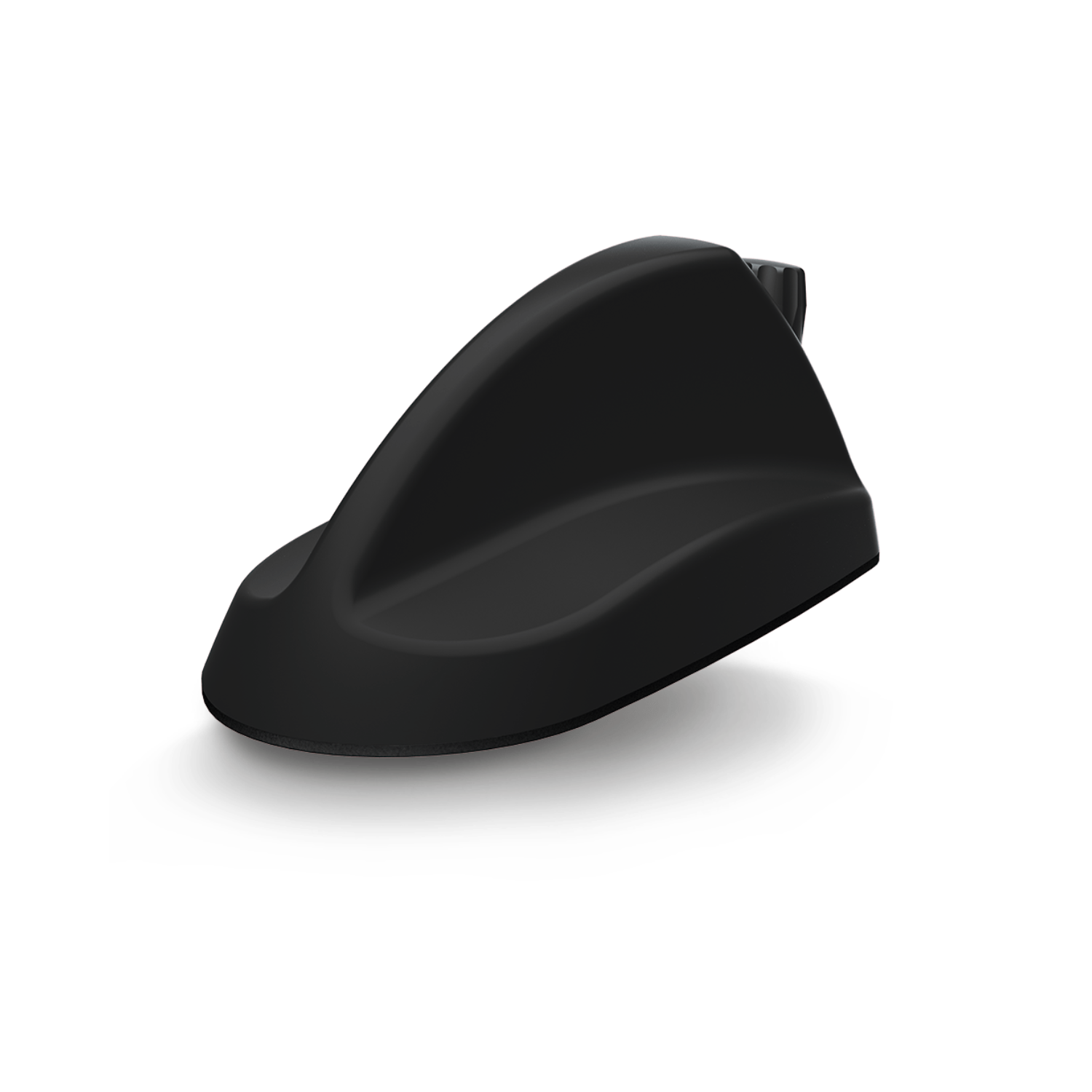

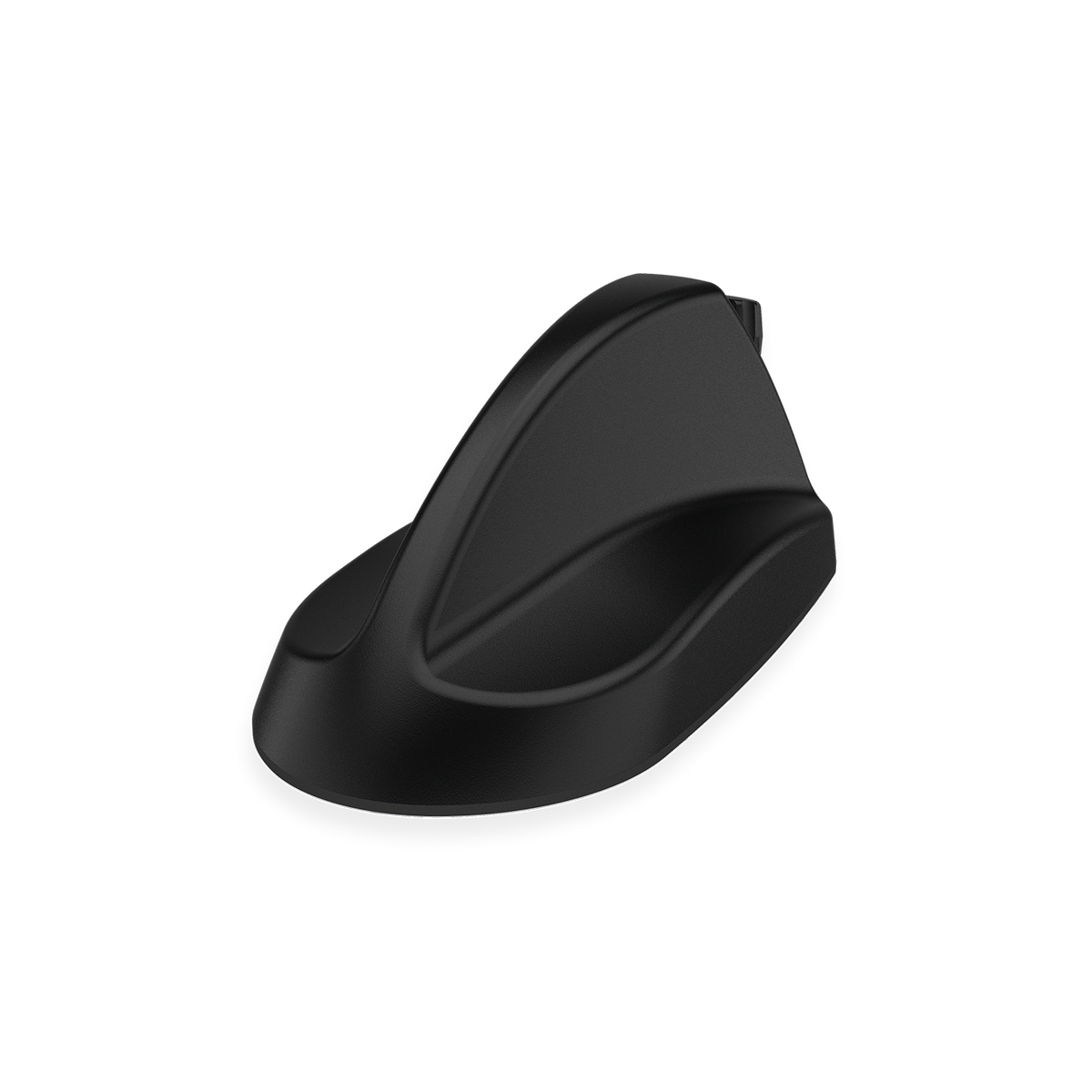

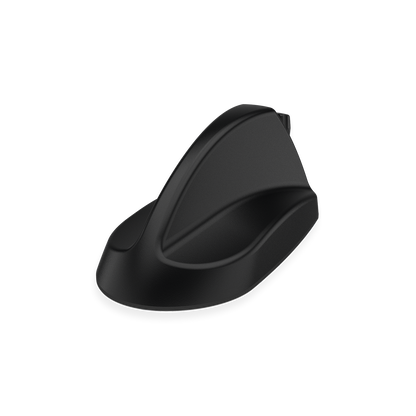

The GP-IN2768 is a kit built on the Panorama GPSB5G Sharkee, a compact OEM-style sharkfin with one cellular element, dual-band Wi-Fi, GPS/GNSS and a mount for a two-way radio whip. It suits fleet and public safety vehicles that need data and voice on one roof antenna.
The kit adds a set of extension cables to the GPSB5G. Earlier versions of this listing described 5 m cables with TNC connectors on the cellular and GPS leads. Panorama does not list this kit on its current product page, so confirm cable lengths and connectors with an RCN specialist before you order.
Specifications
| Model (kit) | GP-IN2768 |
|---|---|
| Antenna in kit | GPSB5G |
| Antenna elements | Cellular (SISO), dual-band Wi-Fi, GPS/GNSS, plus whip stud |
| Cellular | Single element covering 2G/3G/4G/5G LTE |
| Wi-Fi | Dual band |
| GNSS | GPS/GNSS with 26 dB LNA |
| Radio whip mount | Mounting for a range of mobile radio whips (FME male whip connector) |
| Antenna connectors | Cellular: SMA (m); Wi-Fi: SMA (f); GPS: FME (f); whip: FME (m) |
| Kit extension cables | Included; confirm lengths and end connectors with RCN |
| Radiation pattern | Omnidirectional |
| Dimensions | 120 x 58 x 50 mm (4.72 x 2.28 x 1.97 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP66 |
| Mounting | Single-hole panel mount (vehicle roof) |
| Housing color | Black |
View the Panorama GPSB5G Sharkee product page and datasheet
Right for you if
- Your device needs one external cellular antenna plus Wi-Fi and GPS.
- You want a two-way radio whip on the same roof antenna.
- You want extension cables supplied with the antenna.
- If your router uses 2x2 MIMO cellular, see the SHKG-6-60-DW or GPSD-6-60-DW instead.
FAQ
Is the GPSB5G a MIMO antenna?
No. Panorama lists the GPSB5G cellular function as SISO, a single cellular element. It suits routers or modems that need one external cellular antenna along with Wi-Fi and GPS. If your router uses 2x2 MIMO cellular, a SHKG or GPSD Sharkee with two cellular elements will make better use of the router.
Can I add a two-way radio whip?
Yes. Panorama designed the GPSB5G to allow a range of mobile radio whips, so a single sharkfin can carry data, Wi-Fi, GPS and voice radio. The whip connection uses an FME male connector. The whip itself is sold separately, so match it to your radio band and confirm the roof panel is suitable.
What is in the kit?
The GP-IN2768 includes the GPSB5G Sharkee antenna and a set of extension cables. The antenna itself has SMA male cellular, SMA female Wi-Fi, FME female GPS and FME male whip connectors. Because Panorama does not list this kit on its current site, ask RCN to confirm the cable set and end connectors before ordering.
