Product Overview

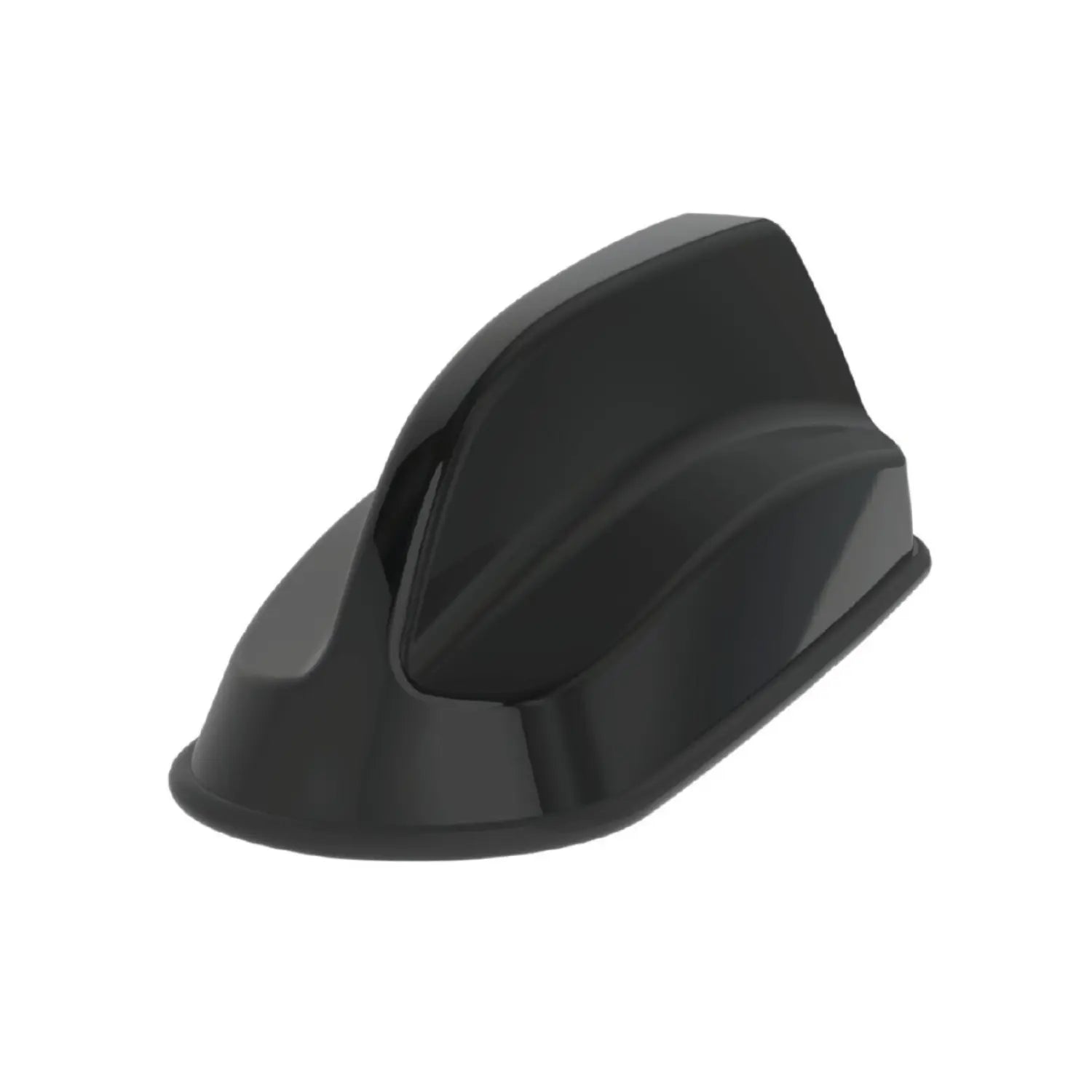

The GP-IN2148 is a Sharkee kit built on the Panorama GPSD-7-27-24-58, a sharkfin that combines 2x2 MIMO 2G/3G/4G cellular, 2x2 MIMO Wi-Fi, an active GPS/GNSS antenna and a stud for a VHF, UHF or 700/800 MHz radio whip. It suits vehicles that need data and two-way radio from one roof antenna.
The kit includes the GPSD-7-27-24-58 antenna and a set of extension cables. Panorama does not publish the GP-IN2148 kit on its current product page, so confirm cable lengths and connectors with an RCN specialist before you plan the install.
Specifications
| Model (kit) | GP-IN2148 |
|---|---|
| Antenna in kit | GPSD-7-27-24-58 |
| Antenna elements | 5 total: 2x2 MIMO cellular, 2x2 MIMO Wi-Fi, 1 GPS/GNSS, plus whip stud |
| Cellular | 2x2 MIMO 2G/3G/4G |
| Wi-Fi | 2x2 MIMO, 2.4/5.8 GHz |
| GNSS | GPS/GLONASS/Galileo/BeiDou active antenna, 1562-1612 MHz, 26 dB LNA |
| Radio whip mount | Integral stud for VHF, UHF or 700/800 MHz whip |
| Radiation pattern | Omnidirectional |
| Antenna pigtail connectors | Cellular: SMA (m); GPS: FME (f); Wi-Fi: SMA (f) |
| Kit extension cables | Included; confirm lengths and end connectors with RCN |
| Dimensions | 170 x 60 x 50 mm (6.69 x 2.36 x 1.97 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP66 |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount; magnetic option listed for the antenna |
View the Panorama GPSD-7-27 Sharkee product page and datasheet
Right for you if
- You need LTE data, Wi-Fi, GPS and a two-way radio whip on one sharkfin.
- Your router uses 2x2 MIMO cellular with two Wi-Fi ports.
- Your carrier bands are LTE and you do not need 5G-specific bands.
- For 5G coverage from 617 MHz to 6 GHz with a whip stud, see the GPSD-6-60-DW.
FAQ
Can I add a two-way radio whip?
Yes. The GPSD-7-27 has an integral stud mount for an external antenna whip that Panorama states can support a range of VHF, UHF or 700/800 MHz antennas. That lets public safety and utility vehicles carry data and voice on one roof penetration. The whip itself is sold separately, so match it to your radio band.
Does it support 5G?
Panorama lists the GPSD-7-27 cellular function as 2x2 MIMO for 2G, 3G and 4G. If your deployment needs 5G bands, including 600 MHz or mid-band above 3.8 GHz, look at the GPSD-6-60-DW Sharkee, which covers 617-6000 MHz and keeps the radio whip stud. RCN can help you compare the two for your fleet.
What is in the kit?
The GP-IN2148 includes the GPSD-7-27-24-58 sharkfin antenna and a set of extension cables. The antenna itself has 0.3 m pigtails with SMA male cellular, FME female GPS and SMA female Wi-Fi connectors. Because Panorama does not list this kit on its current site, ask RCN to confirm the cable set before you order.
