Product Overview

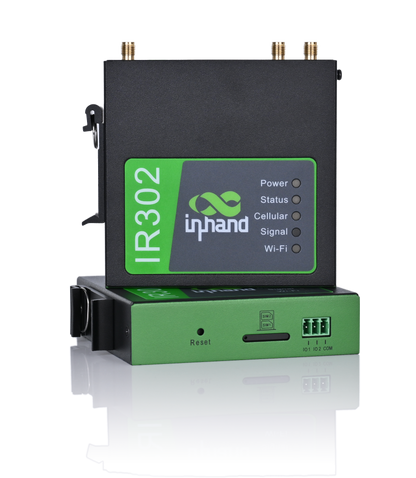

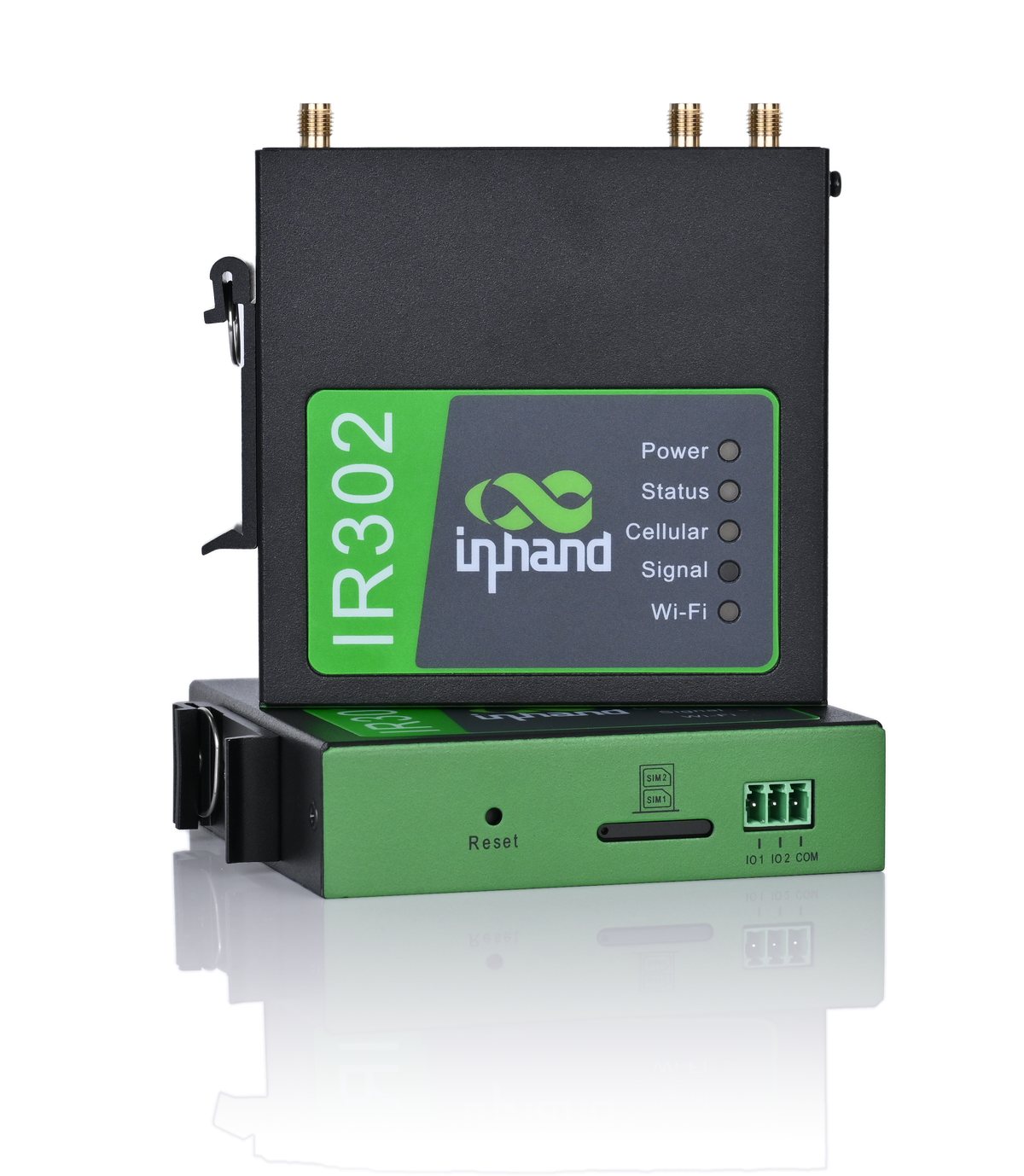

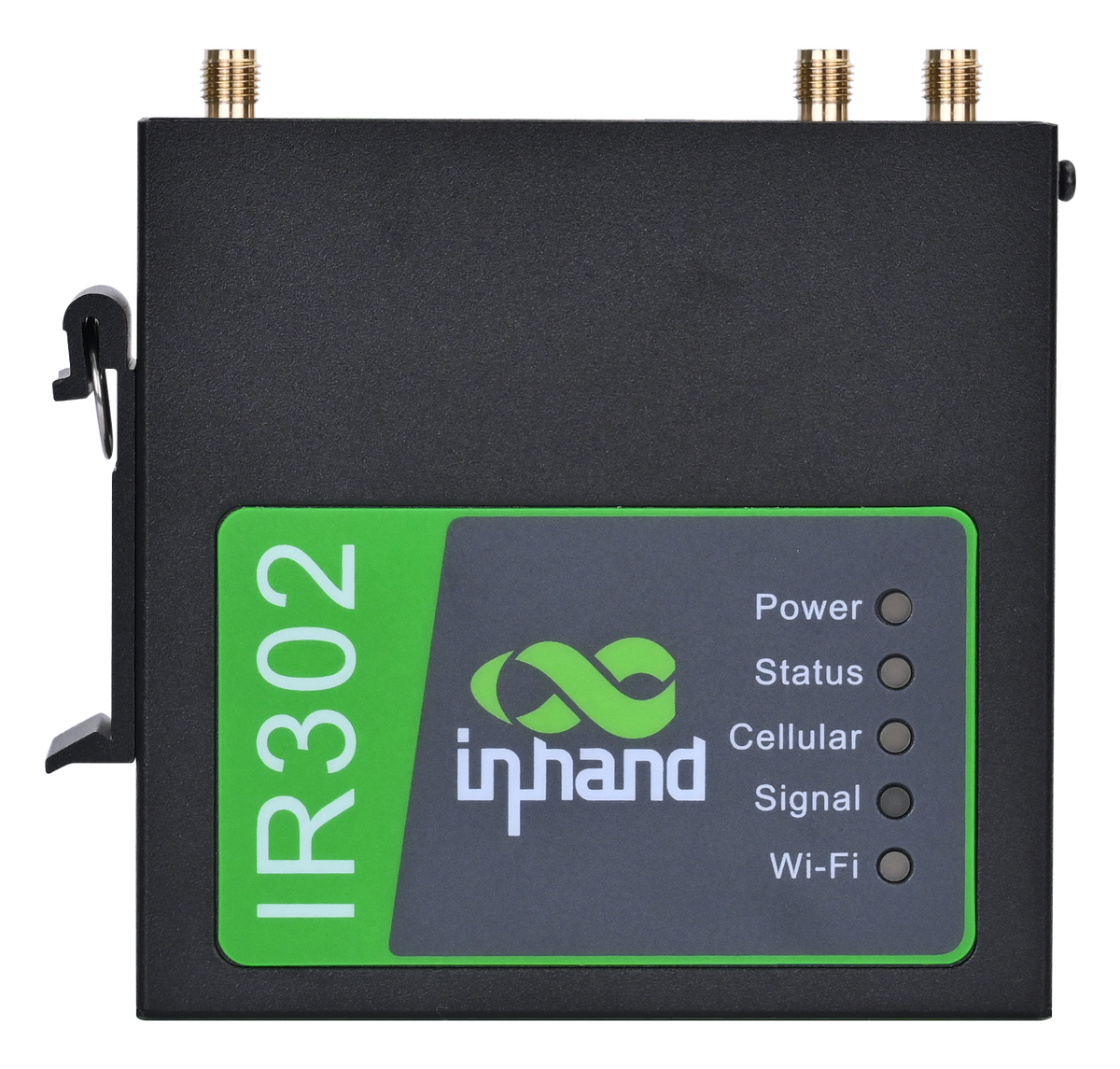

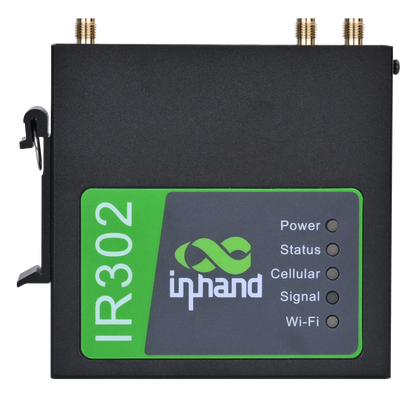

The InHand IR302 is a compact, fanless industrial LTE router for the control cabinet: DIN-rail mount, 9-36 V DC input with reverse-polarity and surge protection, a full metal enclosure, and -35°C to +70°C operation. It puts a PLC, meter, camera, or panel on the cellular network with a router that was designed to live next to the equipment.
Dual SIM slots fail over on signal threshold, packet loss, or dial failure rather than simple polling. An RS-232/RS-485 combo port with transparent DTU mode handles legacy serial devices, and configurations with two digital I/O lines or Wi-Fi are available. Fleets are managed through InHand Device Manager.
Why InHand
- Hardware cost typically 30% or more below comparable enterprise cellular routers, at manufacturer list price
- Three-year manufacturer warranty included
- M2M cloud management through InHand Device Manager is free for the life of the device.
- Field failure rate under 1% across deployed units, and sub-30-second cellular failover
- Sold, configured, and supported by RCN, with our U.S.-based 24/7 NOC available as a managed service
Specifications
| Cellular | 4G LTE Cat 4 (FQ38 variants, 150 Mbps DL / 50 Mbps UL) or LTE Cat 1 (FQ33 variants); North American bands |
|---|---|
| SIM | 2x Nano-SIM (drawer), dual-SIM backup with ICCID binding and RSRP/packet-loss switching |
| Ethernet | 1x 10/100 WAN/LAN switchable + 1x 10/100 LAN |
| Serial / I/O | 1x RS-232/RS-485 combo terminal (DTU transparent mode); 2x I/O on -IO variants |
| Wi-Fi | 2.4 GHz 802.11 b/g/n, AP and client, up to 32 clients (WLAN variants only) |
| Security | Firewall, ACL, port forwarding, MAC-IP binding, content filtering, 802.1X and captive portal on Wi-Fi, signed firmware |
| Power | 9-36 V DC, 2-pin industrial terminal; typical 2-5 W, peak <10 W |
| Environmental | IP30 metal enclosure; -35°C to +70°C standard (-40 to +75 extended); fanless |
| Size | Approx. 100 x 30 x 100 mm (L x W x H) excluding ears and antennas; DIN-rail or wall mount |
| Warranty | 3 years (manufacturer) |
| Management | InHand Device Manager and InConnect Service; web UI, SSH, SMS commands |
Download the InHand IR302 datasheet (PDF)
Choosing a configuration
- FQ38 = LTE Cat 4 (150 Mbps). FQ33 = LTE Cat 1 (10 Mbps class), for low-bandwidth telemetry at the lowest cost.
- WLAN adds 2.4 GHz Wi-Fi (AP or client).

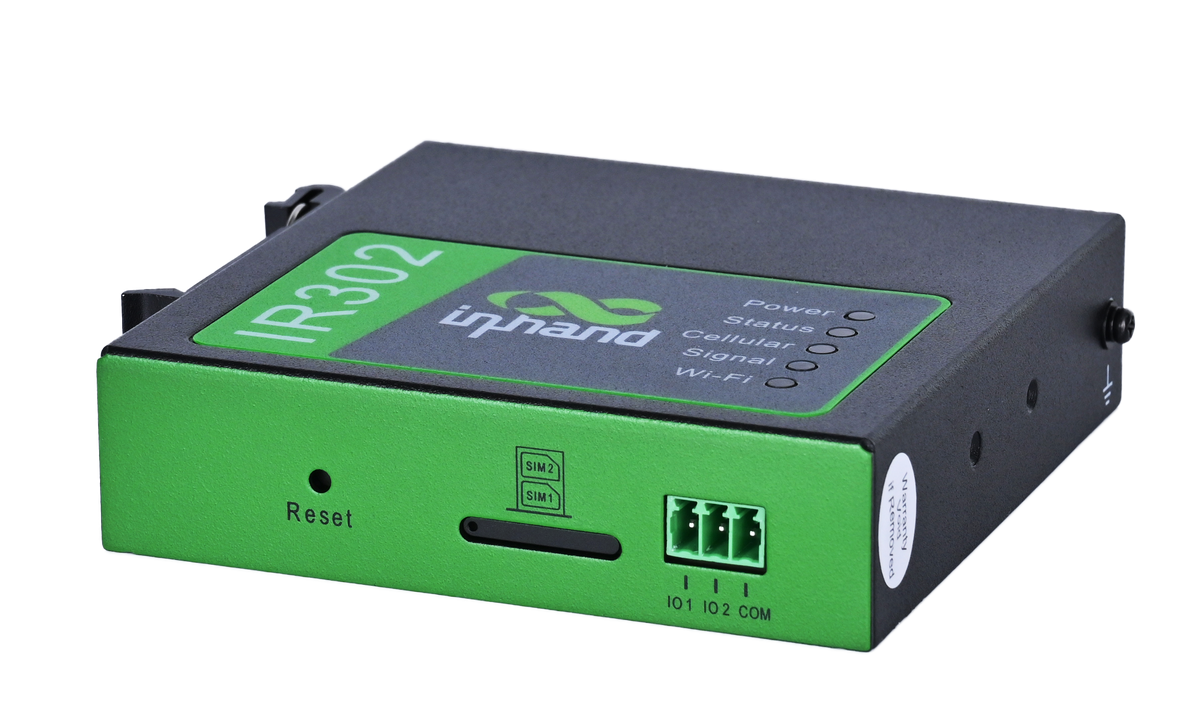

- IO adds two digital I/O lines for alarm inputs or relay control.
Right for you if
- You are connecting a PLC, meter, RTU, or camera in a cabinet, not a desk
- You need serial-to-cellular for a legacy device
- The site is unattended and the router must recover on its own (watchdog, dual SIM, auto-redial)
- You want the smallest, lowest-cost industrial router that still has a metal case and DIN-rail mount
IR302 vs. IR315 vs. IR624
Choose the IR302 for a single device or small cell with one or two Ethernet ports. Step up to the IR315 for five Ethernet ports, LTE Cat 6, separate RS-232 and RS-485, optional GNSS, and more VPN options. Choose the IR624 when the application needs 5G bandwidth or gigabit Ethernet. See the full InHand Networks lineup at RCN.
Common deployments

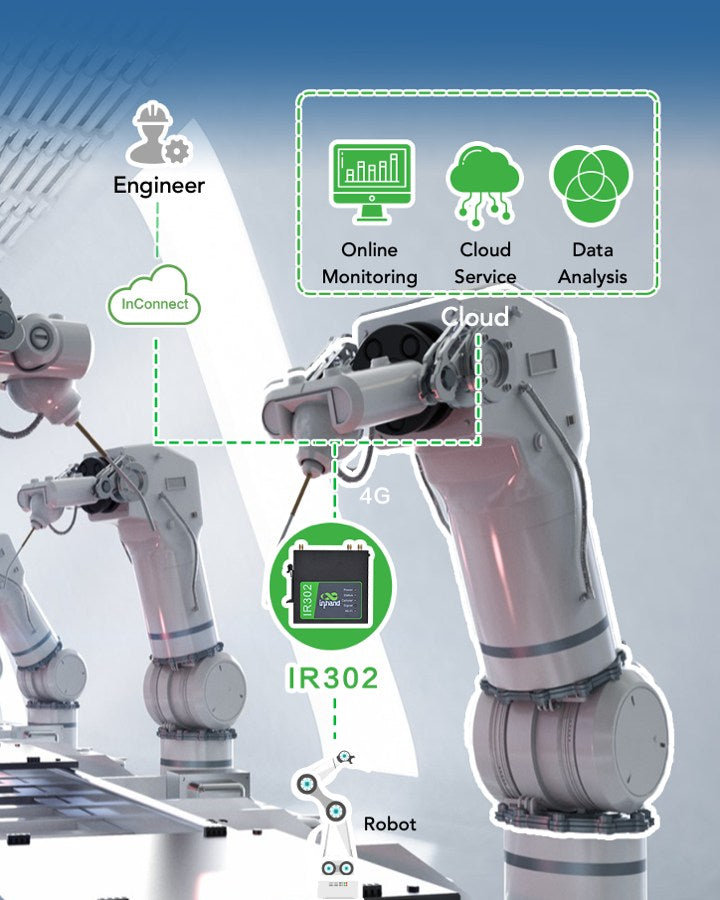

Distribution automation and substation telemetry, solar and battery storage monitoring, remote pump and lift stations, EV charging, industrial equipment condition monitoring, and traffic and environmental sensors.
FAQ
Which carriers does the IR302 support?
The North American FQ38 and FQ33 variants cover Verizon, AT&T, and T-Mobile LTE bands. Confirm carrier certification for your specific carrier with RCN before ordering in volume.
Does it support VPN?
Yes. The IR302 supports IPsec, OpenVPN, L2TP, and GRE tunnels, along with a firewall and access control lists. See the datasheet for the full list.
How is it managed?
Through InHand Device Manager for batch configuration and firmware, with optional InConnect Service for cloud-based remote access. Ask RCN about current platform terms.
Can RCN monitor and support it after purchase?
Yes. RCN's U.S.-based 24/7 NOC can monitor and support InHand deployments as a managed service, quoted separately from the hardware.
How long does it take to ship?
InHand hardware ships direct from the manufacturer's U.S. distribution. Lead times vary by model and quantity; ask us for a current estimate before you order if timing is critical.
Can we purchase on a purchase order or government contract?
Yes. RCN sells through GSA Schedule and cooperative contracts including NASPO ValuePoint, Sourcewell, OMNIA Partners, and Equalis Group, and we can invoice approved accounts on a PO. Ask us to route your order through the right vehicle.
