InHand IR315 Industrial 4G LTE Cat 6 Router, 5-Port, Dual SIM, DIN-Rail

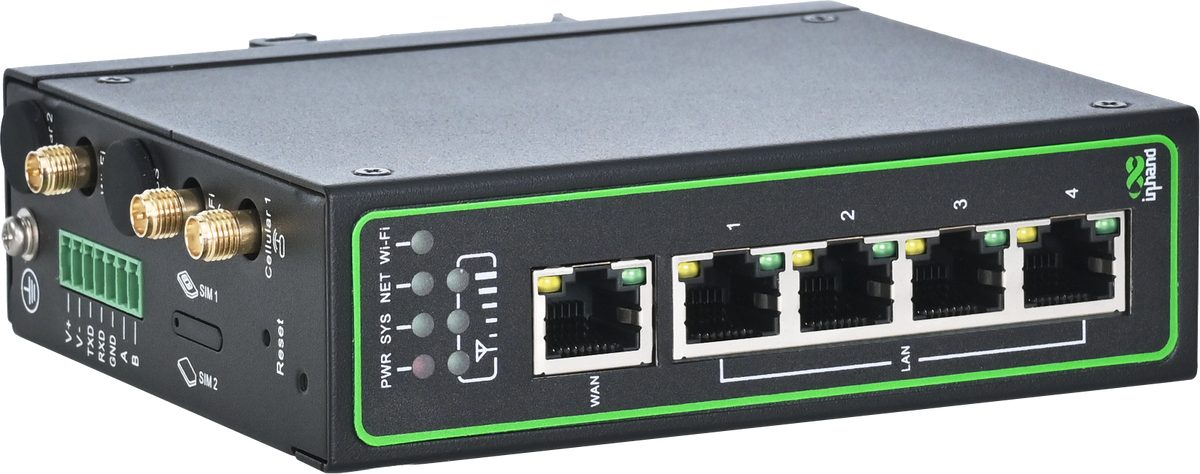

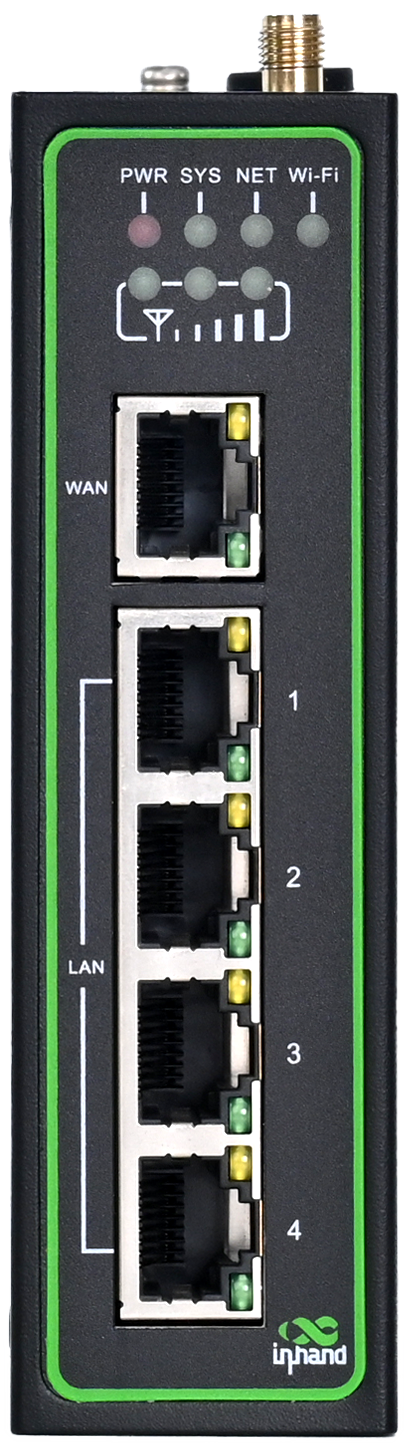

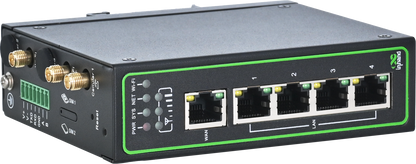

The InHand IR315 is a multi-port industrial LTE router for sites where one cellular link has to serve several wired devices: a cabinet with a PLC, an HMI, a camera, and a serial meter, or an EV charging station with multiple controllers. Five 10/100 Ethernet ports with 1.5 kV isolation replace the small switch you would otherwise add.

It runs LTE Cat 6 with dual Nano-SIM failover, offers either an RS-232 plus RS-485 pair or four configurable digital I/O lines, and can be ordered with 2.4 GHz Wi-Fi and GNSS positioning. Hardware and software watchdogs, a metal fanless enclosure, and -35°C to +70°C operation make it suitable for unattended field communication, and Device Manager handles fleets from the cloud.

Why InHand

• Hardware cost typically 30% or more below comparable enterprise cellular routers, at manufacturer list price
• Three-year manufacturer warranty included
• M2M cloud management through InHand Device Manager is free for the life of the device.
• Field failure rate under 1% across deployed units, and sub-30-second cellular failover
• Sold, configured, and supported by RCN, with our U.S.-based 24/7 NOC available as a managed service

Specifications

Download the InHand IR315 datasheet (PDF)

Choosing a configuration

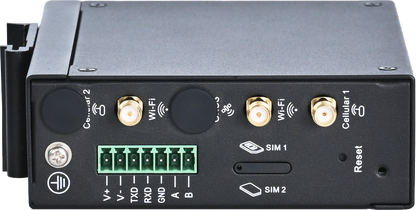

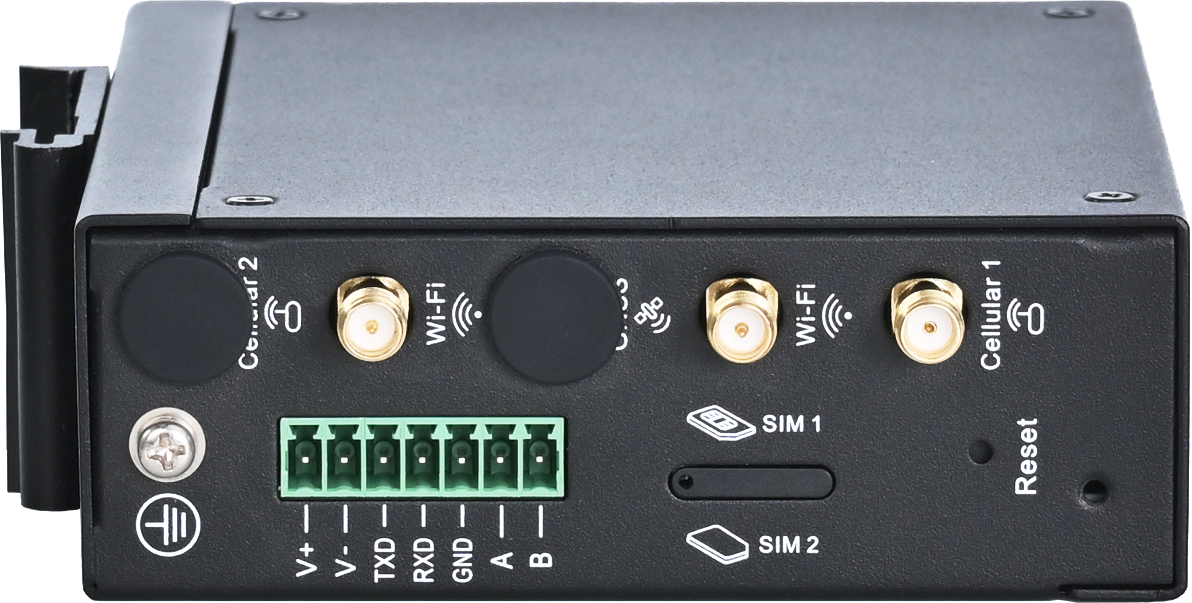

• Base ships with 4x configurable digital I/O. Add -S to get RS-232 + RS-485 instead of I/O.
• WLAN adds 2.4 GHz Wi-Fi.
• -G adds multi-constellation GNSS for location reporting on vehicles or mobile assets.

Right for you if

• One cellular link needs to serve three or more wired devices
• You have legacy serial equipment (RS-232/RS-485) or need dry-contact alarm inputs
• The site is unattended and must self-recover
• You need a router certified to IEC 62443 for OT network security

IR315 vs. IR302 vs. IR624

Choose the IR315 for five ports and the widest interface options on LTE. Choose the IR302 when one or two ports and a lower price are enough. Choose the IR624 for 5G and gigabit Ethernet where bandwidth is the constraint. See the full InHand Networks lineup at RCN.

Common deployments

EV charging stations, distribution automation, photovoltaic and storage sites, factory equipment and AGV connectivity, medical and lab instrument remote access, vending and kiosk clusters, and vehicle or mobile-asset telemetry with GNSS.

FAQ

Is the IR315 5G?
No. The IR315 is LTE Cat 6 (up to 300 Mbps). For 5G in the same DIN-rail form factor, see the IR624.

Which carriers work?
The FF39 North American model is certified on AT&T, Verizon, and T-Mobile. Use your own Nano-SIMs; both slots can hold different carriers for failover.

How is it managed?
Through InHand Device Manager for batch configuration, firmware, and signal reporting, with optional InConnect for remote access. Ask RCN about current platform terms.

Can RCN monitor and support it after purchase?
Yes. RCN's U.S.-based 24/7 NOC can monitor and support InHand deployments as a managed service, quoted separately from the hardware.

How long does it take to ship?
InHand hardware ships direct from the manufacturer's U.S. distribution. Lead times vary by model and quantity; ask us for a current estimate before you order if timing is critical.

Can we purchase on a purchase order or government contract?
Yes. RCN sells through GSA Schedule and cooperative contracts including NASPO ValuePoint, Sourcewell, OMNIA Partners, and Equalis Group, and we can invoice approved accounts on a PO. Ask us to route your order through the right vehicle.
