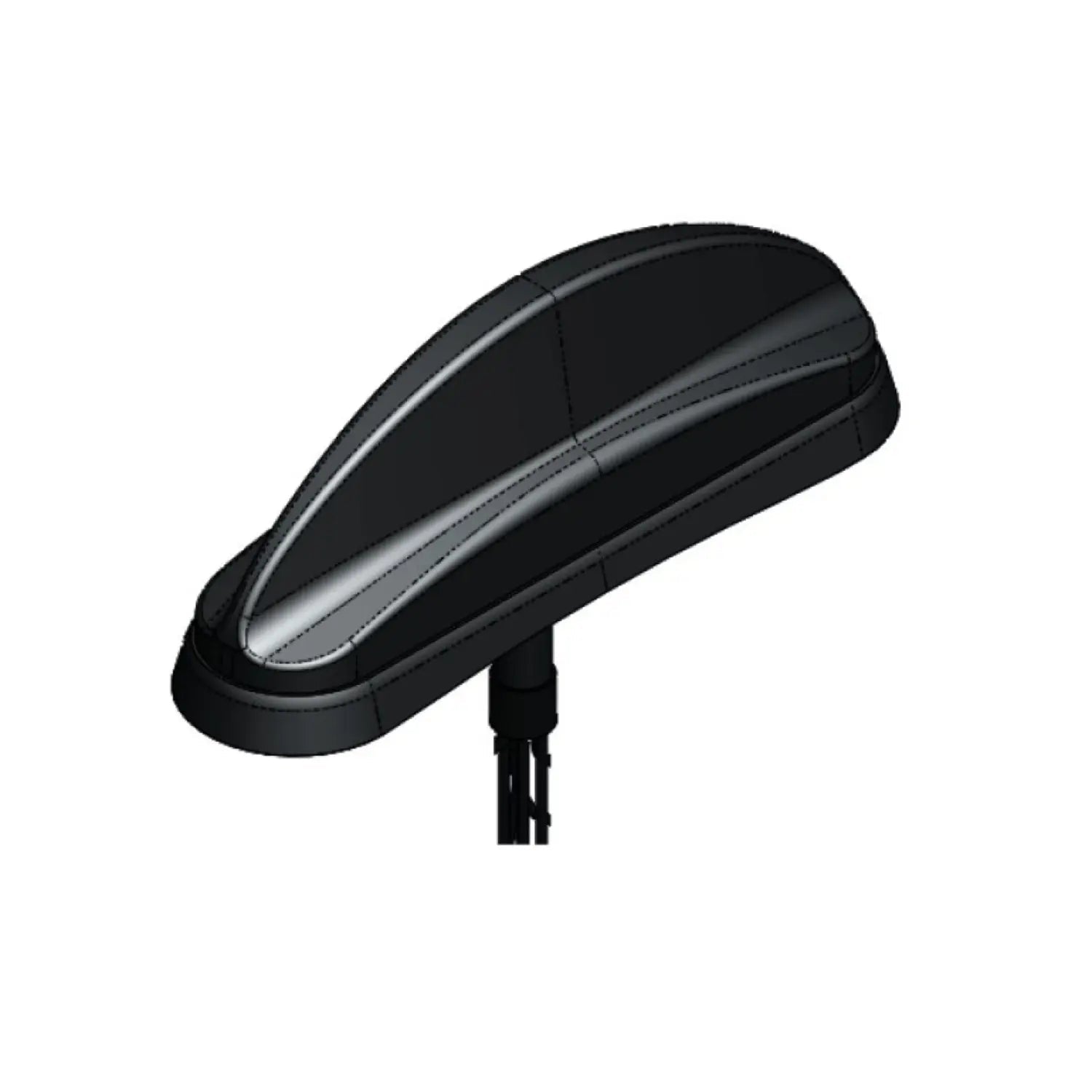

![Panorama LP[G]AM[F]-6-60 low-profile 4G/5G and Wi-Fi IoT antenna](http://shop.rcntechnologies.com/cdn/shop/files/PanoramaAntennaLPAM-6-60-D_f17e92c7-73f5-4861-ac6d-70dc4af59f33.webp?v=1749211576&width=1946)
![Panorama LP[G]AM[F]-6-60 low-profile 4G/5G and Wi-Fi IoT antenna](http://shop.rcntechnologies.com/cdn/shop/files/PanoramaAntennaLPAM-6-60-D_f17e92c7-73f5-4861-ac6d-70dc4af59f33.webp?v=1749211576&width=1445)
| Category | Antenna |
|---|
Product Overview
The LPAM-6-60-D listing covers Panorama's compact LP[G]AM[F]-6-60 IoT antenna with 2x2 MIMO 4G/5G and 2x2 MIMO Wi-Fi in one housing. The platform covers 617-6000 MHz with up to 9 dBi and supports Wi-Fi 6E, which suits kiosks, display screens and payment terminals that need both WAN and local Wi-Fi.
Panorama's current part-number table does not show an LPAM-6-60-D. The closest listed part is the LGAM-6-60-D, which adds a GPS/GNSS element to the same 2x2 cellular and 2x2 Wi-Fi layout. Contact an RCN specialist to confirm the exact part number before ordering.
Specifications
| Model | LPAM-6-60-D (RCN listing); Panorama lists LGAM-6-60-D with GPS |
|---|---|
| Antenna elements | 2x2 MIMO cellular, 2x2 MIMO Wi-Fi |
| Wi-Fi | 2x2 MIMO dual band, supports Wi-Fi 6E |
| Cellular frequency and peak gain | 617-960 MHz (5 dBi), 1427-3800 MHz (8 dBi), 4900-6000 MHz (9 dBi) |
| Radiation pattern | Omnidirectional |
| Max input power | 10 W |
| Connectors (Panorama family data) | Cellular: SMA (m); Wi-Fi: reverse-polarity SMA |
| Cable | Integrated flame-retardant RG174; Panorama lists 1 m and 3 m for this family |
| Dimensions | 243 x 63 x 90 mm (9.57 x 2.48 x 3.54 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP69K |
| Housing flammability | UL746C-F1, UL94-V0 |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount; designed for conductive metal panels |
| Housing color | Black |
View the Panorama LP[G]AM[F]-6-60 product page and datasheet
Right for you if
- Your device needs 2x2 cellular and 2x2 Wi-Fi from one compact antenna.
- You need 5G coverage from 617 MHz to 6 GHz.
- You want an IP69K, UL94-V0 housing for a kiosk or terminal.
- If you only need cellular, the LPAM-6-60 is the two-element version.
FAQ
Can I mount it on a non-metal surface?
Yes, with a tradeoff. Panorama designs the LP[G]AM[F]-6-60 for conductive metal panels and states it can be used on non-conductive panels with some loss of performance in the 600 MHz band. If your carrier relies on Band 71 or other low-band coverage at the site, a metal mounting surface gives the best result.
Why should I confirm the part number?
Panorama's published part table for this family lists the LGAM-6-60-D, with GPS, 2x2 cellular and 2x2 Wi-Fi, but not an LPAM-6-60-D without GPS. RCN wants you to receive the exact configuration your device needs, so a specialist will confirm the part number, cable length and connectors with you before the order ships.
Which Wi-Fi standard does it support?
Panorama states the LP[G]AM[F]-6-60 platform offers 2x2, 3x3 or 4x4 MIMO dual-band Wi-Fi that supports Wi-Fi 6E. The D configuration has two Wi-Fi elements. Wi-Fi connectors on this family are reverse-polarity SMA, which matches the Wi-Fi ports on most routers and gateways.
