Product Overview

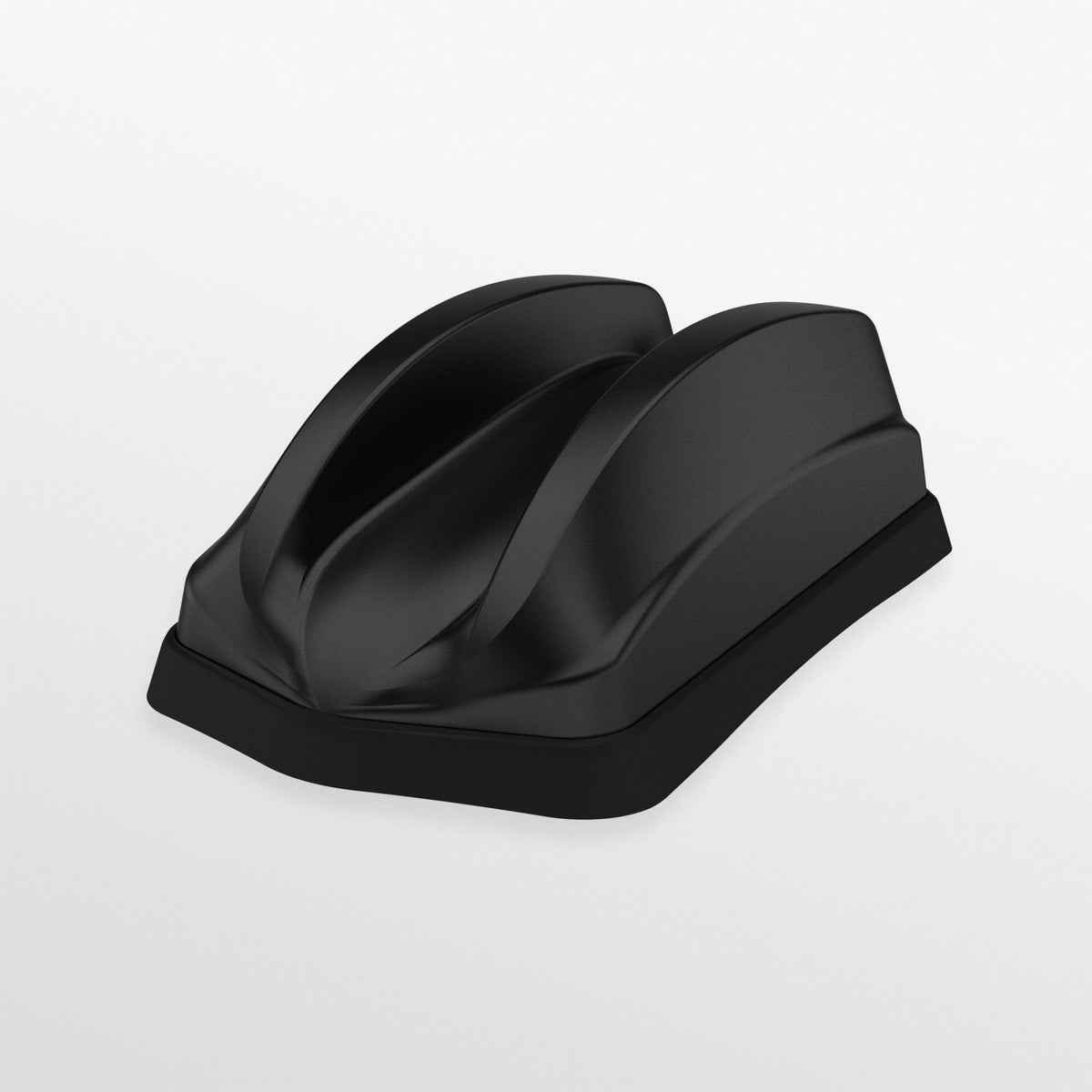

The GP-IN2670 gives a vehicle router 4x4 MIMO 5G, 4x4 MIMO Wi-Fi and GPS in Panorama's Dual Sharkee, a wide sharkfin that also carries a stud for a two-way radio whip. Police, fire and transit fleets use it to combine data and voice antennas on one roof penetration.

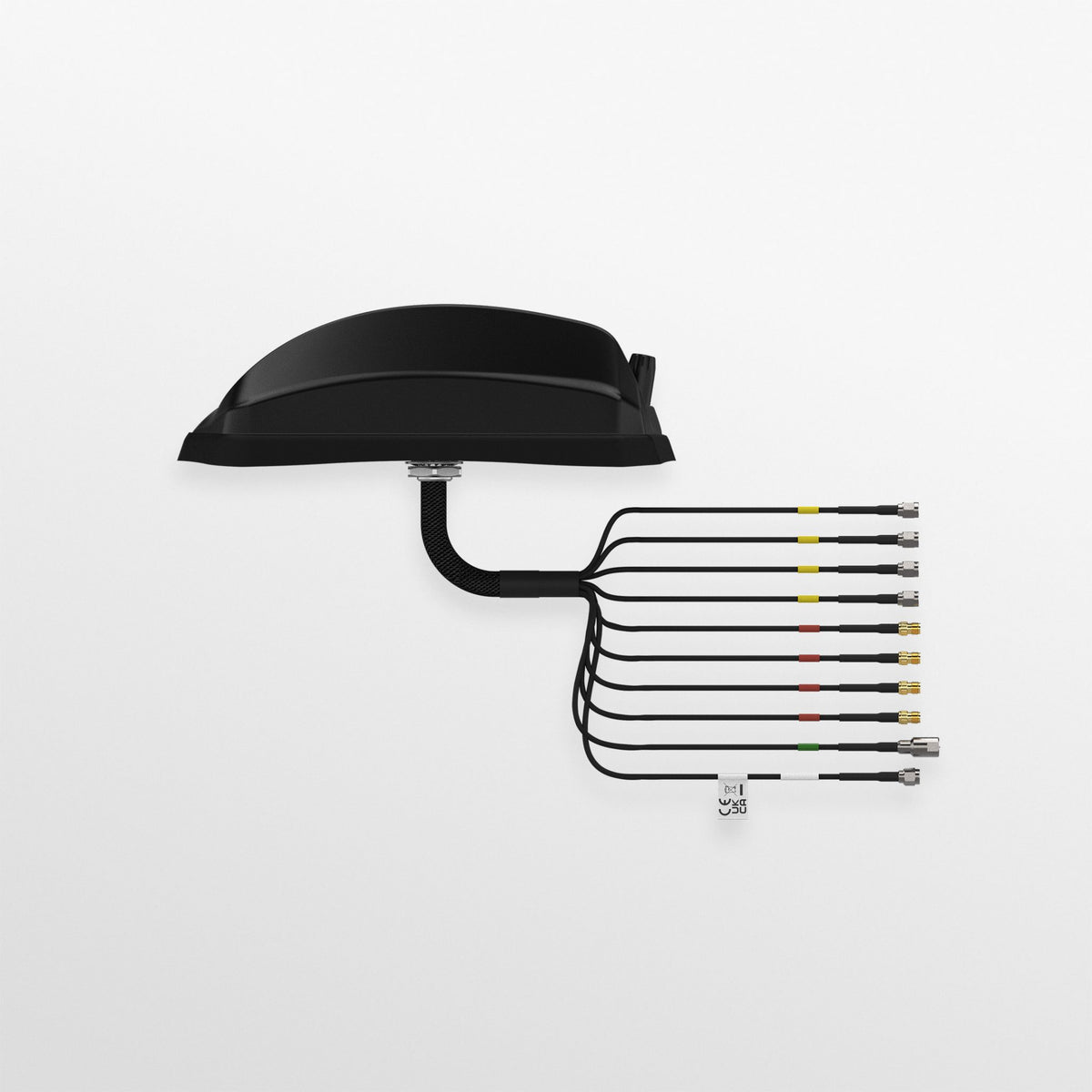

The kit pairs the Panorama GPSD4-6-60-Q antenna with factory-fitted 5 m (16 ft) flame-retardant cables. Cellular and GPS cables end in SMA male plugs and the 4 Wi-Fi cables end in reverse-polarity SMA plugs. A blanking cap covers the whip stud when no radio whip is fitted.
Specifications
| Model (kit) | GP-IN2670 (black) |
|---|---|
| Antenna in kit | GPSD4-6-60-Q |
| Antenna elements | 9 total: 4x4 MIMO cellular, 4x4 MIMO Wi-Fi, 1 GPS/GNSS, plus whip stud |
| Wi-Fi | 4x4 MIMO, dual band, supports Wi-Fi 6E |
| Cellular frequency | 617-960 MHz and 1427-6000 MHz |
| GNSS | GPS/GLONASS/Galileo/BeiDou, 1559-1612 MHz, 26 dB LNA, LTE Band 13/14 filtering |
| Radio whip mount | Integral stud for an external VHF, UHF or combination whip; blanking cap supplied |
| Radiation pattern | Omnidirectional |
| Connectors | Cellular: 4 x SMA (m); GPS: SMA (m); Wi-Fi: 4 x reverse-polarity SMA; whip: FME (f) |
| Dimensions | 253 x 142 x 82 mm (9.96 x 5.59 x 3.23 in) |
| Operating temperature | -40 to +80 °C (-40 to +176 °F) |
| Ingress rating | IP69K |
| Cable | Flame-retardant RG174, 5 m (16 ft), fitted |
| Cable flammability | EN45545-2 HL3, UN ECE R118 |
| Mounting | Single-hole panel mount; install on a metal panel when a radio whip is fitted |
| Housing color | Black |
| Compatibility | Vehicle routers with four cellular SMA ports, 4 RP-SMA Wi-Fi ports and a GPS SMA port; radio whip sold separately |
View the Panorama GPS[X]D4[X]-6-60 Dual Sharkee product page and datasheet
Right for you if
- Your router runs 4x4 MIMO cellular with 4 external Wi-Fi ports and GPS.
- You want a two-way radio whip on the same roof antenna.
- You need 5G coverage from 617 MHz to 6 GHz and Wi-Fi 6E support.
- If your router has a different number of Wi-Fi ports, see the GP-IN2679 (3x3 Wi-Fi).
FAQ
Can I add a two-way radio whip?
Yes. The Dual Sharkee has an integral stud mount for an external VHF, UHF or combination whip, with an FME female whip connector, and a blanking cap is supplied for when you do not need it. Panorama states the antenna should be installed on a metal panel when a radio whip is used. The whip itself is sold separately.
Will it mount on a non-metal roof?
Only without a whip. Panorama states that if a radio whip is not required, the Dual Sharkee may be fitted on a non-metallic panel and still offer similar performance. With a whip fitted, install it on a metal panel. Panorama also lists a magnetic mounting option and ribbed-roof adapters for this antenna family.
What connectors are on the cables?
The GP-IN2670 ships with 5 m (16 ft) cables fitted at the factory, one per element. The four cellular cables and the GPS cable end in SMA male plugs, and the 4 Wi-Fi cables end in reverse-polarity SMA plugs. Panorama also lists a loose-cable (-LC) version and a white -W version of this kit.
