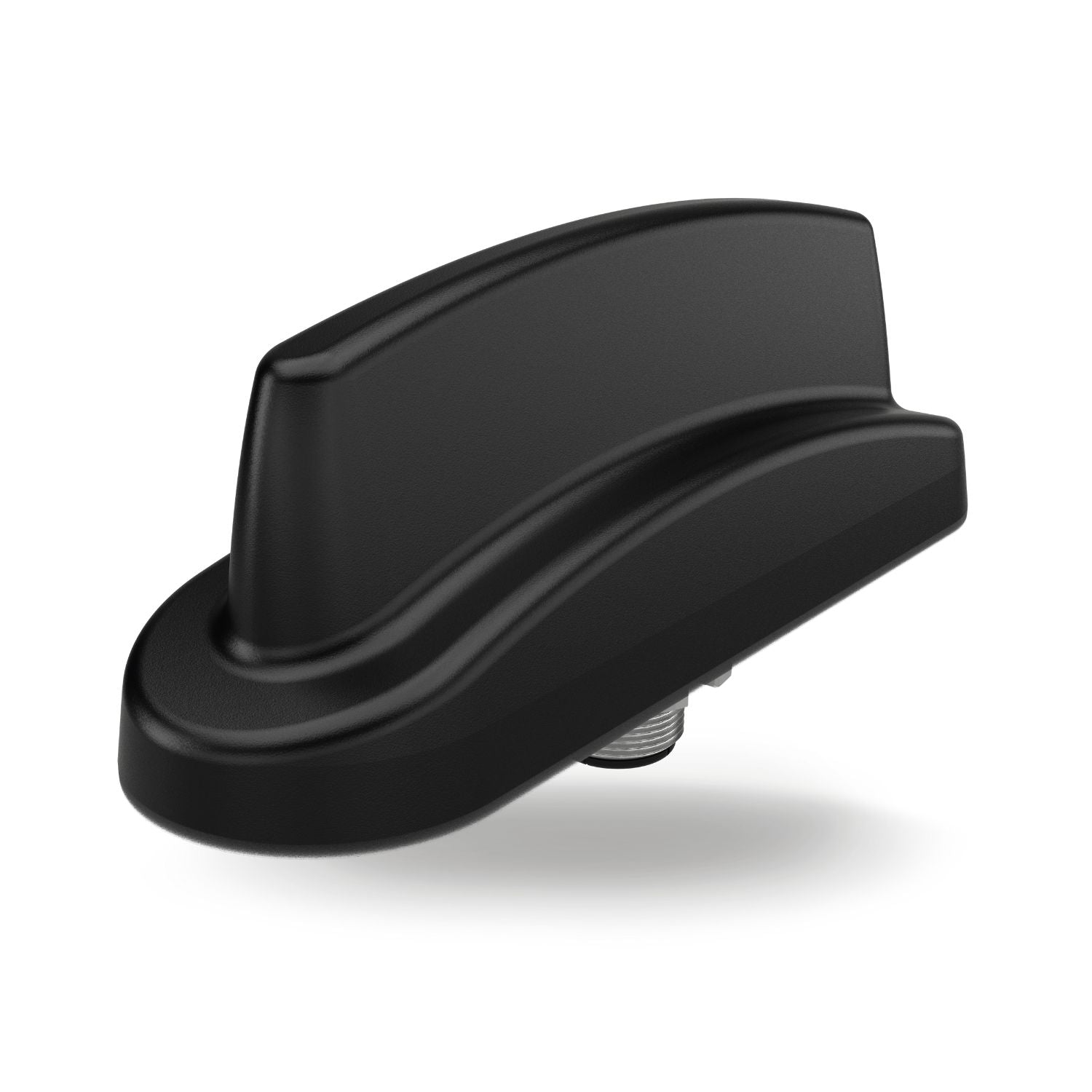

Panorama LPAM-BC3G-26 2-in-1 Cellular Antenna with 2x2 MIMO 4G LTE Elements

Panorama LPAM-BC3G-26 2-in-1 Cellular Antenna with 2x2 MIMO 4G LTE Elements

SKU: LPAM-BC3G-26-061RSP

$64.42
$64.42
Sale Sold out
Shipping calculated at checkout.
Cable Length

Can't Decide? Connect with Our Expert Crew
View full details

Product Overview

Panorama LPAM-BC3G-26 2-in-1 2x2 MIMO 4G Cellular Antenna, Choice of Cable Lengths

Panorama’s LPAM-BC3G-26 is a reliable cellular antenna for machine-to-machine (M2M) and Internet of Things (IoT) applications. The sleek, weatherproof dome integrates two MIMO cellular antennas with effective isolation and correlation. It supports global 4G LTE bands in 698 to 960 MHz and 1710 to 3800 MHz. The LPAM-BC3G-26 supports many wireless routers and is ideal for control panels, kiosks, and vending machines.

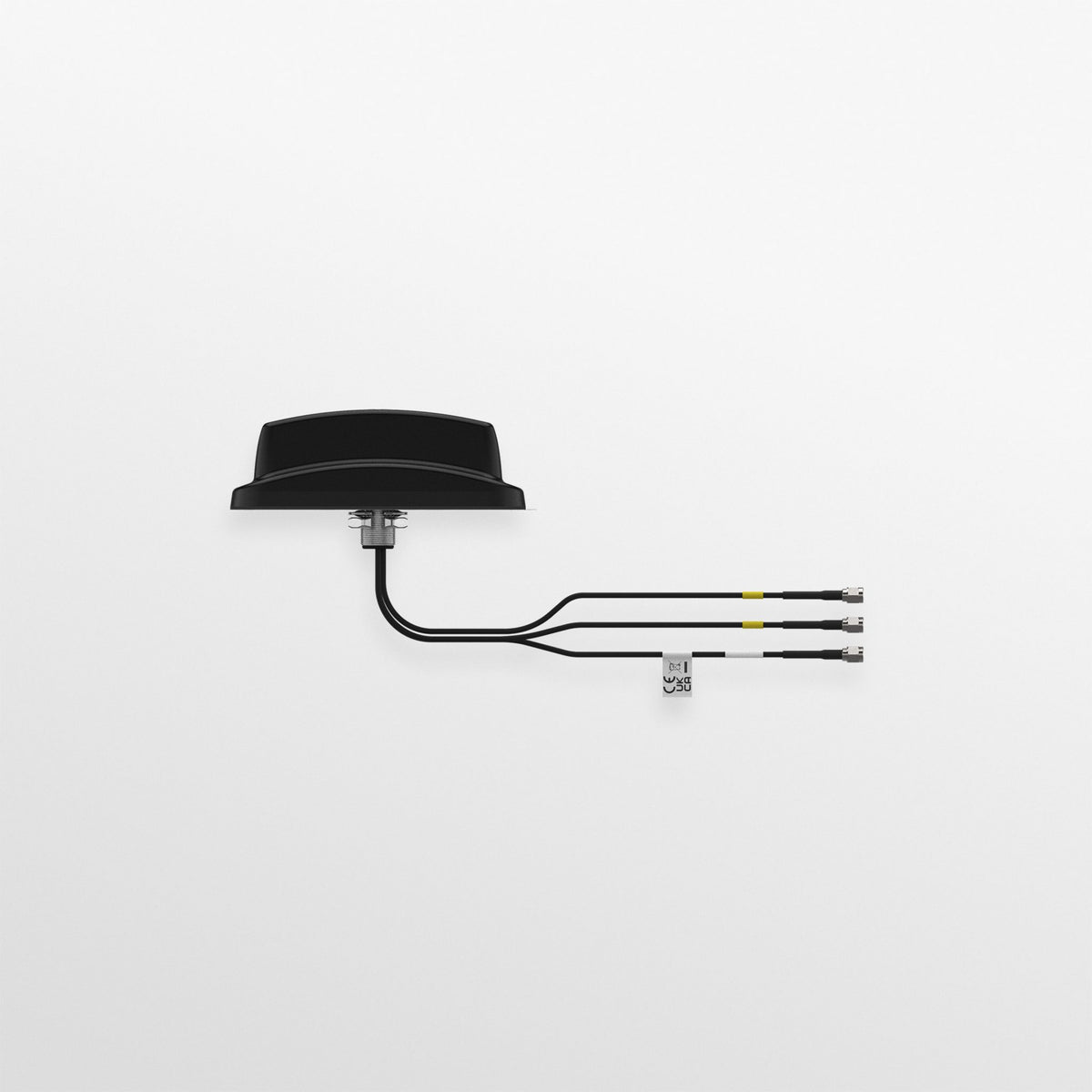

The durable radome stands up to severe temperatures and weather. The bottom plate installs on a conductive or non-conductive surface through a single ¾-inch mounting hole and seals with acrylic adhesive. The two cellular cables pass through the hollow threaded bolt for protection and are hidden from view. Choose from one or three-meter cable lengths with SMA male connectors. The cost-efficient LPAM-BC3G-26 antenna is a networking component with superior performance and extraordinary toughness.

Key Features

  • Omnidirectional 2x2 MIMO 3G/4G LTE antenna
  • LTE frequencies of 698 to 960 and 1710 to 3800 MHz
  • 5 dBi peak gain
  • 20 W max input power
  • Ground plane independent
  • Choice of RG174 cable lengths
  • SMA male connectors
  • Rugged UV stable radome in black color
  • Operating temperature from -30 to 70°C
  • Surface mount with threaded bolt
  • Compatible with Ericsson Cradlepoint routers

Configurations

LPAM-BC3G-26-1SP, 2x2 MIMO cellular antenna with 1-meter cables
LPAM-BC3G-26-3SP, Same as above with 3-meter cables
LPAM-BC3G-26-05RSP, Same as above with 0.5-meter cables
LPAM-BC3G-26-061RSP, Same as above with 0.61-meter cables (24 inches)

Need help choosing or ready to order?

Contact RCN for a quote  |  Learn about our NOC support

Frequently Asked Questions

What is the Panorama LPAM-BC3G-26 and what is it designed for?
The LPAM-BC3G-26 is a compact, weatherproof 2-in-1 low-profile cellular antenna with two integrated 2x2 MIMO LTE elements. It is purpose-built for machine-to-machine (M2M) and Internet of Things (IoT) applications including control panels, kiosks, vending machines, and industrial enclosures. The sleek dome design provides effective MIMO isolation and correlation without requiring an external ground plane.
What frequency bands does the LPAM-BC3G-26 cover?
The LPAM-BC3G-26 covers global 4G LTE frequency bands: 698–960 MHz (low-band LTE, including Band 12/13/17/28) and 1710–3800 MHz (mid-band LTE, including Band 4/7/30/42/43). It delivers up to 5 dBi peak gain across these ranges. Note: this antenna covers up to 3.8 GHz and is optimized for 4G LTE; it does not extend into the full 5G NR sub-6 GHz spectrum above 3.8 GHz.
How is the LPAM-BC3G-26 installed?

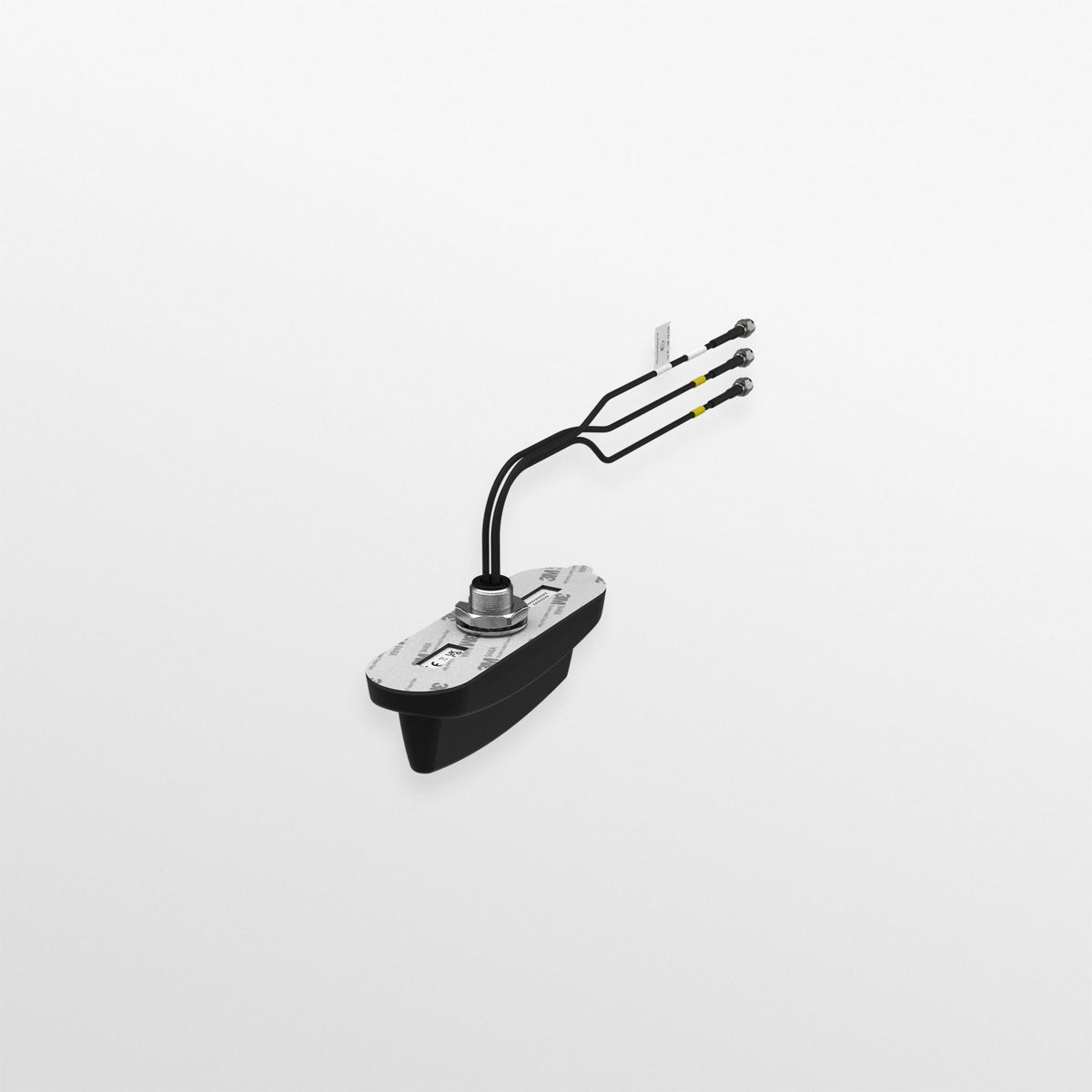

The LPAM-BC3G-26 uses a surface-mount installation through a single ¾-inch (19 mm) hole in a panel, cabinet top, or vehicle roof. The hollow threaded bolt passes both cellular cables through the mounting surface, protecting them from view. An acrylic adhesive gasket seals the base. A wall-mount bracket (Panorama SP5-0577) is available separately for non-panel applications. The antenna is ground-plane independent and performs on both conductive and non-conductive surfaces.
What is the MIMO configuration and what connectors does it use?
The LPAM-BC3G-26 is a 2:1 antenna with two independently fed MIMO LTE elements (2x2 MIMO). It ships with two RG174 coaxial cables in your choice of 0.5-, 0.61-, 1-, or 3-meter lengths, each terminated with an SMA male connector. Impedance is 50 ohms and maximum input power is 20 watts.
Is the LPAM-BC3G-26 compatible with Ericsson Cradlepoint routers?
Yes. The LPAM-BC3G-26 is confirmed compatible with Ericsson Cradlepoint cellular routers. Its SMA male connectors pair directly with the antenna ports on Cradlepoint devices, and its 698–3800 MHz coverage aligns with the LTE band sets supported by Cradlepoint routers such as the IBR900, IBR1700, and R1900 series.
What are the environmental ratings and operating temperature range?
The LPAM-BC3G-26 features a UV-stable, impact-resistant ABS radome and is rated for operating temperatures from -30°C to +70°C (-22°F to +158°F). While the datasheet does not assign a specific IP ingress rating, the sealed surface-mount design and rugged radome make it suitable for outdoor and harsh-environment deployments.
