| Pattern | Directional |
|---|---|
| Max input power w | 50 |
| Cellular lte elements | 4 x 4 MIMO |
| Wifi elements | No |
| Uhf elements | No |
1
/
of
1

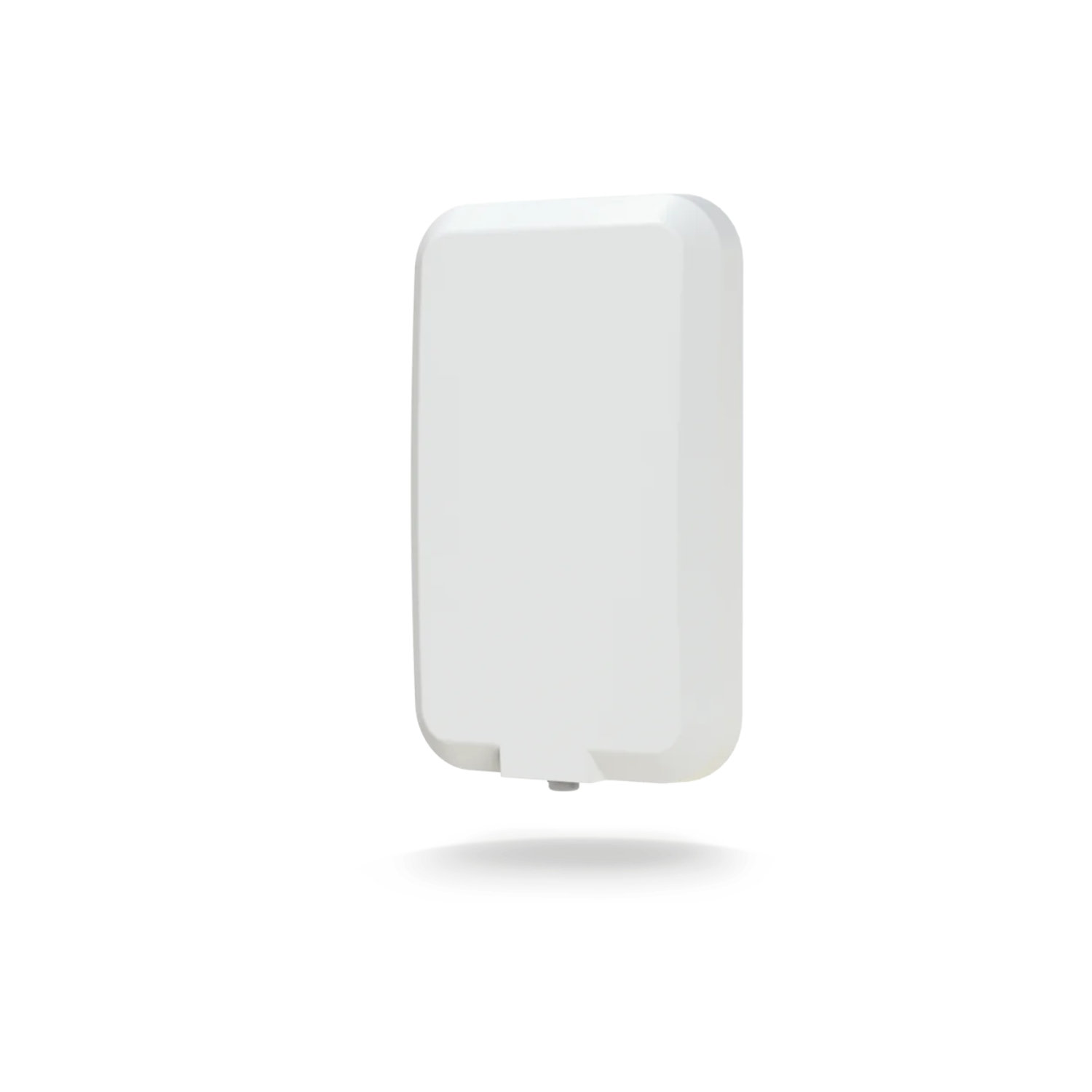

Panorama WMM4G-6-60 4-in-1 4G/5G LTE Directional 4x4 MIMO Antenna, 9 dBi Gain
Panorama WMM4G-6-60 4-in-1 4G/5G LTE Directional 4x4 MIMO Antenna, 9 dBi Gain
SKU: SKU: WMM4G-6-60-05NJ
Regular price
$507.15
Regular price
Sale price
$507.15
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
Panorama WMM4G-6-60 4G/5G LTE Directional Panel Antenna, Ericsson Cradlepoint Approved
The WMM4G-6-60 is a directional high-gain 4x4 MIMO panel antenna, which boosts 4G and 5G signals. Incorporating four separately fed wideband element assemblies in a single housing, it provides 6 dBi of peak gain in the 617 to 960 MHz frequency range and 9 dBi peak gain within the 1710 to 6000 MHz range. The WMM4G-6-60 is a high-performance but cost-effective 4x4 MIMO panel antenna for network operators, service providers, and end-users. It ensures stability and improved data throughput for cellular routers and modems and is ideal for enterprise, branch, and failover applications.
The weather-resistant housing includes brackets for vertical walls and mast mounting. Four low-loss, double-shielded cables in lengths from 1.5 feet (.5 meter) to 98 feet (30 meters) pass through the bottom of the radome to minimize weather exposure to the connector joints.
Electrical data
Gps data
| Gps frequency range | 1560-1612MHz |
|---|---|
| Lna gain db | 26 |
| Number of gps elements | No |
Mechanical data
| Colour | White |
|---|---|
| Length | 307 (mm) | 12.09 (in) |
| Width | 85 (mm) | 3.35 (in) |
| Height | 507 (mm) | 19.96 (in) |
| Operating temperature | -45°/ +80°C (-49.0°/ +176.0°F) |
Cable data
| Cable length lte | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
|---|---|
| Cable length gps | 5 (m) | 16.40 (ft) |
| Cable type lte | FR CS32 |
| Cable type gps | CS29 |
Termination data
| Connector gps | N (f); FAKRA D; SMA (m) |
|---|---|
| Connector lte | N (f); FAKRA D; SMA (m); N (m) |
Mounting data
| Mounting type fixed | Desk; Mast; Wall |
|---|---|
| Mounting methods | Desk; Mast; Wall |
Approvals data
| Ip rating | IP65 |
|---|---|
| Cable flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
Technology data
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; GPS; GNSS |
|---|
- ✓ High gain directional antenna
- ✓ Wall or mast mount
- ✓ IP66 rated for outdoor use
- ✓ 4×4 MiMo wideband 600-6000MHz
- ✓ 4G/5G ready antenna
- ✓ 6-9dBi peak gain
- ✓ Supports LTE CAT18/20 routers
- ✓ Ideal for branch networks or failover
- ✓ Weather resistant product
- ✓ Branch network
- ✓ Failover
- ✓ Rural broadband
